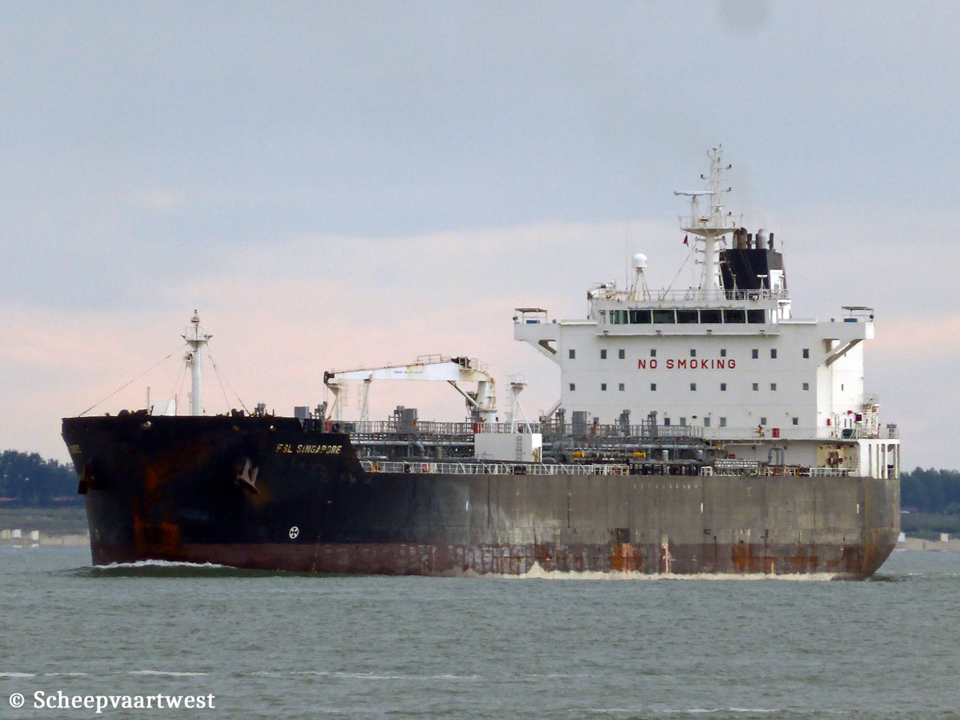

FSL Singapore IMO 9311725 03

Westerschelde 02 January 2015

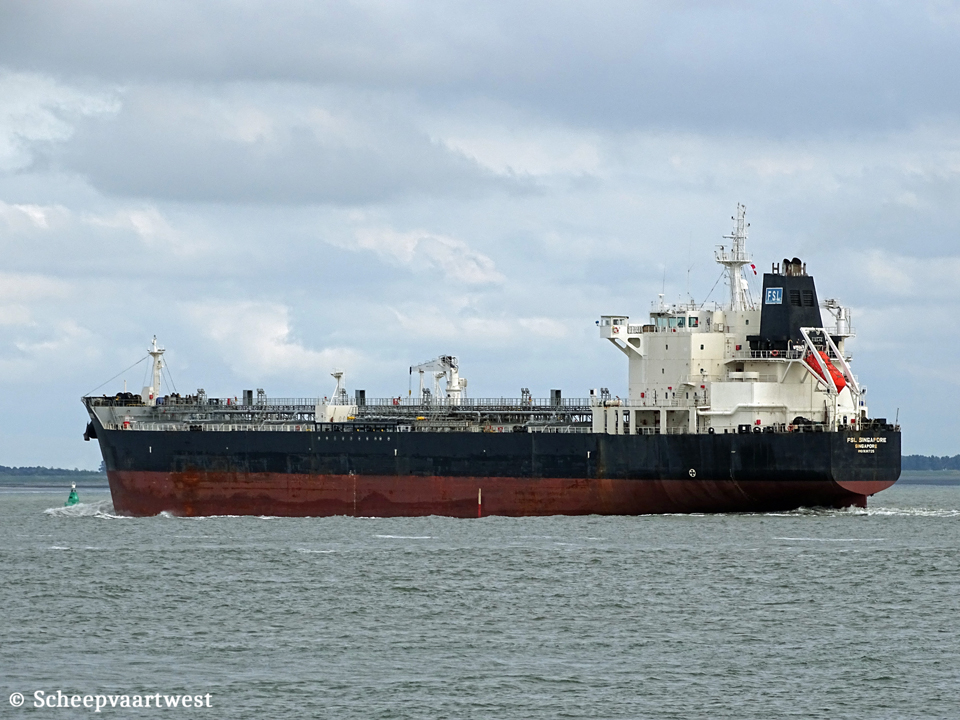

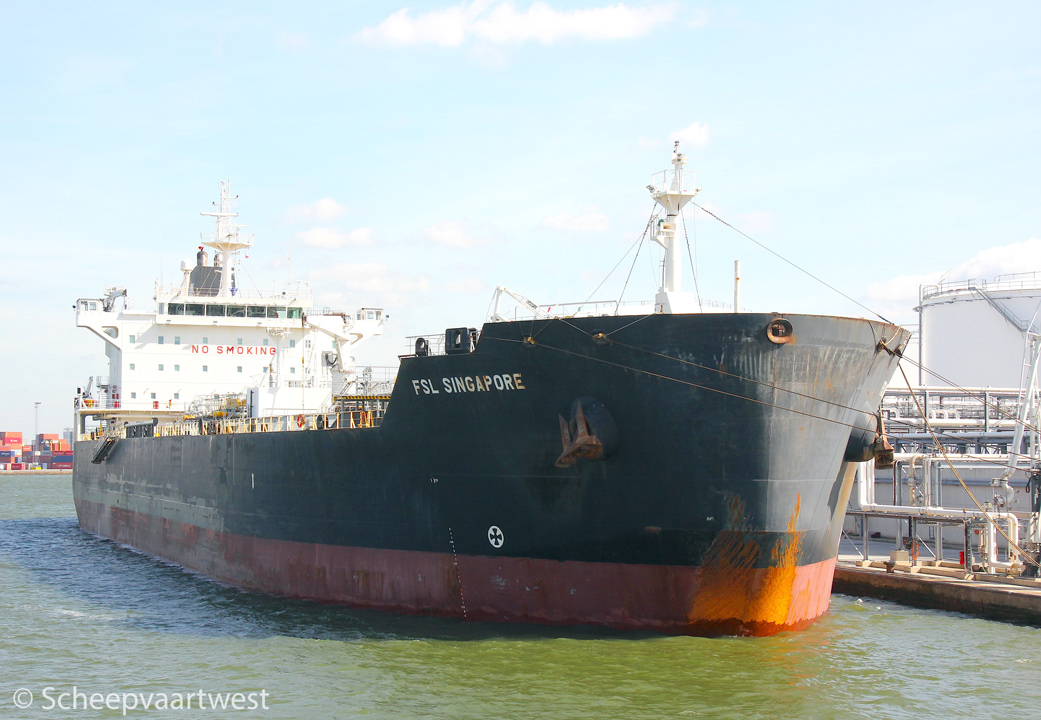

FSL Singapore 01   FSL Singapore IMO 9311725 02
Antwerpen 11/09/18   Westerschelde 06/09/18


Name

FSL SINGAPORE

Previous names

2006 - 06/2010 Verona I

Type

Oil product tanker

IMO-number

9311725

Call sign

9VVN2

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

2006 - 2007 Cyprus, Limassol

2007 - 2008 Republic of Singapore - Call sign: 9VVN2

2008 - 2010 Cyprus

GT

28.068 t

Suez: 29.345,10 t

DWT

Summer: 47.470 t

Winter: 45.885 t

NT

13.273 t

Suez: 24.803,87 t

Panama: 23.328 t

Displacement

Summer: 57.720 t

Winter: 56.135 t

Length

183,28 m overall

177,00 m between perpendiculars

Breadth

32,25 m extreme

Draught

Summer: 12,52 m

Winter: 12,26 m

Keel to masthead

47,07 m

Air draft

Summer deadweight: 34,55 m

Normal ballast: 39,50 m

Lightship: 44,37 m

Freeboard

Summer: 5.510 mm

Winter: 5.770 mm

Depth

18,00 m moulded

Speed

16,5 knots in ballast

Laden speed: 16,0 knots / 13,0 knots economic

Built

2006

Keel laid

17/03/2006

Launch date

24/05/2006

Date of completion

13/07/2006

Builder

Hyundai Mipo Dockyard Co., Ltd.

Ulsan

South Korea

Yard number

0383

Hull material

Steel

Hull type

Double hull

Main engine

HHI/MAN-B&W 6S60MC-C Mk7 - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 13.560 kW / 18.436 hp

Propellers

1x Controllable pitch propeller

Manufacturer: Wärtsilä Propulsion Norway AS

Boilers

1x Auxiliary boiler, oil/gas fired - Mission OL

Manufacturer: Aalborg Industries A/S

1x Auxiliary boiler, composite - Mission OC

Manufacturer: Alfa Laval Aalborg A/S

Generators

3x Hyundai Himsen 6H21/32 main diesel generatorsets each 960 kW

Manufacturer: Hyundai Heavy Ind. Co. Ltd.

Emergency generator

1x Cummins diesel generatorset

Bow thruster

1x Brunvoll FU80 - 936 kW / 1.273 bhp, forward

1x Brunvoll FU63 - 960 kW / 1.002 bhp, aft

Number of cargo tanks

12

Cargo tank capacity 98%

Seg#1: 15.396,9 m³ (1W, 5W)

Seg#2: 16.794 m³ (2W, 6W)

Seg#3: 8.953,2 m³ (3W)

Seg#4: 8.953,2 m³ (4W)

Total cubic capacity (98%): 50.096 m³

Number of slop tanks

2

Slop tank capacity 98%

1.100,80 m³

Pumps

12x Centrifugal cargo pumps each 600 m³/h

2x Centrifugal cargo pumps each 300 m³/h

2x Centrifugal ballast pumps each 1.000 m³/h

Manifolds

Distance bridge front to centre of manifold: 57,80 m

Bow to centre manifold: 90,80 m

Stern to centre manifold: 92,50 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 870 mm

Distance main deck to centre of manifold: 2.100 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Ballast: 21.246,4 m³

Fuel oil: 1.478,90 m³

Diesel oil: 448,50 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Lifting equipment

1x Crane - SWL 10,0 t centre main deck

Commerical manager

Hafnia MR Pool Management Aps

Tuborg Boulevard 5

2900 Hellerup

Denmark

ISM manager

Columbia Shipmanagement Singapore (Singapore) Pte. Ltd.

9 Temasek Boulevard, # 20/03, Suntec Tower Two

Singapore City, 038989

Republic of Singapore

Registered owner

FSL-19 Ptr Ltd. - Republic of Singapore

Care of Hafnia Management AS

Tuborg Boulevard 5

2900 Hellerup

Denmark

Renamed

10/2022 Bond

Liberia, Monrovia - Call sign: 5LIO9

Owner: Auriga Holdings Inc., Istanbul - Turkey

Latest data adjustment

24 August 2023
