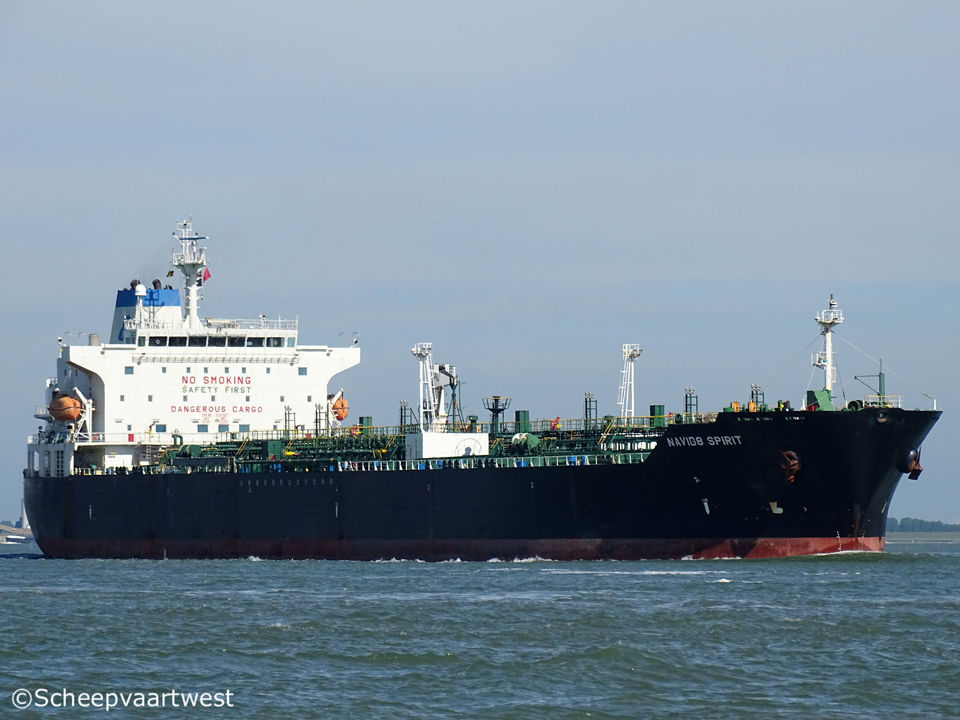

Navig8 Spirit 01

Westerschelde 08 June 2016



Name

NAVIG8 SPIRIT

Previous names

2006 - 09/2007 FR8 Spirit

09/2007 - 2016 Navig8 Spirit

Type

Chemical & Oil products tanker

IMO-number

9337327

Call sign

V7KA2

Flag

Marshall islands

Port of registry

Majuro

GT

30.105 t

Suez: 31.465,28 t

DWT

Summer: 50.548,2 t

Winter: 49.137,8 t

NT

13.312 t

Suez: 26.876,01 t

Panama: 24.936 t

Displacement

Summer: 60.644 t

Winter: 59.233 t

Length

183,00 m overall

174,00 m between perpendiculars

Breadth

32,23 m extreme

Draught

Summer: 13,02 m

Winter: 12,75 m

Keel to masthead

47,00 m

Air draft

44,47 m lightship

39,50 m normal ballast

33,99 m summer DWT

Freeboard

Summer: 6.113 mm

Winter: 6.380 mm

Depth

19,10 m moulded

Speed

13,5 knots ballast

13,0 knots laden

Built

2006

Date of completion

28/12/2006

Builder

SPP Shipbuilding Co., Ltd.
Tongyoung
South Korea

Yard number

H1003

Hull material

Steel

Hull type

Double hull

Main engine

1x Wärtsilä RTA48TB - 2 stroke 7 cylinder 480 x 2.000 mm combustion engine 9.485 kW / 12.887 hp at 127 rpm

Built: 07/09/2006

Manufacturer: MID/3.MAJ Engines & Cranes; Rijeka - Croatia

Propellers

1x Screw propeller solid aft at 127 rpm

Boilers

1x CHR Kangrim 265,00 m² - 7,0 bar
1x CHF Kangrim 110,00 m² - 7,0 bar

Generators

3x Yanmar main diesel generatorsets each 1.125 kVA - 900 kW - 1.318 hp

Emergency generator

1x Diesel generatorset 235 kVA - 188 kW - 1.318 hp

Number of tanks

12

Total tank capacity 98%

52.150,9 m³

Capacity of tanks 98%

No1 Segregation: 1w: 6.159 m³

No2 Segregation: 2w: 9.235 m³

No3 Segregation: 3w: 9.412 m³

No4 Segregation: 4w: 9.412 m³

No5 Segregation: 5w: 9.412 m³

No6 Segregation: 6w: 8.513 m³

No7 Segregation: Slw: 1.400 m³

Number of slop tanks

2

Slop tank capacity

1.400,3 m³

Pumps

12x Centrifugal cargo pumps each 600 m³/h

2x Centrifugal cargo pumps each 630 m³/h

1x Centrifugal cargo pump 150 m³/h

2x Framo centrifugal deepwell pumps each 750 m³/h

Tank capacities

Fuel oil: 800 m³

Diesel oil: 570 m³

Gas oil: 121 m³

Manifold

Bow to centre manifolds: 92,00 m

Stern to centre manifolds: 91,00 m

Distance bridge front to c manifolds: 56,00 m

Distance between cargo manifold centres: 2.000 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 m

Top of rail to centre of manifold: 170 mm

Distance main deck to centre manifold: 2.100 mm

Spill tank grating to centre of manifolds: 900 mm

Lifting equipment

1x crane - SWL 10,0 t midships

Manager

Navig8 Group
Republic of Singapore

Renamed

2016 T Rex

Marshall Islands, Majuro - Call sign: V7KA2

Owner: Optasia Inc.

Operator: Stealth Maritime Corporation

Latest data adjustment

08 September 2018
