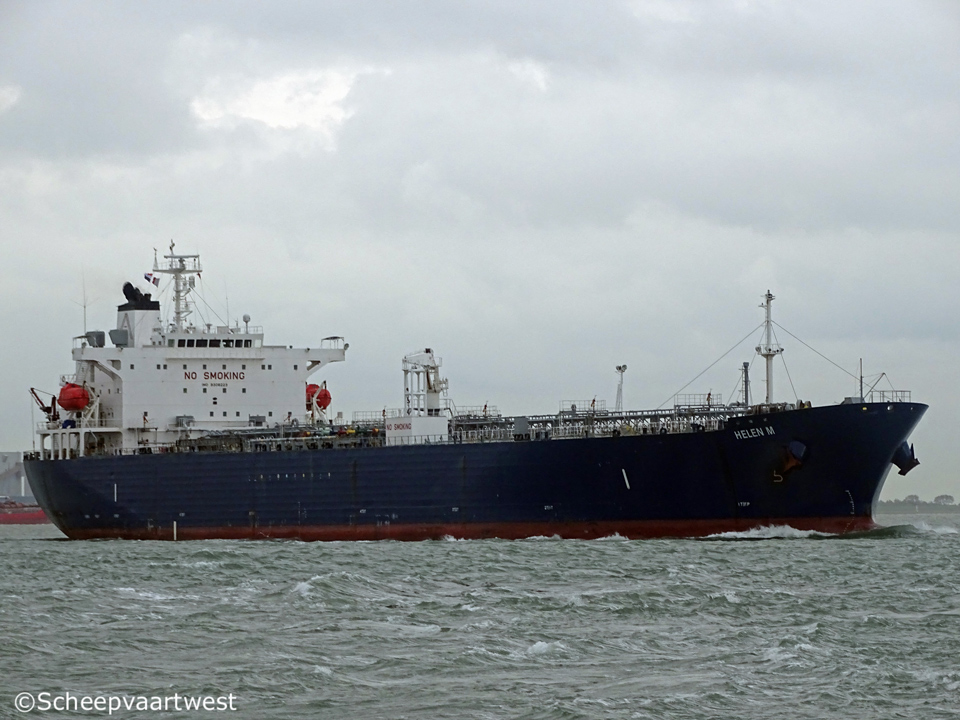

Westerschelde 10 October 2017 |
|
Name |
HELEN M |
|
Previous names |
High Light Signal Maya |
|
Type |
Oil products tanker |
|
IMO-number |
9308223 |
|
Call sign |
V7UA2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2005 - 2015 Republic of Panama, Panama City 2015 - 2016 Malta; Valletta - Call sign: 9HA2815 |
|
GT |
28.245 t Suez: 29.649,17 t |
|
DWT |
Summer: 46.843 t Winter: 45.518 t |
|
NT |
12.822 t Suez: 26.622,65 t Panama: 23.463 t |
|
Displacement |
Summer: 55.682 t Winter: 24.357 t |
|
Length |
179,90 m overall 172,00 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Summer: 12,80 m Winter: 12,53 m |
|
Keel to masthead |
44,12 m |
|
Air draft |
Summer DWT: 31;31 m full mast Normal ballast: 36,71 m full mast Lightship: 41,54 m full mast |
|
Freeboard |
Summer: 6,48 m Winter: 6,74 m |
|
Depth |
19,25 m moulded |
|
Speed |
16,3 knots |
|
Built |
2005 |
|
Date of completion |
25/10/2005 |
|
Builder |
Naikai Zosen Corporation Setoda Shipyard Japan |
|
Yard number |
693 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hitachi/MAN B&W 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.880 hp at 127,0 rpm |
|
Propellers |
1x Fixed controllable pitch propeller |
|
Boilers |
1x CHR 282,30 m² - 6,9 bar |
|
Generators |
3x Yanmar diesel 6N21 diesel generatorsets each 1.062,5 kW- 850 kW - 1.155 hp |
|
Number of cargo tanks |
12 Total 98%: 52.246,2 m³ |
|
Capacity of each natural segregation 98% |
Seg#1: 14.724,9 m³ (1 P/S and 5 P/S) Seg#2: 15.115,7 m³ (2 P/S and 6 P/S) Seg#3: 11.516,5 m³ (3 P/S) Seg#4: 12.473,0 m³ (4P/S) |
|
Slop tank capacity 98% |
1.810,3 m³ |
|
Pumps |
4x Cargo pumps each 800 m³/h 1x Horizontal centrifugal ballast pump 1.100 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 55,20 m Bow to centre manifold: 90,50 m Stern to centre manifold: 89,40 m Distance between cargo manifold centres: 2.000 mm Distance ship rail to manifold: 4.900 mm Distance manifold to ships side: 5.100 mm Top of rail to centre manifold: 721 mm Distance main deck to centre of manifold: 1.880 mm Spill tank grating to centre manifold: 900 mm |
|
Tank capacities |
Fuel oil: 2.371,03 m³ Diesel oil: 772,63 m³ Fresh water: 308 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Technical operator |
Benetech Shipping S.A. 45 Varis Avenue |
|
Commercial operator |
Benetech Shipping S.A. 45 Varis Avenue |
|
Registered owner |
Helen Trading SA |
|
Latest data adjustment |
31 August 2018 |
