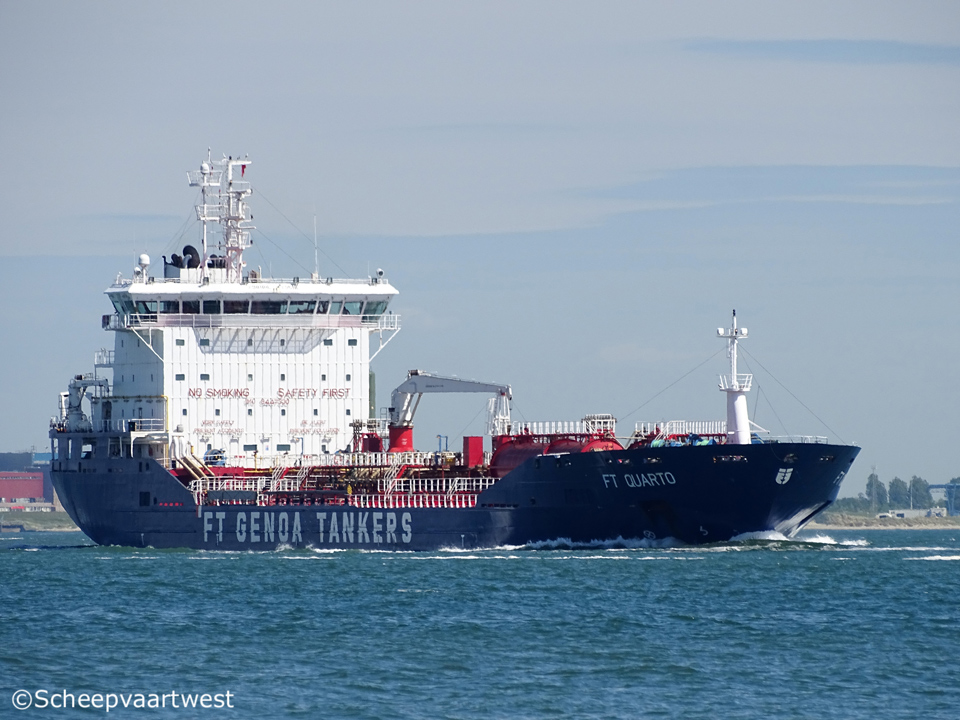

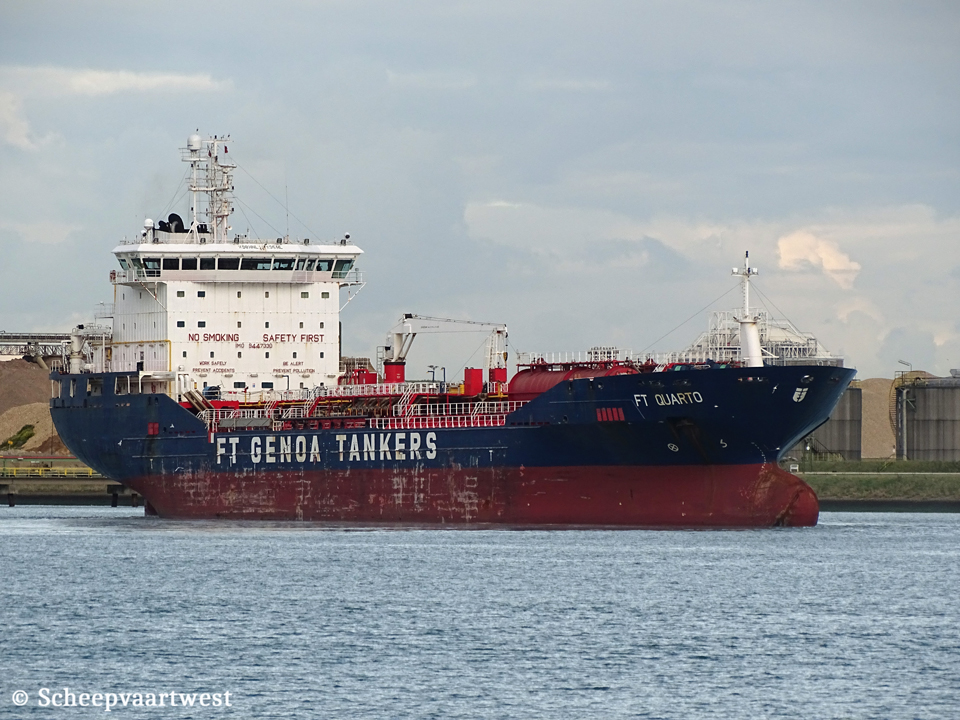

FT Quarto 01

Westerschelde 24 May 2017



Name

FT QUARTO

Type

Oil / Chemical tanker

IMO-number

9447330

Call sign

ICTJ

Flag

Italy

Port of registry

Palermo

GT

11.393 t

DWT

Summer: 18.000 t

NT

5.891 t

Length

147,50 m overall

140,00 m between perpendiculars

Breadth

22,40 m extreme

Draught

Summer: 9,35 m

4,30 m lightship

Freeboard

3.256 mm

Depth

13,60 m

Speed

15,0 knots

Built

2012

Date of completion

09/01/2012

Builder

Anadolu Deniz Insaat Kizaklari San. Ve Tic. Ltd.Sti
Istanbul
Turkey

Yard number

220

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN B&W -8S35-MC - 2 stroke 8 cylinder 350 x 140 mm combustion engine 5.920 kW / 8.043 hp at 173 rpm

Manufacturer: MAN Diesel SE, Frederikshavn - Denmark

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHO S-MAN AB 86,00 m² - 10,0 bar
1x CHO 86.00 m² - 10,0 bar
1x CHR S-MAN AB 102,00 m² - 10,0 bar

Generators

4x Yanmar diesel generatorsets each 725 kVA - 580 kW - 842 hp

Bow thruster

745 kW / 1.000 bhp

Number of tanks

12

Total capacity of tanks 98%

Tank 1P: 1.059 m³

Tank 1S: 1.058 m³

Tank 2P: 2.031 m³

Tank 2S: 2.036 m³

Tank 3P: 1.809 m³

Tank 3S: 1.813 m³

Tank 4P: 1.816 m³

Tank 4S: 1.811 m³

Tank 5P: 1.805 m³

Tank 5S: 1.801 m³

Tank 6P: 1.577 m³

Tank 6S: 1.580 m³

Total: 20.207 m³ ex slop tanks

Number of slop tanks

2

Slop tank capacity 98%

Tank 1P: 214 m³

Tank 1S: 215 m³

Total: 429 m³

Pumps

12 Framo hydraulic driven deepwell cargo pumps each 380 m³/h

2 Framo hydraulic driven deepwell cargo pumps each 100 m³/h

Tank capacities

Fuel: 1.024,1 m³

Manager

Denizcilik Ticaret Ve Sanayi A.S.
Mehmet Afkan Sokak No: 9-11
34718 Kosuyolu - Kadikoy
Istanbul
Turkey

Operator

FT Genoa Tankers
Salita Santa Caterina 2/4c

16123 Genova
Italy

Owner

FT Quarto Tankers Ltd.
Care of Furtrans Denizcilik Ticaret Ve Sanayi As (Furtrans Shipping & Trading As)
Mehmet Aktan Sokak 9/11
Kosuyolu Mah, Kadikoy
34718 Istanbul
Turkey

Registered owner

FT Quarto Tankers Ltd.

Latest data adjustment

27 August 2018
