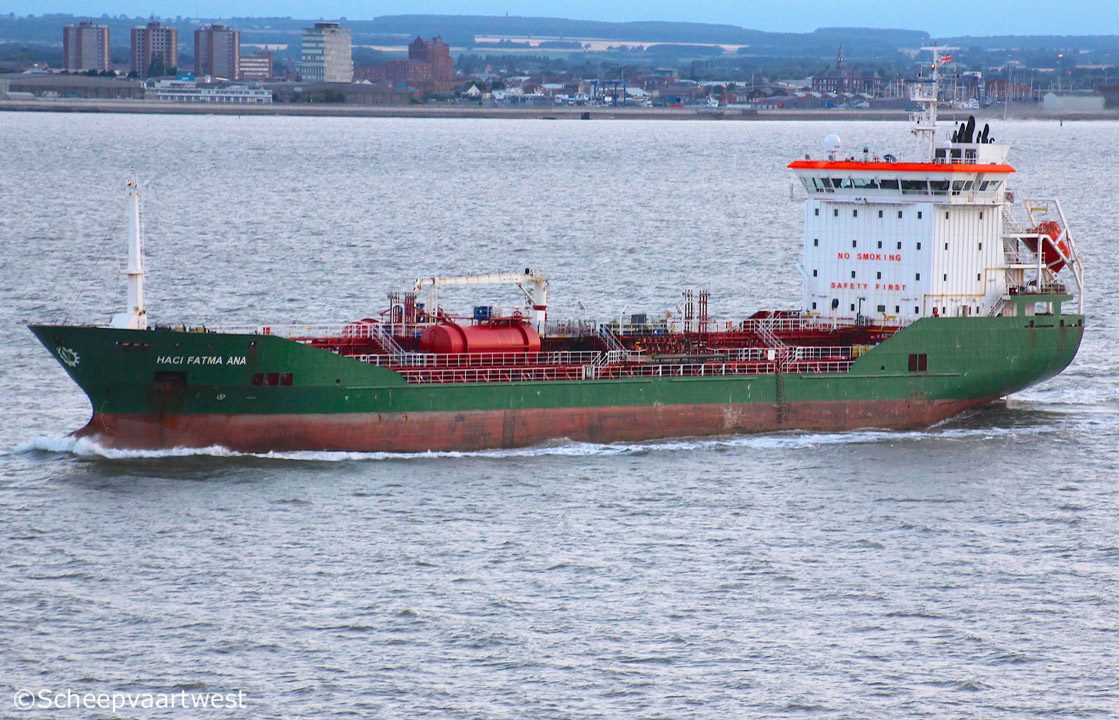

Haci Fatma Ana 02

Humber River, United Kingdom 13 July 2018

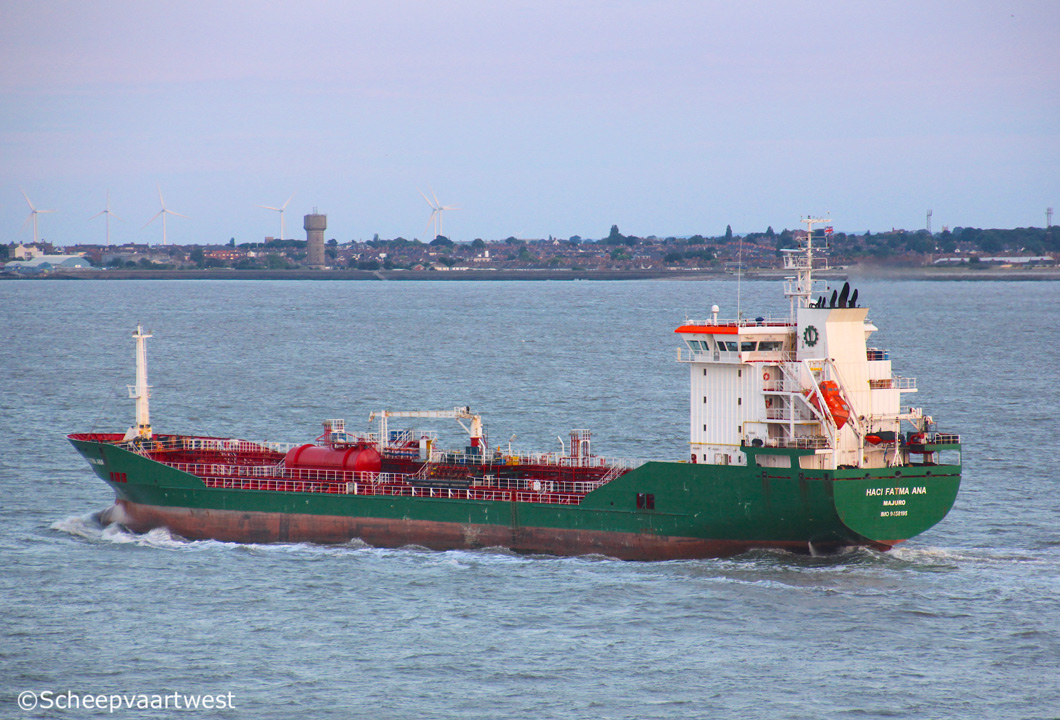

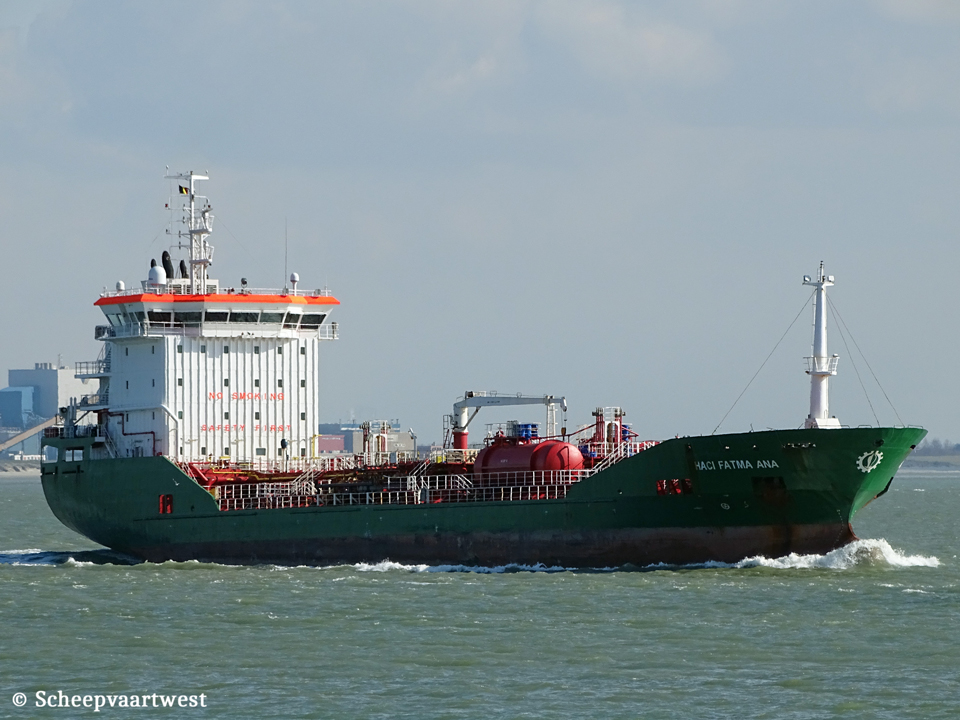

Haci Fatma Ana 01   Haci Fatma Ana IMO 9458195 03
Humber River, UK 13/07/18   Westerschelde 26/02/18


Name

HACI FATMA ANA

Type

Chemical tanker

IMO-number

9458195

Call sign

9HA5177

Flag

Malta

Port of registry

Valletta

Previous flags

2011 - 2014 Turkey - call sign: TCZJ4

2014 Marshall Islands, Majuro - Call sign: V7JY2

GT

5.684 t

DWT

Summer: 8.424,78 t

Winter: 8.151 t

NT

2.602 t

Length

123,25 m overall

116,07 m between perpendiculars

Breadth

17,20 m moulded

Draught

Summer: 7,20 m

Winter: 7,05 m

Ballast: 4,73 m

Keel to mast

37,44 m

Air draft

Ballast: 32,72 m

Loaded: 30,25 m

Freeboard

2.014 mm

Depth

9,20 m moulded

Speed

14,0 knots

Built

2011

Date of completion

07/01/2011

Builder

Ceksan Gemi Insa Celik Konst. San Ve Tic. A.S

Istanbul

Turkey

Yard number

38

Hull material

Steel

Hull type

Double hull

Main engine

1x Wärtsilä 8L32 - 4 stroke 8 cylinder 320 x 400 mm combustion engine 4.000 kW / 5.435 hp at 750 rpm

Built: 08/10/2009

Builder: Wärtsilä Finland OY, Vaasa - Finland

Propellers

1x Screw propeller controllable pitch

Boilers

1x CHS 25,74 m² - 15,0 bar

2x CHO 54,00 m² - 10,0 bar

1x CHR 54,00 m² - 10,0 bar

Shaft generator

1x 1.375 kVA - 1.100 kW

Generators

3x MAN main diesel generatorsets each 725 kVA - 580 kW - 788 hp

Emergency generator

1x Diesel generatorset 163 kVA - 130 kW - 257 hp

Bow thruster

440 kW / 603 hp

Number of cargo tanks

12

Total capacity of tanks 98%

8.927,57 m³

Number of slop tanks

2

Slop tank capacity 98%

193,74 m³

Number of pumps

12x Cargo pumps each 250 m³/h

1x Cargo pump 50 m³/h

2x Ballast pumps each 300 m³/h

Manifolds

Distance from bow to centre manifold: 66,07 m

Distance from stern to centre manifold: 57,18 m

Distance between manifolds: 0,75 m

Distance from ship side to manifold: 2,537 m

Tank capacities

Fuel: 437,18 m³

Lifting equipment

1x Crane - SWL 5,0 t

Operator

Acechem Tanker Denizcilik Turizm Sanayi Ve Ticaret Anonim Sirketi

Postane mah. Ecla sk. No. 21

Tuzla – Istanbul

Turkey

Owner

Bib Shipping Trading And Shiprepair Corporation

Latest data adjustment

10 March 2024
