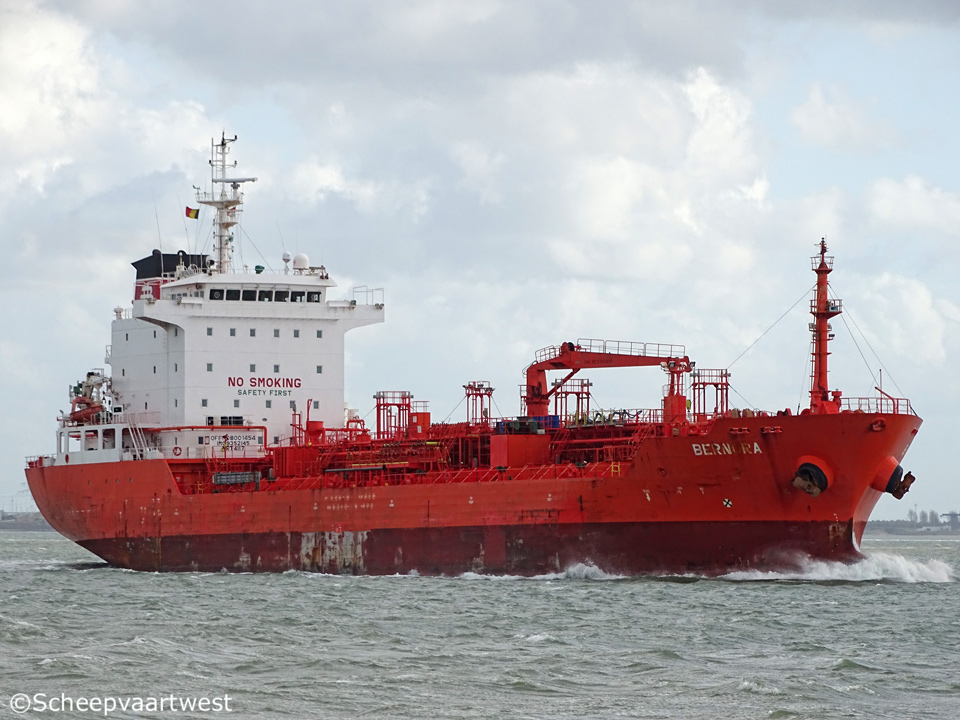

Bernora 01

Westerschelde 21 October 2017



Name

BERNORA

Type

Tanker for oil and chemicals

IMO-number

9352145

Call sign

C6WS9

Flag

Bahamas

Port of registry

Nassau

GT

8.545 t

Suez: 8.922,12 t

DWT

Summer: 13.148,36 t

Winter: 12.728,10 t

NT

4.117 t

Suez: 8.265,25 t

Panama: 7.223 t

Length

128,60 m overall

120,40 m between perpendiculars

Breadth

20,40 m extreme

Draught

Summer: 8,71 m

Winter: 8,53 m

keel to mast top

40,83 m

Air draft

Light ship: 38,38 m

Normal ballast: 35,13 m

At loaded summer deadweight: 32,12 m

Freeboard

Summer: 2.812 mm

Winter: 2.993 mm

Depth

11,52 m moulded

Speed

15,9 knots

Built

2008

Keel laid

08/10/2007

Launch date

23/01/2008

Date of completion

28/03/2008

Builder

21st Century Shipbuilding Co. Ltd.
Tongyoung
South Korea

Yard number

228

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN 6S35MC - 2 stroke single acting 6 cylinder combustion engine

MCR: 5.954 Bhp / 4.440 kW at 173 rpm

Propellers

1x Fixed pitch propeller - 5 blades, right handed

Pitch: 2,654 m

Diameter: 4,30 m

Boilers

1x Auxiliary boiler, oil/gas fired Mission OL

1x Auxiliary boiler, exhaust gas heated AV-6N

Manufacturer: Aalborg Industries A/S

Generators

3x Yanmar 6N18L-EV main diesel generatorsets

Bow thruster

1x Hydraulic driven bow thruster 539 HP / 401,93 kW

Cargo capacity 98%

13.400 m³

Slop tank capacity 98%

678,71 m³

Pumps

12x Framo cargo pumps each 300 m³/h

2x Framo cargo pumps each 100 m³/h

2x Framo ballast pumps each 350 m³/h

Manifolds

Bow to centre manifold: 61,00 m

Stern to centre manifold: 67,60 m

Distance bridge front to centre of manifold: 39,40 m

Distance between cargo manifold centres: 700 mm

Distance ships rail to manifold: 4.200 mm

Distance manifold to ships side: 4.200 mm

Top of rail to centre of manifold: 1.680 mm

Distance main deck to centre of manifold: 3.300 mm

Tank capacities

Ballast: 5.277 m³

HFO: 653,56 m³

Fresh water: 167 m³

Diesel oil: 73,87 m³

Anchor equipment

2x Stockless type Bower 4,59 t

Length: 550,00 m

Diameter: 60 mm

Lifting equipment

1x Crane - SWL 10,0 t

Technical operator

Bergshav Management AS
Hasseldalen 2
4878 Grimstad
Norway

Commercial operator

Caribe Tankers Inc.
2202-B West Alabama St.
Houston, TX 77098
USA

Registered owner

Bergshav Product Tankers II KS
Hasseldalen, N- 4878
Grimstad
Norway

Latest data adjustment

05 July 2018
