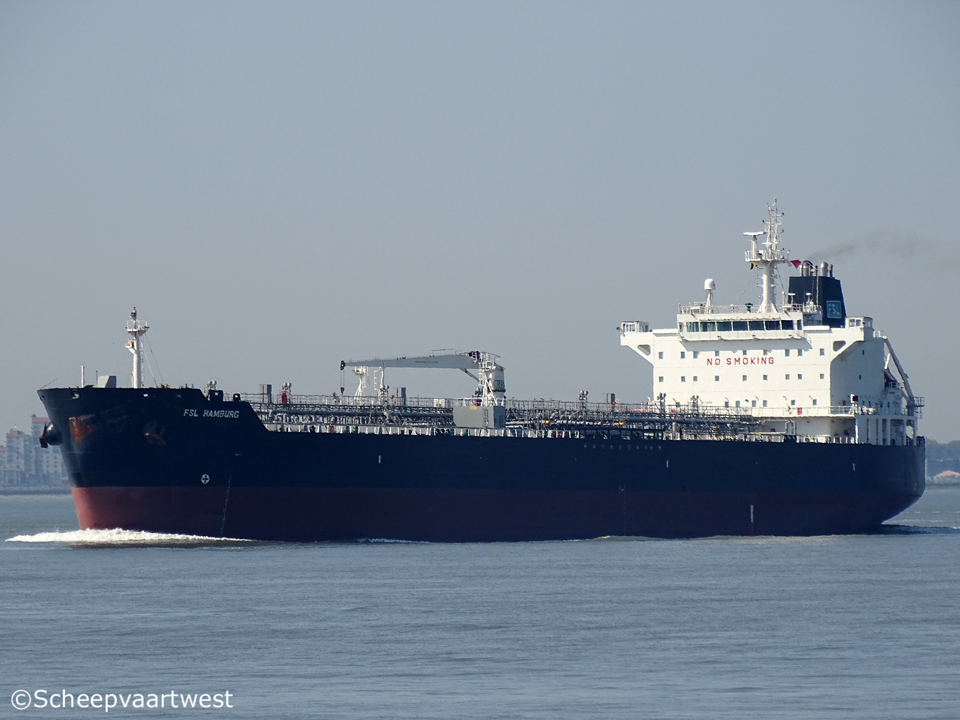

Westerschelde 08 May 2016 |
|
Name |
FSL HAMBURG |
|
Previous names |
2005 Victoria I 10/2005 - 07/2010 Nika I |
|
Type |
Oil product tanker |
|
IMO-number |
9311713 |
|
Call sign |
9VVD9 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
Cyprus until 2010 |
|
GT |
28.068 t Suez: 29.345,10 t |
|
DWT |
Summer: 47.496 t Winter: 45.885 t |
|
NT |
13.273 t Suez: 24.803,87 t Panama: 23.329 t |
|
Displacement |
Summer: 57.511 t Winter: 56.135 t |
|
Length |
183,28 m overall 177,00 m between perpendiculars |
|
Breadth |
32,25 m extreme |
|
Draught |
Summer: 12,52 m Winter: 12,26 m |
|
Keel to masthead |
47,07 m |
|
Air draft |
Summer deadweight: 37,11 m Normal ballast: 39,50 m Lightship: 44,37 m |
|
Freeboard |
Summer: 5.513 mm Winter: 5.773 mm |
|
Depth |
18,00 m moulded |
|
Speed |
Ballast: Max: 14,5 knots Eco: 13,5 knots Laden: Max: 14,0 knots Eco: 13,0 knits |
|
Built |
2005 |
|
Keel laid |
08/08/2005 |
|
Launch date |
20/12/2005 |
|
Date of completion |
02/12/2005 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. South Korea |
|
Yard number |
0382 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 6S60MC-C - 6 cylinder combustion engine 13.560 kW / 18.184 bhp Manufacturer: MAN Diesel & Turbo, Branch Of Man Diesel & Turbo Se - Germany |
|
Propellers |
1x Controllable pitch propeller Manufacturer: Wärtsilä Propulsion Norway AS |
|
Boilers |
1 x Auxiliary boiler, oil/gas fired - Mission OL Manufacturer: Aalborg Industries A/S 1x Auxiliary boiler, composite - Mission OC Manufacturer: Alfa Laval Aalborg A/S |
|
Generators |
3x Hyundai 6H21/32 main diesel generatorsets each 960 kW Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Cummins diesel generatorset |
|
Bow thruster |
1.275 hp, forward 1.000 hp, aft |
|
Number of cargo tanks |
12 |
|
Total capacity 98% |
50.096 m³ |
|
Tank capacity 98% |
Seg#1: 15.396;8 m³ (1 P/S, 5 P/S) Seg#2: 16.794,0 m³ (2 P/S , 6 P/S) Seg#3: 8.953,2 m³ (3 P/S) Seg#4: 8.953,2 m³ (4 P/S) |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
1.102 m³ |
|
Number of pumps |
2x Centrifugal ballast pumps each 1.000 m³/h 12x Centrifugal cargo pumps each 600 m³/h 2x Centrifugal cargo pumps each 300 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 57,80 m Bow to centre manifold: 90,80 m Stern to centre manifold: 92,50 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 870 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Fuel oil: 1.479 m³ Diesel oil: 327 m³ Ballast: 21.246,4 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 73 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Manager |
Columbia Shipmanagement (Singapore) Pte. Ltd. |
|
Technical operator |
Columbia Shipmanagement(Singapore) Pte Ltd |
|
Commercial operator |
CSM Cyprus |
|
Registered owner |
FSL-18 Pte. Ltd. |
|
Latest data adjustment |
29 June 2018 |
