Antwerpen 15 May 2018 |
 |
 |
 |
||
| Antwerpen 15/05/18 | Antwerpen 15/05/18 | Antwerpen 15/05/18 | ||
|
Name |

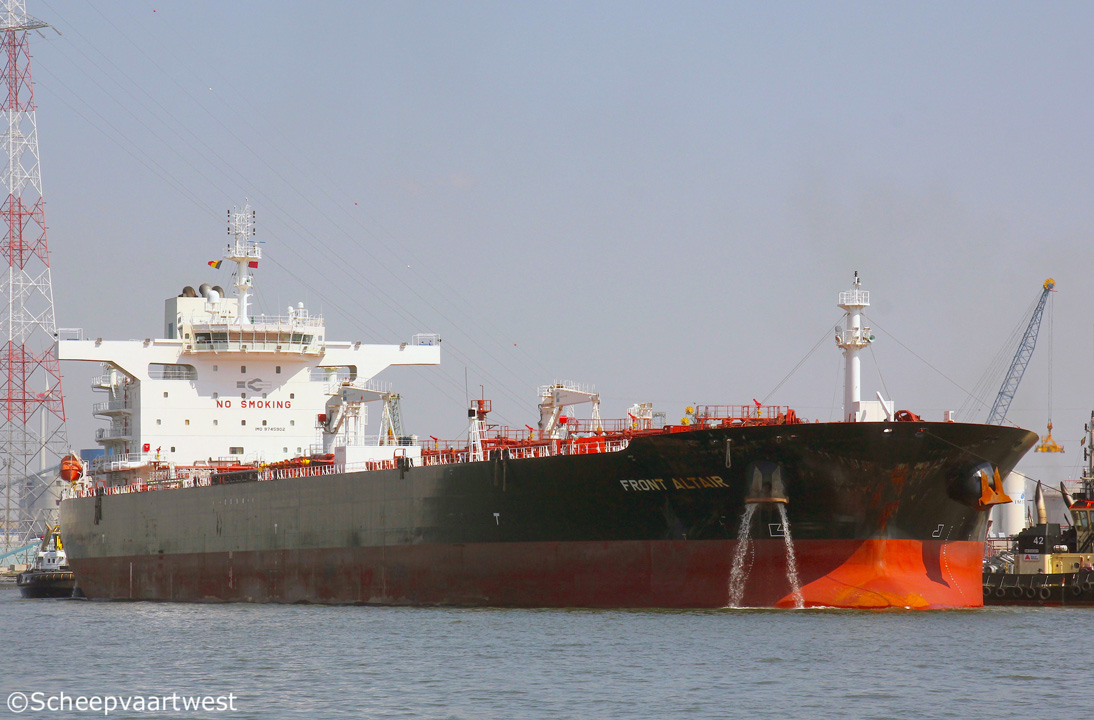

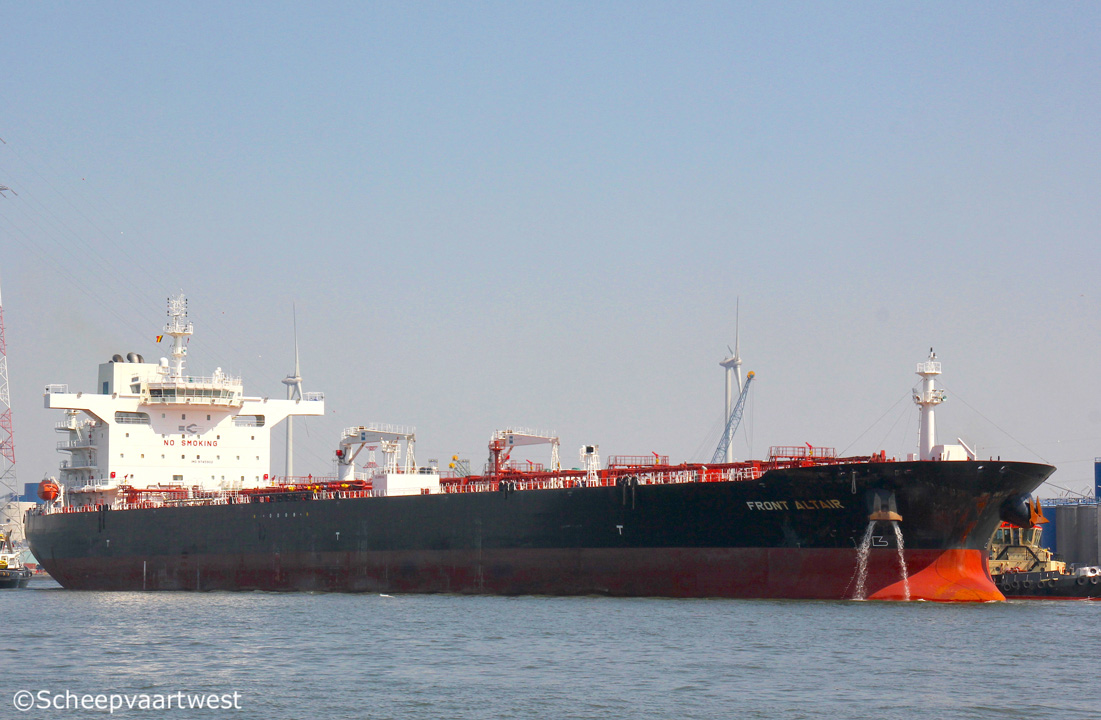

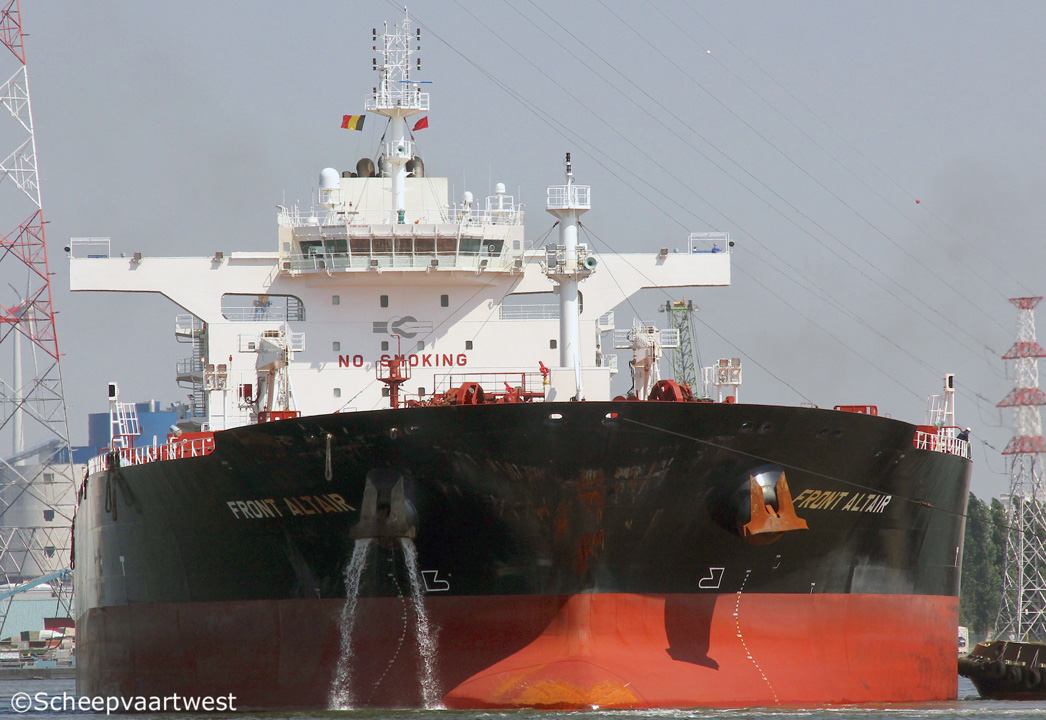

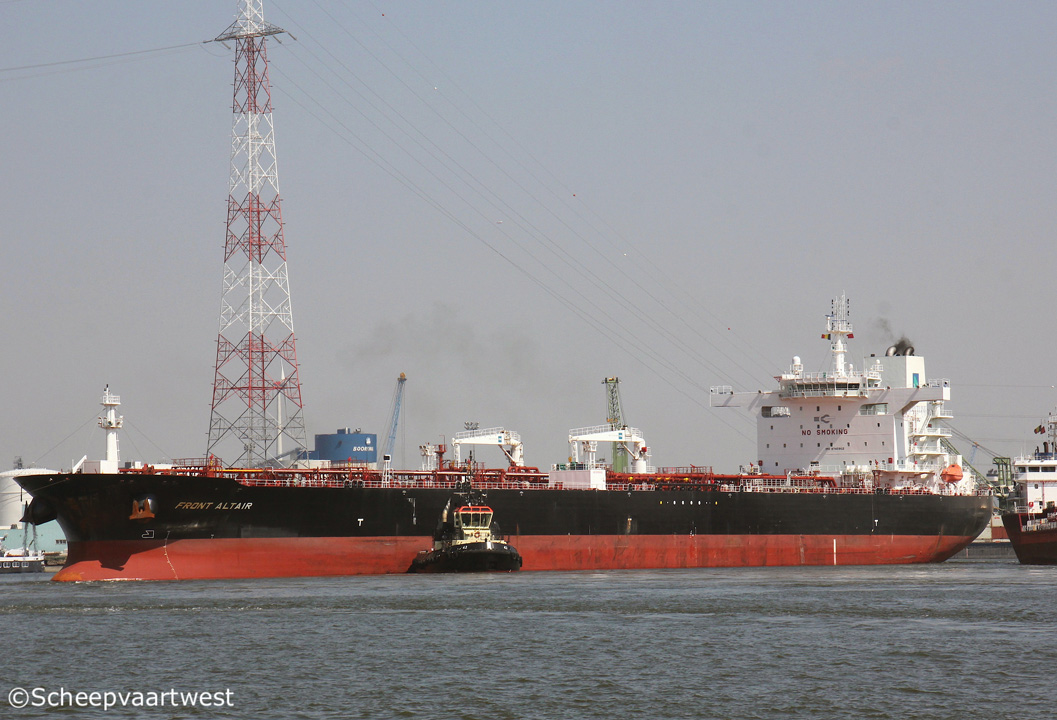

FRONT ALTAIR |
|
Type |
Crude oil/Product carrier |
|
IMO-number |
9745902 |
|
Call sign |
V7UH9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
62.849 t registered Suez: 64.197,68 t |
|
DWT |
109.894 t |
|
NT |
34.099 t registered Panama: 51.634 t Suez: 58.645,05 t |
|
Length |
251,84 m overall 241,00 between perpendiculars |
|
Breadth |
44,00 m moulded |
|
Draught |
13,10 m |
|
Freeboard |
6.438 mm |
|
Depth |
21,30 m moulded |
|
Speed |
15,5 knots |
|
Built |
2016 |
|
Keel laid |
18/12/2015 |
|
Launch date |
25/04/2016 |
|
Delivery date |
23/09/2016 |
|
Builder |
New Times Shipbuilding Co., Ltd. |
|
Yard number |
0311101 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 2 Oil tight: 9 |
|
Main engine |
1x CMD-MAN B&W 6G60ME-C9.2 - 6 cylinder 600 x 2.790 mm combustion engine 11.850 kW at 89,0 rpm Manufacturer: CSSC-MES Diesel Co., Ltd. |
|
Propellers |
1 Manufacturer: Dalian Marine Propeller Co., Ltd. |
|
Boilers |
2x Auxiliary Boiler Aalborg(Mission) OL - 18,0 bar 1x Exhaust Gas Economizer Aalborg XW 2x Exhaust Gas Economizer Aalborg XS-TC7A Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: Zhenjiang China Xiandai Generating Co., Ltd. |
|
Number of cargo tanks |
20 |
|
Cargo tank capacity 100% |
125.863,8 m³ |
|
Number of slop tanks |
3 |
|
Number of tanks |
Ballast: 16 Lubricating oil: 15 Fuel oil: 9 Fresh water: 6 Waste water: 3 Sludge: 3 Diesel oil: 2 Gasoline: 2 Chain: 2 Sewage: 1 |
|
Tank capacities |
Freshwater: 448,3 m³ Fuel Oil: 2.864,9 m³ / 2.807,60 t Lube Oil: 242 m³ / 217,8 t Tank Ballast: 40.619,7 m³ / 41.635,19 t |
|
Lifting equipment |
2x Hose handling Canes(Port & Starboard)- SWL 10,0 t each Manufacture: TTS Bohai Machinery Dalian Co Ltd. 1x Overhead crane engine room - SWL 605 t 1x Provision crane (Port) - SWL 6,5 t 1x Provision crane (Starboard) - SWL 2,0 t Manufacture: Jiangsu Bolin Machinery Manufacture Co., Ltd. |
|
Manager |
V. Ships UK Ltd. |
|
Operator |
Frontline |
|
Registered owner |
Front Altair Inc. |
|
Latest data adjustment |
21 May 2018 |
