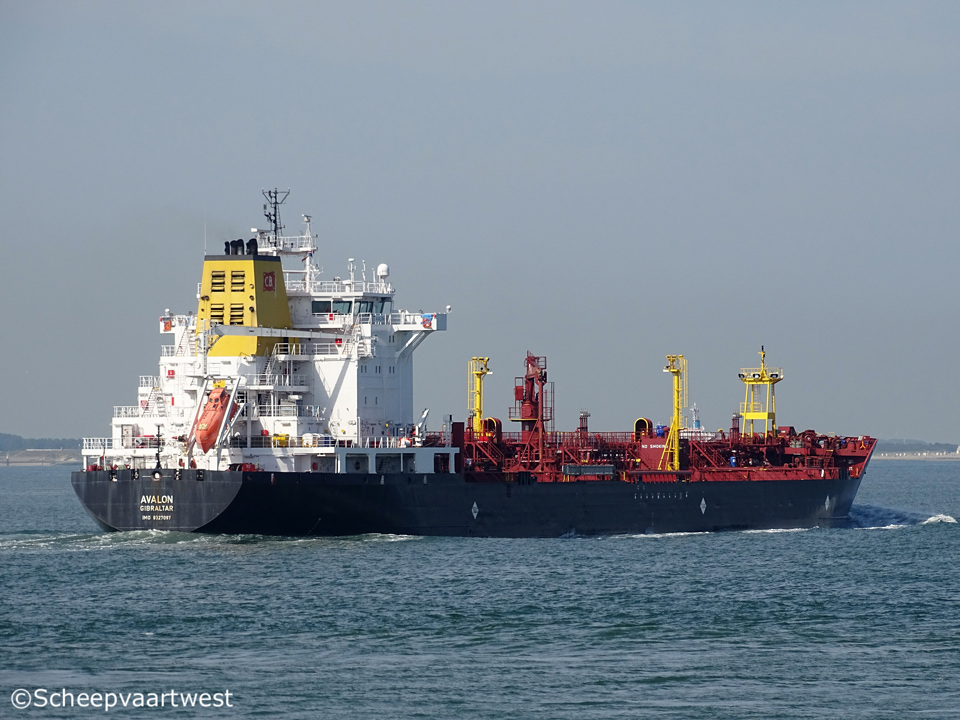

Westerschelde 05 July 2017 |
|
Name |
AVALON |
|
Type |
Chemical tanker |
|
IMO-number |
9327097 |
|
Call sign |
DEKL |
|
Flag |
Germany |
|
Port of registry |
Bremen |
|
Previous flags |
2005 - 2017 Gibraltar, Gibraltar - Call sign: ZDHB6 |
|
GT |
16.683 t |
|
DWT |
Summer: 24.035 t |
|
NT |
6.399 t |
|
Length |
168,00 m overall 160,80 m between perpendiculars |
|
Breadth |
26,56 m extreme 26,40 m moulded |
|
Draft |
9,02 m |
|
Speed |
15,5 knots |
|
Built |
2005 |
|
Keel laid |
23/12/2004 |
|
Launch date |
28/05/2005 |
|
Date of completion |
07/12/2005 |
|
Builder |
3. Maj Brodogradiliste d.d. |
|
Yard number |
688 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M32C - 8 cylinder combustion engine 3.000 kW at 600 rpm 1x MaK 8M32C - 8 cylinder combustion engine 4.000 kW at 600 rpm Total: 7.000 kW / 10.670 bhp Manufacturer: Caterpillar Motoren GmbH & Co., KG, Kiel - Germany |
|
Propellers |
1x SCHOTTEL SCP-1414 XW controllable pitch propeller at 127,0 rpm |
|
Shaft generator |
2x Each 1.500 kVA |
|
Generators |
1x D2866 TE main diesel generatorset 2x Man B&W 6L23/30H main diesel generatorsets each 1.020 kW at 900 rpm |
|
Emergency generator |
1x Diesel generatorset 192 kW |
|
Batteries |
1x Auxiliary boiler, composite MISSION TM OC 1x Auxiliary boiler, oil/gas fired MISSION OL Manufacturer: Aalborg |
|
Bow thruster |
1x SCHOTTEL Type STT-3CP - 800 KW at 1.770 rpm |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
No. 1 P + S: 3.795 m³ No. 2 P + S: 4.724 m³ No. 3 P + S: 4.924 m³ No. 4 P + S: 5.575 m³ No. 5 P + S: 3.212 m³ No. 6 P + S: 5.831 m³ Sloptanks P + S: 535 m³ Total: 28.596 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
535 m³ |
|
Pumps |
12x MARFLEX type MDPD 150 submerged cargo pumps, electrically driven each 350 m³/h 1x MARFLEX type TK 150 portable cargo pump, hydraulically driven 150 m³/h 2x TTK type BPV 375 ballast pumps, electrically driven each 500 m³/h 1x TTK ype NPm 65-250 tank cleaning pump, electrically driven 100 m³/h |
|
Manifolds |
Distance bow to centre manifold: 81,60 m |
|
Tank capacities |
Ballast: 12.214,1 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 62 mm |
|
Lifting equipment |
1x Hydraulic hose handling crane - SWL 10,0 t |
|
Crew size |
22 |
|
Manager |
Carl Büttner Shipmanagement GmbH |
|
Owner |
Fünfte Büttner Schiffahrtsges. mbH & Co. KG |
|
Latest data adjustment |
24 April 2018 |
