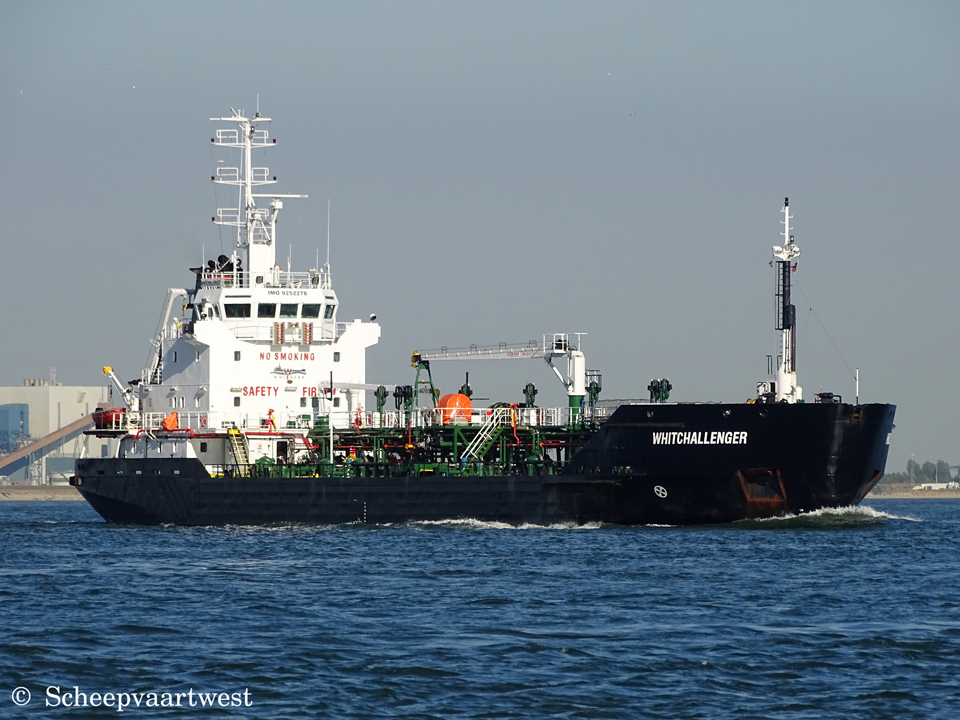

Westerschelde 02 August 2018 |
 |
 |
|

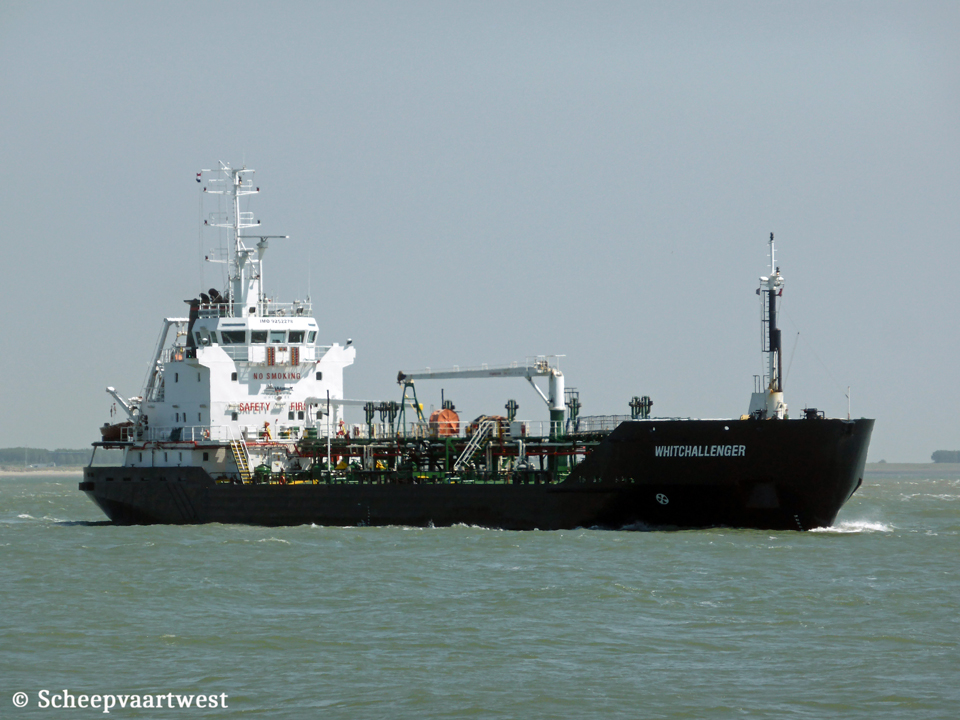

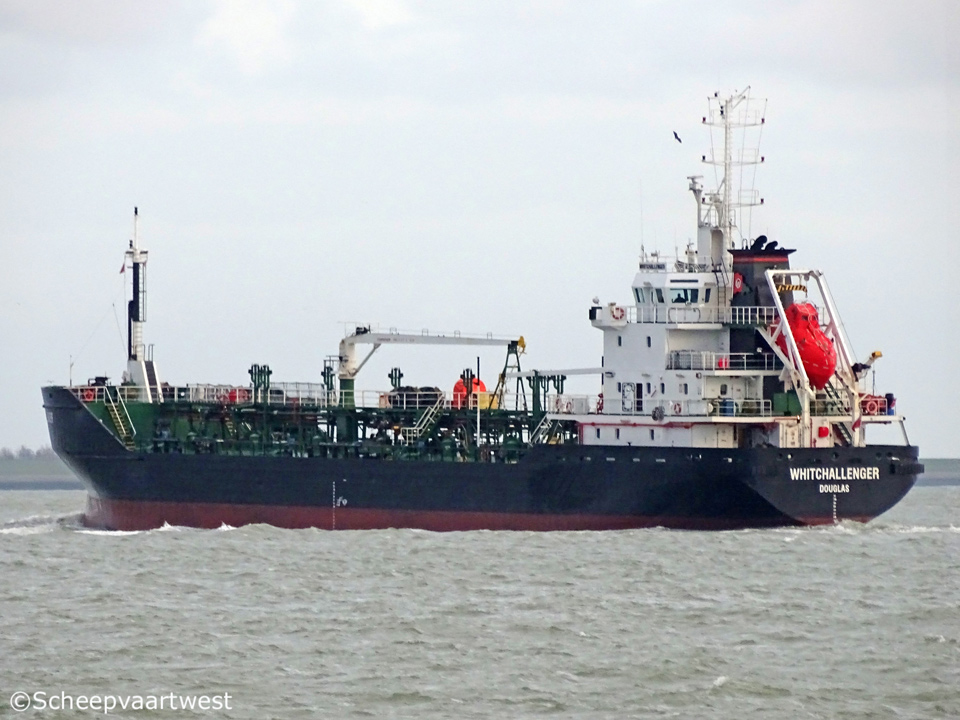

| Westerschelde 26/12/17 | Westerschelde 27/05/15 | |
|
Name |
WHITCHALLENGER |
|
Type |
Tanker for oil products |
|
IMO-number |
9252278 |
|
Call sign |
VQAU3 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
2.958 t |
|
DWT |
Summer: 4.498,2 t |
|
NT |
1.355 t |
|
Displacement |
1.822 t |
|
Length |
84,95 m overall 80,80 m between perpendiculars |
|
Breadth |
15,30 m extreme 15,00 m moulded |
|
Draft |
Summer: 6,30 m |
|
Keel to mast end |
30,00 m |
|
Depth |
8,60 m moulded |
|
Speed |
Service: 10,9 knots Max: 14,7 knots |
|
Built |
2002 |
|
Keel laid |
24/09/2001 |
|
Date of completion |
18/10/2002 |
|
Builder |
Tuzla Shipbuilding Industry (Tuzla Gemi Endustrisi A.S.) Istanbul Turkey |
|
Yard number |
023 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 255 x 400 mm combustion engine 1.850 kW / 2.515 hp at 750 rpm |
|
Propellers |
1x Kamewa controllable pitch propeller - aft at 206 rpm 4 blades - Diameter: 2.900 mm |
|
Boilers |
1x Wanson Thermopac 1.162 kW |
|
Generators |
2x Cummins main diesel generatorsets each 312 kW at 720 rpm |
|
Emergency & Harbour gen. |
1x Cummins diesel generatorset 80 kW at 1.500 rpm |
|
Bow thruster |
Omega Azimuth Jet - 441 kW at 1.800 rpm Manufacturer: Verhaar omega BV |
|
Number of cargo tanks |
15 |
|
Cargo tank capacity 95% |
HFO: 3.376 m³ Gas oil: 1.350 m³ Lub oil: 115 m³ Total capacity: 4.726 m³ |
|
Number of pumps |
2x Blackmer cargo pumps each 250 m³/h 1x Blackmer cargo pump 500 m³/h 1x Blackmer lub oil pump 50 m³/h 2x Ballast pumps each 350 m³/h |
|
Max loading rate |
660 m³ per pair of tanks |
|
Max discharge rate |
750 m³ |
|
Tanks coating |
Epoxy |
|
Tank capacities |
Ballast: 2.167 m³ Bunker: 243 m³ Fresh water: 82 m³ |
|
Lifting equipment |
2x Cranes - SWL 1,0 t @ 16,00 m each |
|
Accommodation |
Crew: 8 single bed, 1 double bed cabins Fully air conditioned |
|
ISM & commercial manager |
Whitaker Tankers Ltd. Crown Dry Dock, Tower Street Hull, HU9 1TY United Kingdom |
|
Operator |
John H. Whitaker Tankers Limited |
|
Registered owner |
Whitaker Tankers Ltd. Crown Dry Dock Tower Street Hull HU9 1TY United Kingdom |
|
Latest data adjustment |
05 November 2023 |
