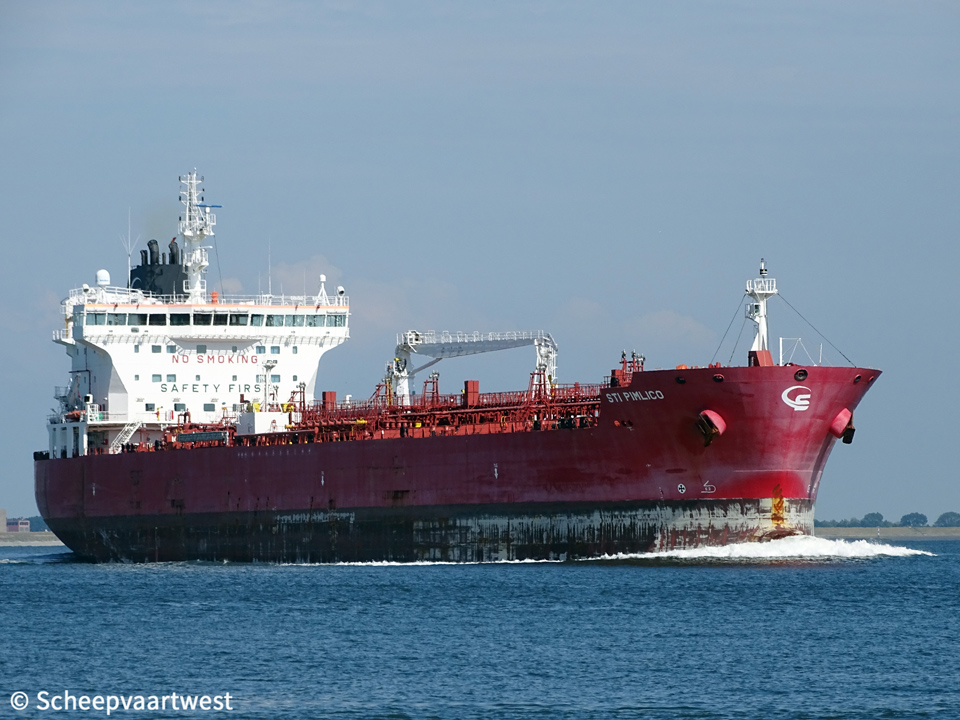

STI Pimlico 03

Westerschelde 13 July 2018

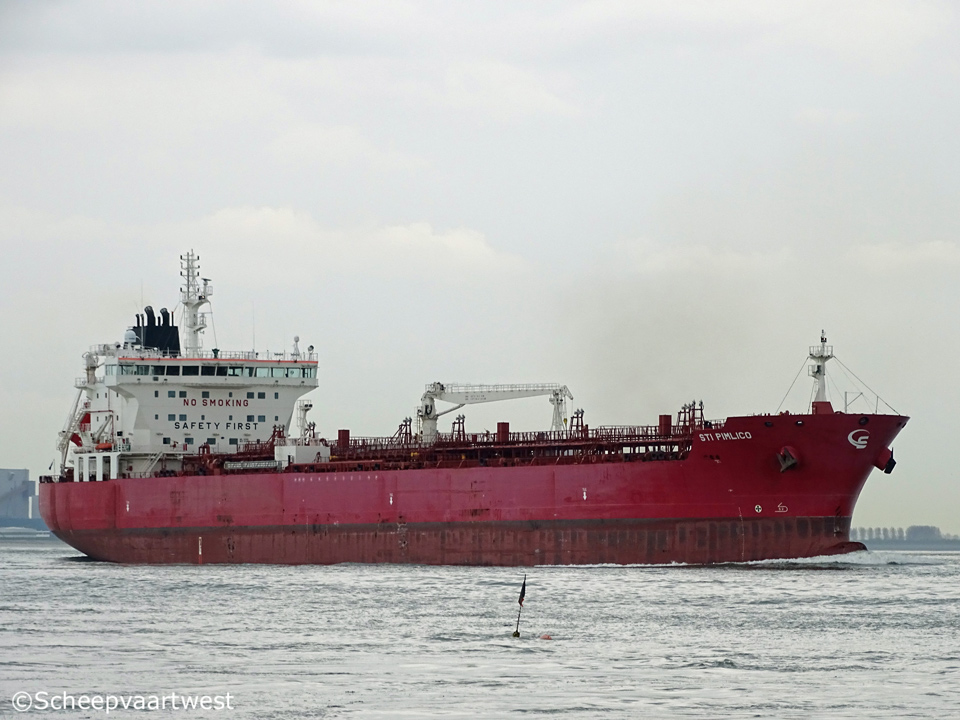

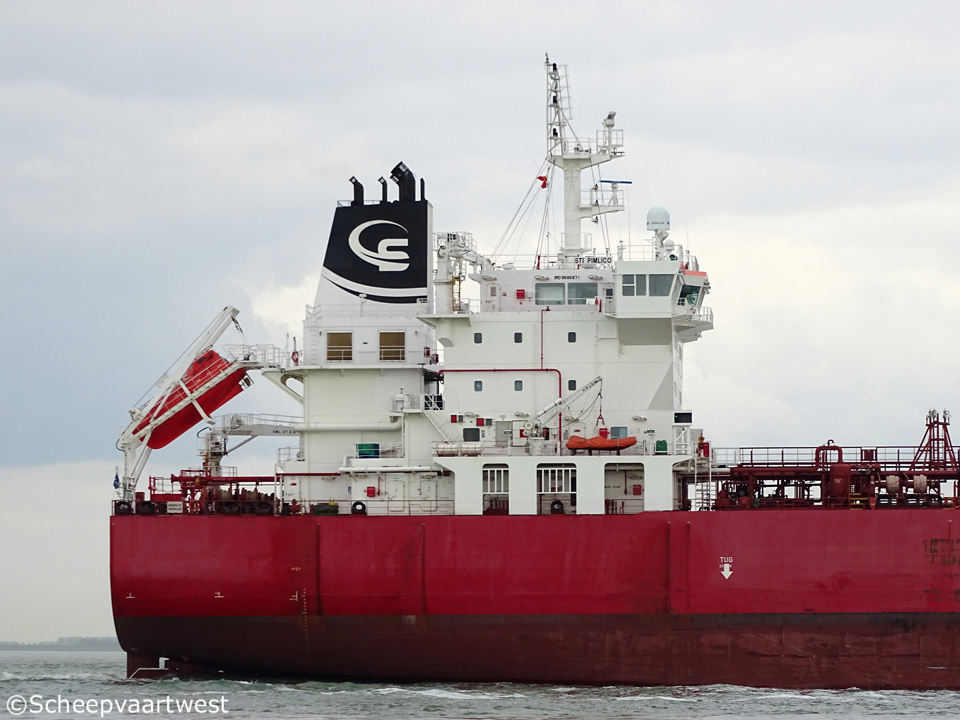

STI Pimlico 01   STI Pimlico 02
Westerschelde 01/04/17 Westerschelde 01/04/17


Name

STI PIMLICO

Type

Tanker for oil and chemicals - Handymax

IMO-number

9686871

Call sign

V7DL7

Flag

Marshall Islands

Port of registry

Majuro

GT

24.162 t

DWT

38.734 t

NT

10.458 t

Length

184,00 m overall

176,00 m between perpendiculars

Breadth

27,40 m extreme

Draught

11,92 m

Freeboard

Summer: 5.714 mm

Depth

17,60 m moulded

Speed

14,4 knots

Built

2014

Keel laid

26/11/2013

Launch date

18/03/2014

Date of completion

11/07/2014

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan

South Korea

Yard number

2453

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Hyundai-MAN/B&W 6S50ME-B9.3 - 2 stroke 6 cylinder combustion engine 10.680 kW

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary boiler, composite boiler

1x Auxiliary boiler, oil/gas fired

Manufacturer: Alfa Laval Aalborg A/S

Generators

3x Hyundai 6H21/32 main diesel generatorsets each 1.080 kW

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Emergency generator

1x Doosan AD/L 086 diesel generatorset

Manufacturer: Doosan Infracore Co., Ltd.

Bow thruster

1.070 kW

Number of cargo tanks

12

Cargo tank capacity

Liquid: 41.606 m³

Tank capacities

Ballast: 19.390,7 m³

Anchor equipment

Length: 632,50 m

Diameter: 68 mm

Manager

Claus-Peter Offen Tankschiffreederei (GmbH & Co.) KG
Bleichenbrücke 10
20354 Hamburg
Germany

Registered owner

STI PIMLICO Shipping Company Limited

Latest data adjustment

26 March 2018
