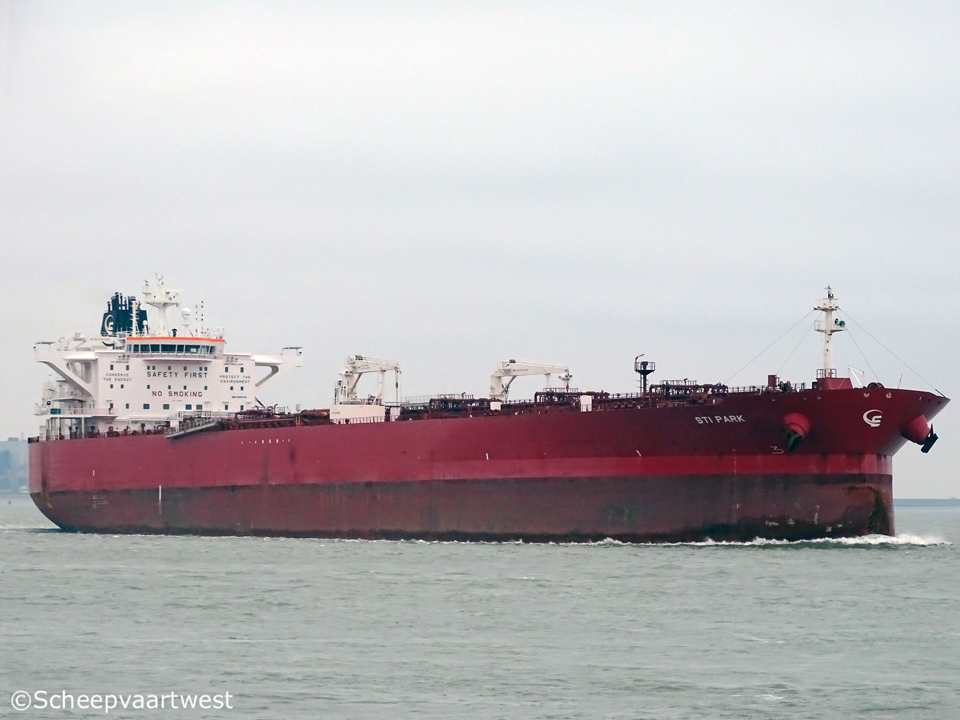

STI Park 02

Westerschelde 23 December 2017

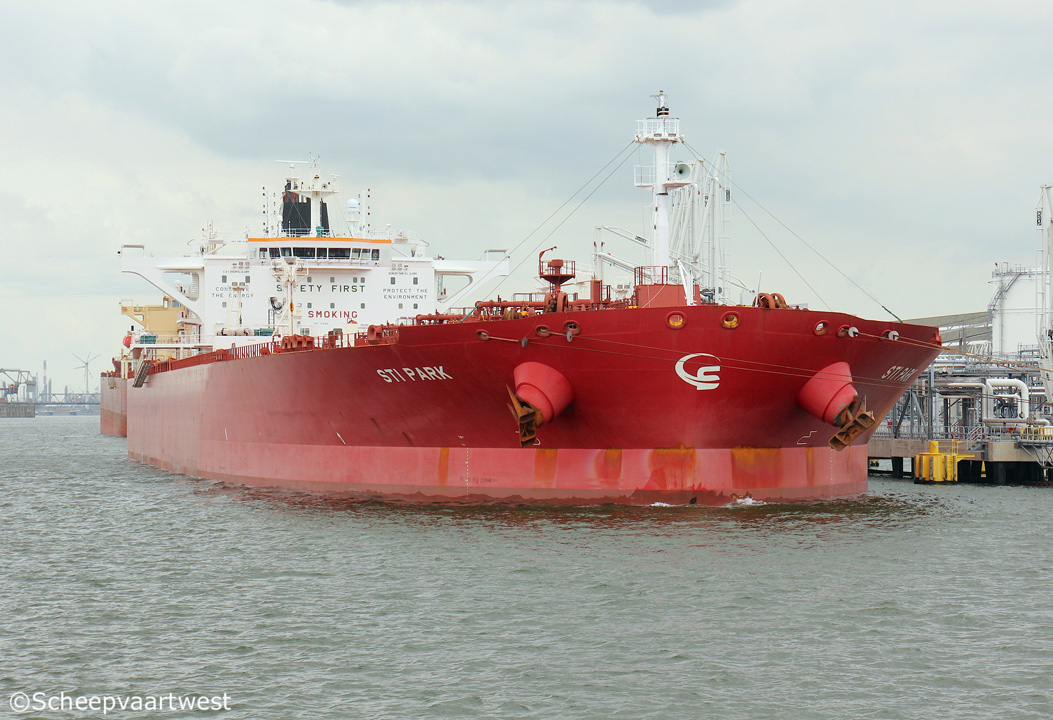

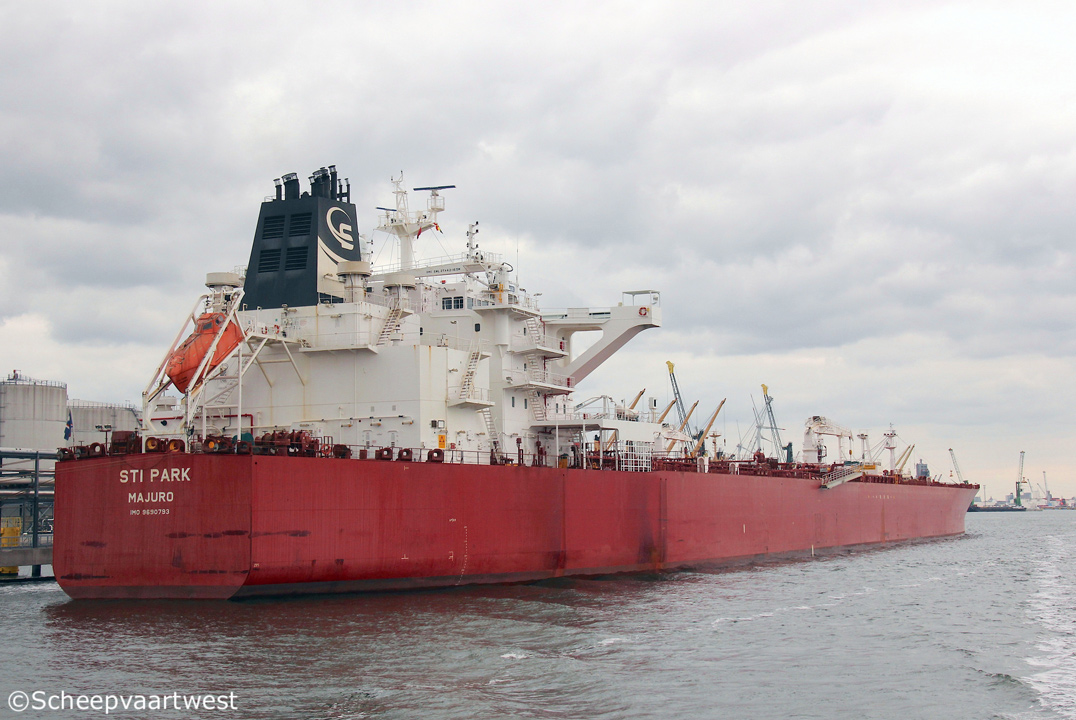

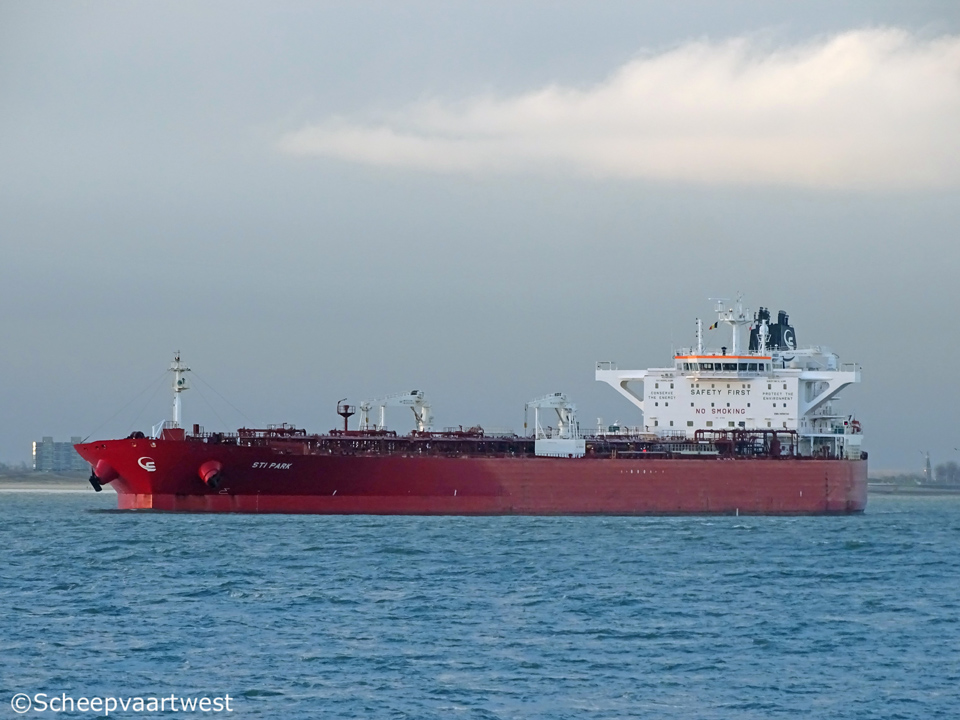

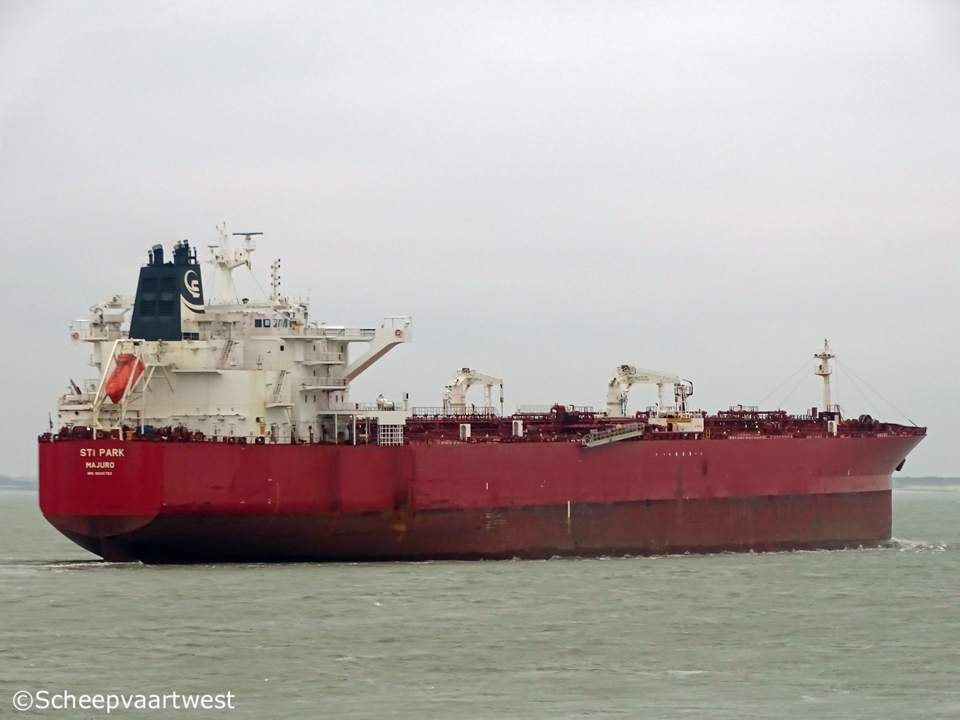

STI Park 03   STI Park 01   STI Park 04   STI Park 05
Westerschelde 23/12/17 Westerschelde 17/12/17 Antwerpen 28/08/18 Antwerpen 28/08/18


Name

STI PARK

Type

Crude oil tanker - Product carrier - Aframax

IMO-number

9690793

Call sign

V7DI3

Flag

Marshall Island

Port of registry

Majuro

GT

64.705 t registered

Suez: 65.881,49 t

DWT

Summer: 113.073 t

NT

33.738 t registered

Panama: 53.136,23 t

Suez: 60.552,42 t

Length

256,39 m overall

247,20 m between perpendiculars

Breadth

43,00 m moulded

Freeboard

7.229 mm

Depth

22,00 m moulded

Speed

Max.: 17,1 knots

Built

2014

Keel laid

29/11/2013

Launch date

21/06/2014

Date of completion

15/09/2014

Builder

Hyundai Samho Heavy Industries Co., Ltd.
Samho
South Korea

Yard number

S705

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Gas tight: 1

Main engine

1x HHI/MAN-B&W6G60ME-C9.2 - 6 cylinder 600 x 2.790 mm diesel engine 11.760 kW / 15.993 bhp at 77,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Fired boiler - 12,0 bar

1x Fired exhaust gas boiler - 8,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

2x Main diesel generatorsets each 900 kW

2x Main diesel generatorsets each 1.250 kW

Manufacturer: HHI Electro Electric System

Emergency generator

1x Diesel generatorset 150 kW

Number of cargo tanks

12

Cargo tank capacity 100%

137.796,4 m³

Number of tanks

Ballast: 14

Fuel oil: 9

Diesel oil: 7

Lubricating oil: 6

Slop: 3

Sludge: 3

Fresh water: 2

Waste water: 2

Chain: 2

Hydraulic oil: 2

Sea water: 1

Tank capacities 100%

Diesel oil: 567,7 m³ / 474,21 t

Freshwater: 353,2 m³

Fuel oil: 2.282,6 m³ / 2.236,94 t

Hydraulic oil: 41,8 m³ / 36,86 t

Lube oil: 149,4 m³ / 131,77 t

Tank ballast: 42.580 m³ / 43.644,5 t

Lifting equipment

1x Engine room overhead crane - SWL 6,3 t

1x Hose handling crane port - SWL 15,0 t

1x Hose Handling crane starboard - SWL 15,0 t

1x Provision crane port - SWL 6,3 t

1x Provision crane starboard - SWL 2,0 t

Manager

Scorpio tankers Inc.
Le Millenium 9, Boulevard Charles III MC
98000 Monaco

Operator

Scorpio Marine Management (India) Pvt. Ltd.

Owner

STI Park Shipping Company Limited
Trust Company Complex, AJeltake Road
Ajeltake Island
Majuro, MH96960
Marshall Islands

Latest data adjustment

16 January 2018
