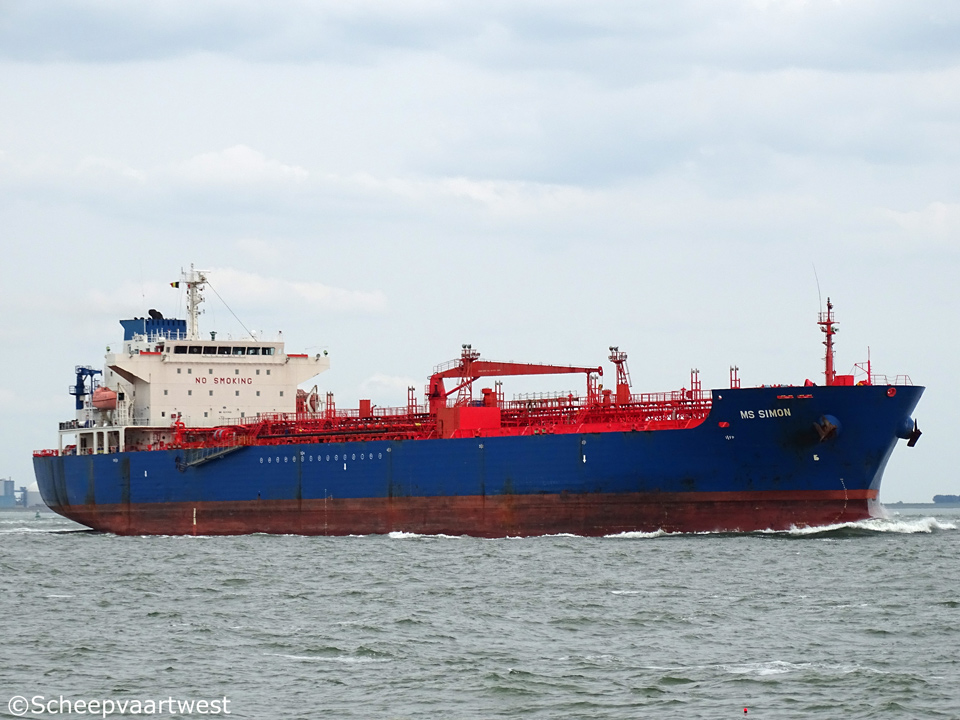

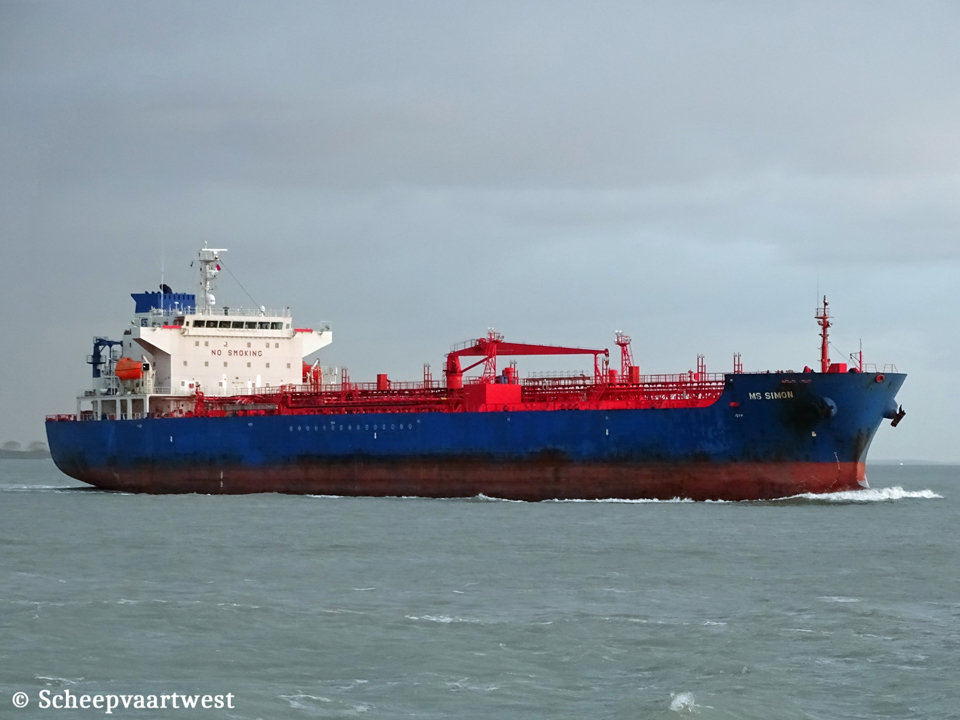

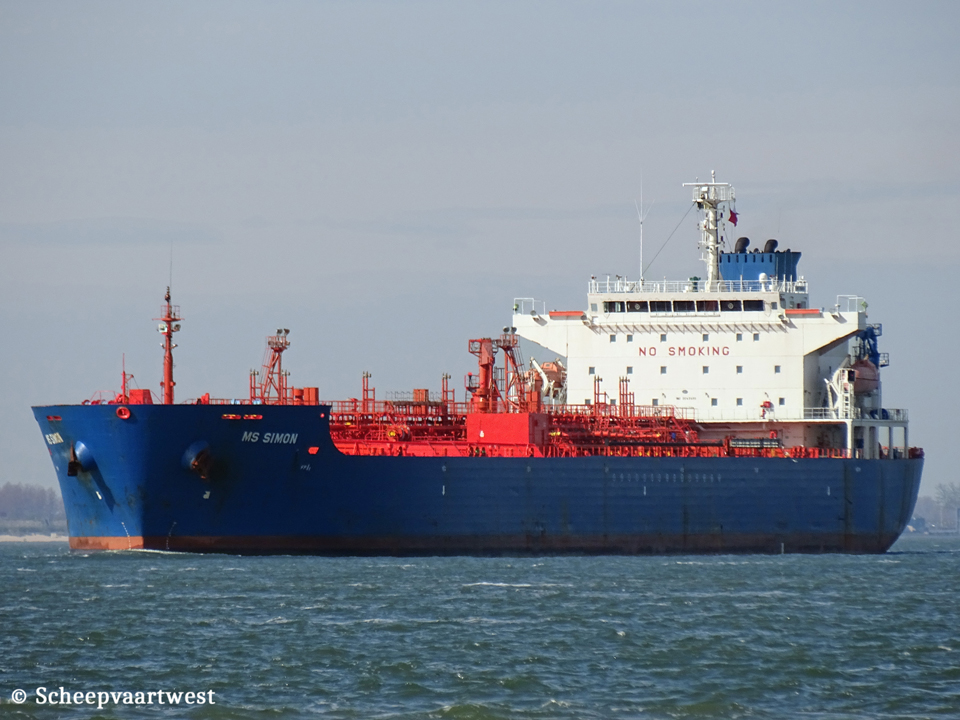

MS Simon 01

Westerschelde 21 May 2016



Name

MS SIMON

Type

Chemical / Product tanker

IMO-number

9247493

Call sign

A8BU9

Flag

Liberia

Port of registry

Monrovia

GT

25.400 t registered

Suez: 26.773 t

DWT

Summer: 40.219 t

NT

9.956 t registered

Panama: 21.131 t

Suez: 22.737 t

Length

176,00 m overall

168,00 m between perpendiculars

Breadth

31,00 m moulded

Draught

8,30 m

Freeboard

6.114 mm

Depth

17,20 m moulded

Speed

16,2 knots

Built

2004

Keel laid

29.10.2003

Launch date

20.01.2004

Date of completion

07.04.2004

Builder

SHinasb Yard Co., Ltd.

Yard number

SAS420

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Oil tight: 11

Main engine

1x HSD-MAN B&W 6S50MC - 6 cylinder 500 x 1.910 diesel engine 8.561 kW at 127 rpm

Manufacturer: HSD Engine Co., LTD.

Propellers

1

Manufacturer: Silla Metal Co., Ltd.

Boilers

1x Exhaust gas economizer - 9,0 bar

1x Auxiliary watertube boiler - 9,0 bar

Manufacturer: Aalborg Industries Ltd.

Generators

3x Main diesel generatorsets each 760 kW

Manufacturer: Taiyo Electric Co.

Number of cargo tanks

15

Cargo tank capacity

45.666,72 m³

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 7

Fresh water: 4

Diesel oil: 4

Waste water: 2

Chain: 2

Sludge: 2

Hydraulic oil: 1

Tank capacities 100%

Diesel Oil: 260,76 m³ / 222,19 t

Freshwater: 286,8 m³

Fuel Oil: 1.930,03 m³ / 1.890,89 t

Hydraulic Oil: 19,96 m³ / 17,96 t

Lube Oil: 124,36 m³ / 111,92 t

Tank Ballast: 20.938,57 m³ / 21.462,03 t

Lifting equipment

1x Cargo hose handling crane - SWL 10,0 t

1x Engine room crane - SWL 2,5 t

1x Provision Crane Port - SWL 3,0 t @ 9,00 m

1x Provision Crane Starboard - SWL 3,0t @ 9,00 m

Manager

Handytankers K/S

Operator

Chemikalien Seetransport GmbH
Hamburg
Germany

Owner

Karl-Heinz Kramer GmbH
Hamburg
Germany

Latest data adjustment

13 December 2017
