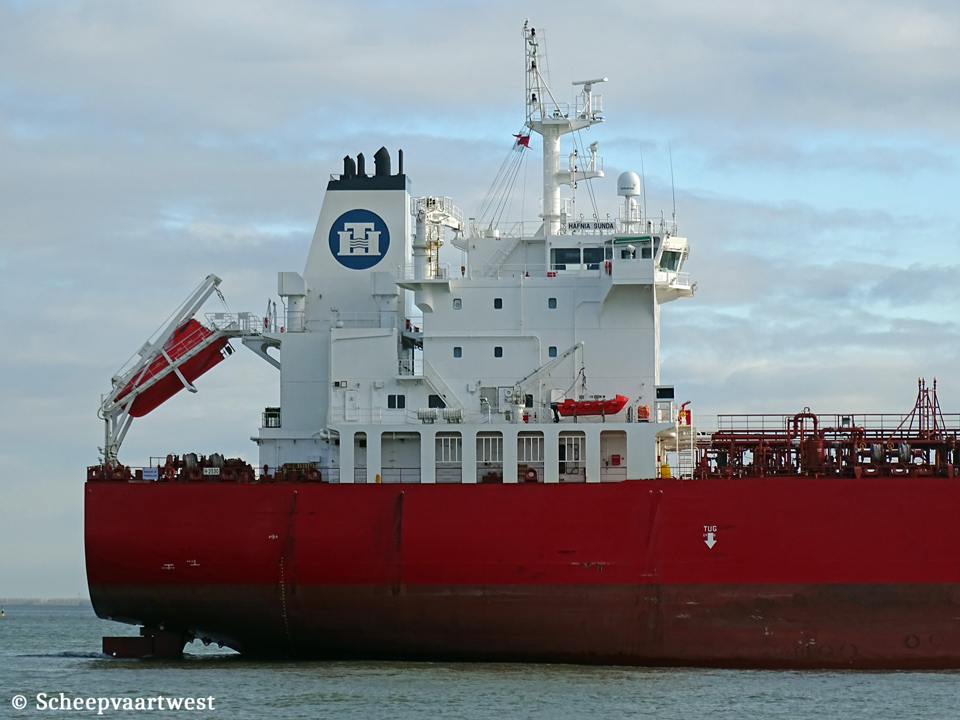

Westerschelde 23 March 2016 |
 |
 |
 |
 |
 |
||||

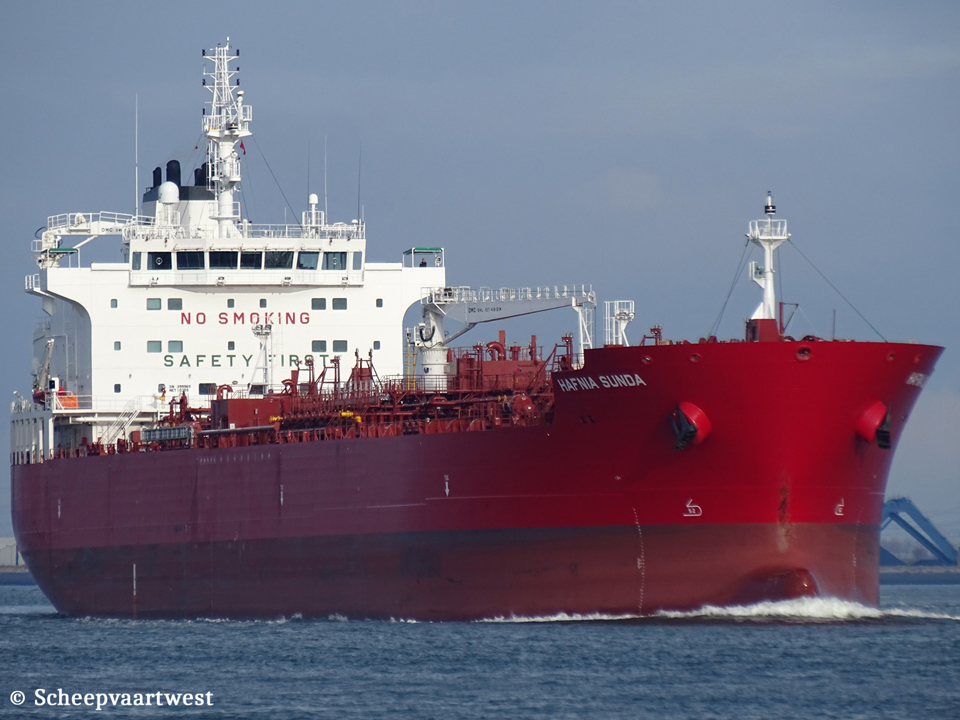

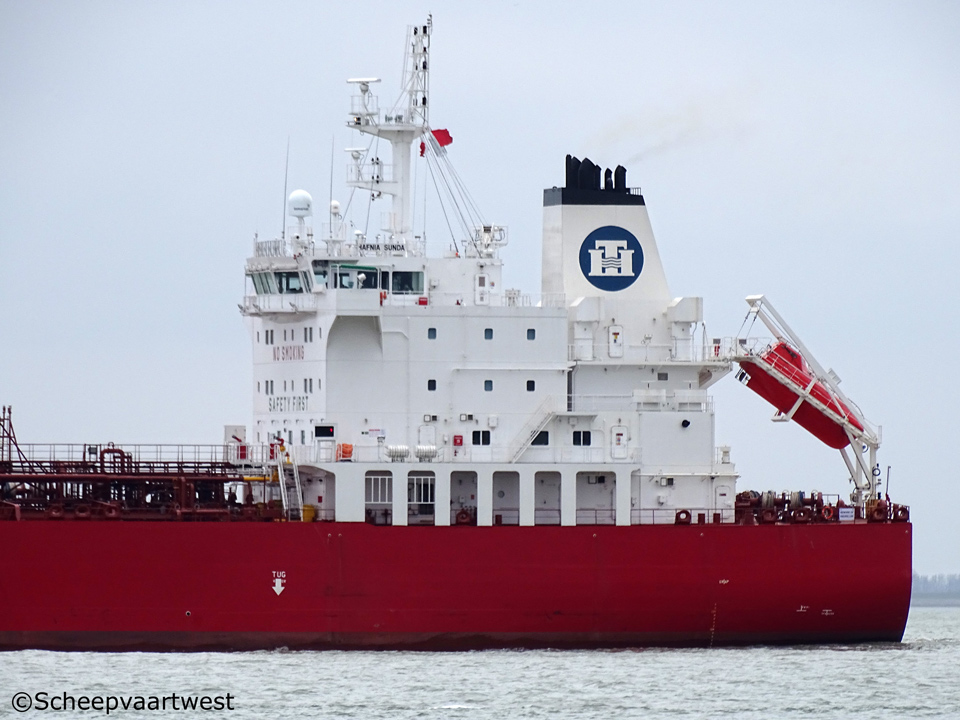

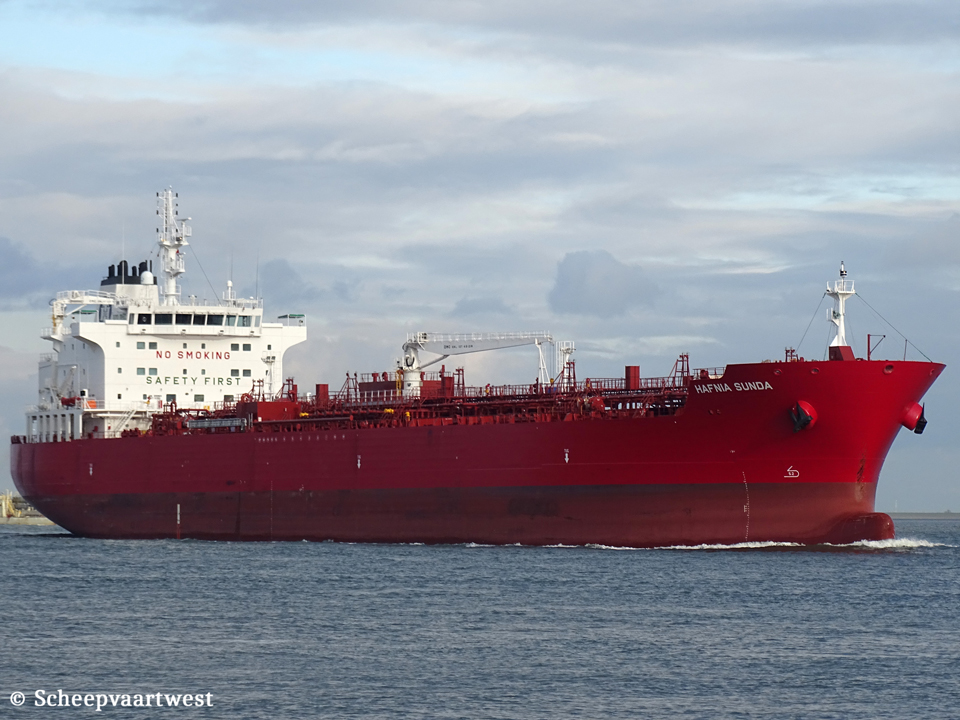

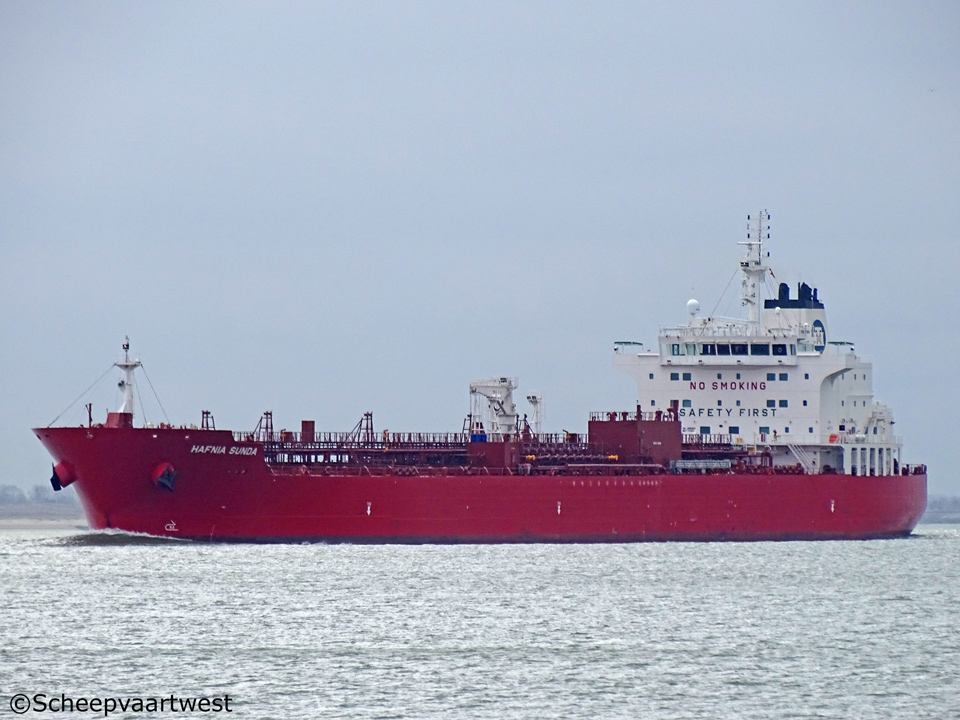

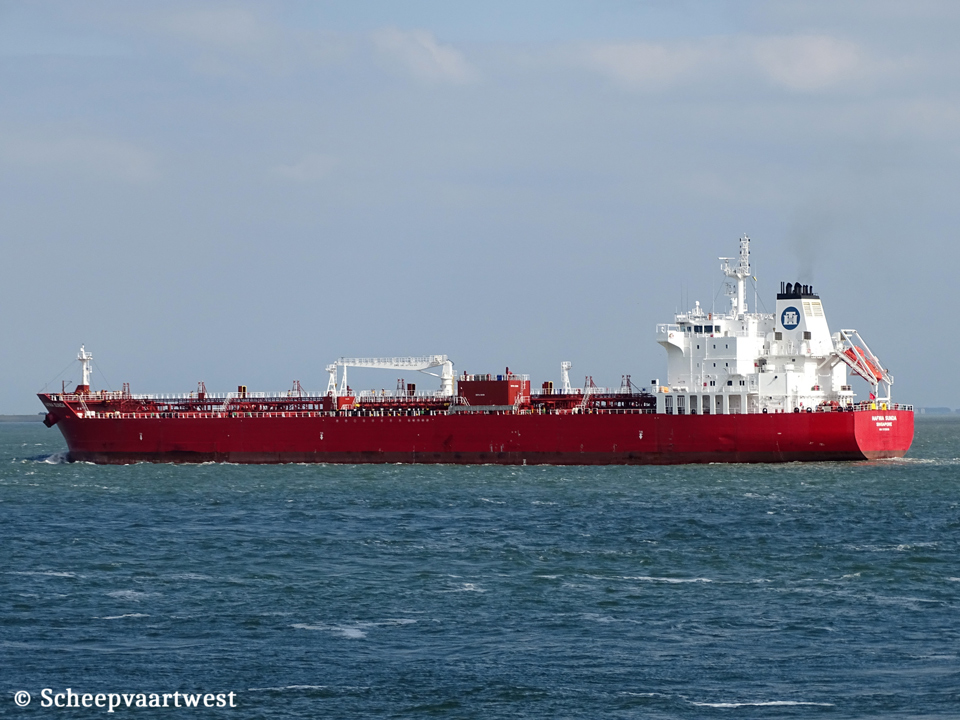

| Westerschelde 23/03/16 | Westerschelde 23/03/16 | Westerschelde 31/05/19 | Westerschelde 19/03/16 | Westerschelde 19/03/16 | ||||
|
Name |
HAFNIA SUNDA |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9725639 |
|
Call sign |
9V3281 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
24.120 t Suez: 25.484,72 t |
|
DWT |
Summer: 39.067 t |
|
NT |
10.359 t Suez: 21.671,99 t Panama: 20.116 t |
|
Length |
184,26 m overall 176,00 m between perpendiculars |
|
Breadth |
27,40 m extreme |
|
Draught |
Summer: 11,91 m Winter: 11,67 m |
|
Keel to masthead |
46,40 m |
|
Air draft |
Light ship: 43,95 m Normal ballast: 39,65 m At loaded summer deadweight: 34,69 m |
|
Freeboard |
Summer: 5.713 mm Winter: 5.961 mm |
|
Depth |
17,60 m moulded |
|
Speed |
14,6 knots ballast 14,0 knots laden |
|
Built |
2015 |
|
Launch date |
03/07/2015 |
|
Date of completion |
21/09/2015 |
|
Builder |
Hyundai Mipo Dockyard Ulsan South Korea |
|
Yard number |
2530 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W/Hyundai 6S50ME-B 9.3 - 2 stroke 6 cylinder combustion engine 7.290 kW / 9.914 bhp Builder: Hyundai Engine & Machinery Co., Ltd.(B&W), Ulsan - South Korea |
|
Propellers |
1x Fixed propeller |
|
Generators |
3x Hyundai/Himsen 6H21/32 diesel generatorsets each 1.170 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
CC1P = 2.572,892 m³ CC1S = 2.563,876 m³ CC2P = 3.648,736 m³ CC2S = 3.645,600 m³ CC3P = 3.712,142 m³ CC3S = 3.717,532 m³ CC4P = 3.712,142 m³ CC4S = 3.717,532 m³ CC5P = 3.712,142 m³ CC5S = 3.717,532 m³ CC6P = 3.452,638 m³ CC6S = 3.457,146 m² Total: 41.629,91 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
871 m³ |
|
Number of pumps |
10x Framo cargo pumps each 500 m³/h 2x Framo cargo pumps each 300 m³/h 2x Framo cargo pumps each 200 m³/h 1x Framo cargo pump 75 m³/h 1x Framo cargo pump 70 m³/h 2x Framo ballast pimps each 750 m³/h |
|
Manifolds |
Bow to centre manifold: 95,58 m Stern to centre manifold: 91,68 m Distance bridge front to centre of manifold: 57,63 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.500 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 700 mm Distance main deck to centre of manifold: 2.100 mm |
|
Tank capacities |
Fuel oil: 935,9 m³ Diesel oil: 457,6 m³ Gas oil: 444,5 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Crew |
21 |
|
Technical operator |
Thome Croatia Doo ulica 7 Domobranske Pukovnije 1 HR-23000 Zadar Croatia |
|
Commercial operator |
Hafnia Pools Pte. Ltd. Mapletree Business City, #18-01 10 Pasir Panjang Road Singapore 117438 Republic of Singapore |
|
Registered owner |
Hafnia Tankers Shipholding Singapore Pte Ltd. 159 Telok Ayer Street Singapore City Republic of Singapore |
|
Latest data adjustment |
09 August 2021 |
