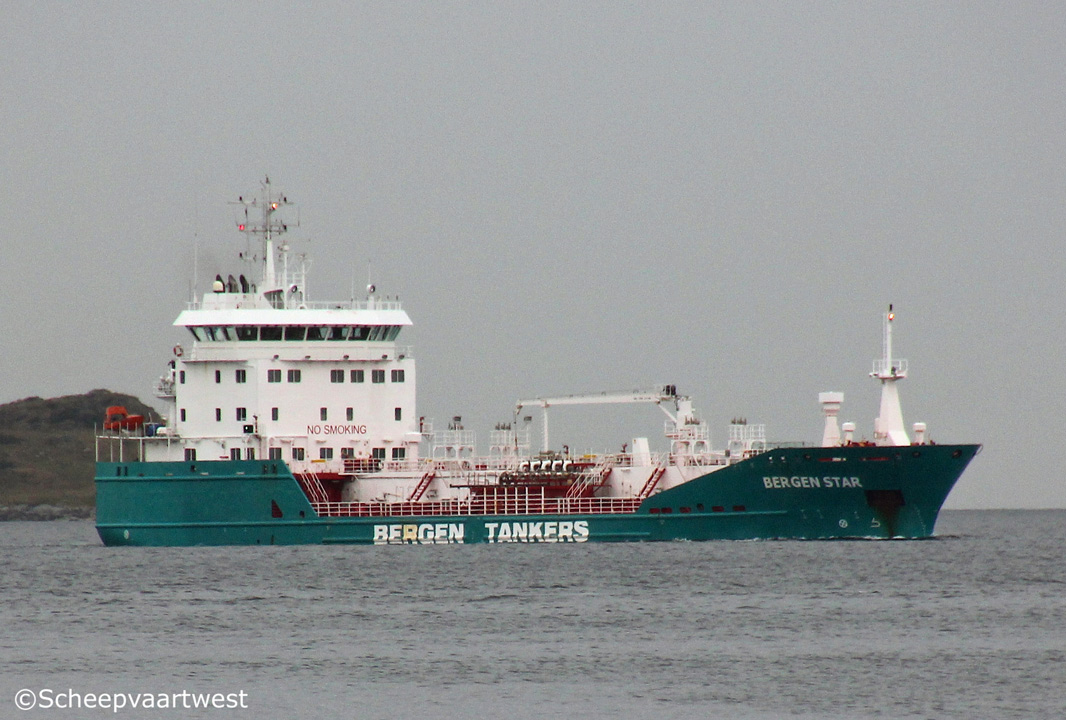

Bergen Star 01

Near Alesund, Norway 21 September 2017

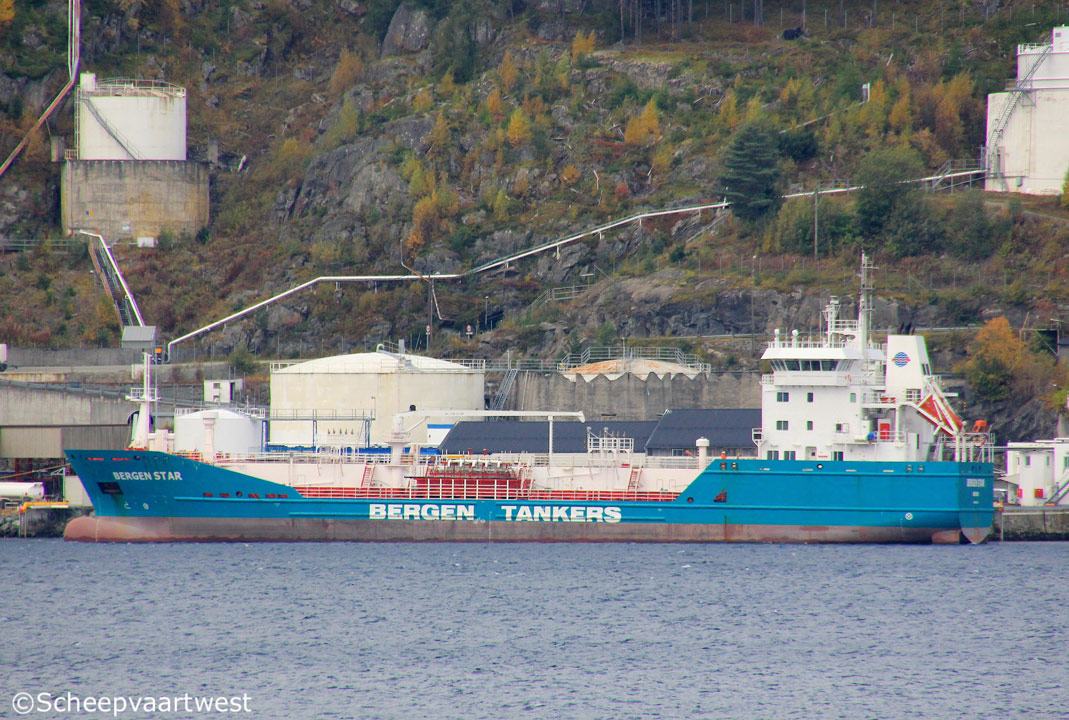

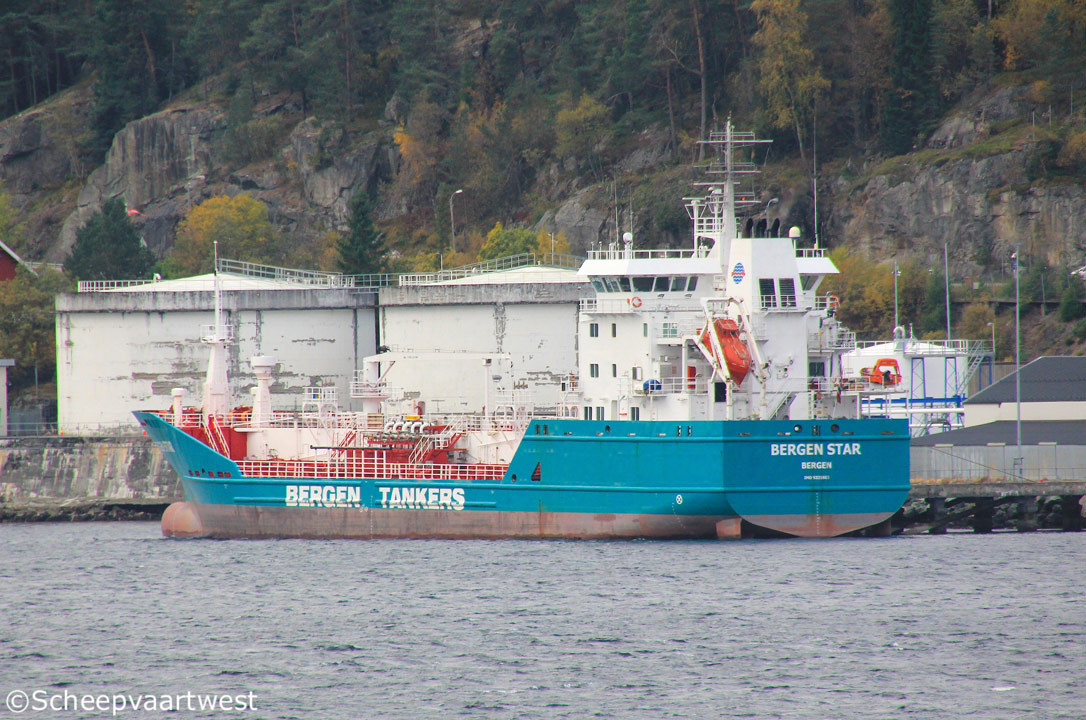

Bergen Star 02   Bergen Star 03
Trondheim 30/09/17 Trondheim 30/09/17


Name

BERGEN STAR

Type

Oil products tanker

IMO-number

9321603

Call sign

LNVH

Flag

Norway

Port of registry

Bergen

GT

3.618 t

DWT

4.157 t

NT

1.486 t

Length

89,99 m overall

83,90 m between perpendiculars

Breadth

16,70 m extreme

16,50 m moulded

Draught

Summer: 6,18 m fully loaded

Keel to Masthead

32,00 m

Air draft

28,00 m

Depth

8,05 m

Speed

Service: 14,0 knots

Built

2006

Date of completion

31.07.2006

Builder

RMK Marine Gemi Yapim San. Ve Deniz Tas. Islt. A.S.
Istanbul
Turkey

Yard number

63

Hull material

Steel

Hull type

Double hull

Watertight compartments

11

Continuous decks

1

Main engine

2x Bergen Diesel type C25:33 L6A - 4 stroke 6 cylinder 250 x 330 mm diesel engine total 3.480 kW / 4.728 hp at 900 rpm

Built: 2005

Builder: Bergen Diesel, Norway

Propellers

2x Azimuth thruster controllable pitch at 212 rpm

4 blades - Diameter: 2.300 mm

Boilers

1 CHO Gesab 4,00 m² - 10,0 bar
1 CHO Gesab 110,50 m² - 10,0 bar

Electric installations

Power Voltage: 440 V

Lighting Voltage: 230 V

Frequency: 60 Hz

Shaft generator

2x 1.412 kVA - 1.130 kW

Generators

2x Volvo Penta D12D-A MG main diesel generatorsets each 437 kVA - 350 kW - 503 hp at 1.800 rpm

Emergency generator

1x Diesel generatorset 187 kVA - 150 kW - 238 hp

Bow thruster

1x Brunvoll FU-45-LTC-1375 - 500 kW

Number of cargo tanks

10

Cargo tank capacity 98%

CT 1P&SB: 646,8 m³

CT 2P&SB: 1194,1 m³

CT 3P&SB: 1303,3 m³

CT 4P&SB: 1123,0 m³

CT 5P&SB: 841,5 m³

Total: 5.108,7 m³ ex slop tanks

Number of slop tanks

1

Slop tank capacity 98%

104 m³

Number of segregations

10

Tank coating

Epoxy

Cargo handling

10 x Framo Hydraulic Deepwellpump each 200 m³/h at 10,0 bar

Pumping capacity: 2.000 m³/h

Manifolds

Bow to centre manifold: 40,40 m

Lifting equipment

1x Crane - SWL 1,0 t outreach 14,50 m

Operator

Bergen Tankers AS

Klampavikvegen 52
5300 Kleppestø
Norway

Registered owner

Partrederiet Kysttanker DA
Klampavikvegen 52
5300 Kleppestø
Norway

Latest data adjustment

11 November 2017
