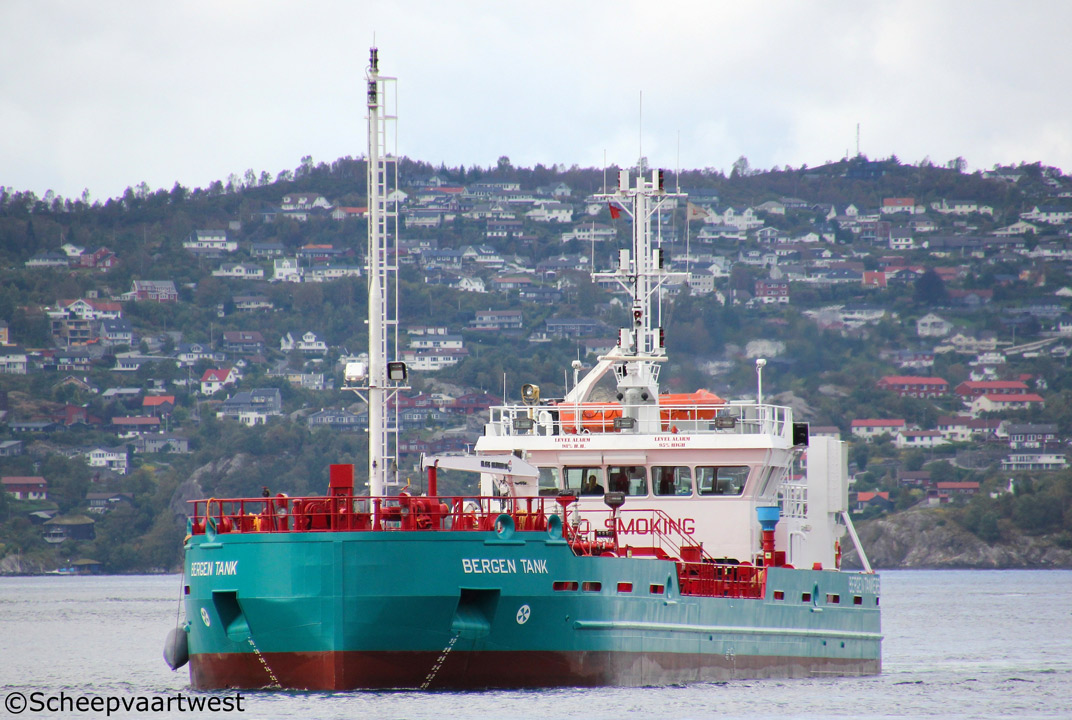

Bergen Tank 01

Bergen, Norway 20 September 2017

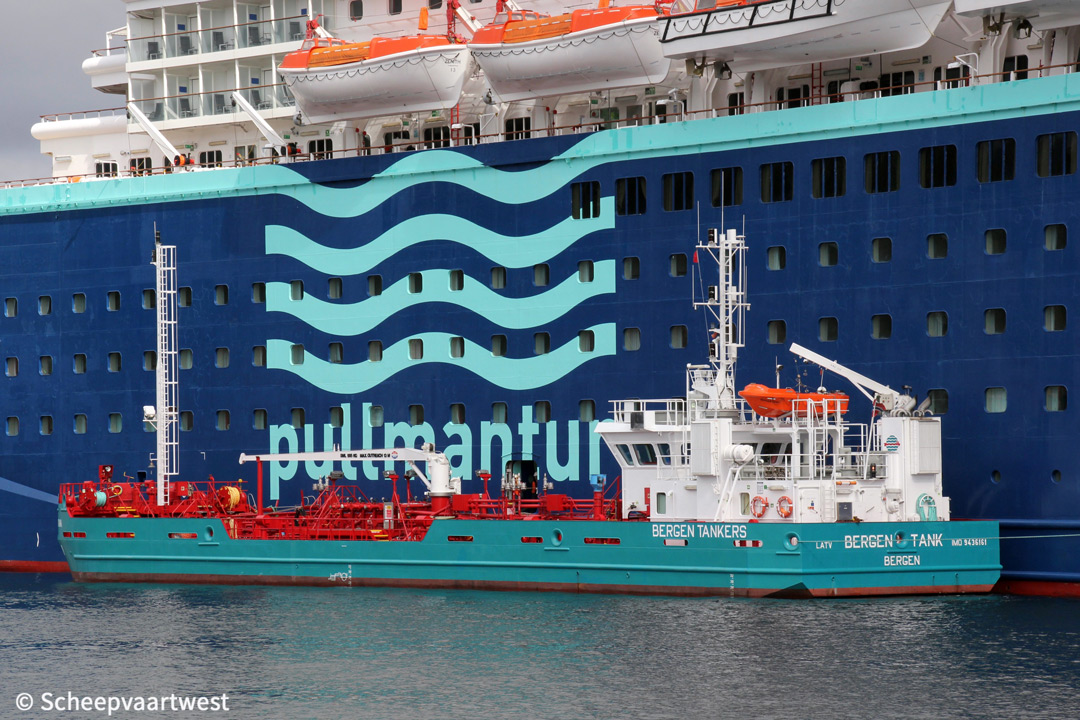

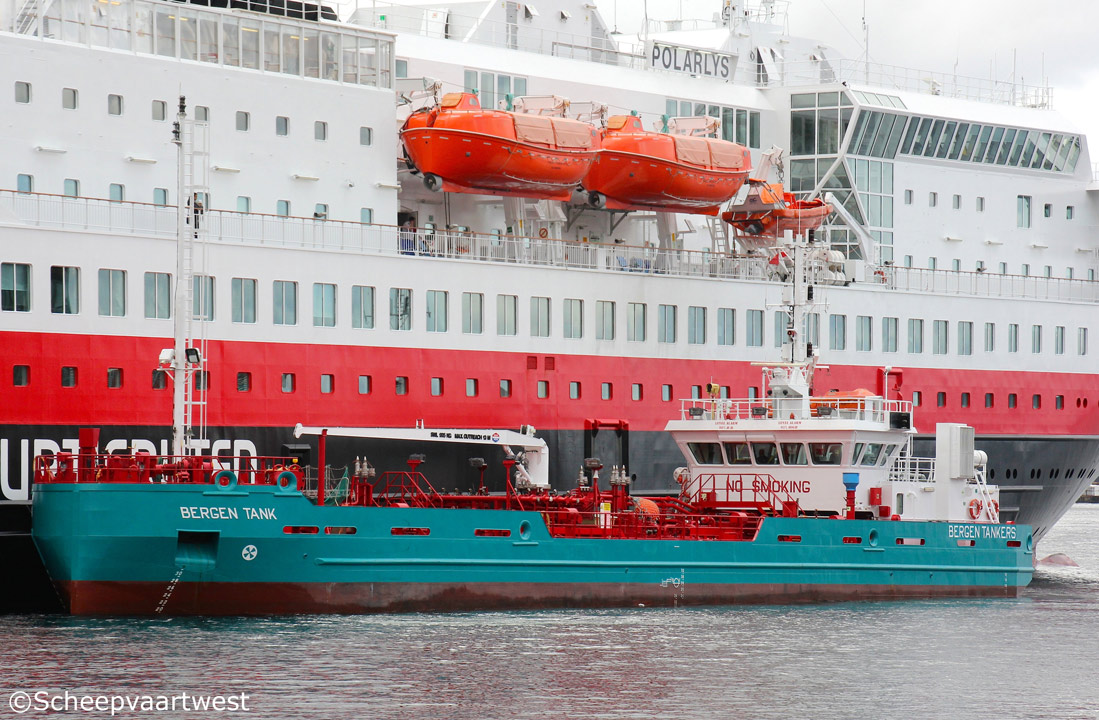

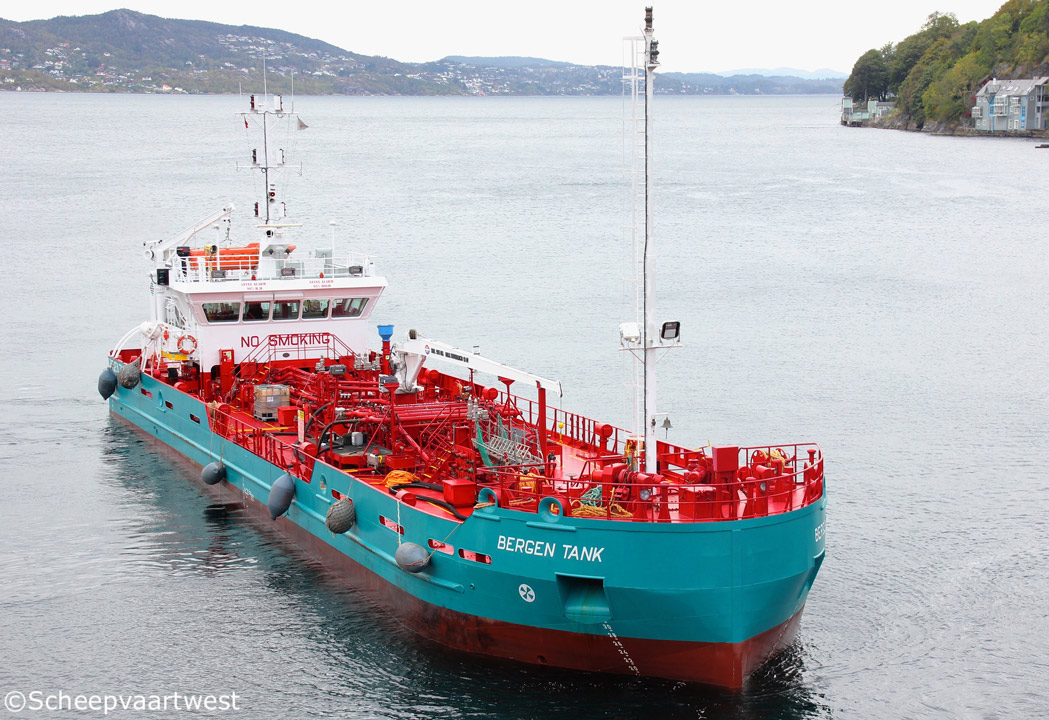

Bergen Tank 02
20/09/17



Name

BERGEN TANK

Type

Port bunkering tanker

IMO-number

9436161

Call sign

LATV

Flag

Norway

Port of registry

Bergen

GT

498 t

DWT

Summer: 850 t

NT

174 t

Length

47,85 m overall

47,15 m between perpendiculars

Breadth

10,00 m

Draught

2,85 m fully loaded summer

Keel to masthead

15,30 m

Air draft

12,95 m

Freeboard

1.158 mm

Depth

4,00 m

Speed

8,0 knots

Built

2010

Date of completion

07.10.2010

Builder casco

Nevsky Shipbuilding
St Petersburg
Russia

Builder completion

Stocznia Remontowa Nauta S.A.
Gdynia
Poland

Yard number

602

Hull material

Steel

Hull type

Double hull

Watertight compartments

8

Continuous decks

1

Main engine

2x Mitsubishi S12A2MPTA - 12 cylinder diesel engines each 375 kW at 1.500 rpm

Built: 08.06.2008

Manufacturer: Mitsubishi Heavy Industries Equipment Europe, Almere - The Netherlands

Rudders

2x Conventional rudders

Propellers

2x Screw propeller controllable pitch - 4 blades

Shaft generator

2x Stamford A08D982953 generators each 375 kW / 400 Volt

Emergency generator

1x Kohler harbour diesel generatorsets 63 kVA - 50 kW - 68 hp

Bow thruster

1x Verhaar Omega - 200 kW

Number of cargo tanks

6

Total capacity of tanks

CT1: 97,30 m³

CT2: 213,248 m³

CT3P: 114,856 m³

CT4 SB: 114,856 m³

CT5: 147,588 m³

CT6/slop: 44,394 m³

Total cubic capacity 98% ex slop tank: 732,242 m³

Number of slop tanks

1

Slop tank capacity 98%

44,394 m³

Number of segregations

6

Cargo pumps

2x Allweiler screw pumps each 400 m³/h

1x Allweiler screw pump 50 m³/h slop pump

Pumping capacity

Total: 800 m³/h

Manifolds

Bow to centre manifold: 21,40 m

Tank capacities

Fuel oil: 27,1 m³

Lifting equipment

1x Hose crane - SWL 0,99 t

Manager

Bergen Tankers A/S
Klampavikvegen 52
5300 Kleppestø
Norway

Registered owner

Bergen Tankers A/S
Kleppesto
Norway

Latest data adjustment

27 October 2017
