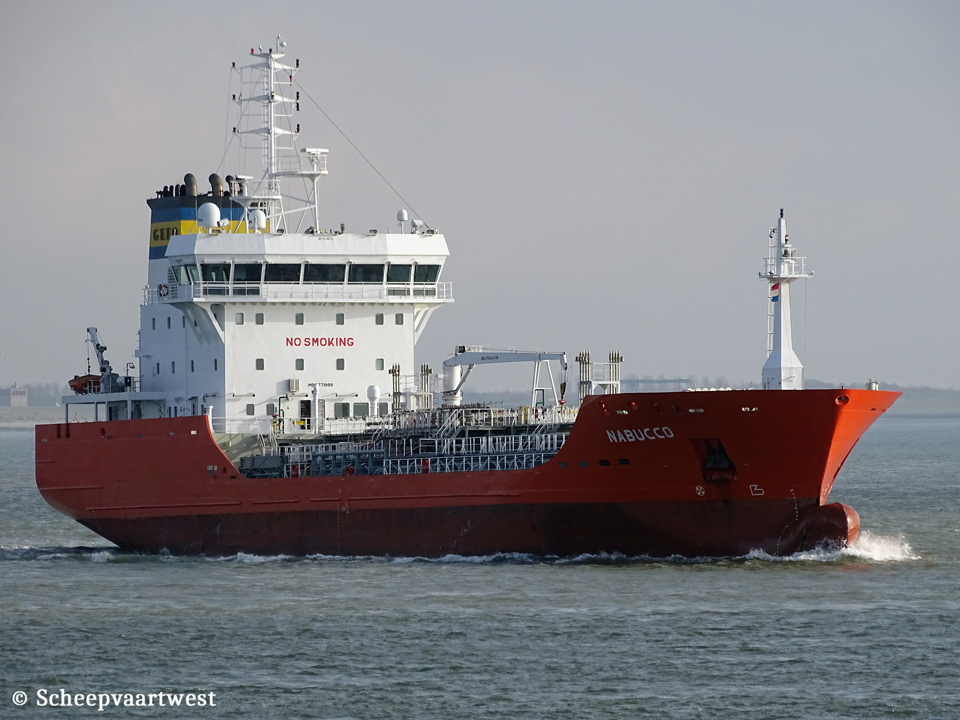

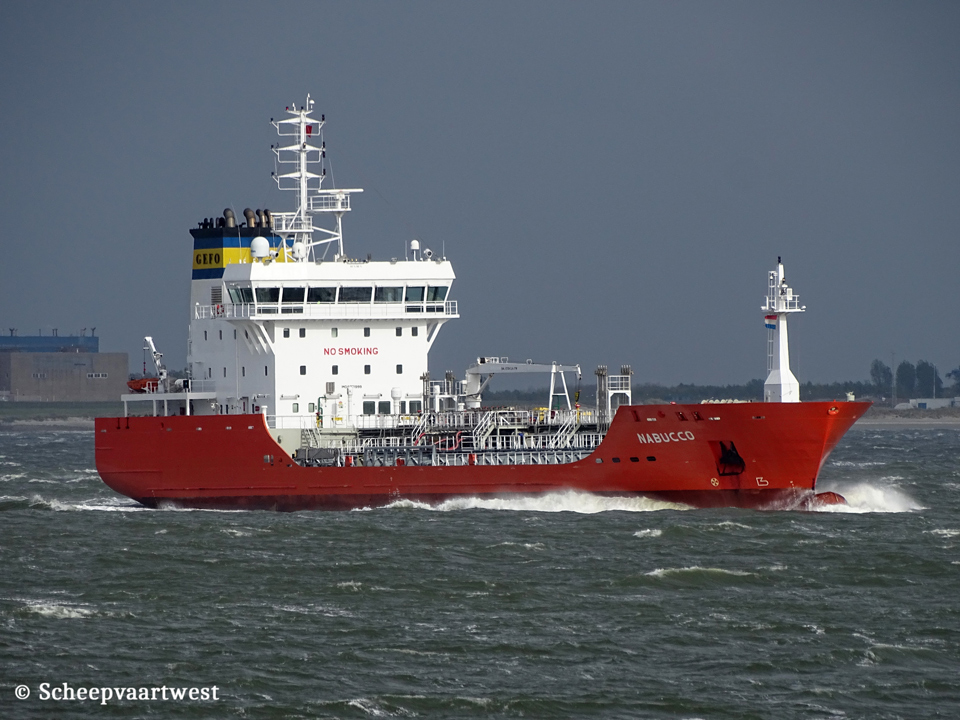

Westerschelde 21 July 2017 |
 |
 |
 |
 |
 |
 |
|||||

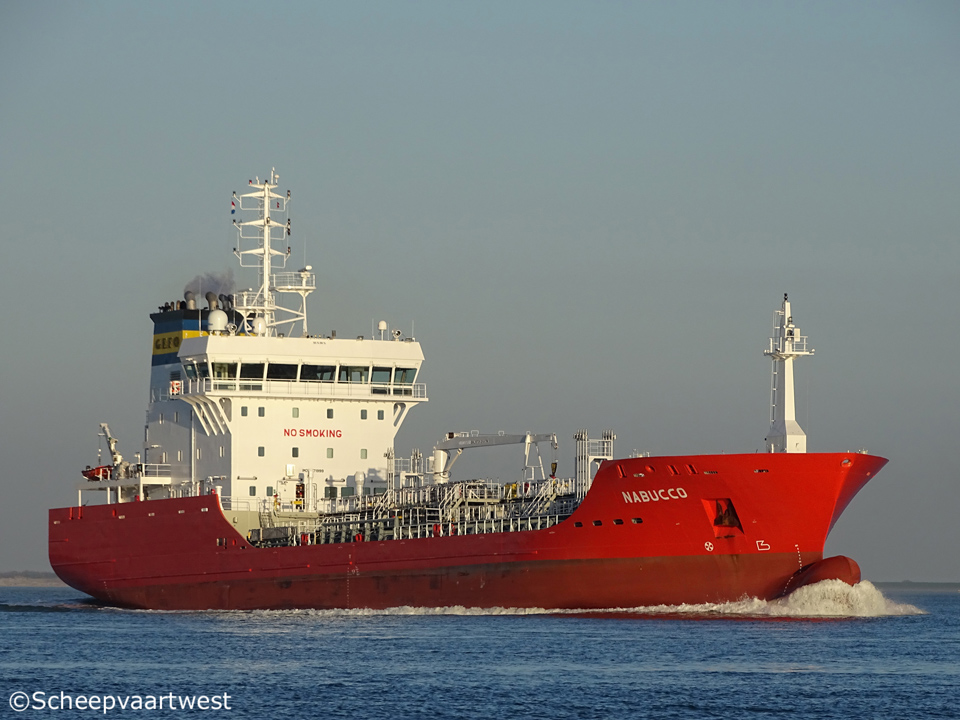

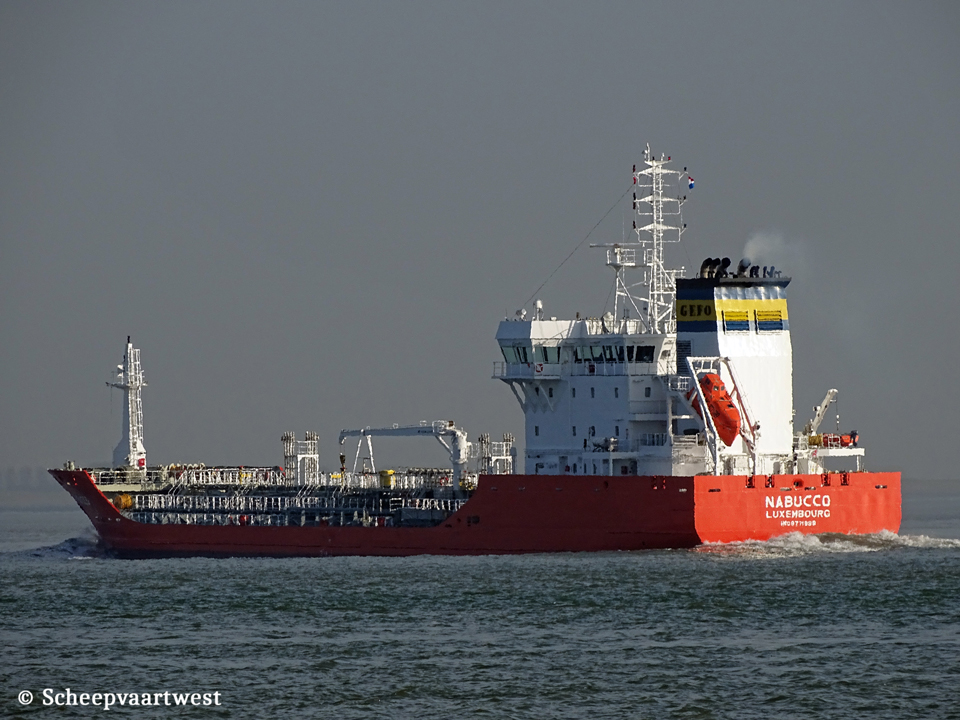

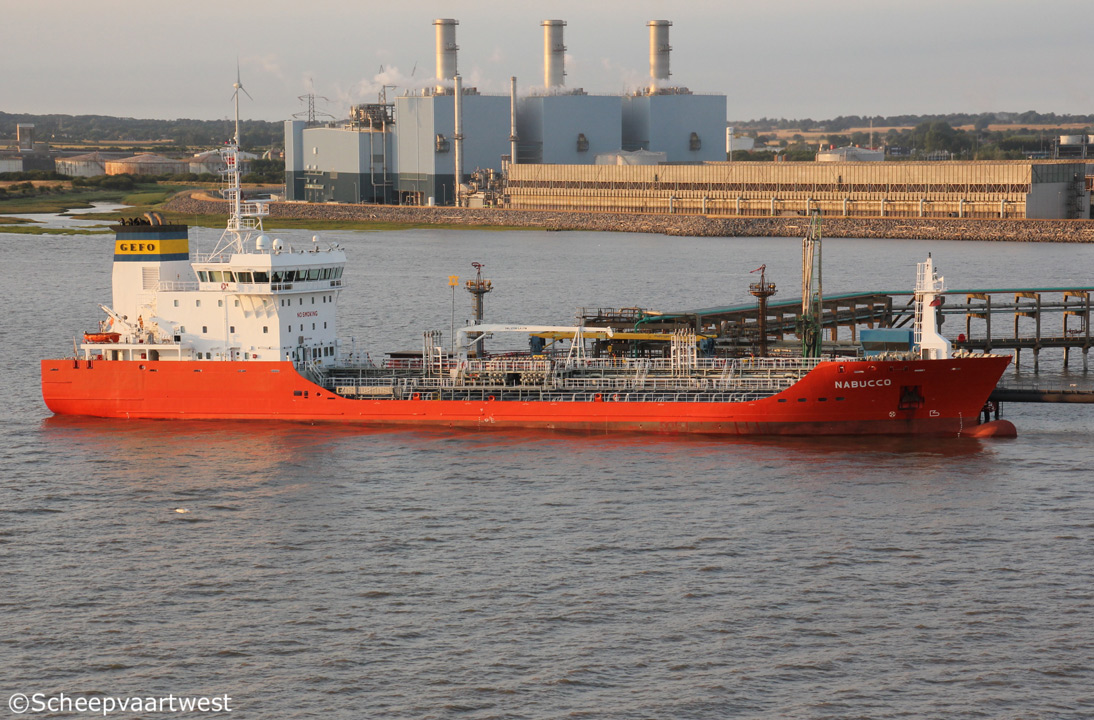

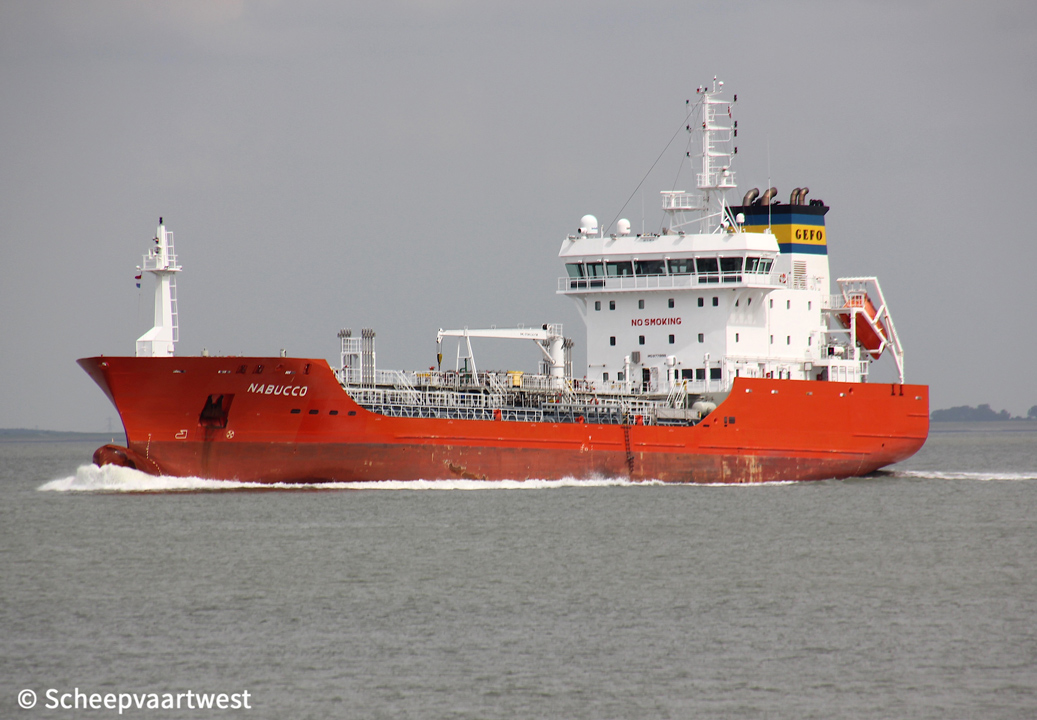

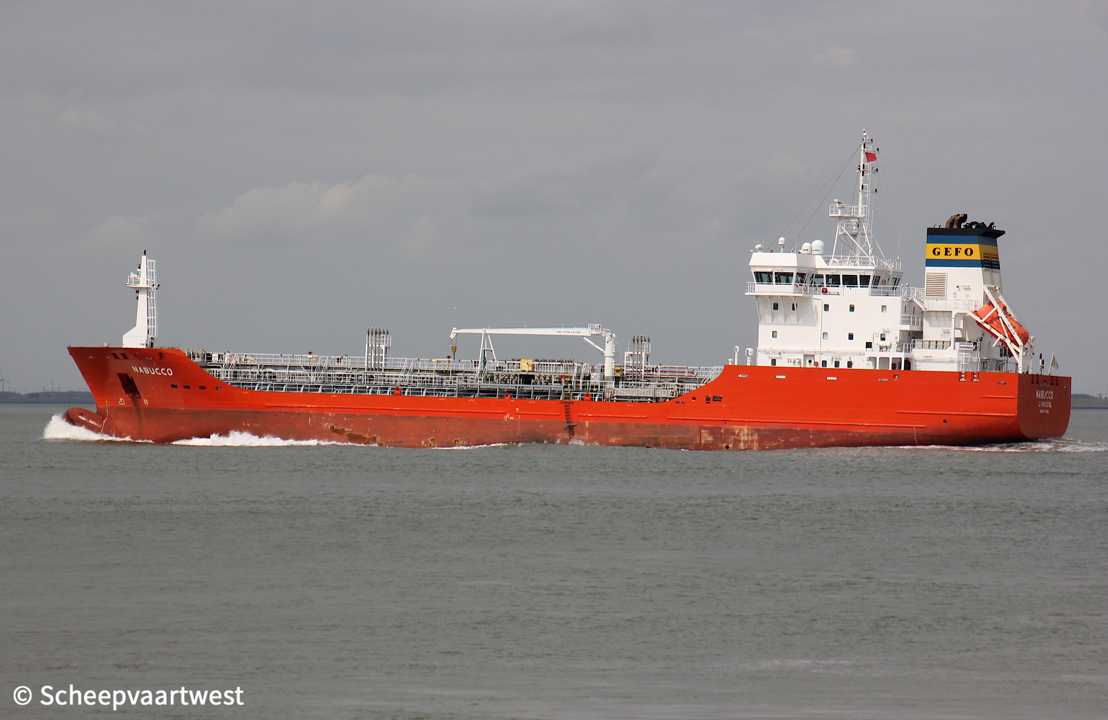

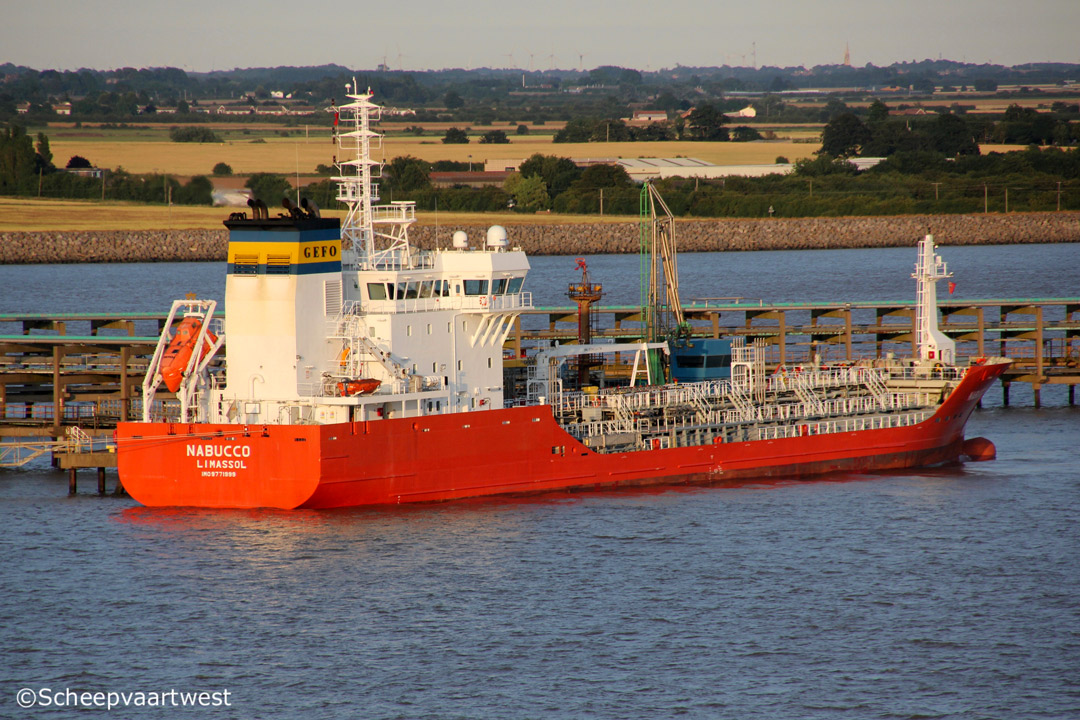

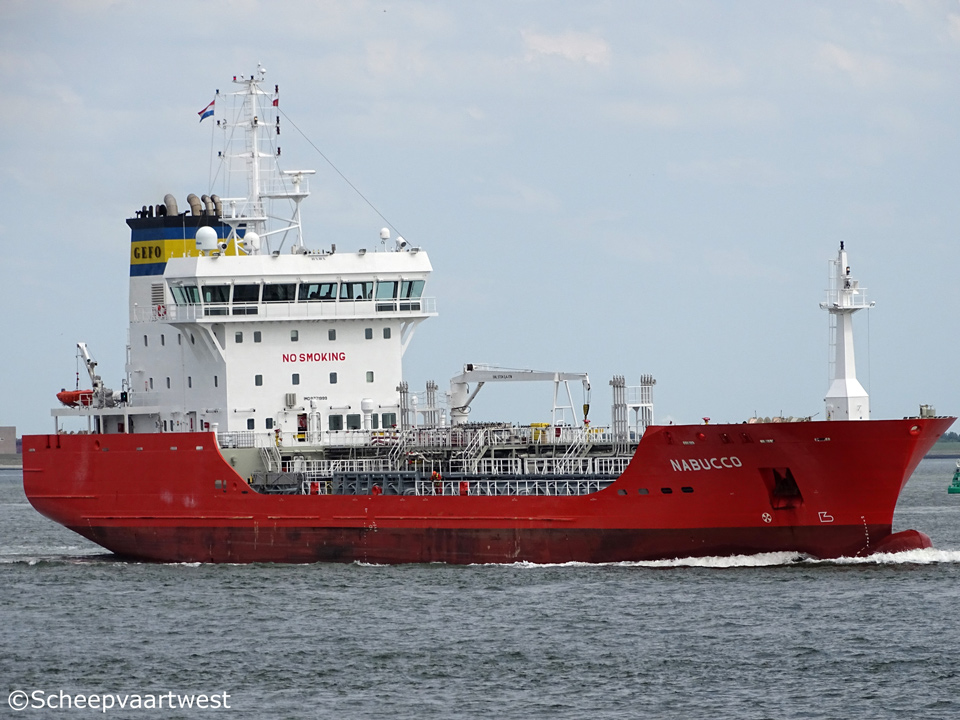

| Westerschelde 02/04/17 | Westerschelde 02/04/17 | Hull, UK 13/07/18 | Hull, UK 13/07/18 | Terneuzen 16/08/19 | Terneuzen 16/08/19 | |||||
 |
 |
|||||||||

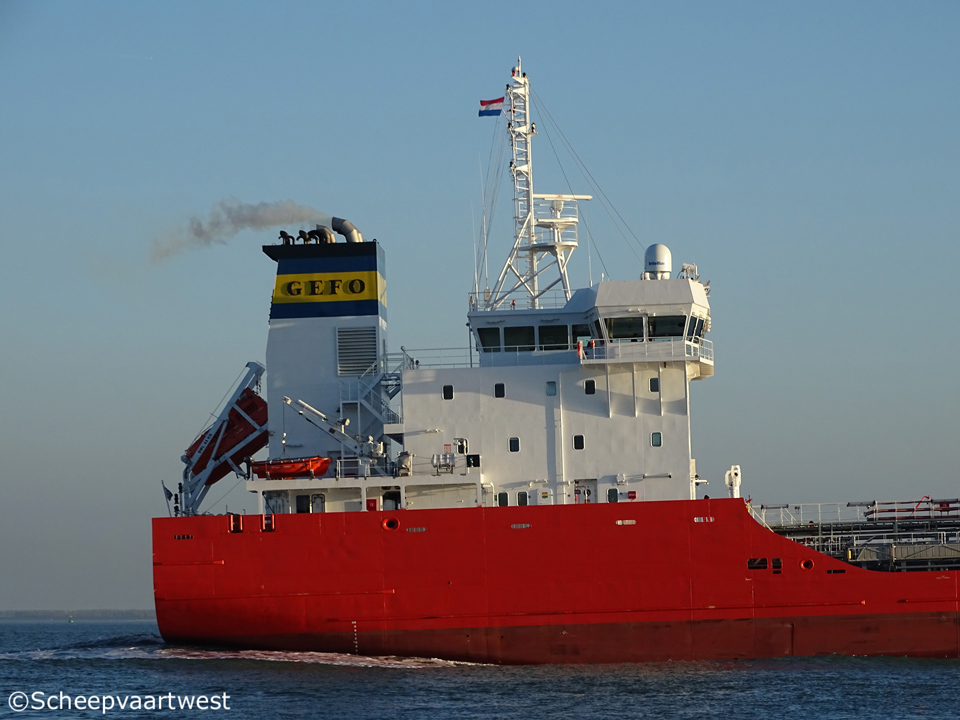

| Westerschelde 31/12/18 | Westerschelde 27/04/19 | |||||||||
|
Name |
NABUCCO |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9771999 |
|
Call sign |
5BXQ4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flag |
2016 - 2018 G.D. Luxembourg, Luxembourg City - Call sign: LXNB |
|
GT |
4.690 t |
|
DWT |
Summer: 6551 t |
|
NT |
1.874 t |
|
Length |
104,97 m overall 99,00 m between perpendiculars |
|
Breadth |
17,24 m extreme 17,00 m moulded |
|
Draught |
7,61 m |
|
Keel to mast end |
36,99 m |
|
Depth |
9,35 m |
|
Speed |
Service: 12,8 knots Max.: 17,8 knots |
|
Built |
2016 |
|
Keel laid |
22/06/2015 |
|
Launch date |
24/05/2016 |
|
Date of completion |
23/11/2016 |
|
Builder |
Tersan Tersanecilik Sanayi ve Ticaret A.S. Tuzla Turkey |
|
Yard number |
1056 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 7L32/44CR - 4 stroke 7 cylinder 320 x 440 mm combustion engine 3.332 kW / 4.530 hp at 750 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x Thermal oil heater, oil fired 1x Thermal oil heater, steam heated 1x Thermal oil heater, exhaust heated Builder: Aalborg |
|
Shaft generator |
1x 1.750 kW |
|
Generators |
3x MAN D2842 LE301 main diesel generatorsets each 737 kW |
|
Emergency generator |
1x MAN D2866 LXE diesel generatorset |
|
Bow thruster |
1x 428 kW |
|
Number of cargo tanks |
14 |
|
Cargo tank capacity |
6.800 m³ |
|
Number of pumps |
12x Cargo pumps each 200 m³/h 2x Cargo pumps each 125 m³/h |
|
Tank capacities |
Ballast: 2.408,76 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
ISM & commercial manager |
GEFO Gesellschaft für Oeltransporte mbH & Co., KG Raboisen 5 20095 Hamburg Germany |
|
Registered owner |
GEFO Gesellschaft für Oeltransporte mbH Raboisen 5 20095 Hamburg German |
|
Latest data adjustment |
14 December 2021 |
