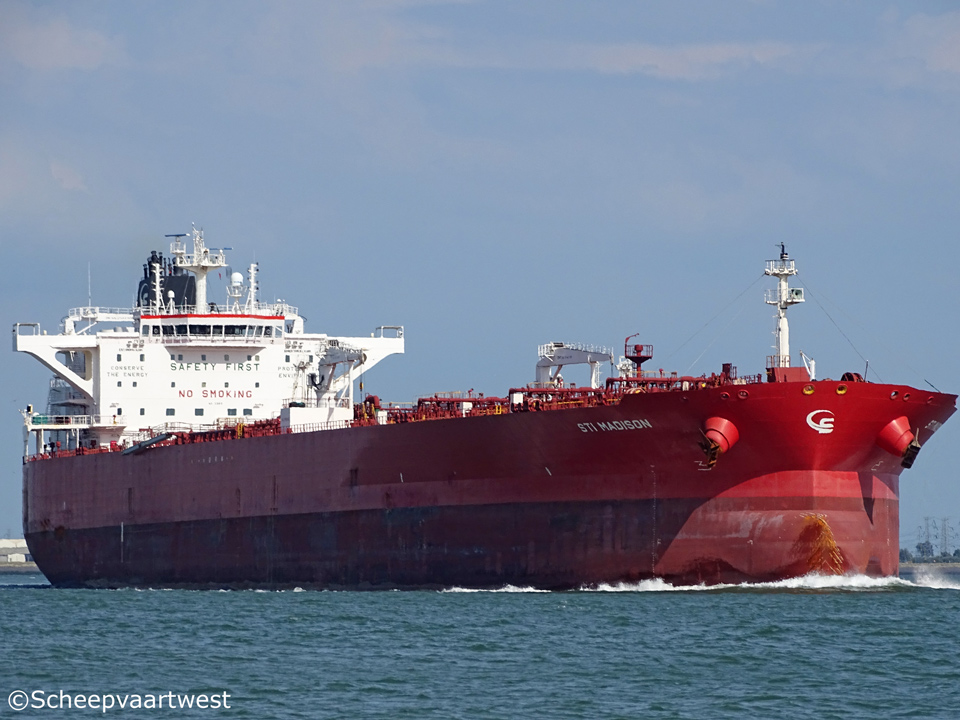

STI Madison 01

Westerschelde 06 August 2017

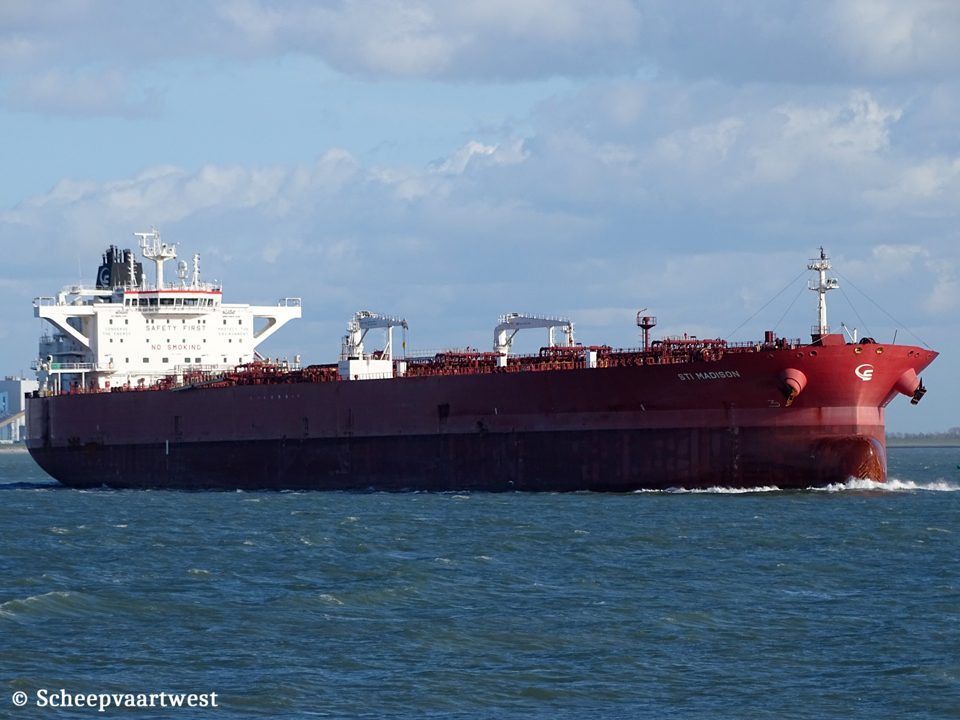

STI Madison IMO 9688831 02
Westerschelde 05/02/19


Name

STI MADISON

Type

Crude oil tanker

IMO-number

9688831

Call sign

V7DH5

Flag

Marshall Island

Port of registry

Majuro

GT

64.705 t registered

Suez: 65.881,49 t

DWT

114.705 t

NT

33.738 t registered

Panama: 53.136 t

Suez: 60.552,42 t

Length

256,39 m overall

247,20 m between perpendiculars

Breadth

43,00 m moulded

Draught

14,30 m

Keel to mast end

48,59 m

Freeboard

7.229 mm

Depth

22,00 m moulded

Speed

Service: 14,2 knots

Max: 16,1 knots

Built

2014

Keel laid

29/11/2013

Launch date

31/05/2014

Delivery date

02/09/2014

Builder

Hyundai Samho Heavy Industries Co., Ltd.

South Korea

Yard number

S704

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Main engine

1x Hyundai/MAN-B&W 6G60ME-C9.2 - 2 stroke 6 cylinder 600 x 2.790 mm combustion engine 11.760 kW / 15.988 hp at 77,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

1x Auxiliary fired boiler - 12,0 bar

1x Fired exhaust gas boiler - 8,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

1x Main diesel generatorset 900 kW

3x Main diesel generatorsets each 1.250 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12 + 2 slop tanks

Cargo tank capacity 100%

135.429,2 m³

Number of pumps

12x Cargo pumps each 1.250 m³/h

12x Cargo pumps each 600 m³/h

Number of tanks

Ballast: 14

Fuel oil: 9

Diesel oil: 7

Lubricating oil: 6

Slop: 3

Sludge: 3

Fresh water: 2

Waste water: 2

Chain: 2

Hydraulic oil: 2

Sea water: 1

Tank capacities

Diesel Oil: 567,7 m³

Freshwater: 353,2 m³

Fuel Oil: 2.282,6 m³

Hydraulic Oil: 41,8 m³

Lube Oi: 149,4 m³

Tank Ballast: 42.580 m³

Lifting equipment

1x Engine room overhead crane - SWL 6,3 t

1x Hose handling crane port - SWL 15,0 t

1x Hose handling crane starboard - SWL 15,0 t

1x Provision crane port - SWL 6,3 t

1x Provision crane starboard - SWL 2,0 t

Manufacture: Dongnam Marine Crane Co., Ltd.

Commercial manager

Scorpio Commercial Management

Le Millenium, 9, boulevard Charles III

98000 Monaco-Ville

Monaco

ISM manager

Scorpio Marine Management (India) Pvt. Ltd.

Scorpio House, Hiranandani Business Park, Central Avenue, Hirandani Gardens, Powai

Mumbai, 400076

India

Registered owner

STI Madison Shipping Company Limited

Care of Scorpio Commercial Management SAM

Le Millenium, 9, boulevard Charles III

98000 Monaco-Ville

Monaco

Latest data adjustment

19 September 2022
