Name |

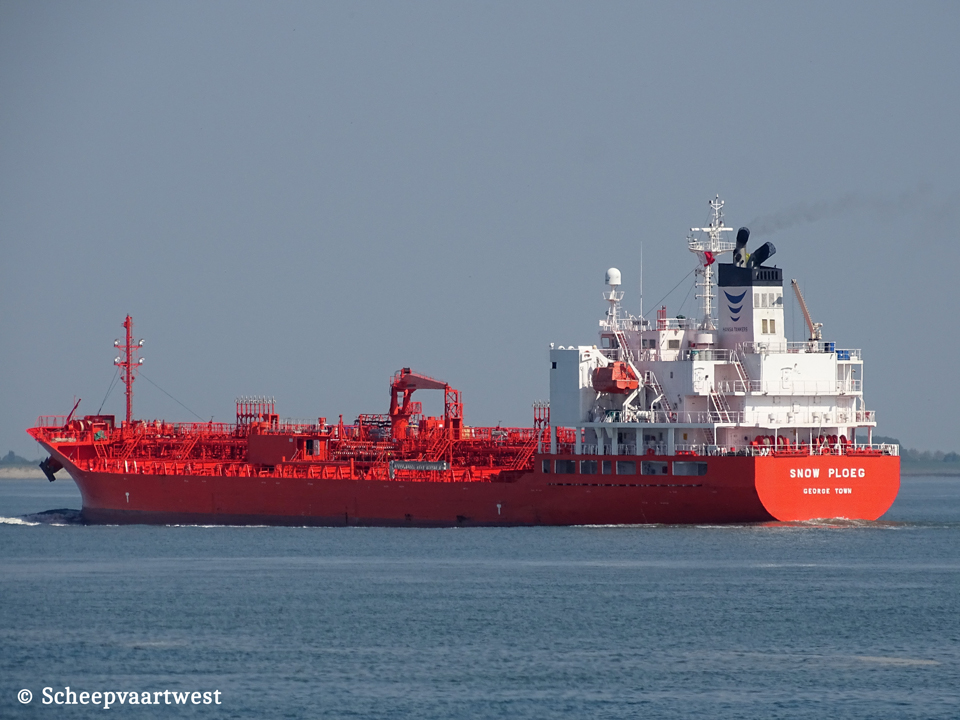

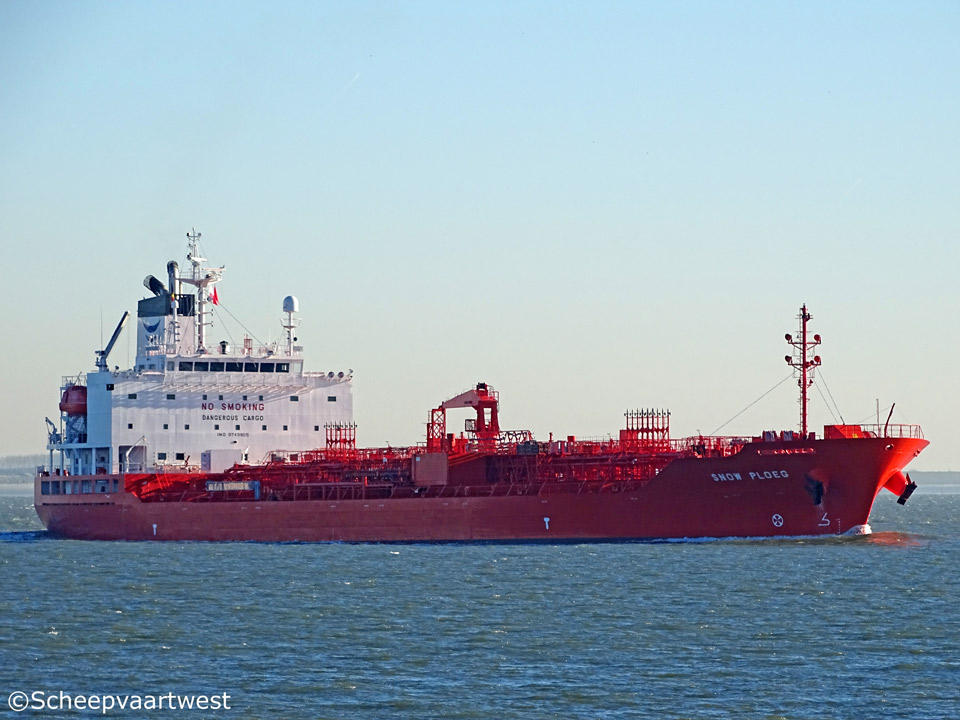

SNOW PLOEG |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9749805 |
|
Call sign |
ZGFI6 |
|
Flag |
Cayman Islands |
|
Port of registry |
George Town |
|
GT |
11.930 t registered Suez: 12.356,79 t |
|
DWT |
19.999 t |
|
NT |
6.294 t registered Suez: 10.584,096 t Panama: 10.034 t |
|
Length |
146,50 m overall |
|
Breadth |
24,00 m moulded |
|
Draught |
Summer: 9,75 m |
|
Moulded L x B x D |
138,00 x 24,00 x 13,10 m |
|
Registered Lx B x D |
138,44 x 24,00 x 13,10 m |
|
Keel to masthead |
38,57 m |
|
Air draft |
Lightship: 34,26 m Normal ballast: 32,08 m At loaded summer deadweight: 28,24 m |
|
Freeboard |
Summer: 3.384 mm Winter: 3.590 mm Light ship: 10.660 m |
|
Depth |
13,10 m moulded |
|
Speed |
14,0 knots ballast 14,0 knots laden 12,0 knots economic |
|
Built |
2016 |
|
Keel laid |
28/12/2015 |
|
Launch date |
23/06/2016 |
|
Date of completion |
12/10/2016 |
|
Builder |
Fukuoka Shipbuilding Co., Ltd. Japan |
|
Yard number |
F-1311 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 6S42MC7.1 - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 4.440 kW / 6.037 hp at 117,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1c Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,3 bar Evaporation: 15,95 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Yanmar 6EY18ALW main diesel generatorsets each 560 kW |
|
Bow thruster |
1x 641 kW |
|
Number of cargo tanks |
20 |
|
Cargo tank capacity 98% |
Seg#1: 1.229,475 m³ (P&S) Seg#2: 2.327,831 m³ (P&S) Seg#3: 3.060,009 m³ (P&S) Seg#4: 2.814,514 m³ (P&S) Seg#5: 1.489,679 m³ (P&S) Seg#6: 2.815,755 m³ (P&S) Seg#7: 2.816,016 m³ (P&S) Seg#8: 2.753,516 m³ (P&S) Seg#9: 1.378,034 m³ (P&S) Seg#10: 1161.650 m³ (P&S) Total: 21.846,47 m³,419 m³ |
|
Number of slop tanks |
2x Are cargo tanks also |
|
Pumps |
12x Centrifugal cargo pumps each 300 m³/h 8x Centrifugal cargo pumps each 200 m³/h 2x Horizontal centrifugal ballast pumps each 250 m³/h 1x Ballast eductor pump 110 m³/h |
|
Manifolds |
Bow to centre manifold: 75,60 m Stern to centre manifold: 70,90 m Distance bridge front to centre of manifold: 43,40 m Distance between cargo manifold centres: 400 mm Distance ships rail to manifold: 4.400 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 690 mm Distance main deck to centre of manifold: 2.330 mm Spill tank grating to centre of manifold: 690 mm |
|
Tank capacities |
Fuel oil: 759,74 m³ Diesel oil: 233,53 m³ Fresh water: 232,72 m³ |
|
Technical operator |
Diamond Ship Management Pte. Ltd. 460,Alexandra road #22-01 PSA Building Singapore 119963 Republic of Singapore |
|
Commercial operator |
Hansa Tankers AS Kalfarveien 57 A Bergen Norway |
|
Disponent owner |
Hansa Tankers AS Kalfarveien 57A 5022 Bergen Norway |
|
Registered owner |
Inventor Chemical Tankers AS Care of Hansa Tankers AS Kalfarveien 57A 5022 Bergen Norway |
|
Latest data adjustment |
02 February 2023 |
