Antwerpen 01 July 2019 |
 |
 |
 |
 |
|||
| Antwerpen 01/07/19 | Antwerpen 06/07/17 | Zeebrugge 06/05/22 | Zeebrugge 06/05/22 |
|
Name |

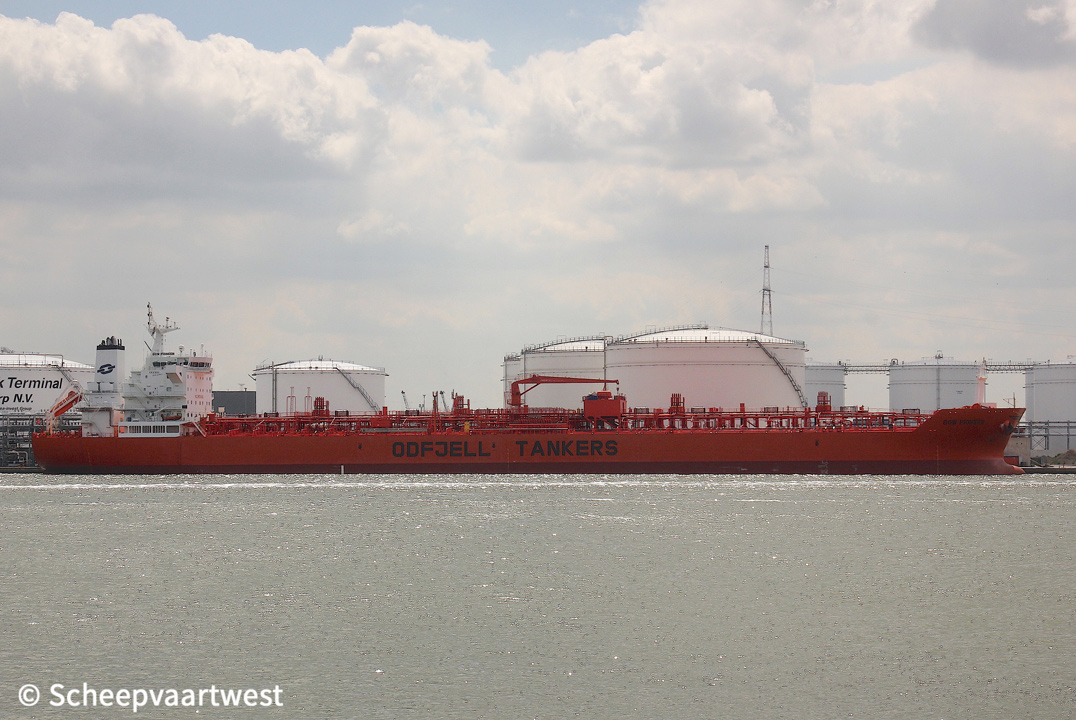

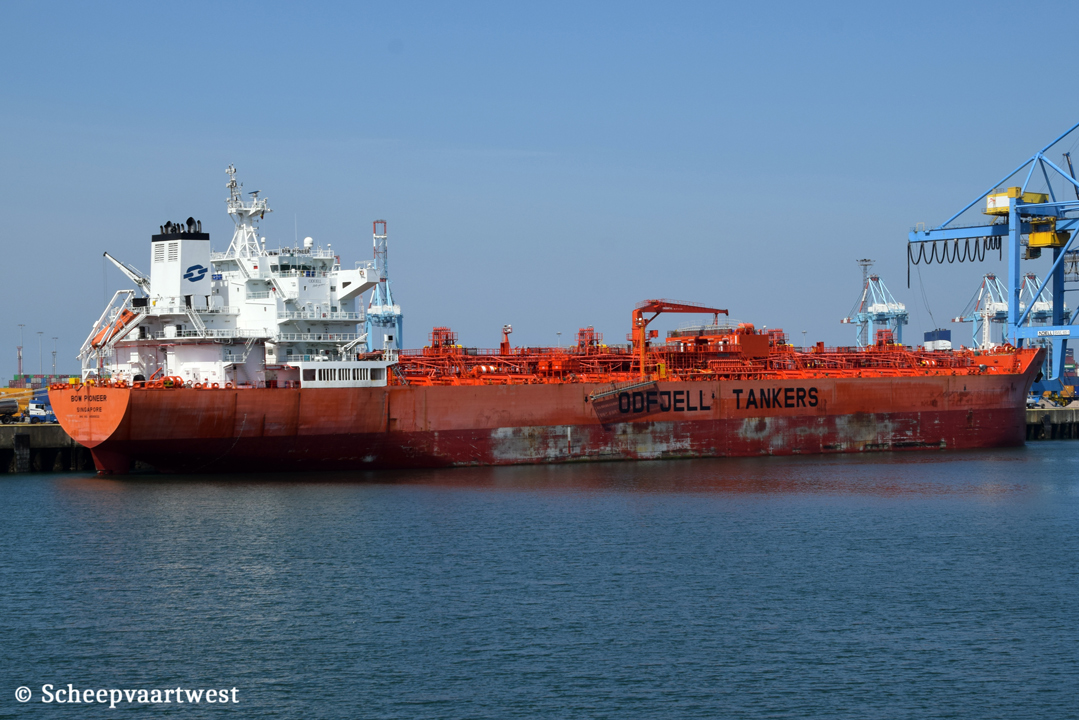

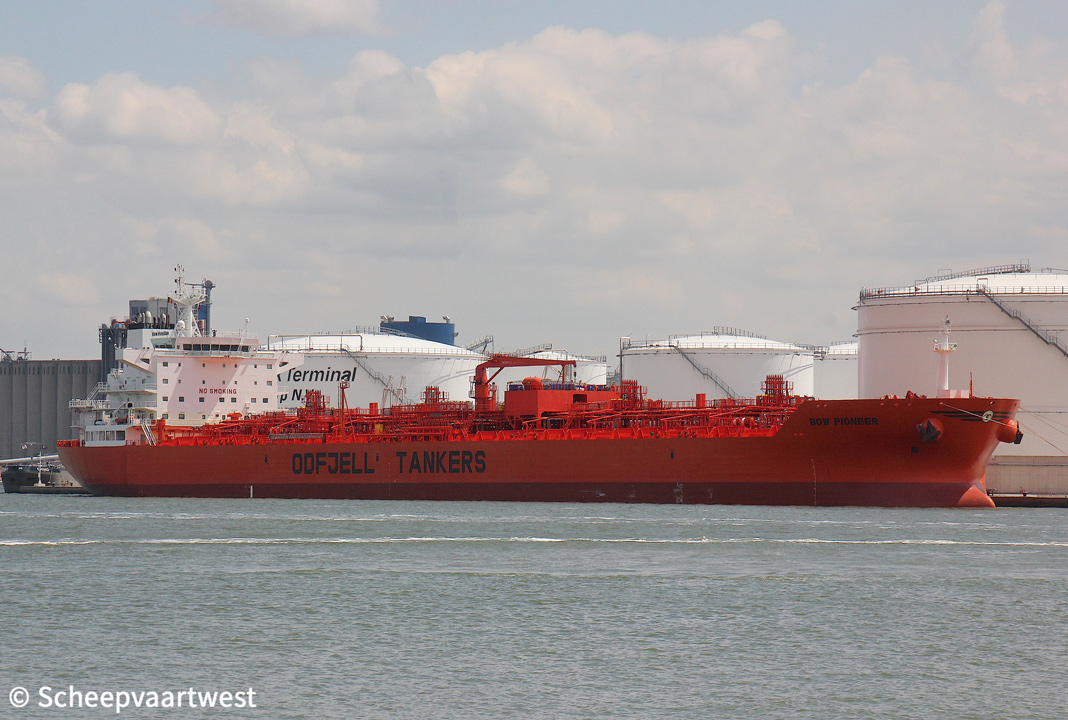

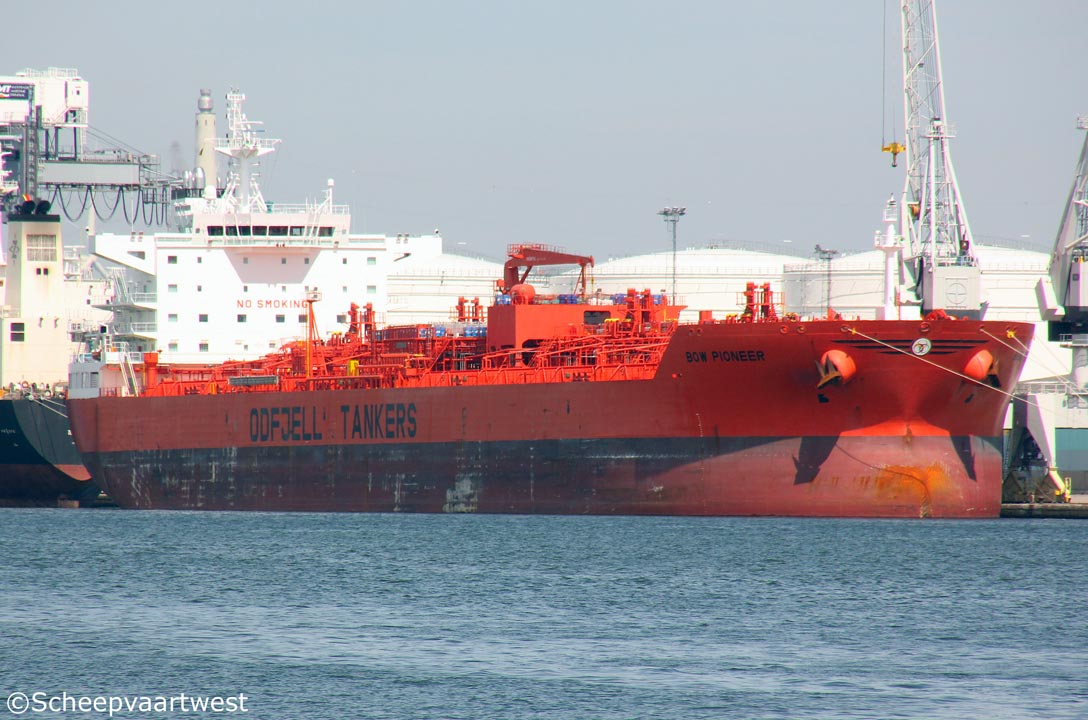

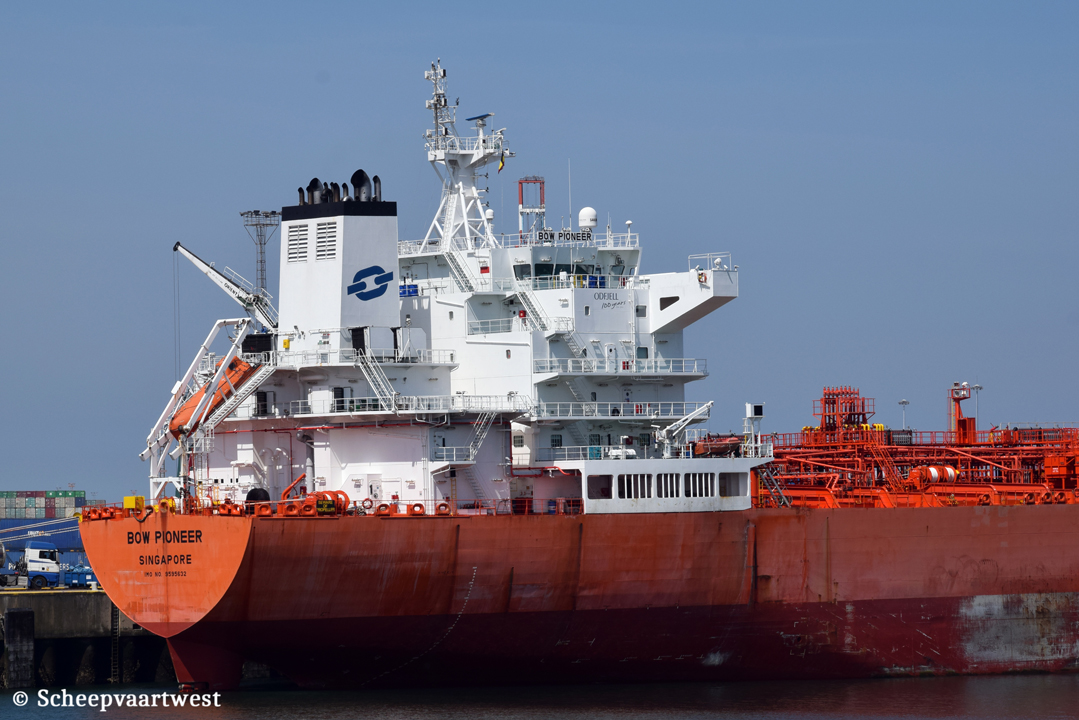

BOW PIONEER |
|
Type |
Tanker for chemicals & oil products |
|
IMO-number |
9595632 |
|
Call sign |
9V9886 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
45.452 t Suez: 46.000 t |
|
DWT |
Summer: 81.305 t |
|
NT |
24.408 t Suez: 40.835 t |
|
Lightship |
17.497 t |
|
Length |
227,90 m overall 219,00 m between perpendiculars |
|
Breadth |
37,00 m extreme |
|
Draught |
Max: 14,02 m |
|
Keel to top of mast |
51,82 m |
|
Depth |
19,20 m moulded |
|
Speed |
Max: 16,9 knots Service: 14,5 knots |
|
Built |
2013 |
|
Keel laid |
10/10/2012 |
|
Launch date |
03/12/2012 |
|
Date of completion |
05/06/2013 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Geoje South Korea |
|
Yard number |
2018 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 5S60MC-C Mk 8 - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 10.870 kW / 14.779 at 105,0 rpm Builder: MAN Diesel & Turbo, Branch of MAN Diesel & Turbo SE - Germany |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated MISSION XW 2x Auxiliary boiler, oil/gas fired MISSION TC Builder: Alfa Laval Aalborg A/S |
|
Generators |
2x Hyundai 5H21/32 diesel generatorsets each 900 kW 2x Hyundai 7H21/32 diesel generatorsets each 1.300 kW Builder: Hyundai Heavy Industries Co., Ltd. |
|
Emergency generator |
1x Cummins NT-855-D(M) diesel generatorset Builder: Cummins Inc. COLUMBUS IN - United States |
|
Number of cargo tanks |
31 |
|
Cargo tank capacity |
86.000 m³ |
|
Tank capacities |
Ballast: 27.656,9 m³ |
|
Number of pumps |
29x Cargo pumps each 600 m³/h 2x Cargo pumps each 300 m³/h |
|
Manifolds |
Summer waterline to manifold: 7,88 m Normal ballast waterline to manifold: 14,50 m Rail to manifold: 4,75 m Bow to centre of manifold: 124,50 m |
|
Anchor equipment |
Length: 687,50 m Diameter: 87 mm |
|
Crew |
24 |
|
Commercial manager |
Odfjell Asia II Pte Ltd. 27-08/9, OUE Downtown 2, 6, Shenton Way Singapore 068809 Republic of Singapore |
|
ISM manager |
Thome Croatia Doo ulica 7 Domobranske Pukovnije 1 HR-23000 Zadar Croatia |
|
Registered owner |
Odfjell Asia II Pte. Ltd 27-08/9, OUE Downtown 2, 6, Shenton Way Singapore 068809 Republic of Singapore |
|
Latest data adjustment |
29 May 2022 |
