Westerschelde 09 December 2015 |
|
Name |

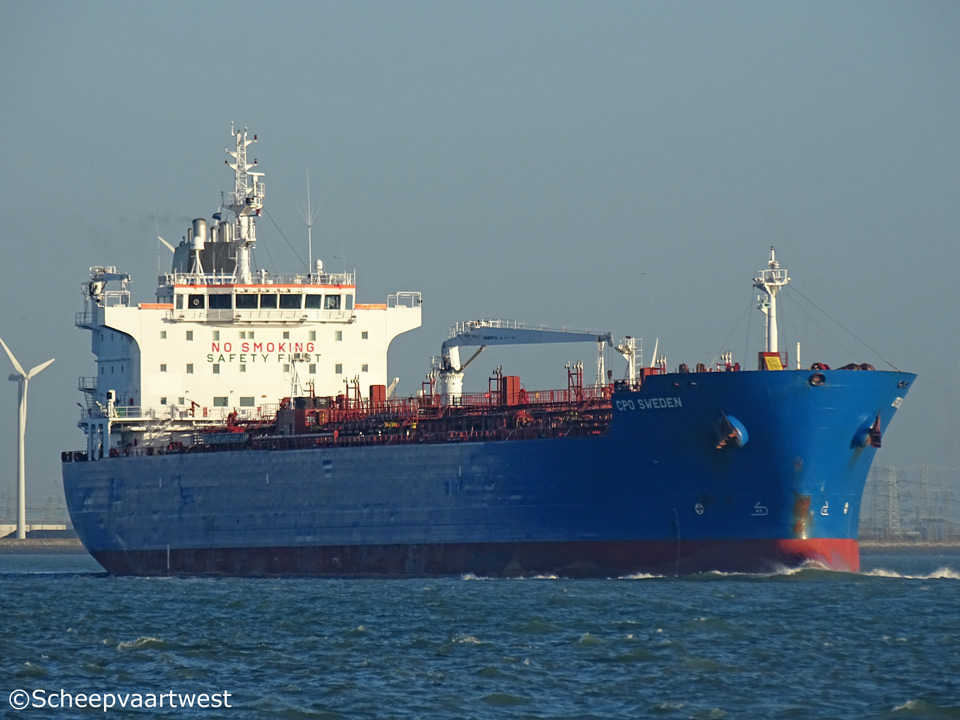

CPO SWEDEN |
|
Type |
Oil/Chemical tanker - Handysize |
|
IMO-number |
9353084 |
|
Call sign |
2AJQ3 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
23.353 t |
|
DWT |
Summer: 37.280 t |
|
NT |
19.542 t Panama: 20.923 Suez: 9.972 t |
|
Length |
184,33 m overall 177,44 m between perpendiculars |
|
Breadth |
27,65 m |
|
Draught |
11,30 m |
|
Air draft |
39,05 m |
|
Depth |
17,20 m moulded |
|
Speed |
15,3 knots |
|
Built |
2008 |
|
Delivery date |
26.05.2008 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2124 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 3 Oil tight: 11 |
|
Continuous decks |
1 |
|
Main engine |
Hyundai B&W 6S50MC-C - 2 stroke 6 cylinder diesel engine 9.480 kW at 127,0 rpm Builder: Hyundai Engine & Machinery Co.Ltd.(B&W), Ulsan - South Korea |
|
Propellers |
1x Mono-block fixed pitch propeller Builder: Hyundai Heavy Industries Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, vertical shell type 1x Auxiliary boiler, exhaust gas water tube Builder: Aalborg Industries, Aalborg - Denmark |
|
Generators |
3x Hyundai 5H21/32 main diesel generatorsets each 730 kW |
|
Emergency generator |
1x Cummins diesel generatorset |
|
Bow thruster |
1x Kawasaki type KT-88B3F- 900 kW |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity |
Liquid/oil: 40.799 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
1.057 m³ |
|
Cargo pumps |
2x 200 m³/h each 2x 300 m³/h each 10x 500 m³/h each |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
25 |
|
Manager |
Claus-Peter Offen Tankschiffreederei GmbH & Co., KG Bleichenbrücke 10 20354 Hamburg Germany |
|
Owner |
Claus-Peter Offen Tankschiffreederei (GmbH & Co) KG (Offen Tankers) |
|
Registered owner |
KG TS 'CPO Sweden' Offen Reederei (GmbH + Co.) KG |
|
Renamed |
2019 Ridgebury Elvia B Marshall Islands, Majuro - Call sign: V7A2348 Reg. Owner: Ridgebury Sigma LLC Manager: Zeaborn Ship management Tanker GmbH & Cie. Kg |
|
Latest data adjustment |
22 September 2020 |
