Antwerpen 03 may 2016 |
|

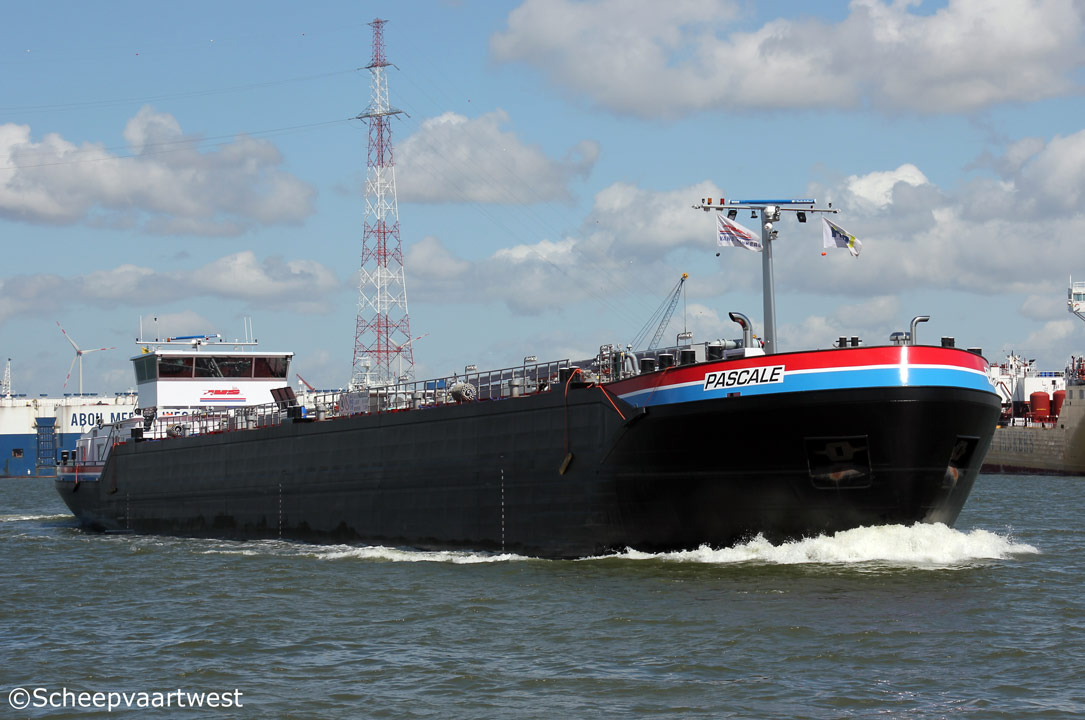

Name |
PASCALE |
|
Type |
Inland tanker |
|
ENI-number |
06105550 |
|
Call sign |
OT5323 |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
1.532 t |
|
Tonnage |
2.284 t |
|
Length |
85,97 m |
|
Breadth |
10,49 m |
|
Draught |
3,90 m |
|
Depth |
5,68 m |
|
Built |
2016 |
|
Date of completion |
23.03.2016 |
|
Builder casco |
Santierul Naval Orsova SA |
|
Builder completion |
Dolderman Dordrecht BV |
|
Yard number |
1057 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 (C) DI-TA electronic - 4 stroke 12 cylinder 1.118 kW / 1.521 hp at 1.600 rpm |
|
Gearbox |
1x Reintjes type WAF 665 L / reduction 5,044:1 |
|
Propellers |
1x Screw propeller solid 4 blades - Diameter: 1.700 mm with Optima nozzle 1.714 mm |
|
Generators |
1x Main diesel generatorset 150 kVA - 120 kW - 140 hp |
|
Bow thruster |
1x Caterpillar 535 hp - Verhaar Omege-Jet VBS1200sr - 393 kW |
|
Cargo tank capacity |
2.150 m³ |
|
Pumps |
1x Bornemann cargo pump HC232 - 450 m³/h 8 bar with ABB electro motor 185 kW 1xBornemann cargo pump HC180 - 200 m³/h 8 bar with ABB electro motor 84 kW |
|
Pump rate |
700 m³/m³ |
|
Tank capacities |
Fuel oil: 62 m³ |
|
Anchor equipment |
1x Bunker crane 28,00 mm / 8 inch |
|
Operator |
Aegean NWE Nijverheidsstraat 7 |
|
Owner |
Elveba Bunkering NV |
|
Latest data adjustment |
20 May 2017 |
