Hollands Diep 01

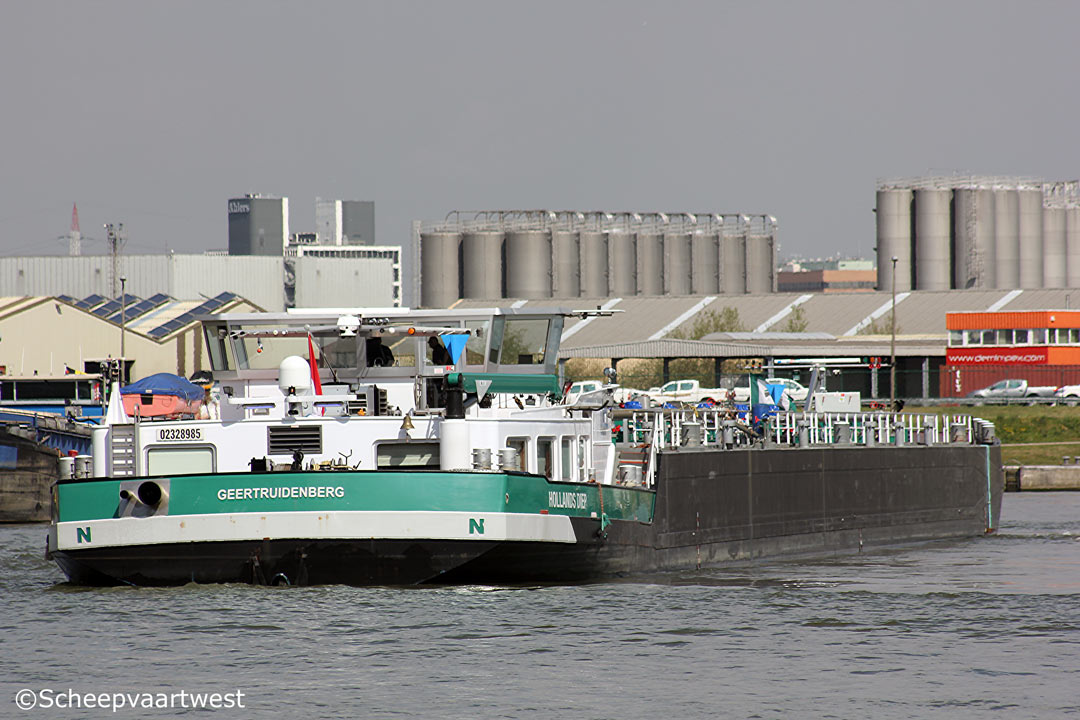

Antwerpen 10 April 2014



Name

HOLLANDS DIEP

Previous names

2007 - 2008 Antonie-C

Type

Inland tanker

ENI-number

02328985

Call sign

PE4563

Flag

The Netherlands

Port of registry

Geertruidenberg

Tonnage

2.897 t

Length

110,00 m

Breadth

11,54 m

Draught

3,50 m

Air draft

4,47 m

Depth

5,40 m

Built

2007

Builder casco

Santierul Naval Orsova SA
Orsova
Romania

Builder completion

Veka Shipbuilding B.V
Werkendam
The Netherlands

Hull material

Steel

Main engine

1x Caterpillar 3512 (B) DI-TA electronic diesel engine 1.305 kW / 1.775 hp at 1.600 rpm

Gearbox

1x Reintjes type WAF 763 L - reduction: 5,136:1

Propellers

1x 5 blades propellers diameter 1.750 mm with Giessen Optima nozzle diameter 1.762 mm

Generators

1x Cummins KTA19 G3 diesel engine coupled with Marathon 572 RSL 4030 generator 550 kVA

1x Cummins diesel engine coupled with Marathon 572 RSL 4030 generator 148 kVA

1x Cummins 6CT 8.3 D(M) diesel engine coupled with Marathon 431 PSL 6202 generator 78 kVA

1x Cummins 6BT 5.9 G6 diesel engine coupled with Marathon generator 362 CSL 1604

Bow thruster

1x Caterpillar 500 hp - Vanhaar OMEGA 31130-4k - E-motor 367 kW at 1.780 rpm

Number of cargo tanks

10

Pumps

10x Marflex MDPD-80 deepwell pumps each 100 m³/h

Cargo tank capacity

3.768 m³

Lifting equipment

1x Hydraulic car crane 2.000 kg

Freighter

Interstream Barging
Centraleweg 9
4931 NA Geertruidenberg
The Netherlands

Owner

v/d Sluijs Groep BV
Geertruidenberg
The Netherlands

Previous names & owners

2007 Antonie-C - Scheepvaartonderneming Antonie-C BV (Tonny van Dijk), Werkendam - The Netherlands

2008 Hollands Diep - v/d Sluijs Groep BV, Geertruidenberg - The Netherlands

Latest data adjustment

02 May 2017
