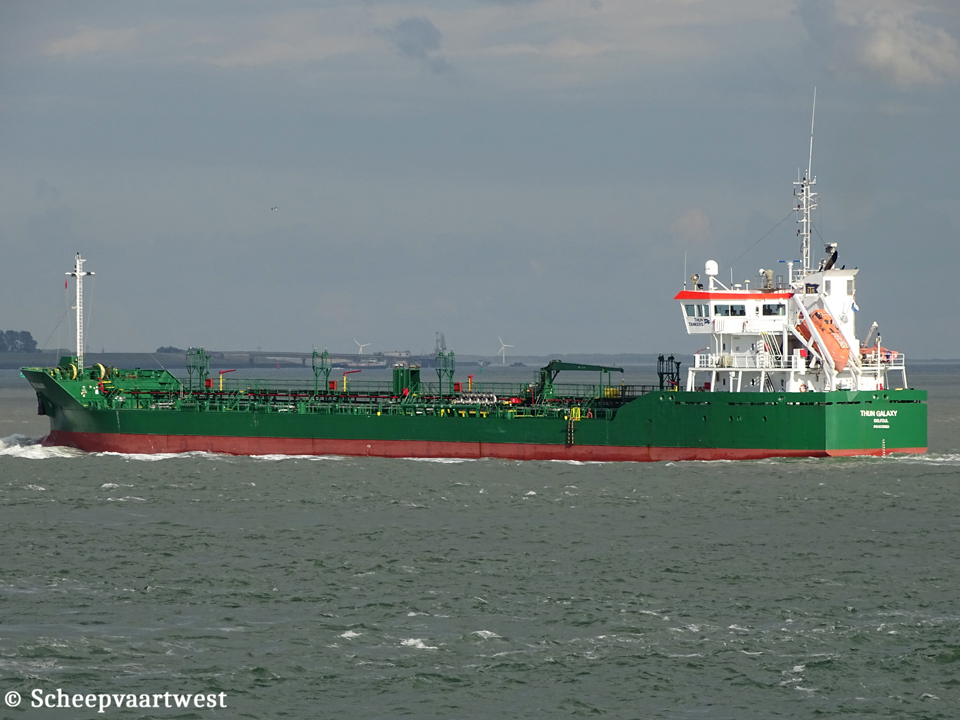

Thun Galaxy IMO 9229063 02

Westerschelde 16 June 2019

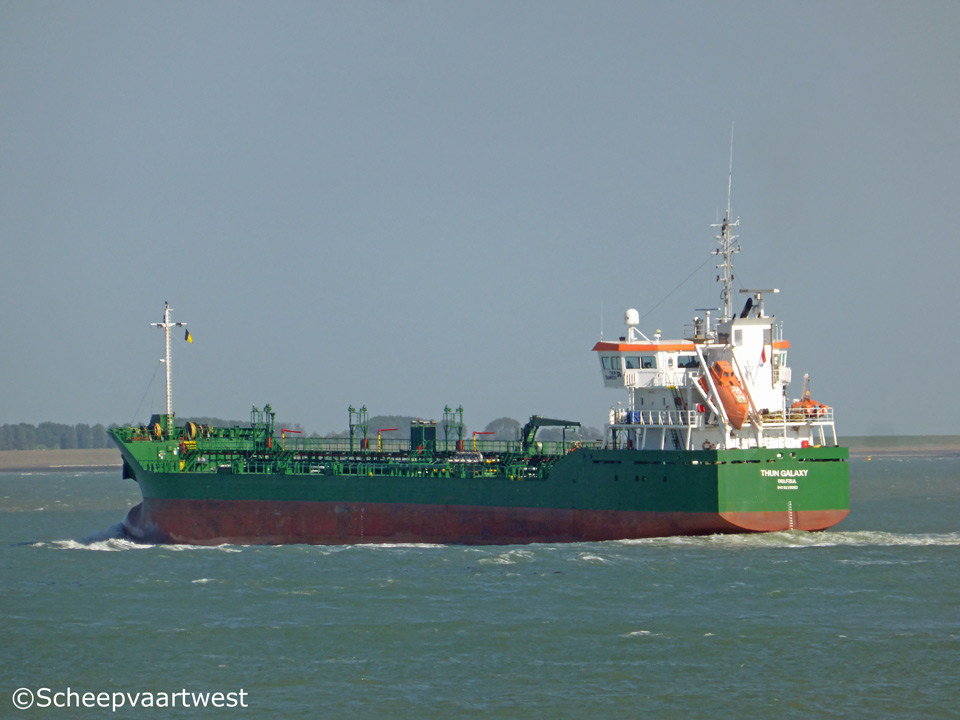

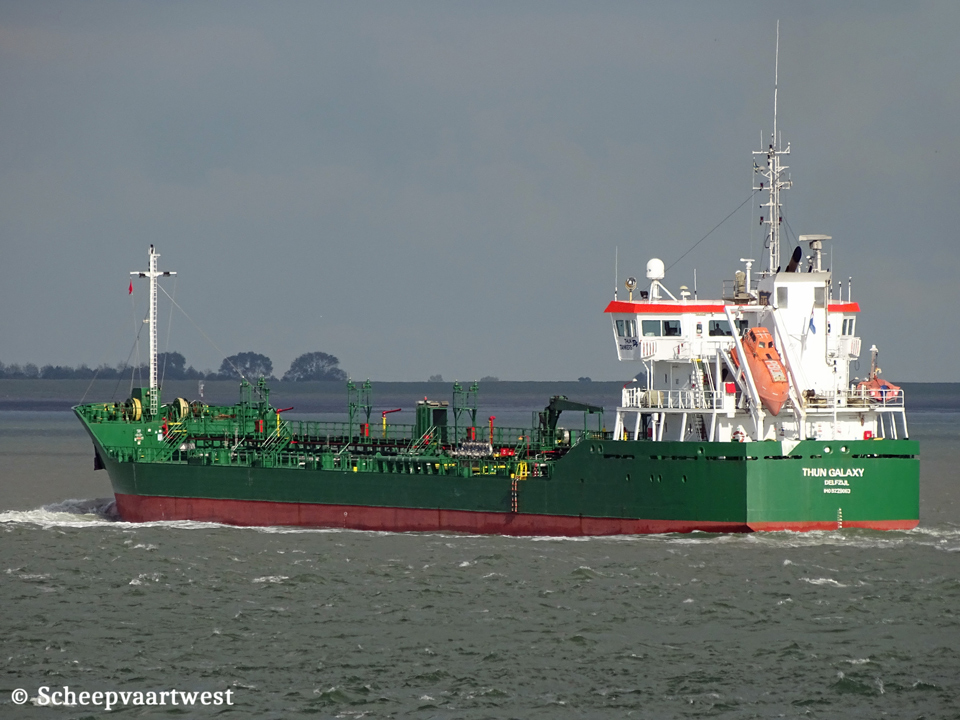

Thun Galaxy IMO 9229063 03   Thun Galaxy 01
Westerschelde 16/06/19 Westerschelde 06/08/15


Name

THUN GALAXY

Previous names

10/2001 - 02/2013 Bro Galaxy

Type

Oil tanker / Chemical tanker

IMO-number

9229063

Call sign

PBDK

Flag

The Netherlands

Port of registry

Delfzijl

GT

4.107 t

DWT

7.559 t

NT

2.136 t

Length

114,95 m overall

109,45 m between perpendiculars

Breadth

15,00 m

Draught

Summer: 6,75 m

Freeboard

2.559 mm

Depth

9,30 m moulded

Speed

Max.: 13,5 knots

Built

2001

Launch date

25/07/2001

Date of completion

12/10/2001

Builder

Scheepswerf Ferus Smit B.V.

Westerbroek

The Netherlands

Yard number

334

Hull material

Special steel

Hull type

Double hull

Watertight compartments

8

Continuous decks

1

Main engine

1x Wärtsilä 6R32LNE - 4 stroke single acting 6 cylinder 320 x 350 mm combustion engine 2.430 kW / 3.302 hp at 720 rpm

Built: 2001

Builder: Wärtsilä NSD Corporation, Vaasa - Finland

Propellers

1x Berg controllable pitch propeller - 4 blades diameter 3.500 mm

Electric installations

Power voltage: 440 V

Lighting voltage: 230 V

Frequency: 60 Hz

Shaft generator

1x 450 kVA - 360 kW

Generators

3x Volvo Penta main diesel generatorsets each 265 kVA - 212 kW - 380 hp

Emergency generator

1x Diesel generatorset 48 kVA - 38 kW - 65 hp

Bow thruster

1x NyaBerg controllable pitch propeller 266 kW

Number of tanks

9

Total capacity of tanks 98%

CT tank: 1.868,5 m³

WT Tank 2 (PS + SB): 1.829,5 m³

WT Tank 3 (PS + SB): 1.848,1 m³

WT Tank 4 (PS + SB): 1.777,0 m³

WT Tank 5 (PS + SB): 1.710,9 m³

Total: 8.034 m³

Segregation

5

Tank coating

Phenolic Epoxy

Pumps

9x Framo cargo pumps each 300 m³/h

1x Framo portable cargo pump 70 m³/h

Loading/ Discharge rate

Cargo pumping capacity: 1.500 m³/h, max 5 pumps simultaneously

Tank capacities

Fuel oil 96%: 238,6 t

Gas oil 96%: 58,0 t

Ballast: 3.288 m³

Fresh water: 51 m³

Lifting equipment

1x Crane - SWL 1,5 t

Manager

Marin Ship Management B.V.

Farmsum

The Netherlands

Owner

Thun Tankers B.V.

Delfzijl

The Netherlands

Registered owner

Rederij Thun Galaxy

Previous owners

10/2000 - 11/2006 Erik Thun A/B, Lidköping - Sweden

11/2006 - 02/2013 Rederij Bro Galaxy, Delfzijl - The Netherlands

Group

MF Shipping Group

Hogelandsterweg 14

9936 BH Farmsum

The Netherlands

Latest data adjustment

23 June 2021
