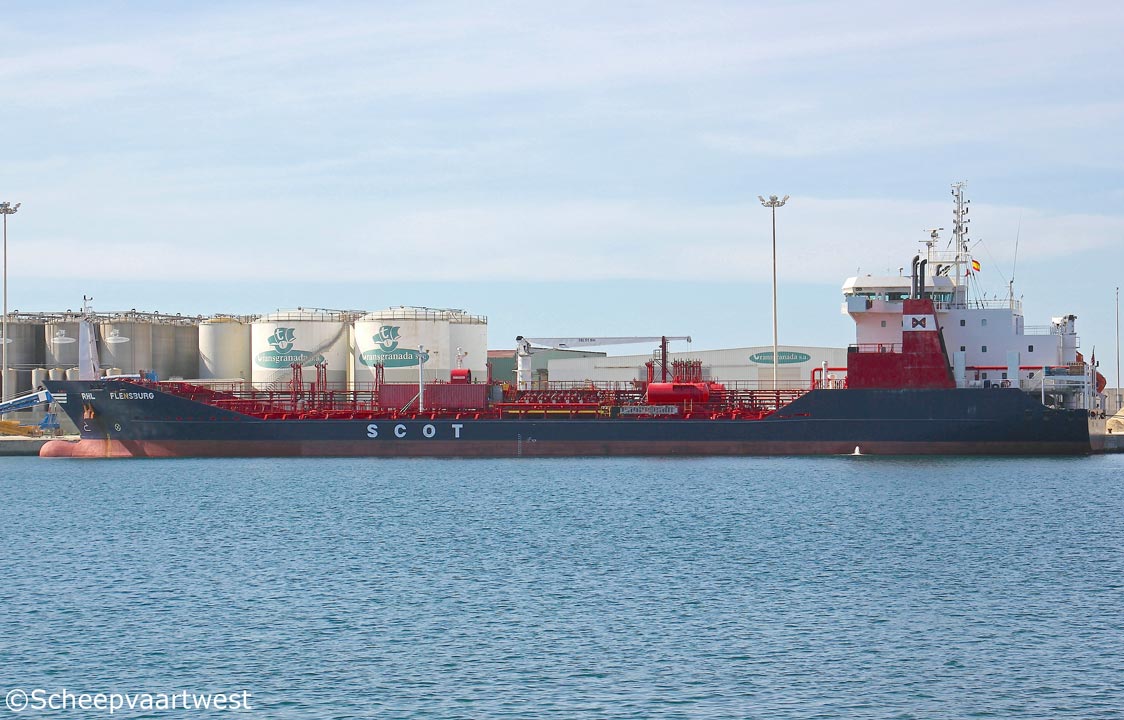

RHL Flensburg 01

Motril - Spain 07 March 2017

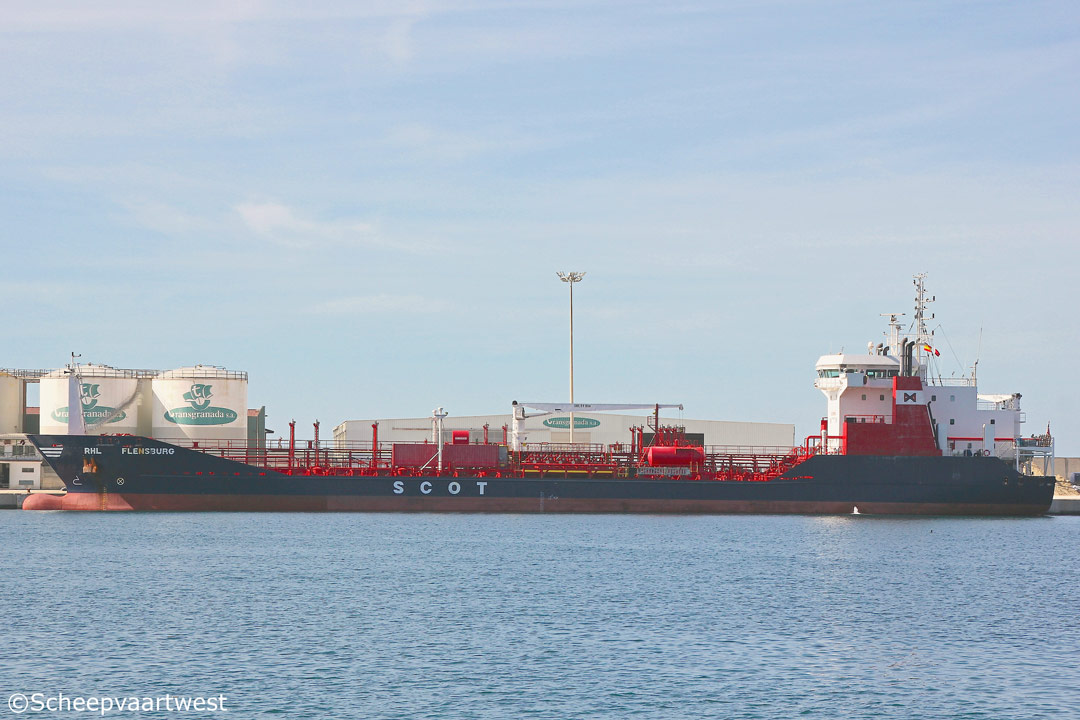

RHL Flensburg 02
07/03/17



Name

RHL FLENSBURG

Previous names

2008 - 2016 Wappen Von Flensburg

Type

Oil/Chemical carrier

IMO-number

9365269

Call sign

D5LA3

Flag

Liberia

Port of registry

Monrovia

GT

5.200 t registered

DWT

8.150 t

NT

2.530 t registered

Length

116,88 m overall

Breadth

18,00 m

Draught

Summer: 7,43 m

Moulded L x B x D

110,40 x 18,00 x 9,40 m

Registered L x B x D

110,90 x 18,00 x 9,40 m

Freeboard

Summer: 2.000 mm

Depth

9,40 m moulded

Speed

14,0 knots

Keel laid

11.08.2006

Launch date

12.10.2007

Date of completion

21.11.2008

Builder

Santierul Naval Damen Galati S.A.
Galati
Romania

Yard number

111

Hull material

Steel

Hull type

Double hull

Main engine

2x 4 stroke single acting 6 cylinder 270 x 380 mm diesel engines each 1.800 kW total 3.600 kW at 750 kW

Manufacturer :MAN Diesel A/S, Alpha Diesel

Propeller shaft

2x Oil lubrication shaft without monitoring device

Diameter: 2x 300 mm

Propellers

2x Controllable pitch propellers

Boilers

2x Auxiliary thermal oil heater each

Pressure: 1,3 bar
Evaporation:1.750 kW

Manufacturer: Aalborg Industries Oy

Shaft generator

2x 420 kW each

Generators

3x Main diesel generatorsets each 378 kW

Bow thruster

1x 400 kW

Number of tanks

16 + two deck tanks

Cargo tank capacity

Liquid: 9.107 m³

Tank capacities

Fuel oil: 589 m³

Fresh water: 257 m³

Crew size

16 Persons

Manager

RHL Hamburger Lloyd Tanker GmbH & Co. KG
Raboisen 38
20095 Hamburg
Germany

Registered owner

Bareboat Charterer: Wappen Flensburg Shipping Co. Ltd.

Latest data adjustment

12 April 2017
