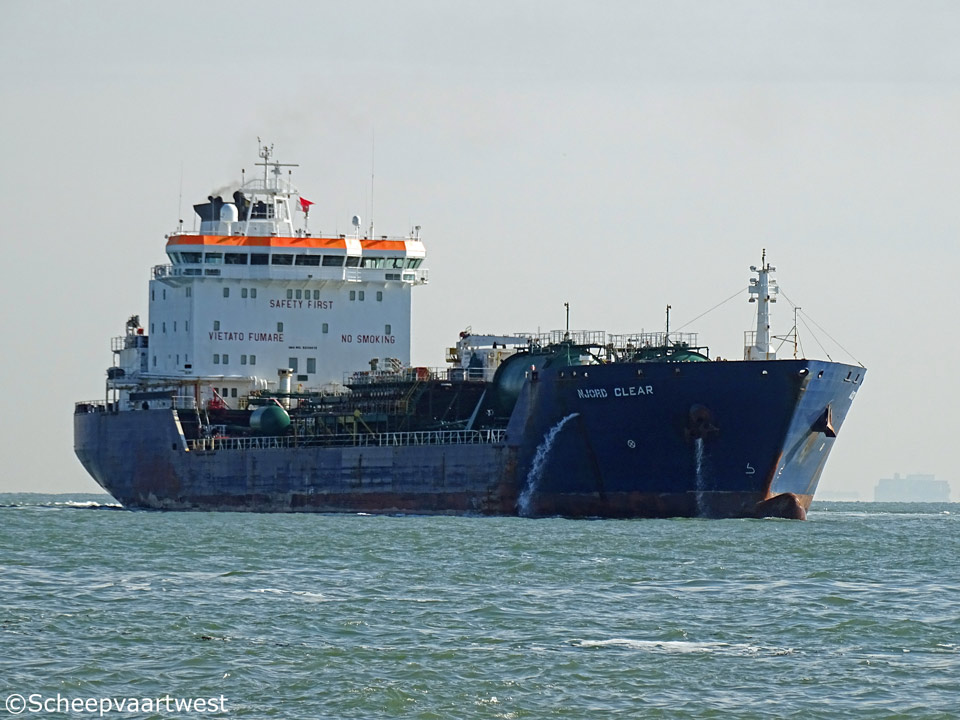

Njord Clear 01

Westerschelde 12 October 2015

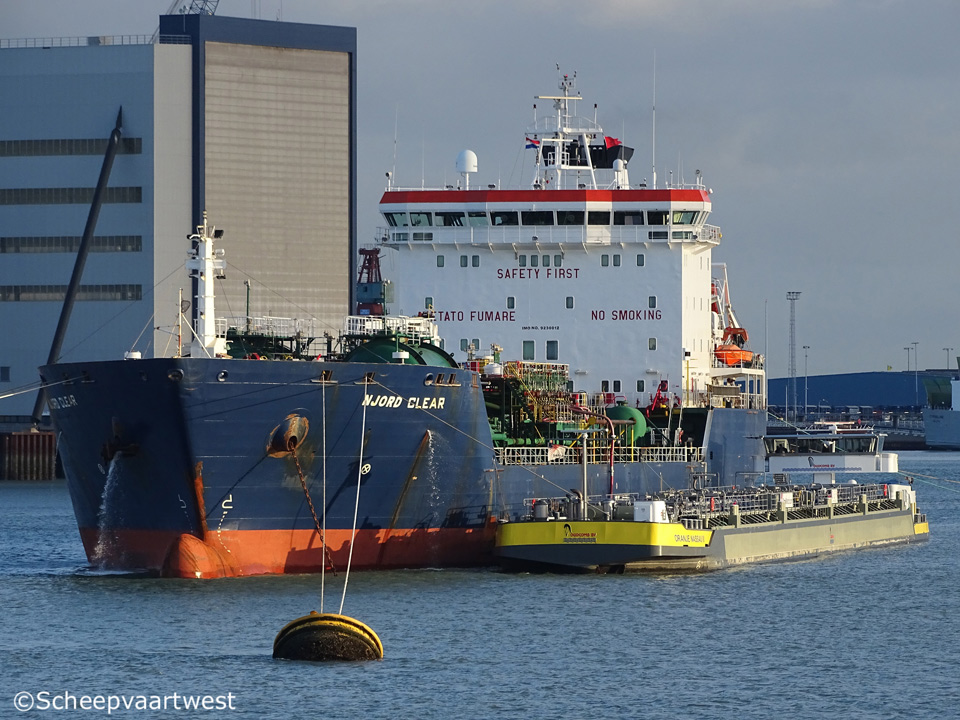

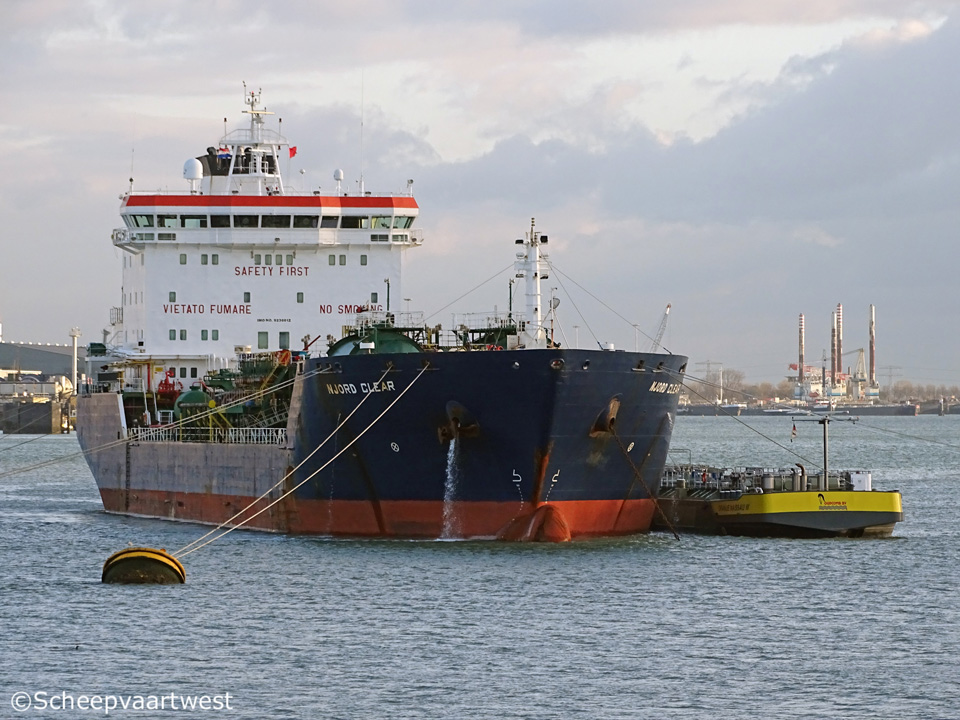

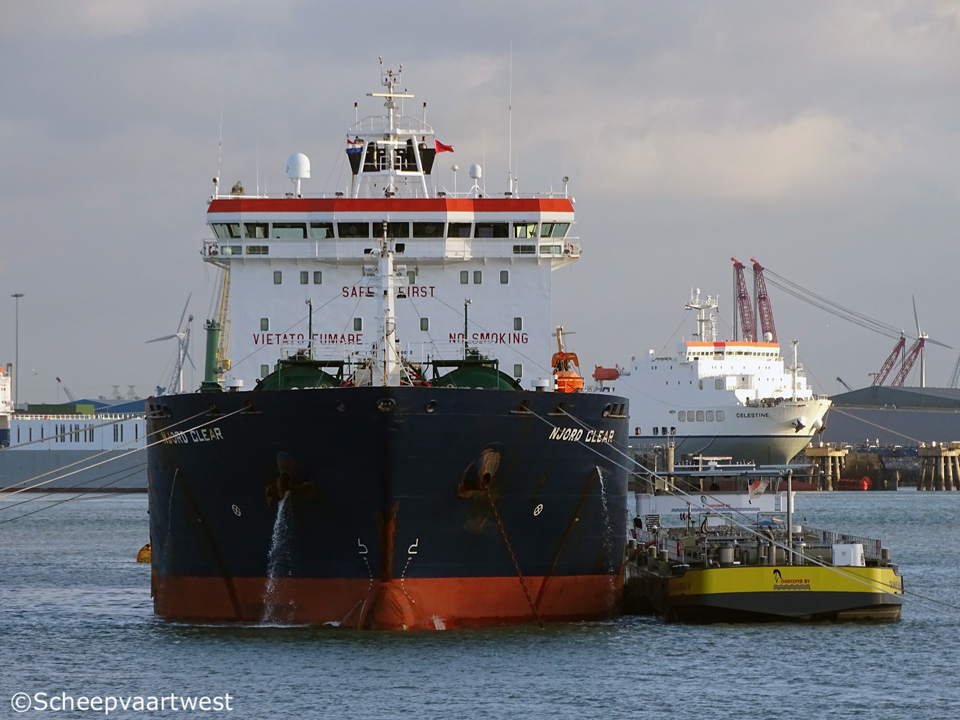

Njord Clear 02   Njord Clear 03   Njord Clear 04
Vlissingen 18/11/17 Vlissingen 18/11/17 Vlissingen 18/11/17


Name

NJORD CLEAR

Previous names

2001 - 04/2004 Jo Chiara D

04/2004 - 01/2006 Chiara DP

01/2006 - 04/2009 Nora

04/2009 - 2015 Harbour Clear

Type

Oil / Chemical tanker

IMO-number

9230012

Call sign

C6XV2

Flag

Bahamas

Port of registry

Nassau

GT

11.320 t

DWT

Summer: 16.225 t

NT

4.961 t

Length

138,11 m overall

126,50 m between perpendiculars

Breadth

23,00 m moulded

Draught

9,10 m

Depth

12,27 m

Speed

14,0 knots

Built

2001

Date of completion

27/06/2001

Builder

Cantiere Navale De Poli Spa.

Pellestrina

Italy

Yard number

186

Hull material

Steel

Hull type

Double hull

Main engine

1x Wärtsilä SACM 6L46C - 4 stroke single acting 6 cylinder 460 x 580 mm combustion engine 6.300 kW / 8.560 bhp at 500 rpm

Builder: Wärtsilä Italia SPA, Venezia - Italy

Propellers

1x Screw propeller controllable pitch - aft at 112,0 rpm

Boilers

2x CHO Babcocl Wanson - 6,0 bar

1x CHR Babcocl Wanson - 6,0 bar

Shaft generator

1x 2.000 kVA - 1.600 kW

Generators

3x Main diesel generatorsets each 1.219 kVA - 975 kW - 1.325 hp

Emergency generator

1x Diesel generatorset 291 kVA - 233 kW - 416 hp

Bow thruster

1x 600 kW

Number of cargo tanks

19

Cargo tank capacity

100%: 17.227 m³

98%: 16.846,4 m³

Cargo handling

12x Hydraulic motor driven Framo pumps each 300 m³/h

7x Hydraulic motor driven Framo pumps each 200 m³/h

1x Emergency portable pump 80 m³/h

Tank capacities

Fuel oil: 1.261,8 m³

Crew size

24 persons

Manager

Fleet Management (Hong Kong) Ltd.

Dah Sing Financial Centre

108 Gloucester Rd, Wan Chai

Hong Kong

Operator

Chemship B.V.

Essebaan 65

2908 LJ Capelle a/d IJssel

The Netherlands

Owner

Harbour Clear Ltd.

Renamed

04/2019 TSM Alphecca

Liberia, Monrovia - Call sign: D5TX8

Operator: Fleet Management Ltd. - Hong Kong

Latest data adjustment

09 July 2020
