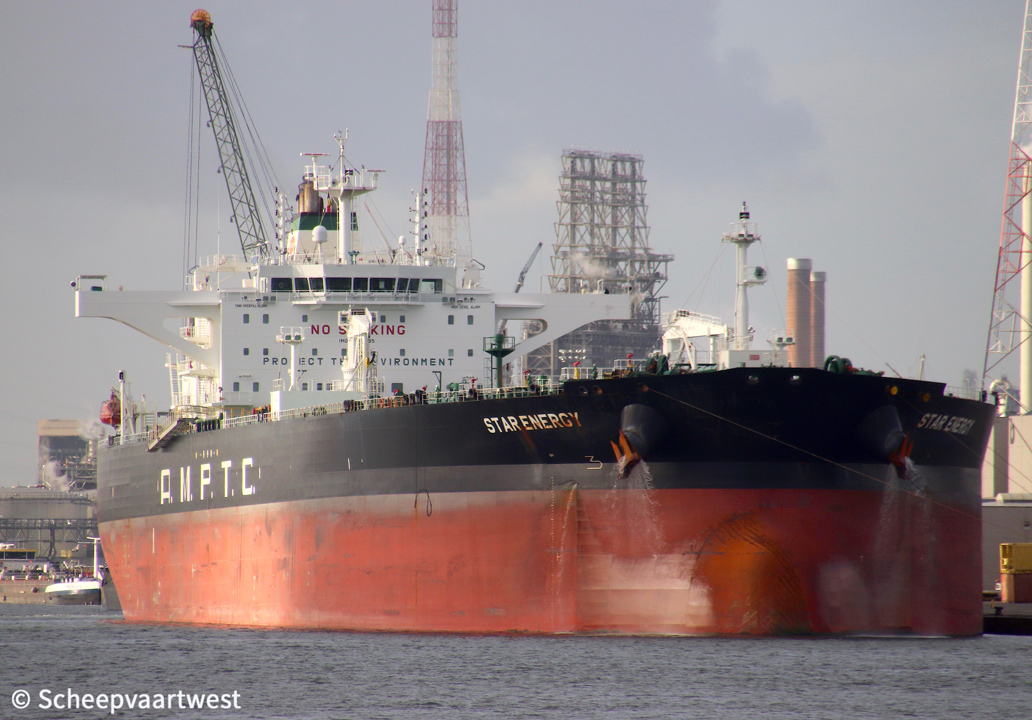

Star Energy 03

Antwerpen 31 January 2017

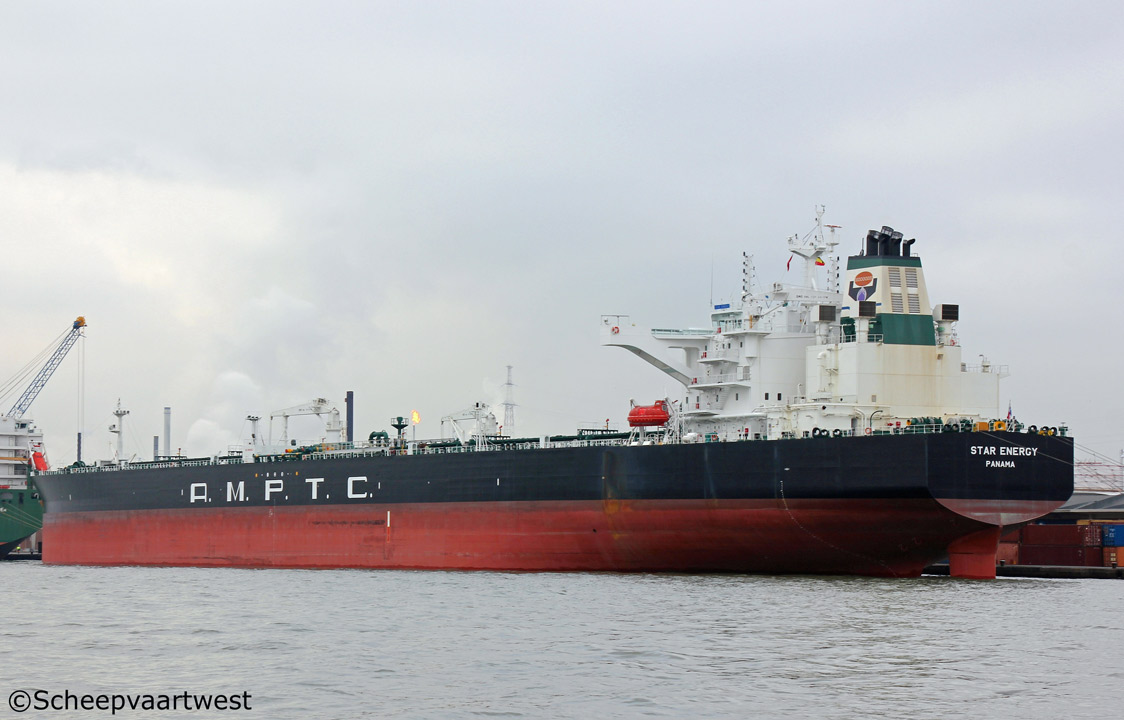

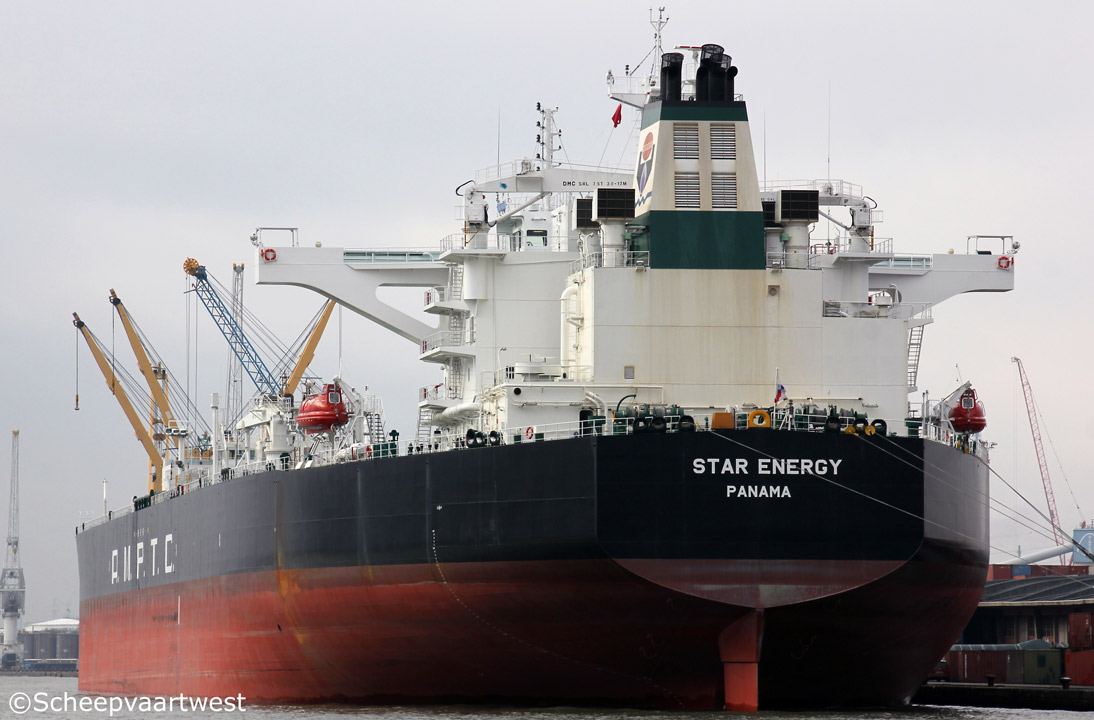

Star Energy 01   Star Energy 02
Antwerpen 31/01/17 Antwerpen 31/01/17


Name

STAR ENERGY

Type

Crude oil/Product carrier

IMO-number

9773935

Call sign

3FOK3

Flag

Republic of Panama

Port of registry

Panama City

GT

81.431 t registered

Suez: 82.286,29 t

DWT

158.409 t

NT

51.969 t registered

Panama: 72.789 t

Suez: 75.562,88 t

Length

274,20 m overall

263,14 m between perpendiculars

Breadth

48,00 m

Draught

Summer: 17,15 m

Freeboard

7.119 mm

Depth

23,10 m moulded

Speed

16,2 knots

Built

2016

Keel laid

28/03/2016

Launch date

14/06/2016

Delivery data

08/09/2019

Builder

Hyundai Samho shipyard Co., Ltd.

Ulsan

South Korea

Yard number

S824

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Oil tight: 6

Main engine

1x Hyundai/Wärtsilä W6X72 - 2 stroke single acting 6 cylinder 720 x 3.086 mm diesel engine

MCR :15.080 kW at 74,7 rpm

NCR : 11.311 kW at 70,3 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Manufacturer: HHI Engine & Machinery Div.

Boilers

The plant consist of one composite boiler and two oil fired auxiliary boilers

The evaporation of composite boiler at NCR is 1,8 t/h. / 0,9 t/h at Oil fired section / exhaust Gas section

The evaporation of oil fired auxiliary boiler is 35 t/h. Steam pressure is 16,0 bar at tanker mode and 6,0 bar at normal sea going mode

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x Hyundai/Himsen 6H21/32 main diesel generatorsets each 1.280 kW

Manufacturer: HHI Electro Electric System

Number of cargo tanks

12

Cargo tank capacity 100%

169.044,4 m³

Number of tanks

Ballast: 14

Fuel oil: 5

Lubricating oil: 5

Diesel oil: 5

Waste water: 4

Slop: 3

Fresh water: 2

Chain: 2

Chemical: 1

Sludge: 1

Tank capacities 100%

Diesel Oil: 811,7 m³

Freshwater: 469,9 m³

Fuel Oil: 2.342,5 m³

Lube Oil: 228,7 m³

Tank Ballast: 52.807,1 m³

Lifting equipment

1x Electro-Hydraulic crane - SWL 15,0 t amid ship for hose handling crane

1x Electro-Hydraulic crane - SWL 7,5 t crane for provisions & stores on PORT side

1x Electro-Hydraulic crane - SWL 2,0 t for provisions and stores on STBD side

1x Motor Driven E/R Overhead Crane - SWL 7,5 t

Manufacture: Dongnam Marine Crane Co., Ltd.

Radio installation

1x MF/HF Radio Equipment (JRC/JSS 2250)

2x Radar Transponder (JRC/TRON START20)

1x Satellite EPIRB (JRC/JQE-103)

3x Marine VHF Radiotelephone (JRC/JHS-770S)

3xTwo Way VHF (JRC/JHS 7)

4x UHF Transceiver (JRC/GP 328)

Navigation equipment

Autopilot: 1x Tokyo Keiki/ PR 9340A DM SS2, 1x Course Recorder (Tokyo keiki/CR 4)

Gyro compass: 2x Tokyo Keiki/ TG-8000

Radars: 1x S Band Radar (JRC/JMA 9282 S), 1x X Band Radar (JRC/JMA 9225 6X)

Inmarsat: 1x Inmarsat Fleetbroadband FB500 (JRC/JUE-501), 2x Inmarsat C Mobile Earth station (JRC/JUE-87), 1x Ship Security Alert System (JRC/JUE-95SA)

Operator

A.M.P.T.C.

Owner

A.M.P.T.C. - Arab Maritime Petroleum Transport Company

21, Giza Street, Nile Tower Building

Giza 12211

Cairo

Egypt

Registered owner

Arab Maritime Petroleum Transport Co.

Latest data adjustment

03 February 2020
