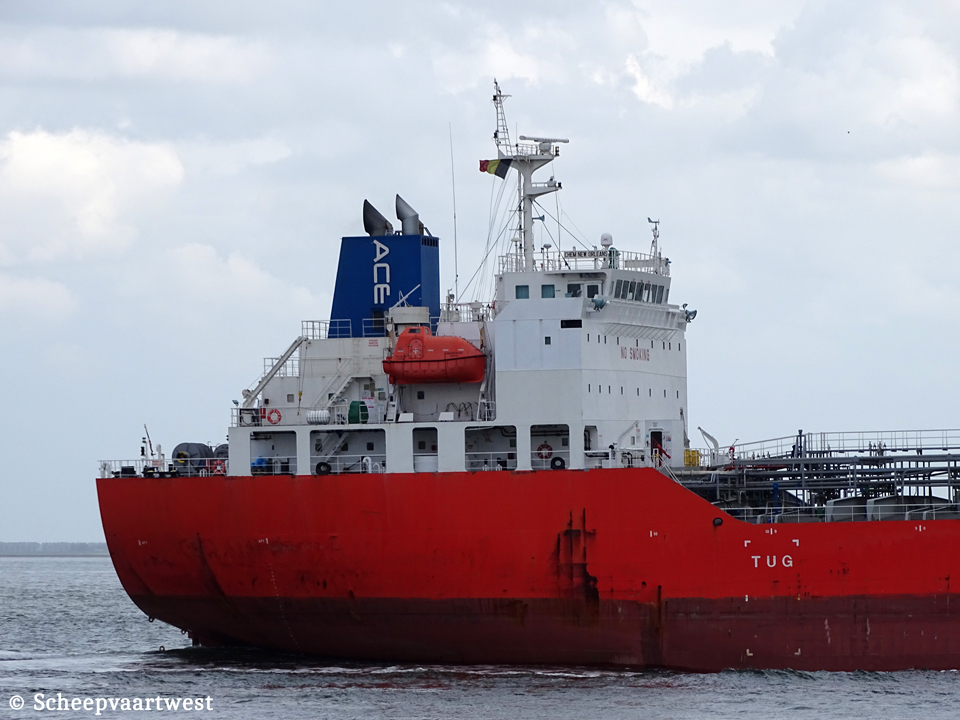

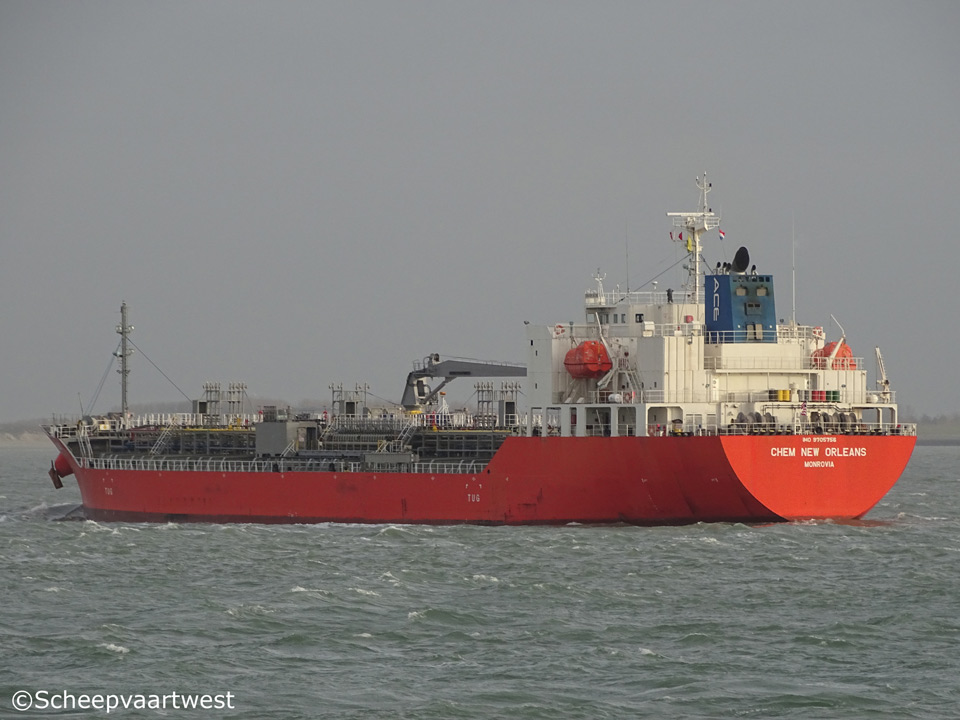

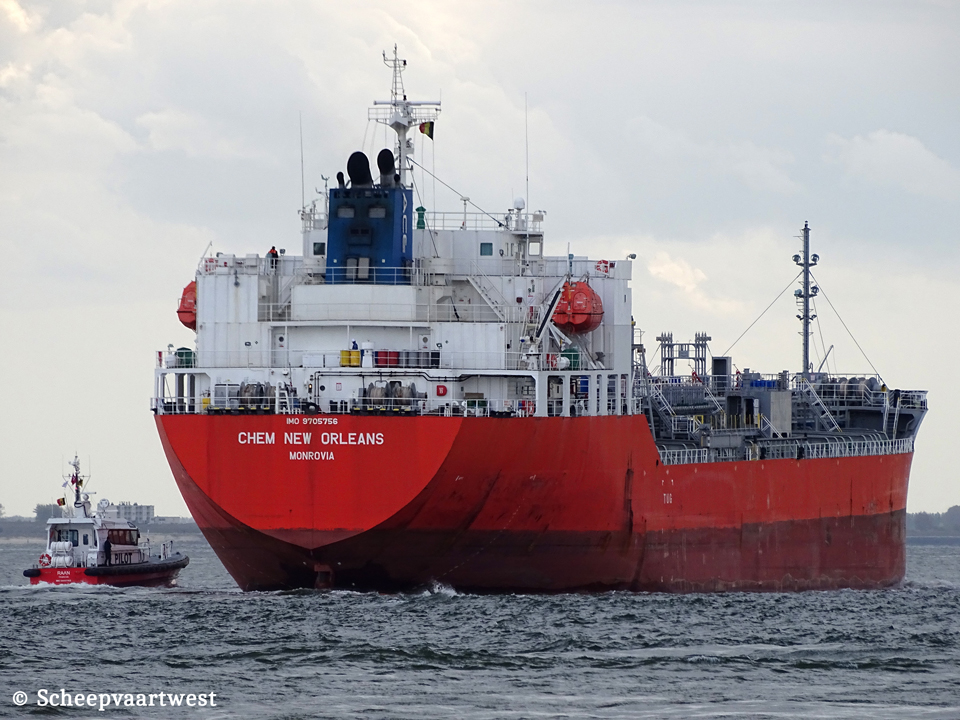

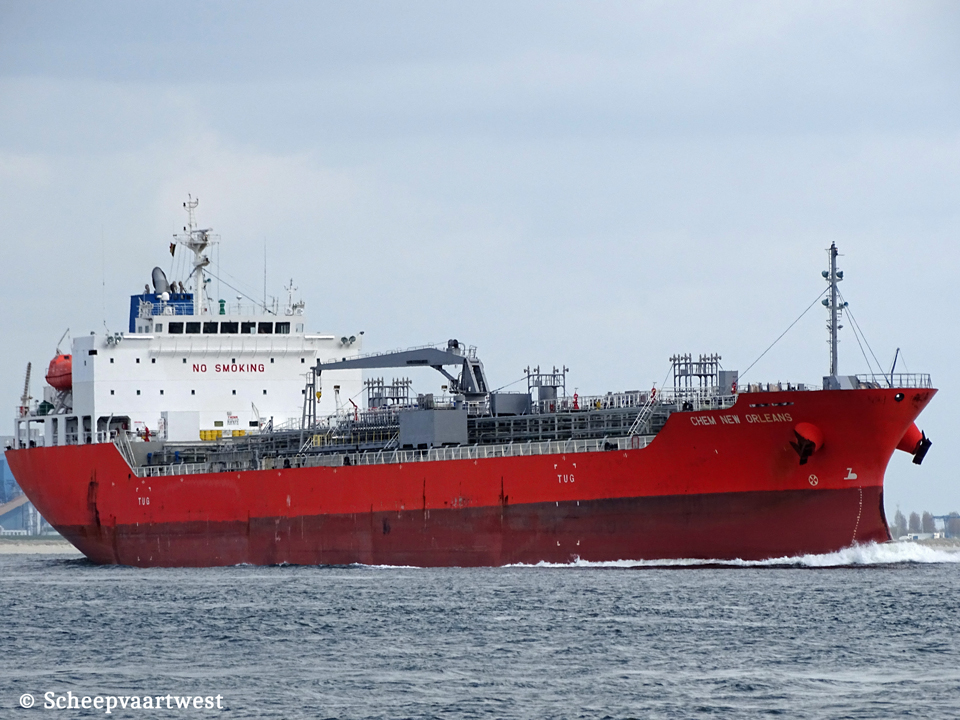

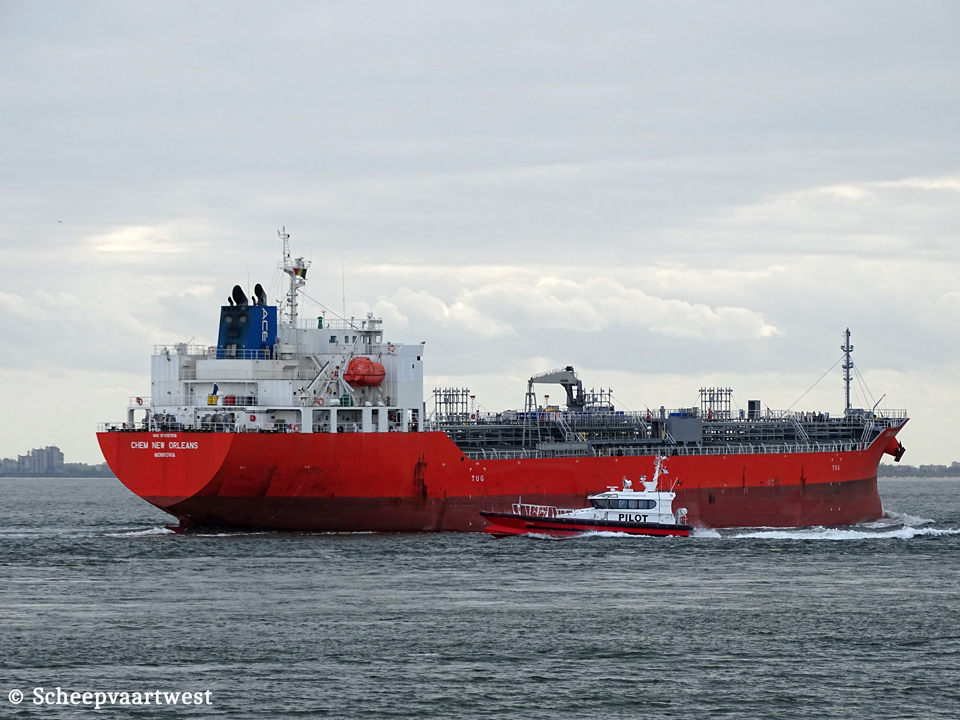

Westerschelde 16 April 2017 |
 |
 |
 |
 |
|||
| Westerschelde 16/04/17 | Westerschelde 16/04/17 | Westerschelde 16/04/17 | Westerschelde 11/12/16 | |||
|
Name |
CHEM NEW ORLEANS |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9705756 |
|
Call sign |
D5FU3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
12.129 t registered |
|
DWT |
Summer: 19.996,83 t |
|
NT |
6.255 t registered |
|
Length |
145,00 m overall |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,78 m |
|
Moulded L x B x D |
139,00 x 24,20 x 13,20 m |
|
Registered L x B x D |
139,26 x 24,20 x 13,20 m |
|
Freeboard |
Summer: 3.445 mm |
|
Depth |
13,20 m moulded |
|
Speed |
Max.: 16,1 knots Service: 14,5 knots |
|
Built |
2015 |
|
Keel laid |
07/07/2014 |
|
Launch date |
06/12/2014 |
|
Date of completion |
20/03/2015 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. Hachinohe City Japan |
|
Yard number |
570 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi-Akasaka 6UEC43LSII - 2 stroke single acting 6 cylinder 430 x 1.500 mm combustion engine 4.900 kW at 125 rpm Build: 01/10/2014 Manufacturer: Akasaka Diesels Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Heating Surface: 184,2 m² 1x Economizer EGE - 14,0 bar Heating Surface: 313,1 m² Build: 16/09/2014 Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 530 kW - 450 Volt |
|
Bow thruster |
700 kW |
|
Number of tanks |
20 |
|
Segregations |
20 |
|
Cargo tank capacity |
Liquid: 22.382,71 m³ |
|
Tank capacities |
Fuel oil: 1.107,87 m³ Fresh water: 415,74 m³ Water ballast: 7.116,7 m³ |
|
ISM & commercial manager |
ASM Maritime B.V. WTC, Tower D Strawinskylaan 1057 1077 XX Amsterdam The Netherlands |
|
Registered owner |
Chem New Orleans SA |
|
Latest data adjustment |
16 May 2023 |
