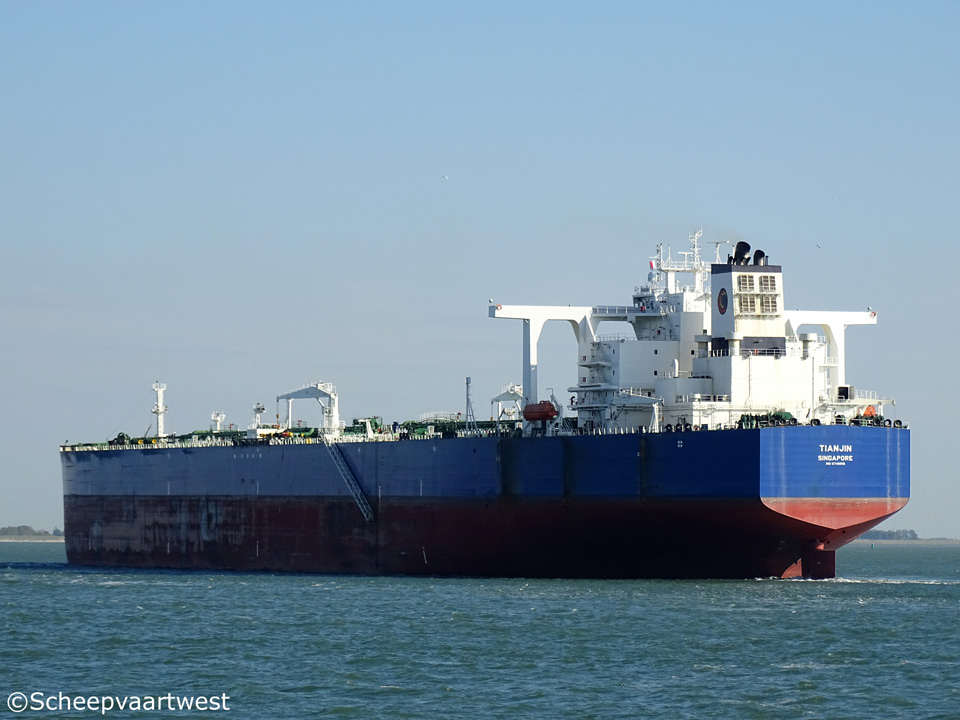

Tianjin 01

Westerschelde 16 October 2016



Name

Tianjin

Type

Crude oil tanker

IMO-number

9748916

Call sign

9V2105

Flag

Republic of Singapore

Port of registry

Singapore City

GT

166.178 t registered

Suez: 164.419,27 t

DWT

319.896 t

NT

107.556 t registered

Suez: 157.039,07 t

Displacement

368.226 t

Length

333,00 m overall

320,00 m between perpendiculars

Breadth

60,00 m extreme

Draught

19,80 m

Keel to masthead

61,30 m

Air draft

Lightship: 57,86 m

Normal ballast: 49,91 m

At loaded summer deadweight:38,70 m

Freeboard

Summer: 8.021 mm

Winter: 8.490 mm

Depth

30,50 m moulded

Speed

16,5 knots ballast

16,0 knots laden

Built

2015

Keel laid

27.11.2013

Launch date

26.03.2015

Delivery date

25.06.2015

Builder

Jinhai Heavy Industry Co., Ltd.

China

Yard number

J0212

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 3

Gas tight: 1

Oil tight: 9

Main engine

1x Hyundai MAN B&W 6S90MEC8.1 T2 - 6 cylinder 900 x 3.188 mm diesel engine 31.620 kW at 78,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x 4 blades fixed pitch solid keyless propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

2x Fired boiler - 24,0 bar

1x Unfired exhaust gas boiler - 27,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Generators

3x DOOSAN MAN Diesel 6L21/31 synchronous Generatorsets each 1.320 kW

Manufacturer: Hyosung Corporation

Number of cargo tanks

15

Cargo tank capacity 98%

Seg#1: 115.415,7 m³ (1C/2C/4C & 5W)
Seg#2: 119.458,3 m³ (3C/1W/4W & Slop Tank P&S)
Seg#3: 112.477,1 m³ (5C/2W & 3W)

Total: 347.351,1 m³

Number of slop tanks

2

Slop tank capacity 98%

11.776,9 m³

Pumps

3x Centrifugal cargo pumps 5.500 m³/h each

2x Venturi Cargo eductors pumps 630 m³/h each

1x Stripping reciprocating pump 400 m³/h

2x Centrifugal ballast pumps 3.000 m³ each

Number of tanks

Ballast: 14

Lubricating oil: 13

Fuel oil: 13

Diesel oil: 6

Waste water: 5

Fresh water: 5

Sludge: 5

Chain: 2

Slop: 2

Potable water: 2

Chemical: 1

Tank capacities 100%

Diesel Oil: 649,4 m³ / 552,39 t

Freshwater: 716,9 m³

Fuel Oil: 9.621,7 m³ / 9.423,05 t

Lube Oil: 308,2 m³ / 277,64 t

Tank Ballast: 103.669,9 m³

Manifolds

Bow to centre manifold: 165,90 m

Stern to centre manifold: 167,10 m

Distance bridge front to centre of manifold: 114,42 m

Distance between cargo manifold centres: 3.000 mm

Distance ships rail to manifold: 4.400 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 700 mm

Distance main deck to centre of manifold: 2.100 mm

Lifting equipment

2x Engine room crane - SWL 10,0 t each

Manufacture: Nantong Sekigahara Machinery Manufacturing Co., Ltd.

1x Slewing provision crane - SWL 3,0 t

1x Slewing provision crane - SWL 9,0 t

1x Bridge crane - SWL 10,0 t

2x Cargo Hose Handling Crane (Port & Stbd) - SWL 20,0 t

Manufacture: Dalian Shidao Marine Fitting Co., Ltd.

2x Electro-hydraulic cargo hose handling crane port & starboard - SWL 20,0 t each

Manufacture: Zhoushan Jin Hai Wan Shipping Industry Co Ltd.

Manager

Goodwood Ship Management Pte. Ltd.
20 Science Park Road

#02-34/36 Teletech Park

Singapore, 117674

Republic of Singapore

Technical operator

Goodwood Ship Management Pte. Ltd.
20 Science Park Road

#02-34/36 Teletech Park

Singapore, 117674

Republic of Singapore

Commercial operator

Heidmar Inc.
As Agent For Seawolf Tanker Inc
20 Glover Avenue
Norwalk
CT 06850 USA

Registered owner

GC Bombay Pte. Ltd.
36B Boat Quay
Singapore 049825
Republic of Singapore

Disponent owner

Seawolf Tankers Inc
c/o Heidmar Inc
20 Glover Avenue
Norwalk, CT 06850
USA

Latest data adjustment

26 November 2016
