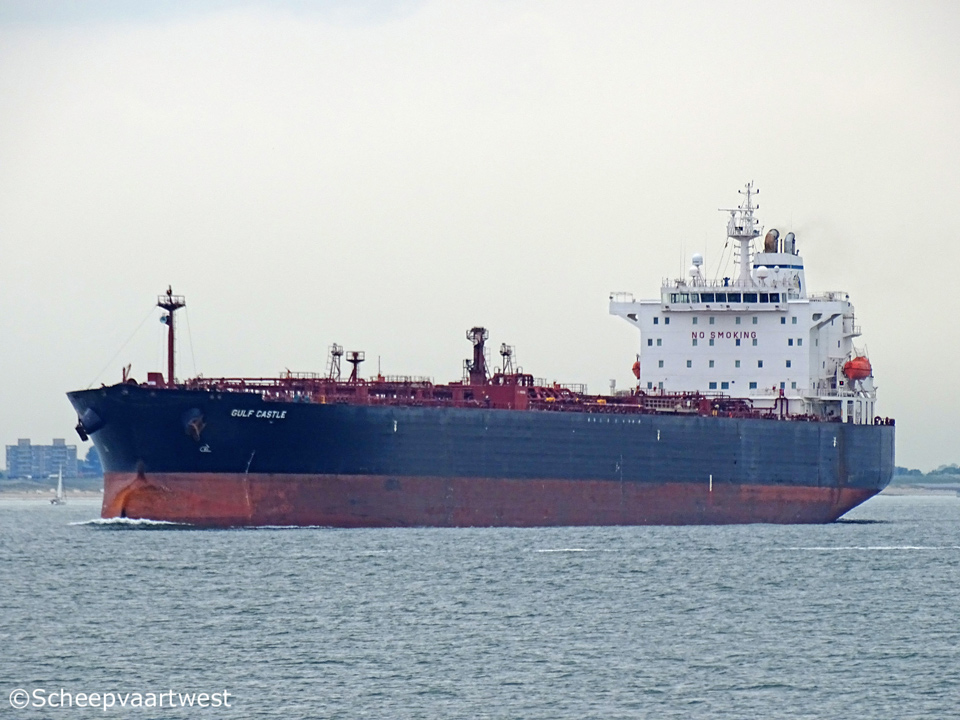

Gulf Castle 02

Westerschelde 31 May 2016

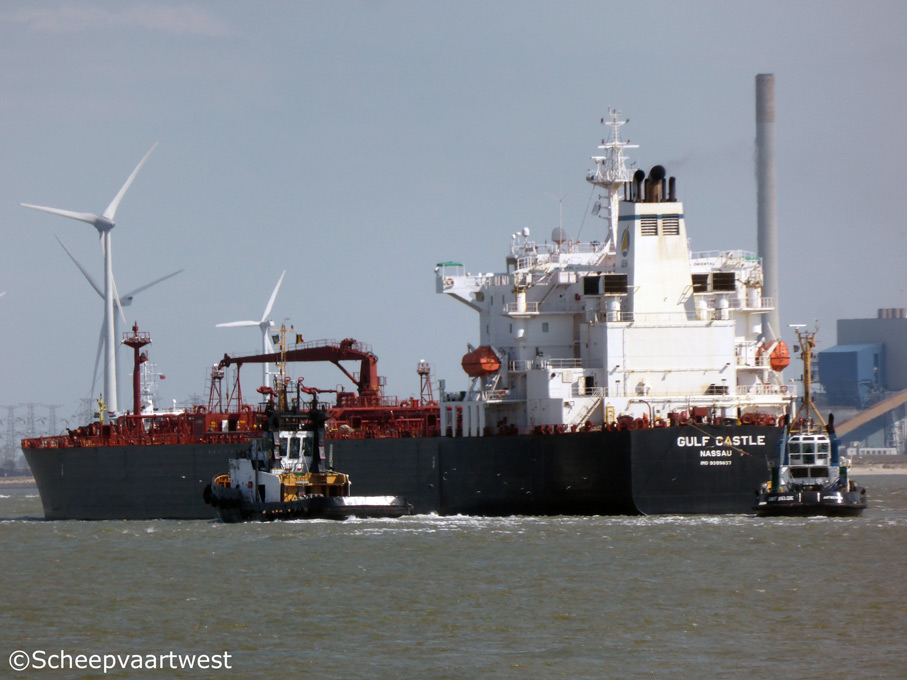

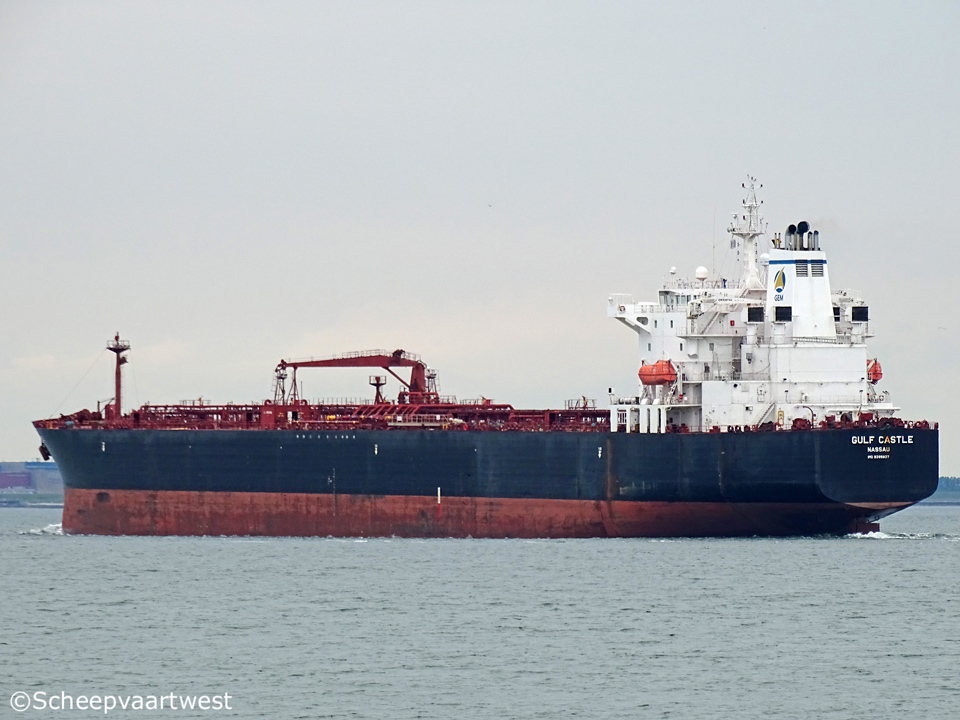

Gulf Castle 03   Gulf Castle 01
Westerschelde 31/05/16 Westerschelde 18/04/15


Name

GULF CASTLE

Type

Crude oil tanker

IMO-number

9389837

Call sign

C6XO6

Flag

Bahamas

Port of registry

Nassau

GT

42.446 t

Suez: 45.053,48 t

DWT

Summer: 74.999 t

NT

22.017 t

Suez: 40.255,88 t

Panama: 35.098 t

Length

228,48 m overall

219,00 m between perpendiculars

Breadth

32,25 m extreme

Draught

13,10 m

Keel to masthead

52,76 m

49,02 m mast in collapsed condition

Air draft

Full mast / collapsed mast

Lightship: 50,02 m / 46,28 m

Normal ballast: 45,26 m / 42,43 m

At loaded summer deadweight: 38,30 m / 354,56 m

Freeboard

Summer: 6.469 mm

Winter: 6.770 mm

Lightship: 18,20 m

Normal Ballast Condition: 14,35 m

Depth

20,90 m moulded

Speed

14,0 knots laden

12,0 knots economic

Built

2009

Date of completion

27.09.2009

Builder

Hyundai Mipo Dockyard Co Ltd.
South Korea

Hull material

Steel

Hull type

Double hull

Main engine

1x Hyundai MAN B&W 6S 60MC-C - 2 stroke6 cylinder diesel engine 13.560 kW at 105,0 rpm

Propellers

1x Fixed propeller

Generators

3x Hyundai MAN Diesel 6L 23/30H deneratorsets each 905 kW

Number of cargo tanks

12

Cargo tank capacity 98%

Seg#1: 25.661,2 m³ (1P, 1S,5 P & 5S COT)
Seg#2: 27.954,4 m³ (2P, 2S, 6P & 6 S COT)
Seg#3: 16.339,8 m³ (3P,3S & Slop P&S COT)
Seg#4: 14.385,5 m³ (4P 4S COT)

Number of slop tanks

2

Slop tank capacity 98%

Seg#3: 16.339,8 m³ (3P,3S & Slop P&S COT)

Residual/Retention oil tank capacity

236,3 m³

Pumps

12x Centrifugal deepwell cargo pumps 900 m³/h each

2x Centrifugal deepwell cargo pumps 300 m³/h each

1x Centrifugal deepwell cargo pump 100 m³/h

2x Framo ballast pumps 1.500 m³/h each

1x Ballast eductors pump 200 m³/h

Manifolds

Bow to centre manifold: 112,36 m

Stern to centre manifold: 116,12 m

Distance bridge front to centre of manifold: 77,67 m

Distance between cargo manifold centres: 2.500 mm

Distance ships rail to manifold: 4.370 mm

Distance manifold to ships side: 4.370 mm

Top of rail to centre of manifold: 430 mm

Distance main deck to centre of manifold: 1.810 mm

Spill tank grating to centre of manifold: 900 mm

Tank capacities

Fuel oil: 2.067 m³

Gas oil: 435,2 m³

Lifting equipment

1x Crane - SWL 15,0 t

Max. outreach: 8,40 m

Commercial operator

Gulf Energy Maritime (GEM) PJSC
U-Bora Tower, 30th Floor, Road#8, Business Bay Dubai
U.A.E. - United Arab Emirates

Technical operator

Gulf Energy Maritime (GEM) PJSC
U-Bora Tower, 30th Floor, Road#8, Business Bay Dubai
U.A.E. - United Arab Emirates

Registered owner

Gulf Castle Shipping Ltd
Ocean Centre, Montague Foreshore Road, East Bay Street
Nassau
Bahamas

Disponent owner

BP Shipping Ltd
20 Canada Sqaure Canary Wharf London E14 5NJ
United Kingdom

Latest data adjustment

21 November 2016
