Westerschelde 04 August 2016 |
|
Name |

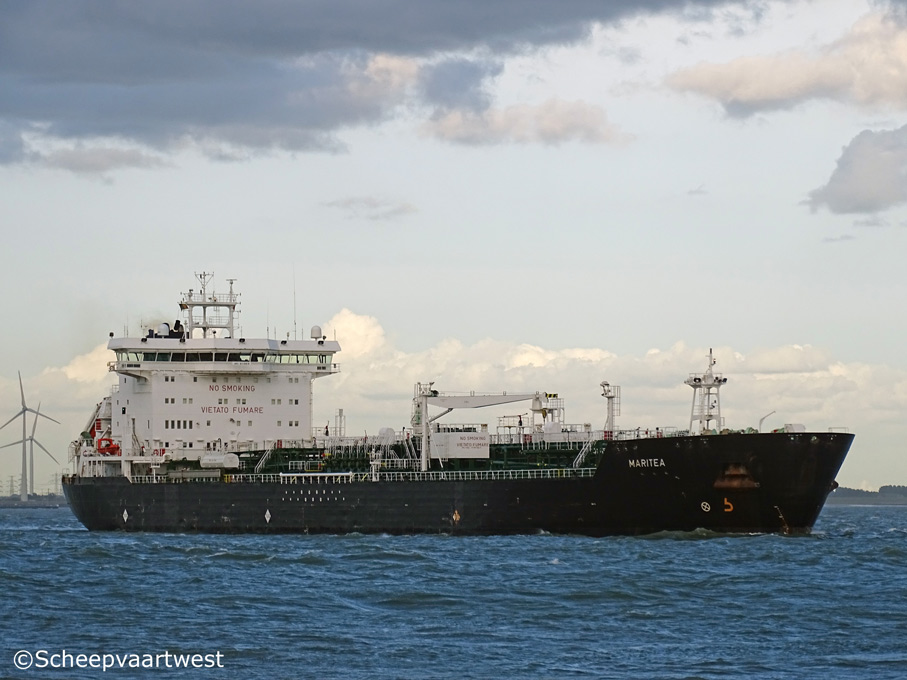

MARITEA |
|
Type |
Oil / Chemical tanker |
|
IMO-number |
9210919 |
|
Call sign |
IBTU |
|
Flag |
Italy |
|
Port of registry |
Augusta |
|
GT |
23.500 t registered Panama: 19.470 t Duez: 23.667 t |
|
DWT |
Summer: 36.752 t |
|
NT |
9.700 t registered Suez: 20.722 t |
|
Displacement |
45.747 t |
|
Length |
175,87 m overall 169,00 m between perpendiculars |
|
Breadth |
29,80 m extreme |
|
Draught |
11,26 m |
|
Freeboard |
5.568 mm |
|
Depth |
16,80 m moulded |
|
Speed |
Service: 15,2 knots |
|
Built |
2002 |
|
Keel laid |
16.09.2000 |
|
Launch date |
23.06.2001 |
|
Delivery date |
05.07.2002 |
|
Builder |
3 Maj Shipbuilding Industry |
|
Yard number |
682 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
Non tight: 2 Water tight: 3 Oil tight: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 6RTA52U - 2 stroke 6 cylinder 520 x 1.800 mm diesel engine 9.000 kW at 130 rpm Manufacturer: 3 MAJ Engines & Cranes Co. |
|
Propellers |
1x Fixed pitch propeller |
|
Generators |
3x Main diesel generatorsets each 1.400 kVA |
|
Emergency generator |
1x Diesel generatorset 240 kVA |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
40.963 m³ |
|
Slop tank capacity 98% |
1.374 m³ |
|
Pumps |
12x Cargo pumps each 500 m/h 3x Cargo pumps each 200 m³/h |
|
Number of tanks |
Ballast: 14 Lubricating oil: 10 Fuel oil: 9 Fresh water: 7 Diesel oil: 6 Thermal oil: 3 Sludge: 3 Hydraulic oil: 2 Waste water: 1 Chain: 1 |
|
Tank capacities |
Diesel Oil: 191,4 m³ / 172,26 t Freshwater: 1.324,02 m³ Fuel Oil: 1.292 m³ / 1.266,16 t Hydraulic Oil: 24,2 m³ Lube Oil: 152,9 m³ / 137,61 t Tank Ballast: 17.018,4 m³ / 17.443,86 t |
|
Manager |
Novella Ottavio S.p.A. |
|
Owner |
Calisa S.p.A. (Carichi Liquidi Societa Armatoriale) |
|
Latest data adjustment |
09 September 2016 |
