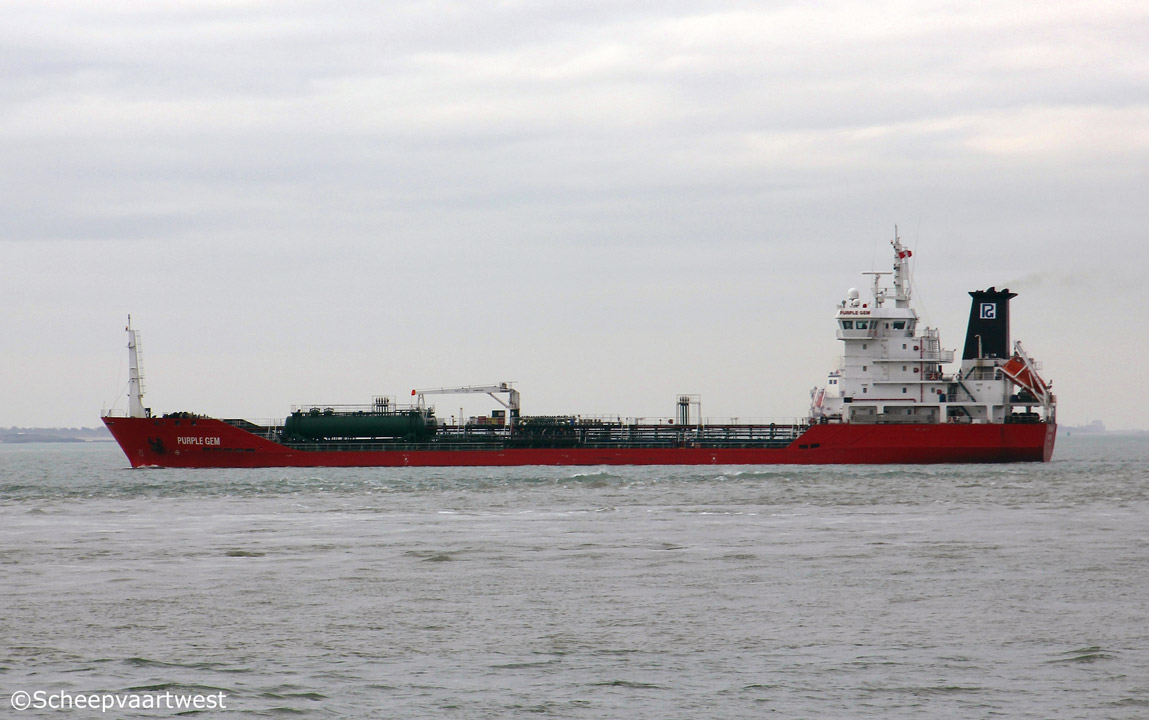

Purple Gem 02

Westerschelde 12 November 2015

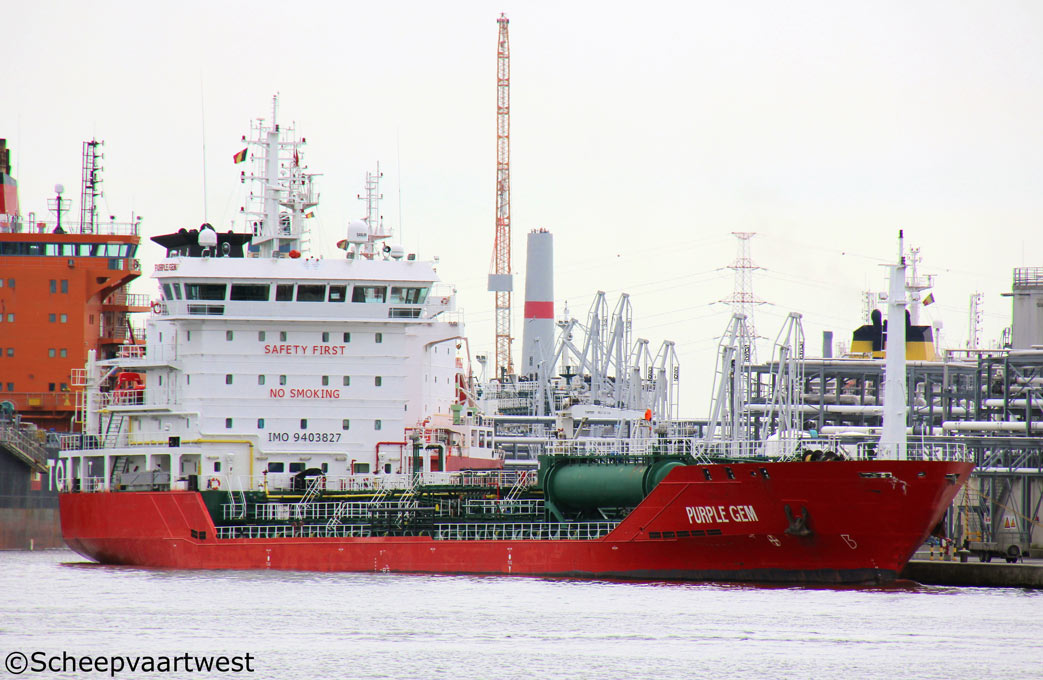

Purple Gem 01
Antwerpen 0707/16



Name

PURPLE GEM

Type

Oil tanker / Chemical tanker

IMO-number

9403827

Call sign

9HZO9

Flag

Malta

Port of registry

Valletta

GT

4.859 t

DWT

6.824 t

NT

2.289 t

Length

119,10 m overall

111,60 m between perpendiculars

Breadth

16,90 m

Draught

8,40 m

Speed

14,5 knots

Built

2009

Date of completion

17-04-2009

Builder

Tuzla Shipbuilding Industry
Istanbul
Turkey

Hull material

Steel

Hull type

Double hull

Main engine

1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm diesel engine 3.840 kW / 5.217 hp at 600 rpm

Built: 2007

Builder: Caterpillar Motoren GmbH & Co. KG

Propellers

1x Screw propeller controllable pitch - aft at 154 rpm

Boilers

1x CHR 47,60 m² - 7,0 bar
1x CHR 21,00 m² - 5,0 bar
2x CHO 65,00 m² - 10,0 bar

Electric installations

Power voltage: 440 V

Lighting voltage: 440 V

Frequency: 60 Hz

Shaft generator

1x 1.400 kVA - 1.120 kW

Generators

3x Main s each 606 kVA - 485 kW - 700 hp

Emergency generator

1x Diesel generatorset 187 kVA - 150 kW - 257 hp

Number of tanks

12

Total capacity of tanks

8.020,12 m³

Tank capacities

Fuel oil: 370 m³

Operator

Selandia Ship Management (Singapore) Pte. Ltd.
2 International Business Park
#02-10, Tower 1
The Strategy
Singapore 609930
republic of Singapore

Registered owner

Purple Gem Shipping Ltd.

Latest data adjustment

29 July 2016
