Westerschelde 21 January 2014 |
 |
| Westerschelde 21/01/14 |
|
Name |

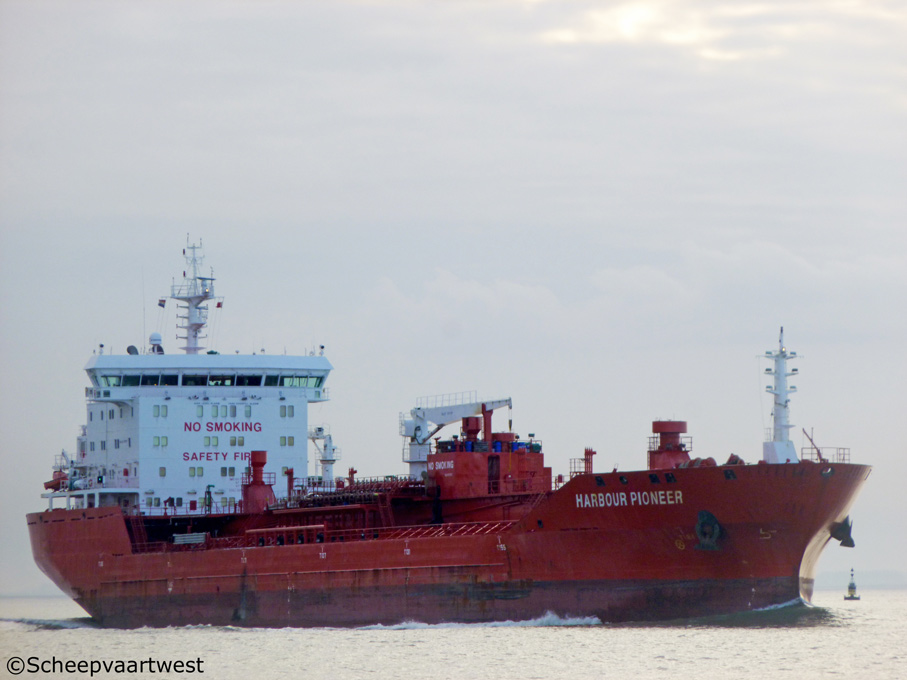

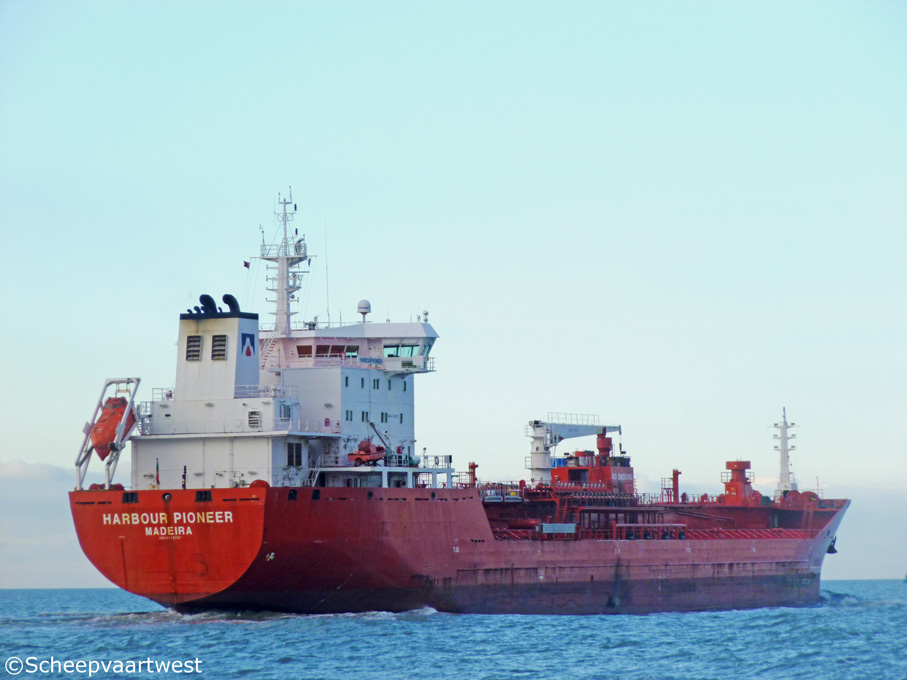

HARBOUR PIONEER |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9572757 |
|
Call sign |
CQNZ |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
13.239 t registered Suez: 14.141,58 t |
|
DWT |
Summer: 19.122,2 t |
|
NT |
6.093 t registered Panama: 11.117 t Suez: 11.884,46 t |
|
Length |
161,68 m overall 150,80 m between perpendiculars |
|
Breadth |
23,00 m |
|
Draught |
8,40 m |
|
Freeboard |
3.412 mm |
|
Depth |
12,40 m moulded |
|
Speed |
13,5 knots |
|
Built |
2010 |
|
Keel laid |
23.10.2009 |
|
Launch date |
26.01.2010 |
|
Date of completion |
04.11.2010 |
|
Builder |
Yangfan Group Co.Ltd., Zhoushan Ship Manufactory Zhoushan China |
|
Yard number |
2004 |
|
Hull material |
Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 14 |
|
Main engine |
1x Mak 7M43C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.565 hp at 500 rpm Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 111,0 rpm |
|
Boilers |
1x Oil fired boiler - 8,99 bar 1x Combined / fired exhaust gas boiler - 9,0 bar Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Generators |
3x Main diesel generatorset each 900 kW Manufacturer: HHI Electro Electric System |
|
Bow thruster |
1x 787 kW |
|
Number of cargo tanks |
12 |
|
Cargo oil capacity |
100%: 22.549,77 m³ 98%: 21.868,7 m³ |
|
Numb er of slop tanks |
2 |
|
Segregations |
13 |
|
Number of tanks |
Ballast: 14 Lubricating oil: 9 Fuel oil: 8 Fresh water: 6 Diesel oil: 4 Waste water: 2 Chain: 2 Sludge: 2 |
|
Tank capacities 100% |
Diesel Oil: 228,58 m³ / 206,28 t Freshwater: 486,2 m³ Tank Ballast: 9.372,72 m³ / 9.607,03 t |
|
Lifting equipment |
1x Engine room overhead crane - SWL 1,6 t Manufacture: Van Leusden B.V. 1x Hose handling crane - SWL 10,0 t Manufacture: TTS Bohai Machinery Dalian CO., Ltd. 1x Provision crane - SWL 3,0 t Manufacture: Zhenjiang Marine Auxiliary Machinery Works |
|
Manager |
TB Marine Shipmanagement GmbH & Co., KG |
|
Operator |
Nordic Tankers A/S Copenhagen |
|
Registered owner |
Vierte Nordtank - Hamburg GmbH & Co., KG |
|
Latest data adjustment |
06 July 2016 |
