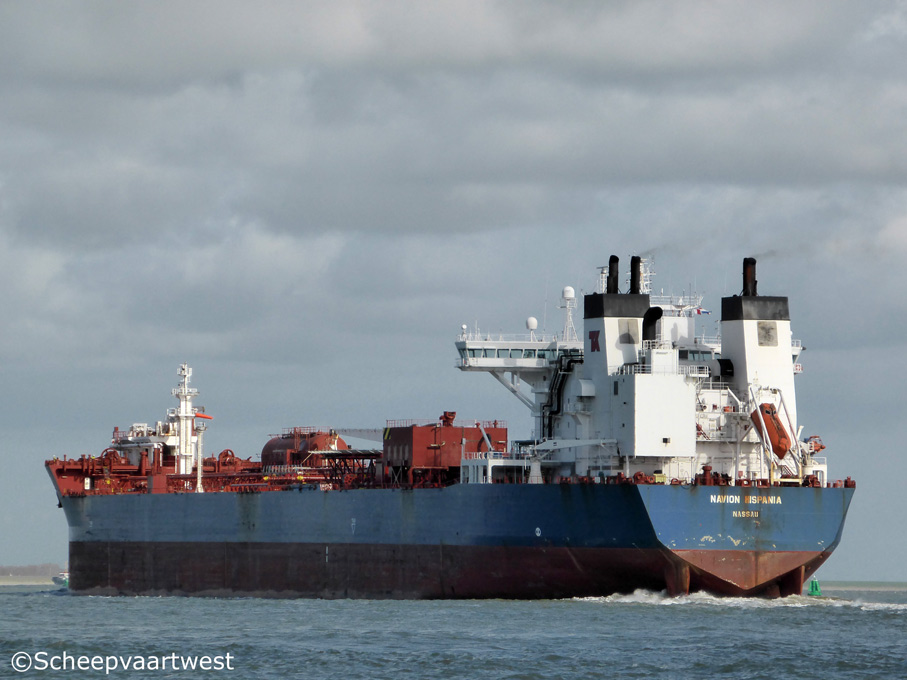

Westerschelde 18 April 2014 |
|
Name |
NAVION HISPANIA |
|
Type |
Tanker for oil - Shuttle tanker |
|
IMO-number |
9168922 |
|
Call sign |
C6XS2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
1999- 2009 Norway 2009 - 2015 Bahamas, Nassau - Call sign: C6XS2 2015 - 2018 Canada, St. John's, NL - Call sing: XJBY |
|
GT |
72.132 t Suez: 69.406 t |
|
DWT |
Summer: 126.183 t |
|
NT |
38.045 t Suez: 61.021 t |
|
Light ship |
26.652 t |
|
Length |
264,68 m overall 256,50 m between perpendiculars |
|
Breadth |
42,90 m extreme 42,53 m moulded |
|
Draught |
15.67 m |
|
Keel to mast end |
50,00 m |
|
Air draft |
47,05 m light ship 41,30 m normal ballast 34.331 m At loaded summer deadweight |
|
Freeboard |
Summer: 6.371 mm Winter: 6.697 mm |
|
Depth |
22,00 m |
|
Speed |
14,5 knots |
|
Built |
1999 |
|
Keel laid |
02/02/1998 |
|
Launch date |
15/09/1998 |
|
Date of completion |
01/07/1999 |
|
Builder |
Astilleros Españoles S.A Sestao Spain |
|
Yard number |
83 |
|
Hull material |
Steel |
|
Hull type |
Double bottom with hopper Double side |
|
Main engine |
2x MAN B&W 7S50MC - 7 cylinder combustion engines each 13.413,4 bhp |
|
Propellers |
2x Controllable pitch propellers Builder: Rolls-Royce Marine AS |
|
Boilers |
1x Auxiliary boiler, composite 1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired Builder: Parat Halvorsen A/S |
|
Generators |
2x Man 6L32/40 diesel generatorsets 2x Man 8L32/40 diesel generatorsets |
|
Emergency generator |
1x MAN D2842 LE diesel generatorset |
|
Bow thruster |
5.984 bhp / 4.462,27 kW, forward 1.904 bhp / 1.419,81 kW, aft |
|
Cargo tank capacity 98% |
Seg #1: 65.533 m³ (1,3,5, Slop S) Seg #2: 70.795 m³ (2,4,6, Slp P) 131.505 m³ excluding slop tanks 136.328 m³ With slop tanks |
|
Slop tank capacity 98% |
4.824 m³ |
|
Pumps |
4x Centrifugal cargo pumps each 3.000 m³/h 2x Centrifugal stripping pumps each 1.000 m³/h 2x Centrifugal ballast pumps each 3.000 m³/h |
|
Maximum loading rate |
12.000 m³/h |
|
Manifolds |
Bow to centre manifolds: 192,80 m Stern to centre Manifold: 134,88 m Distance bridge front to centre of manifold: 85,20 m Distance between cargo manifold centres: 2.500 mm Distance ships rail to manifold: 4.050 mm Distance manifold to ships side: 4.500 mm Top of rail to centre of manifold: 560 mm Distance main deck to centre of manifold: 1.600 mm |
|
Tank capacities |
Ballast: 52.993 m³ IFO: 2.852 m³ MDO: 146,6 m³ |
|
Anchor equipment |
Length: 742,50 m Diameter: 97 mm |
|
Lifting equipment |
1x Hose handling - SWL 15,0 t midships |
|
Manager |
Teekay Shipping Norway AS |
|
Previous managers |
1999 - 2005 OSM Ship Management AS 2005 - 2009 Teekay Shipping Norway AS |
|
Owner |
Teekay Grand Banks Shipping AS |
|
Previuos owner |
1999 - 2002 Navion Shipping AS 2002 - 2003 Navion Maritime AS 2003 - 2015 Navion Offshore Loading AS 2015 - 2015 Teekay Navion Offshore Loading Pte. Ltd. |
|
Scrapped |
14/01/2020 Beached at Aliaga - Turkey |
|
Latest data adjustment |
09 March 2020 |
