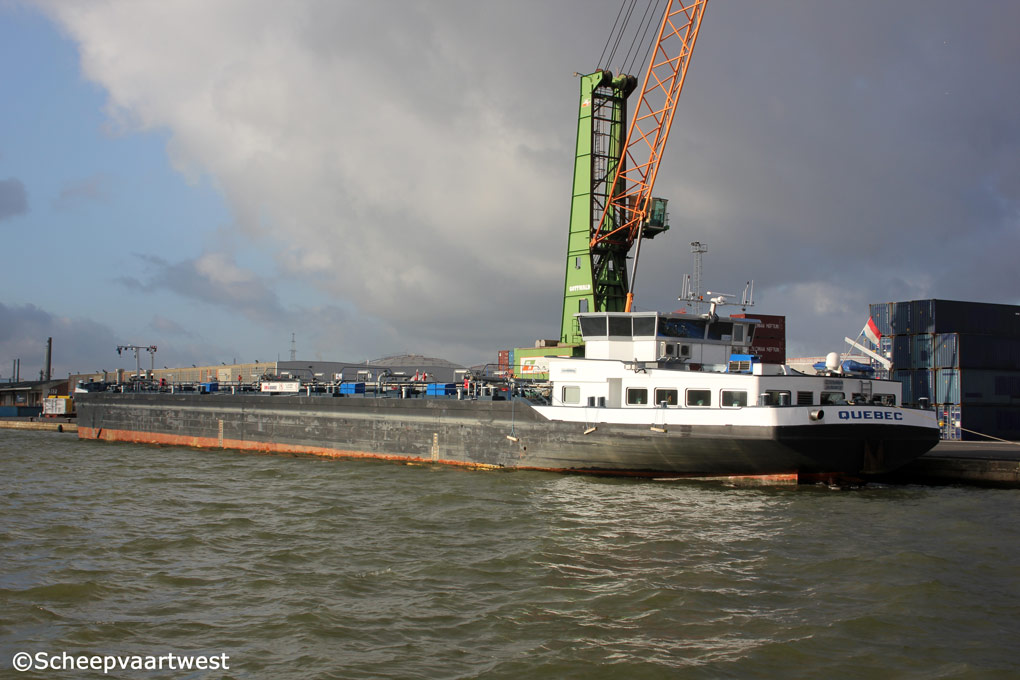

Quebec 01

Antwerpen 25 December 2014



Name

QUEBEC

Type

Inland tanker

ENI-number

02333686

Call sign

PB8097

Flag

The Netherlands

Port of registry

Zwijndrecht

GT

2.362 t

DWT

3.958 t

Length

110,00 m overall

106,25 m between perpendiculars

Breadth

13,50 m

Draught

4,20 m

Depth

5,32 m

Built

2010

Date of completion

09.12.2010

Builder casco

Haitong Shipyard
Nantong
China

Builder completion

Machinefabriek Dolderman B.V.
Dordrecht
The Netherlands

Yard number

611

Hull material

Mild steel

Hull type

Double hull

Main engine

1x Caterpillar 3512 (C) DI-TA electronic engine - 4 stroke 12 cylinder 1.119 kW / 1.521 hp at 1.600 rpm

Builder: Caterpillar Inc.

Gearbox

1x WAF 763L - reduction: 5,136:1

Propellers

1x Screw propeller solid

5 blades diameter 1.800 mm with nozzle

Generators

1x Diesel generatorset 120 kVA - 96 kW - 140 hp
1x Diesel generatorset 625 kVA - 500 kW - 607 hp
1x Diesel generatorset 260 kVA - 208 kW - 281 hp

Bow thruster

1x Caterpillar 608 hp - Veth-Jet type 4-K-1300 with electric motor 420 kW at 1.800 rpm

Cargo tank capacity 97%

4.397 m³

Pumps

3x Bornemann cargo pumps type HC 232 - 350 m³/h each coupled with ABB electric motor 125 kW

1x Bornemann type W4 slop pump 30 m³/h coupled with ABB electric motor 11 kW

Fuel capacity

75 m³

Charterer

Unibarge B.V.

Maasboulevard 268
Zwijndrecht
The Netherlands

Owner

Quebec BV
Zwijndrecht
The Netherlands

Latest data adjustment

31 August 2015
