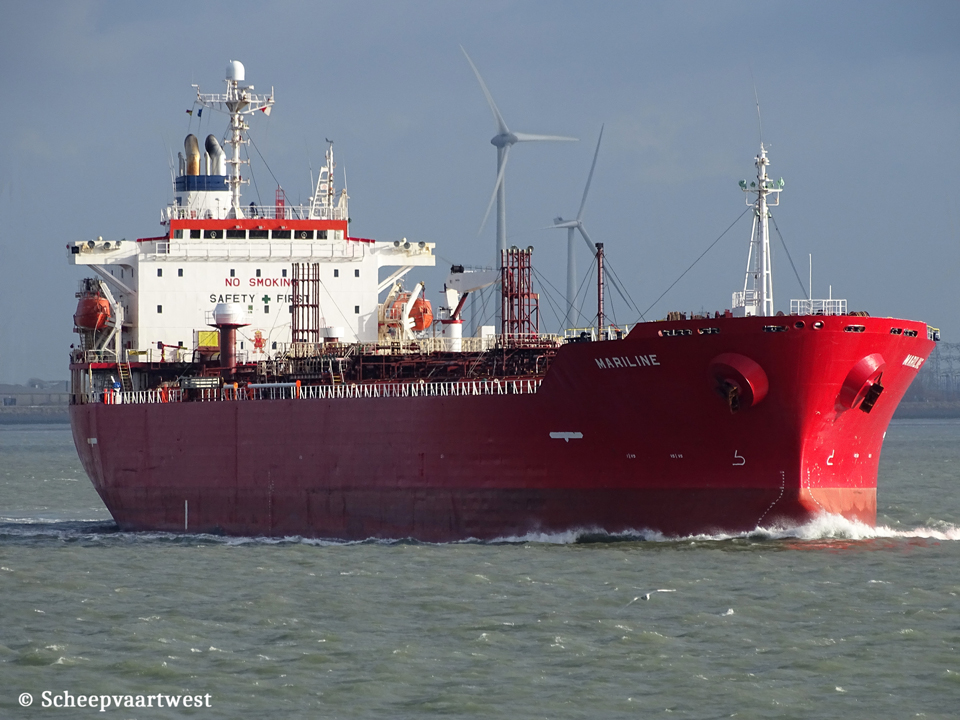

Mariline IMO 9135547 03

Westerschelde 30 November 2018

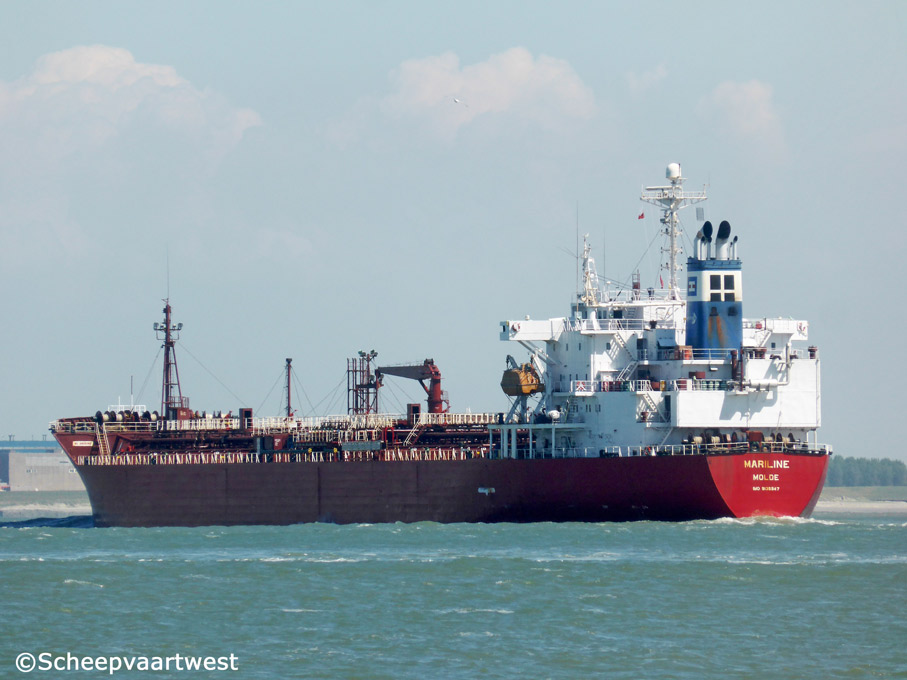

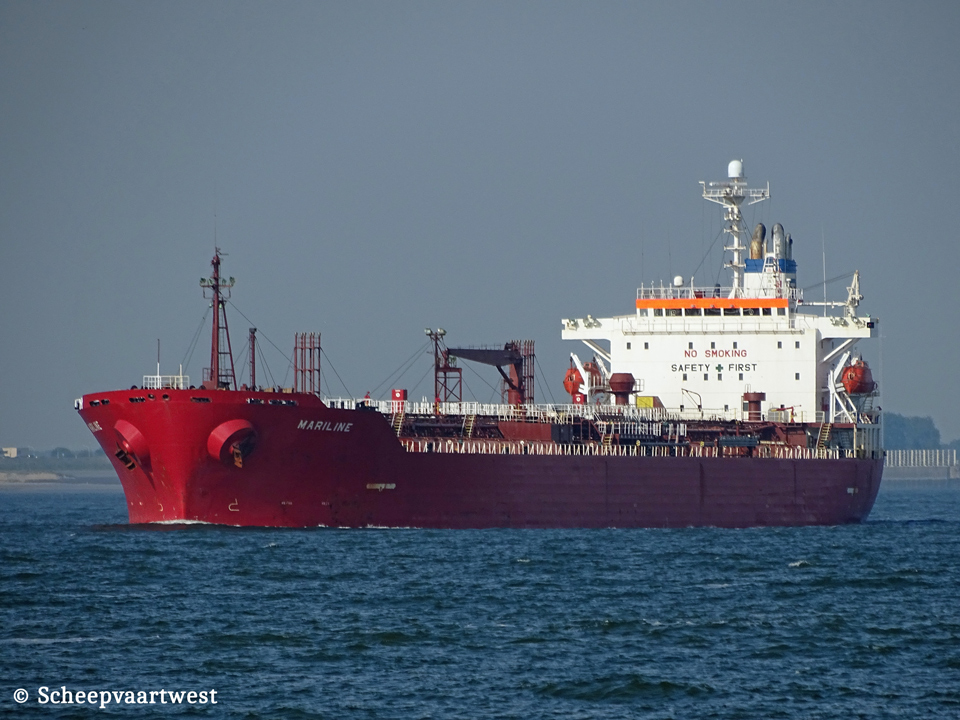

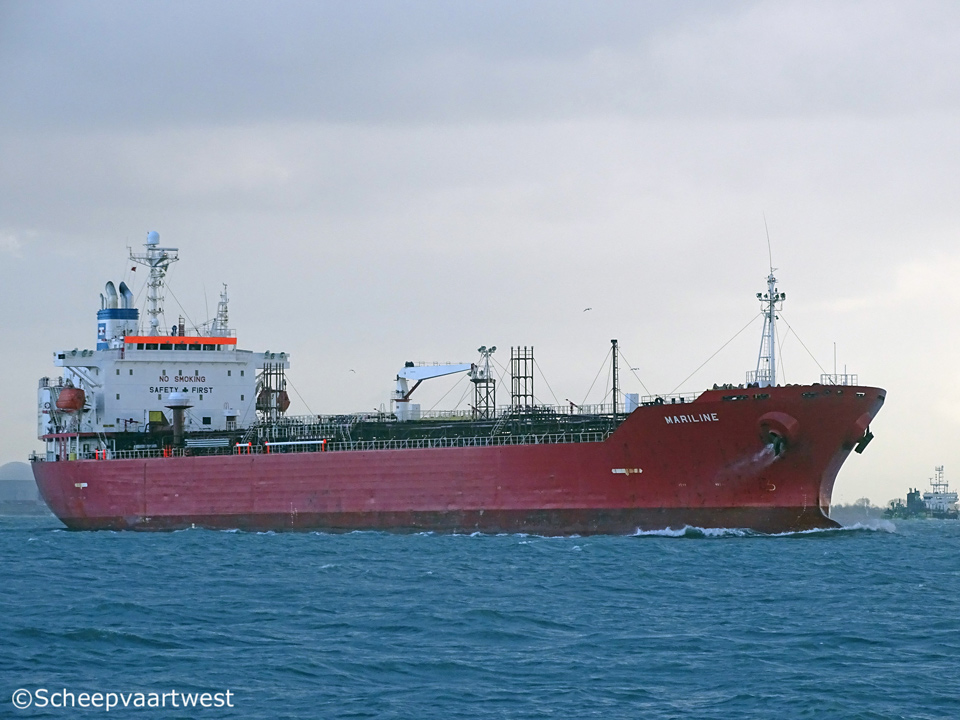

Mariline 02   Mariline 01   Mariline IMO 9135547 04
Westerschelde 17/12/17 Westerschelde 21/05/15   Westerschelde 23/05/17


Name

MARILINE

Previous names

1996 - 2009 Cisne Blanco

Type

Tanker for chemicals & oil products

IMO-number

9135547

Call sign

LAIY7

Flag

Norway

Port of registry

Molde

Previous flag

Republic of Panama, Panama City - call sign: 3FAZ6

GT

20.043 t

DWT

Summer: 30.553 t

Winter: 29.699 t

NT

7.336 t

Panama: 16.731 t

Suez: 21.119 t

Displacement

Summer: 37.605 t

Winter: 36.743 t

Length

174,38 m overall

167,00 m between perpendiculars

Breadth

27,70 m extreme

Draught

Summer: 10,02 m

Winter: 9,81 m

Keel to mast end

42,01 m

Air draft

35,00 m full ballast condition

Freeboard

Summer: 6.013 mm

Winter: 6.221 mm

Depth

16,00 m

Speed

Service: 15,0 knots

Max: 18,0 knots

Built

1996

Keel laid

03/07/1995

Launch date

16/11/1995

Date of completion

28/03/1996

Builder

Shin Kurushima Onishi Shipyard Co., Ltd.

Imabari

Japan

Yard number

2883

Hull material

Steel

Hull type

Double hull

Number of decks

1

Main engine

1x Mitsubishi 6UEC52LS - 2 stroke single acting 6 cylinder 520 x 1.85 mm combustion engine Mcr 7.980 kW / 10.850 hp at 120,0 rpm

Builder: Mitsubishi Heavy Industries, Ltd., Kobe Shipyard & Machinery Works - Japan

Propellers

1x Fixed pitch peopeller - aft at 120,0 rpm

Boilers

1x Auxiliary boiler, exhaust gas heated DC

1x Auxiliary boiler, oil/gas fired OEV

Builder: Osaka Boiler

Generators

3x Yanmar T 240 L-ST - 4 stroke 6 cylinder 240 x 310 mm diesel engines each Mcr 650 kW connected with generators each 600 kW / 5450 Volt - 620 Hz

Emergency generator

1x Deutz BF 6L 913 diesel generatorset

Number of cargo tanks

12

Cargo tank capacity

100%: 37.080,03 m³

98%: 34.790 m³

Tank coating

Zinc coating

Number of slop tanks

2

Slop tank capacity

1.548 m³

Pumps

12x Submerged pumps each 250 m³/h

2x Submerged pumps each 100 m³/h

Tank capacities

Ballast: 14.988,91 m³

Fuel oil: 1.750 m³

Diesel oil: 163 m³

Anchor equipment

Length: 301,84 m

Diameter: 64 mm

Crew size

18

Manager

Fleet Management Limited

Operator

Waterfront Shipping Company Limited

1800 Waterfront Centre

200 Burrard Street

Vancouver, BC

V6C 3M1

Canada

Owner

Mariline Ltd.

Oslo

Norway

Renamed

2020 Genius Master

Republic of Panama, Panama City - Call sign: 3ERW3

Owner: Fortune Lucky Shipping Co Ltd.

Manager: WS Shipping Co., Ltd. - China

Latest data adjustment

15 July 2022
