Ploutos - IMO 9327023

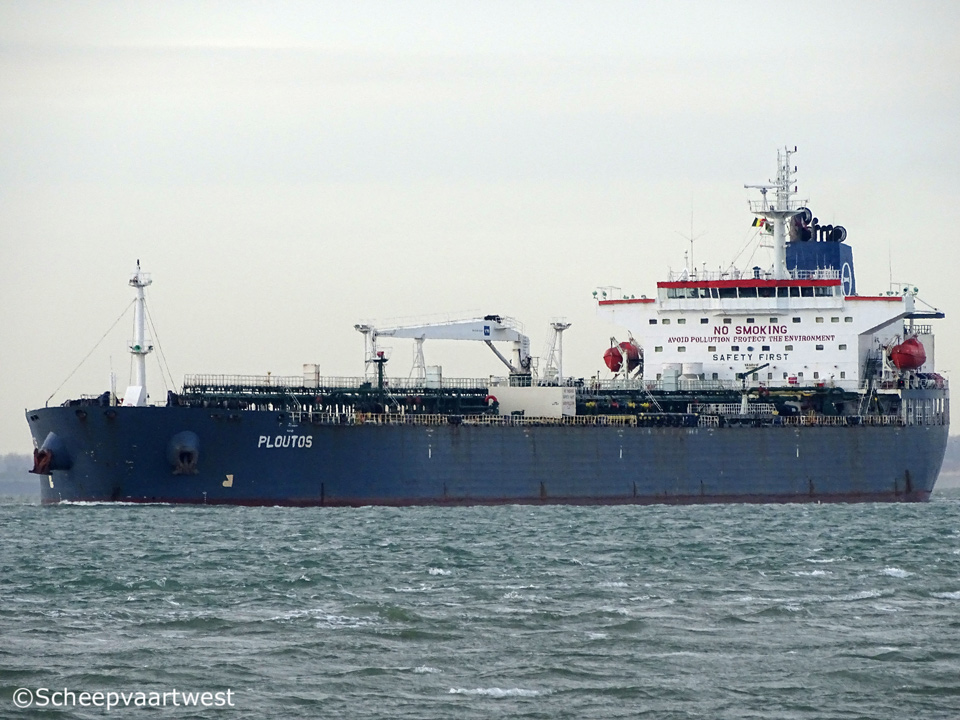

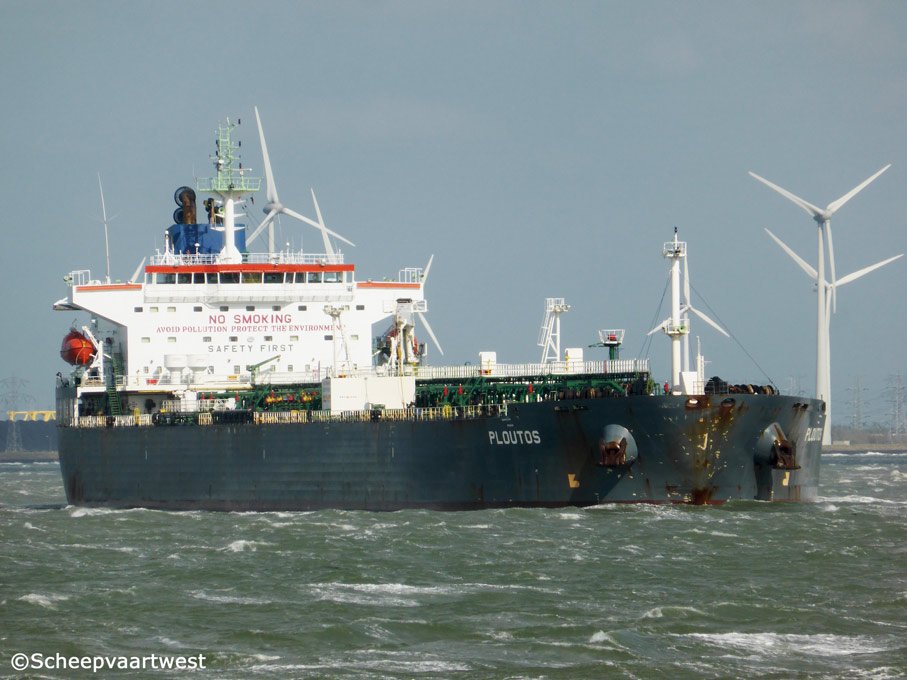

Westerschelde 05 May 2015

Name

PLOUTOS

Type

Crude oil tanker - Panamax

IMO-number

9327023

Call sign

C6VO3

Flag

Bahamas

Port of registry

Nassau

GT

42.048 t

DWT

Summer: 73.711,22 t

NT

22.309 t

Length

228,60 m overall

217,00 m between perpendiculars

Breadth

32,26 m

Draught

14,30 m

Depth

20,80 m

Speed

15,0 knots

Built

2006

Keel laid

23/12/2005

Date of completion

15/12/2006

Builder

New Century Shipbuilding Co. Ltd.
Jingjiang
China

Yard number

0307325

Hull material

Steel

Hull type

Double hull

Bulkheads

Water tight: 2

Oil thigh: 10

Watertight compartments

12

Continuous decks

1

Main engine

1x MAN-B&W/HHI 5S60MC-C - 2 stroke 5 cylinder 600 x 2.400 mm diesel engine - 11.300 kW / 15.353 hp at 105,0 rpm

Builder: Hudong Heavy Machinery Co. Ltd., Shanghai - China

Propellers

1x Screw Propeller Solid - aft at 101,0 rpm
Manufacturer: Wartsila CME Zhenjiang

Boilers

1x CHM Aalborg 548,00 m² - 10,00 bar
2x CHO Aalborg 110,00 m² - 18,00 bar

Electric installations

Power voltage: 450 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

3x Main diesel generatorsets each 1.125 kVA - 900 kW - 1.318 hp

Emergency generator

1x Diesel generatorset 375 kVA - 300 kW - 461 hp

Number of cargo tanks

12

Total capacity of tanks

83.179 m³

Number of slop tanks

2

Slop tank capacity

2.872 m³

Cargo handling

3x Pumps each 2.300 m³/h

Tank capacities

Fuel oil: 2.070 m³

Ballast: 25.335 m³

Lifting equipment

1x Engine room overhead crane - SWL 4,5 t
1x Hose handling crane - SWL 15,0 t
2x Hose handling davits each - SWL 1,0 t
1x Provision crane - SWL 5,0t
1x Pump room pneumatic davit A-Deck - SWL 1,5 t

Crew size

30

Manager

Ionia Management S.A.
Anthipolochagou Laskou 12
Piraeus 185 36
Greece

Registered owner

Ginger Maritime S.A.
c/o Ionia Management S.A.
Anthipolochagou Laskou 12
Piraeus 185 36
Greece

Latest data adjustment

29 April 2018
