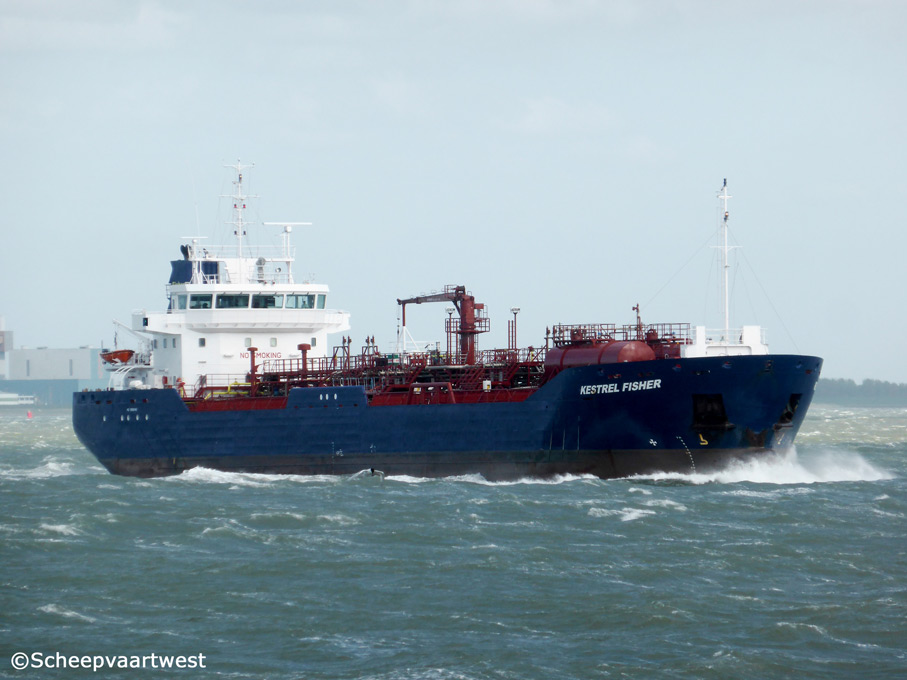

Kestrel Fisher 01

Westerschelde 05 May 2015

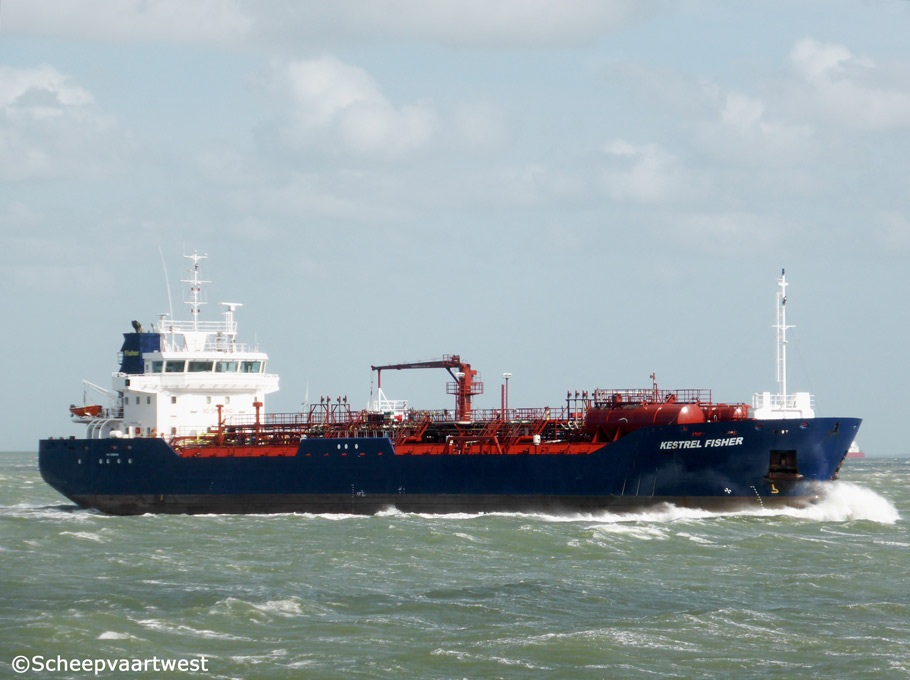

Kestrel Fisher 02
Westerschelde 05/05/15


Name

KESTREL FISHER

Type

Tanker for oil and chemicals

IMO-number

9556040

Call sign

PCXI

Flag

The Netherlands

Port of registry

Rotterdam

GT

4.631 t

DWT

Summer: 7.076 t

Length

104,52 m overall

99,92 m between perpendiculars

Breadth

17,00 moulded

Draught

Summer: 6,30 m

3,80 m ballast

Depth

9,50 m moulded

Speed

Max.: 12,3 knots

Built

2013

Launch date

22.06.2012

Delivery date

31.10.2013

Builder casco

Galatz Santierul Naval Damen Galati S.A

Galati

Romania

Builder

Damen Shipyard Bergum
Bergum
Netherlands

Yard number

9394

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MaK 8M25C - 4 stroke single acting 8 cylinder diesel engine - 2.640 kW at 750 rpm

Propellers

1x Controllable pitch propeller - Diameter 3.850 mm

Boilers

1x Thermal oil boiler for HFO tank heating and cargo tank cleaning 1.500 kW

1x Economiser

Shaft generator

1x 435 kVA - 60 Hz

Generators

2x Main diesel generatorsets each 525 kVA / 420 kW - 60 Hz

Emergency generator

1x Diesel generatorset 80 kVA / 64 kW - 60 Hz

Compressed air receivers

2x Starting air compressors

Bow thruster

1x Fixed pitch propeller 400 kW, electric motor

Number of tanks

10x Epoxy coated cargo tanks with fixed tank cleaning system

Cargo tank capacity

8.363 m³

Segregations

5

Number of slop tanks

2

Slop tank capacity

172 m³

Pumps

10x Electric driven deepwell pumps each 200 m³/h

Deck lay-out and equipment

2x Electric-hydraulic driven bow anchor winches

4x Electric-hydraulic driven mooring winches (2 fore, 2 aft)

1x Free fall life boat for 12 persons

1x MOB boat with davit

Tank capacities

HFO: 258 m³

Marine diesel oil: 43 m³

Lub oil: 21 m³

Potable water: 17 m³

Ballast water: 3,330 m³

Lifting equipment

1x Hose handling crane cap 1,5 t at 16,00 m

Accommodations

For captain and crew for a total of 10 persons and 1 guest, all single cabins with sanitary

Manager

James Fisher & Sons (Liverpool) Ltd.
Barrow-in-Furness
United Kingdom

Operator

James Fisher Shipping Services Ltd.

Owner

Trent B.V.
Rotterdam
The Netherlands

Latest data adjustment

23 June 2015
