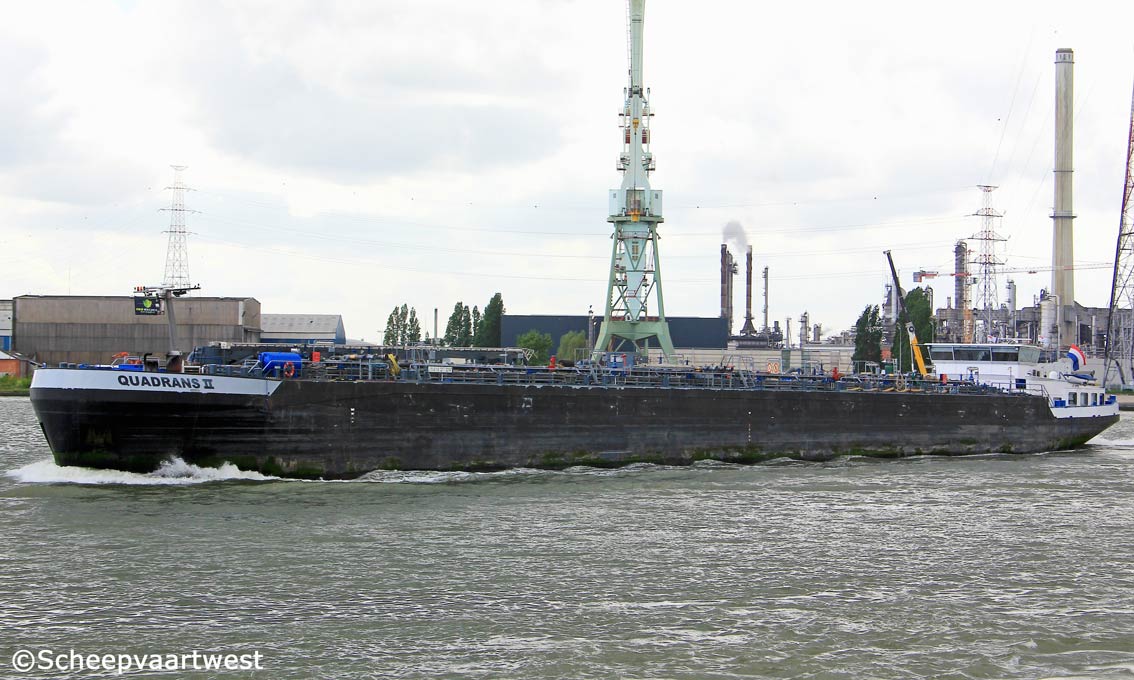

Quadrans II 01

Antwerpen 07 May 2015

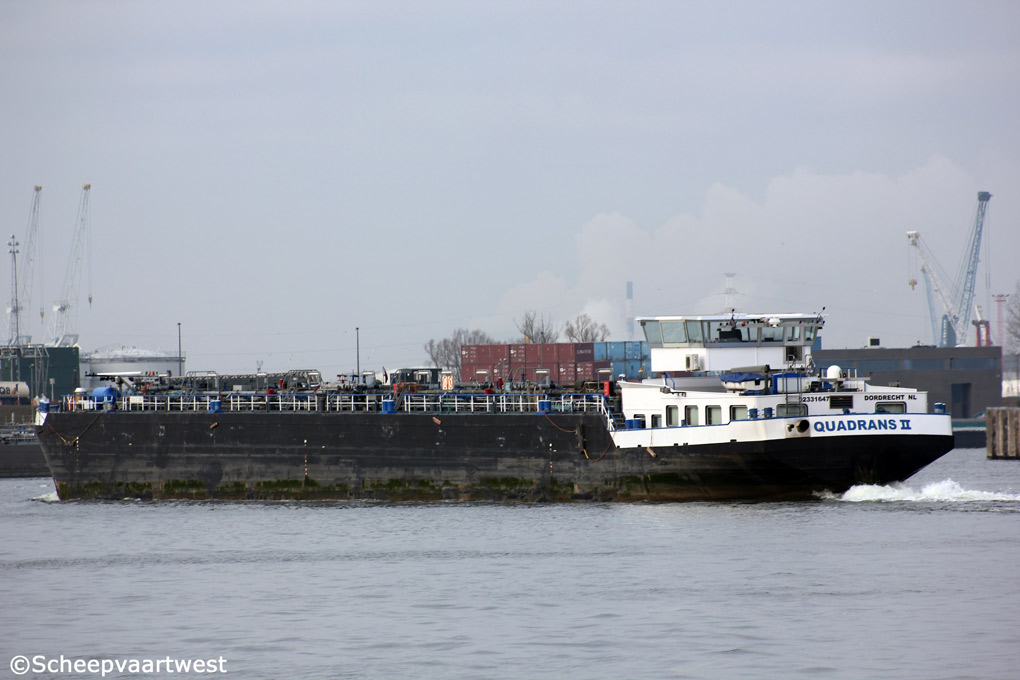

Quadrans II 02
Antwerpen 05/01/15


Name

QUADRANS II

Type

Inland tanker

ENI-number

02331647

Flag

The Netherlands

Port of registry

Dordrecht

Tonnage

3.221 t

Length

110,00 m

Breadth

11,45 m

Draught

3,77 m

Depth

5,40 m

Built

2009

Builder casco

Lushun Binhai Shipping Build & Repair Co., Ltd.
Dalian
China

Builder completion

Veka Shipbuilding B.V.
Werkendam
The Netherlands

Hull material

Steel

Main engine

1x Caterpillar 3512 (C) DI-TA diesel engine 1.349 kw / 1.835 hp at 1.600 rpm

Propellers

1x 5 blades propeller - Diameter: 1.750 mm

Generators

1x Cummins QSK 19M diesel enine coupled with Marathon 573 RSL 4034 generator 660 kVA

2x Perkins 4.4 TWGM engines coupled with Marathon 362 CSL 1606 each 85 kVA

Bow thruster

1x Cummins QSK 19M engine 750 hp at 1.800 rpm - Verhaar Omga

Cargo tank capacity

3.800 m³

Pumps

2x EPS500 cargo pumps each 500 m³/h powered by electric motor 230 kW

1x EPS10 slob pump 10 m³/h powered by electric motor 8,6 kW

Owner

Quadrans Shipping BV
Maaskant-Erf 101
3315 KM Dordrecht
The Netherlands

Latest data adjustment

23 May 2015
