Westerschelde 01 October 2018 |
 |
 |
 |
 |
 |
 |
|||||
| Antwerpen 23/04/15 | Antwerpen 23/04/15 | Westerschelde 03/06/15 | Westerschelde 21/04/15 | Westerschelde 08/08/18 | Westerschelde 05/06/18 | |||||
 |
||||||||||
| Westerschelde 26/04/20 | ||||||||||
|
Name |

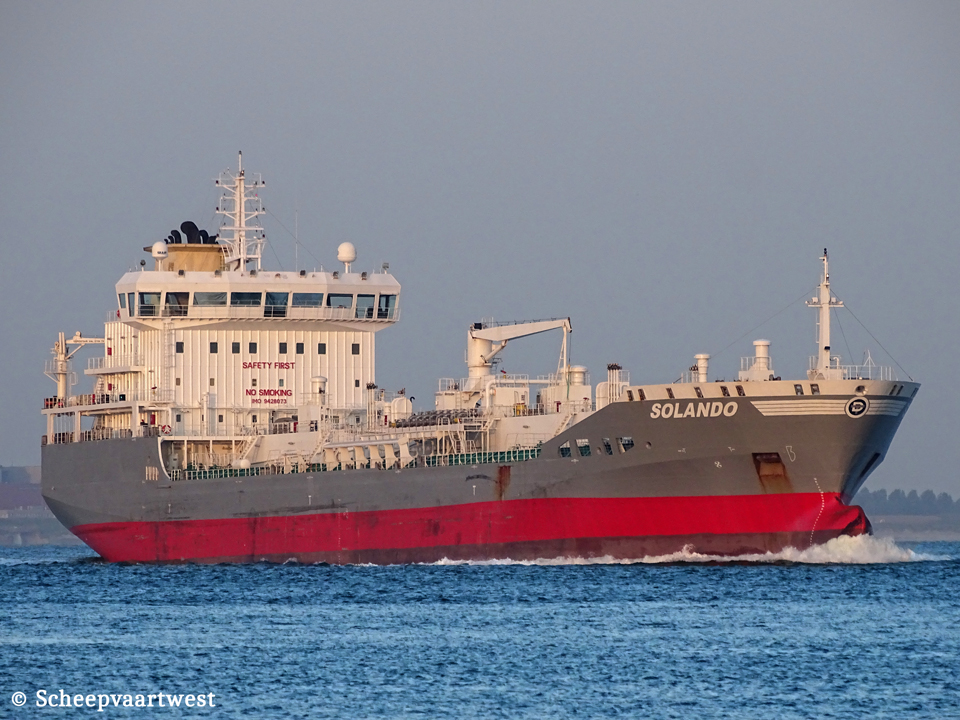

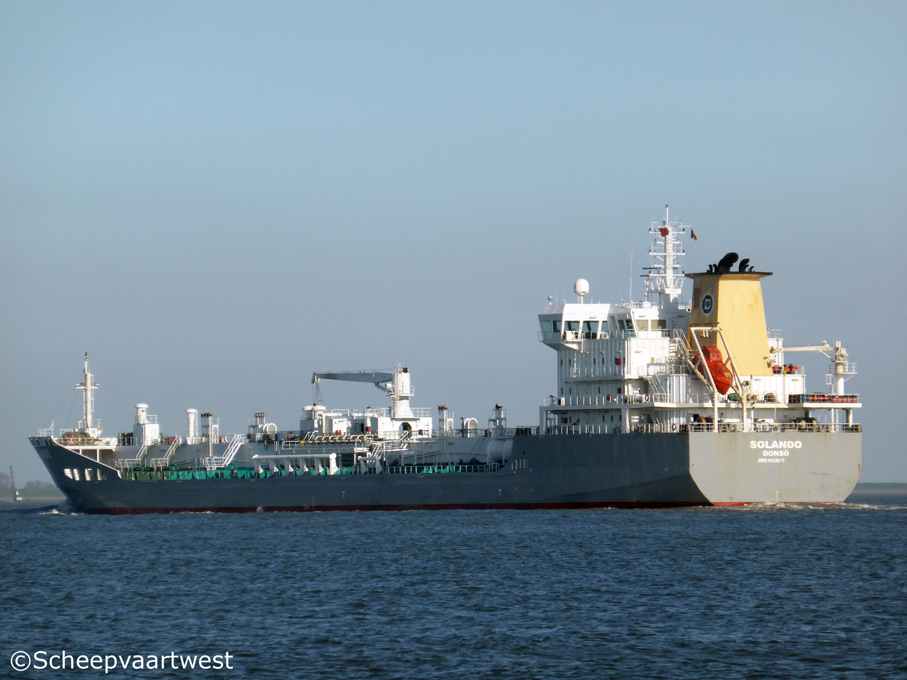

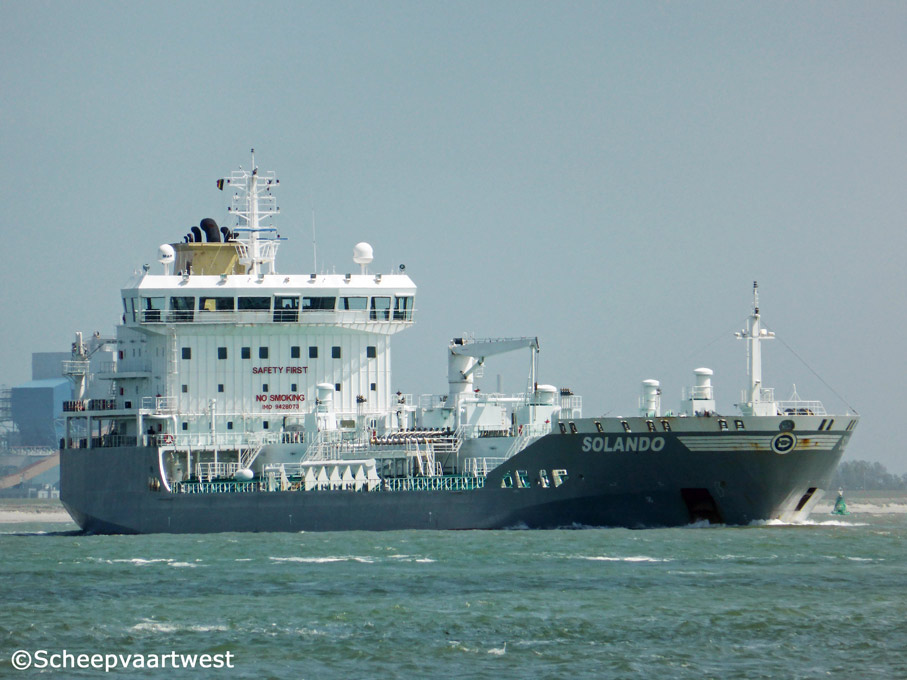

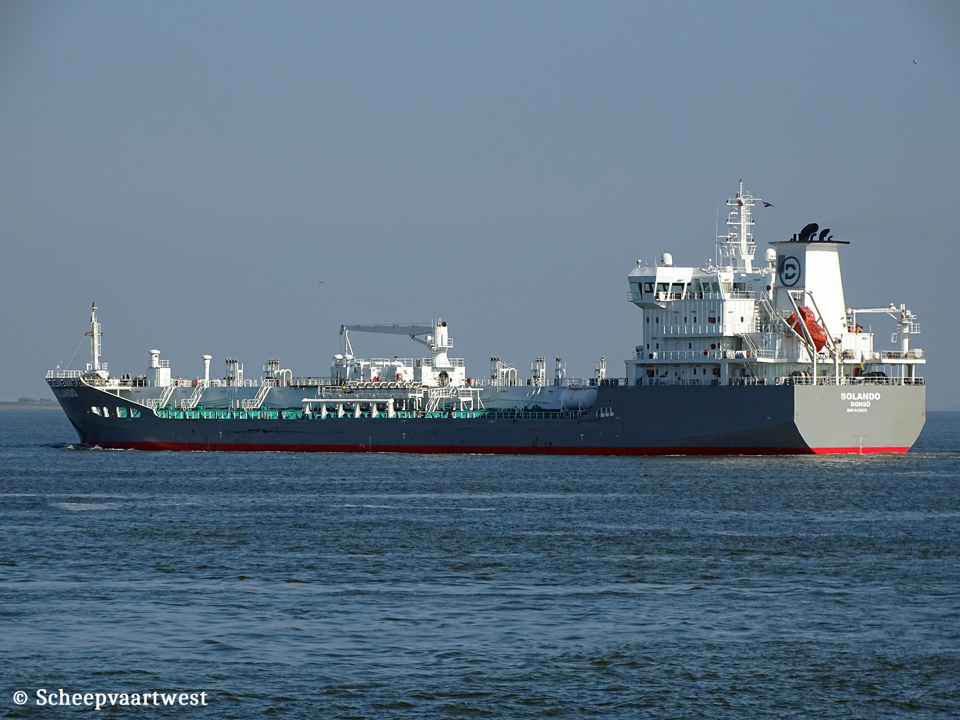

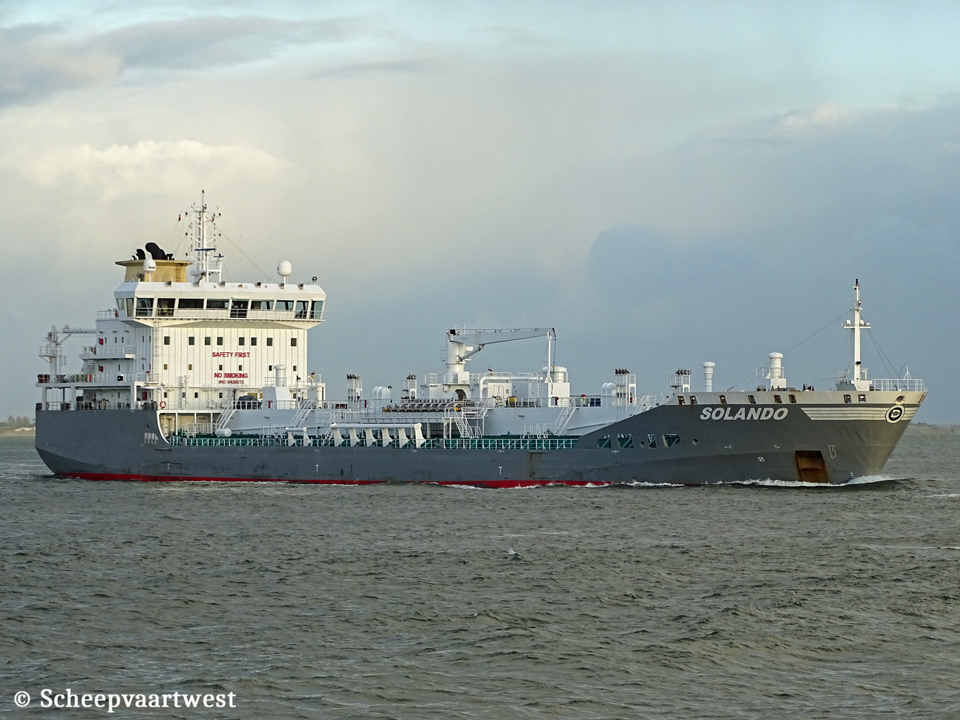

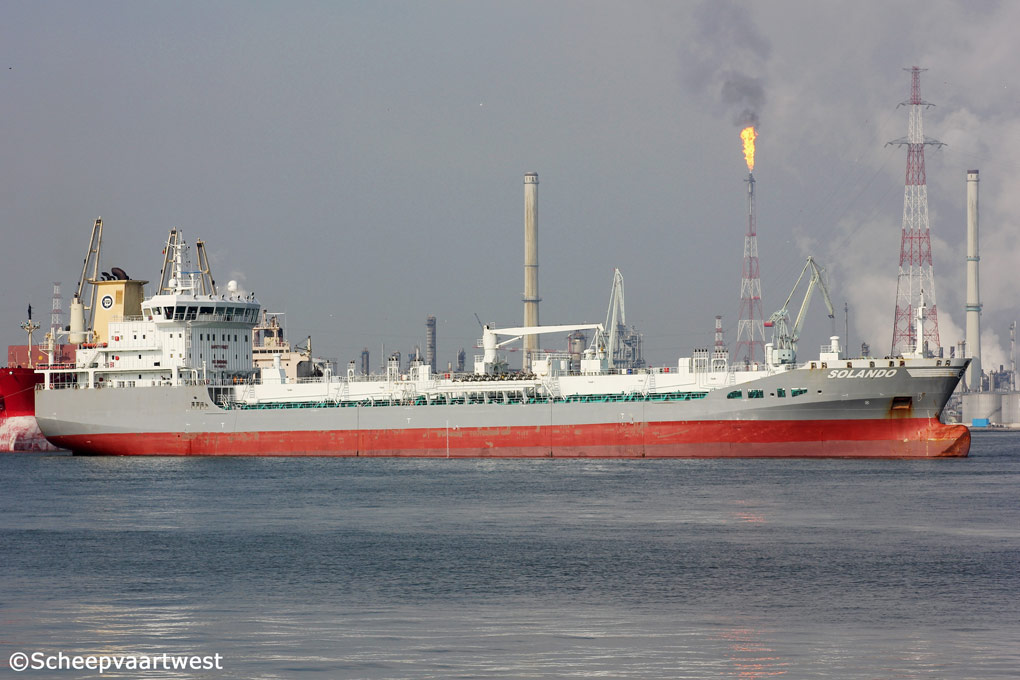

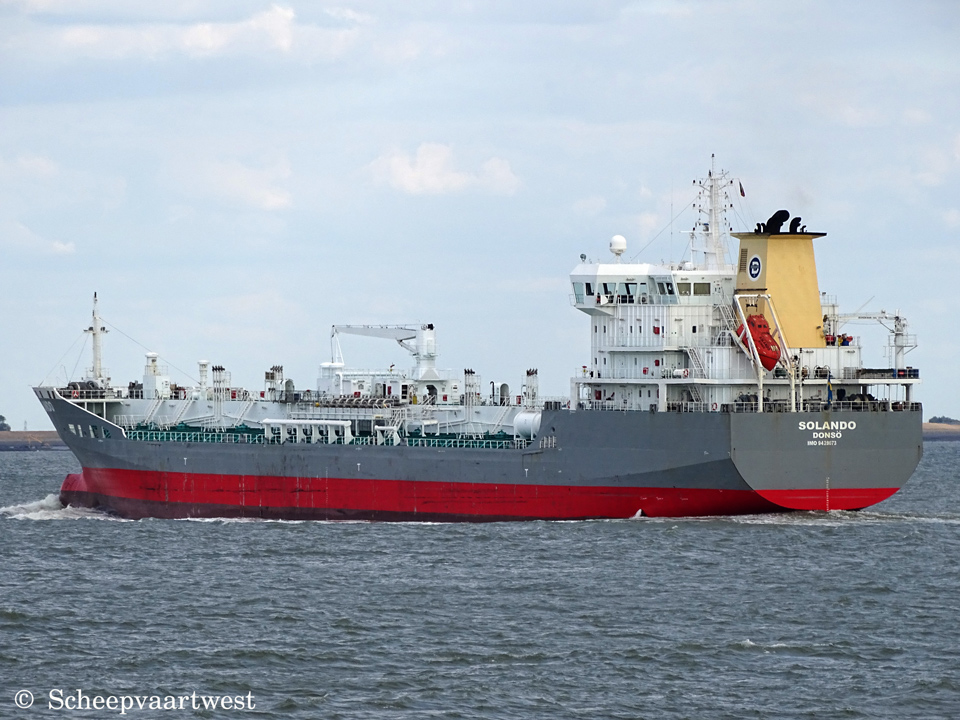

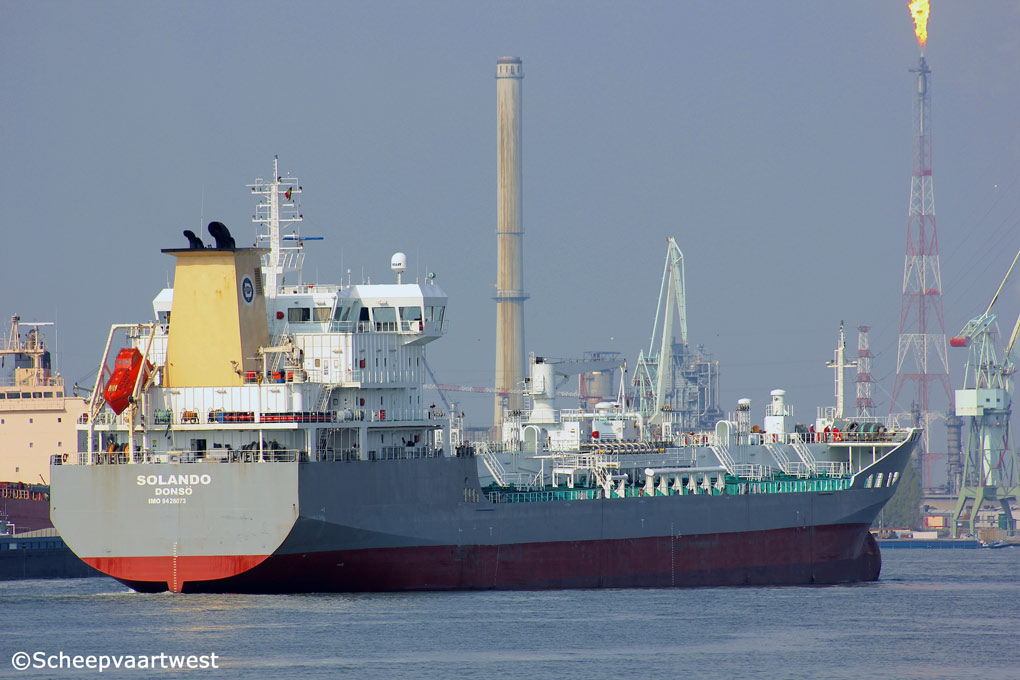

SOLANDO |
|
Previous names |
2009 - 09/2009 Messinia 09/2009 - 04/2013 Soley 1 |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9428073 |
|
Call sign |
SDJU |
|
Flag |
Sweden |
|
Port of registry |
Donsö |
|
Previous flags |
2009 - 2013 Malta, Valletta |
|
GT |
13.472 t |
|
DWT |
Summer: 19.991,10 t |
|
NT |
6.631 t |
|
Length |
149,95 m overall 143,30 m between perpendiculars |
|
Breadth |
23,20 m moulded |
|
Draught |
9,92 m |
|
Keel to mast end |
39,65 m |
|
Freeboard |
3.162 mm |
|
Depth |
13,05 m moulded |
|
Speed |
15,0 knots |
|
Built |
2009 |
|
Keel laid |
07/04/2008 |
|
Date of completion |
16/09/2009 |
|
Builder |
Soli Shipyard (Soli Gemi Insa San. Ve Tic. A.S.) Golcuk Turkey |
|
Yard number |
06 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 8S35ME-B - 2 stroke 8 cylinder 350 x 1.550 mm combustion engine 6.960 kW / 9.457 hp at 167 rpm Build: 10/03/2009 Builder: MAN, Frederikshavn - Denmark |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated - 7,0 bar Heating surface: 60,0 m² 2x Thermal oil heater, oil fired - 7,0 bar Heating surface: 30,0 m² each |
|
Shaft generator |
1x 1.200 kW |
|
Generators |
3x Yanmar 6EY18AL diesel generatorsets each 938 kVA - 750 kW - 1.087 hp Builder: Yanmar Co., Ltd. Amagasaki Plant |
|
Emergency generator |
1x Yanmar diesel generatorset 206 kVA - 165 kW - 257 hp |
|
Bow thruster |
1x 740 kW |
|
Number of tanks |
14 |
|
Number of slop tanks |
2 |
|
Segregations |
16 |
|
Cargo tank capacity 98% |
20.916 m³ |
|
Slop tanks 98% |
711 m³ |
|
Pumps |
14x Framo type SD150 - 350 m³/h each 2x Framo type SD100 - 150 m³/h each 2x Ballast pumps 500 m³/h each |
|
Manifolds |
Bow to centre manifolds: 71,05 m |
|
Tank capacities |
Ballast: 8.265 m³ Fuel oil: 1.86,13 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Manager |
Rederi AB Donsötank Donsö hamnväg 18 430 82 Donsö Sweden |
|
Previous managers |
2009 - 2013 Timur Ship Management Pte. Ltd. |
|
Registered owner |
Donsö Shipping KB c/o Rederi AB Donsötank |
|
Previous owners |
2009 - 2013 Rederi AB Donsötank |
|
Renamed |
04/2023 Monjasa Thunder Republic of Panama - Call sign: 3E4697 Registered owner: Monjasa Chartering II DMCC, Dubai - UAE |
|
Latest data adjustment |
06 March 2024 |
