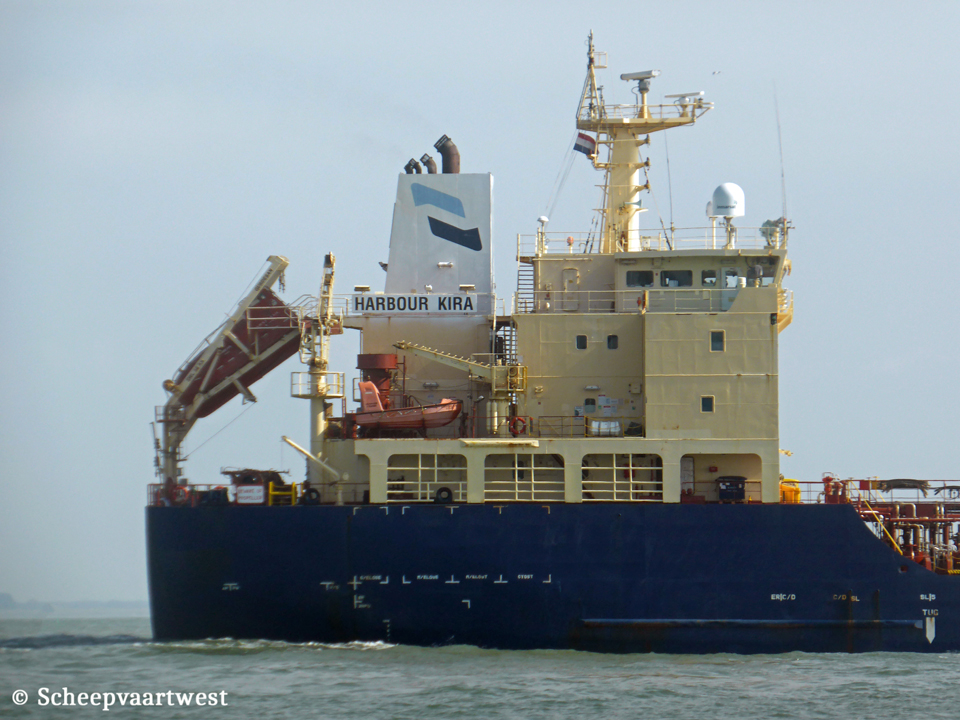

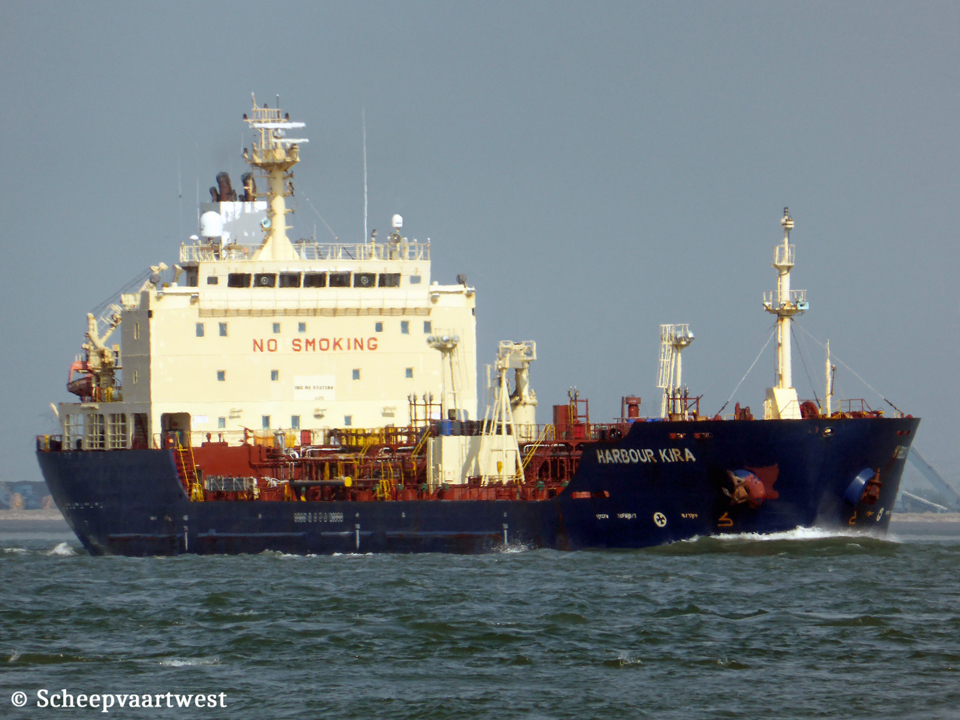

Westerschelde 14 June 2015 |
 |
 |
 |
 |
|||

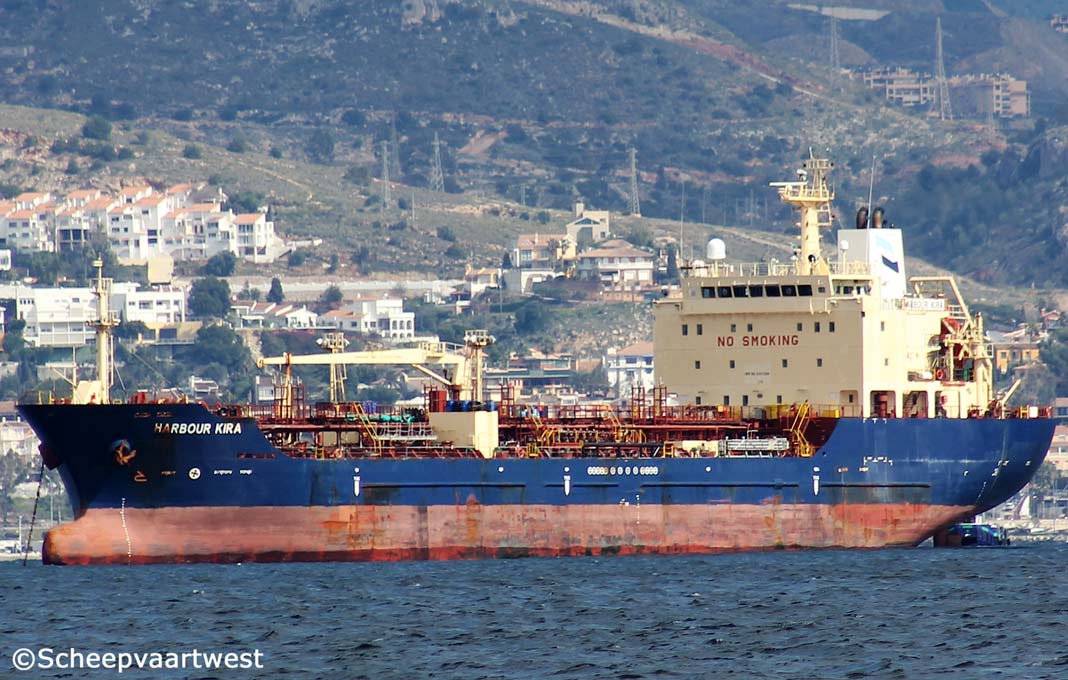

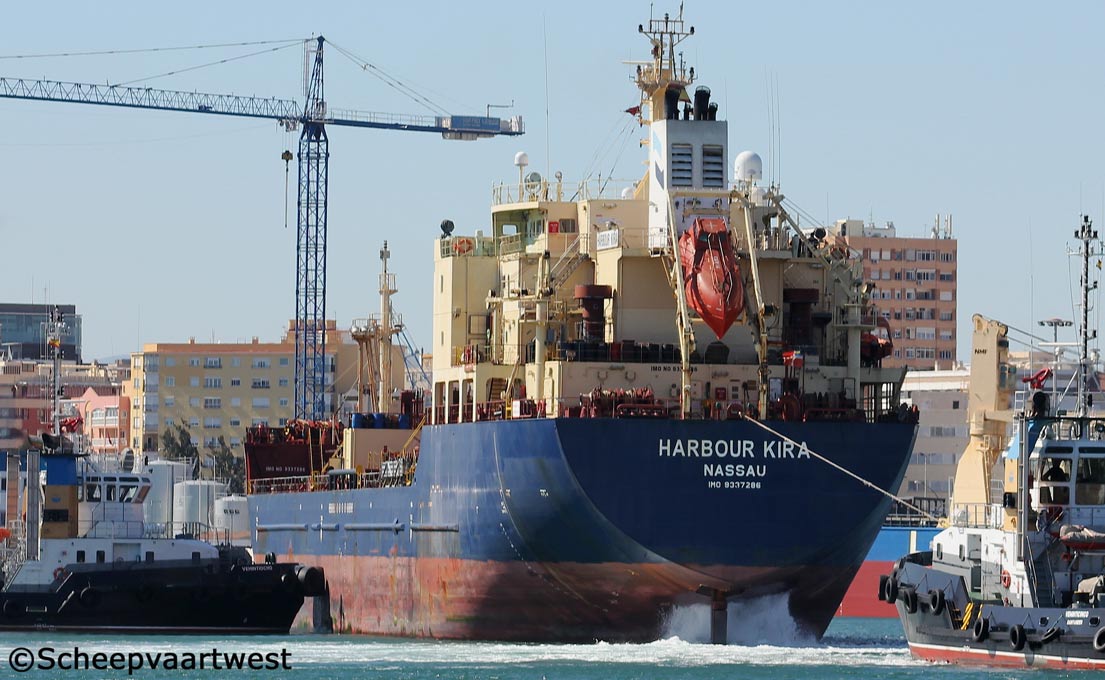

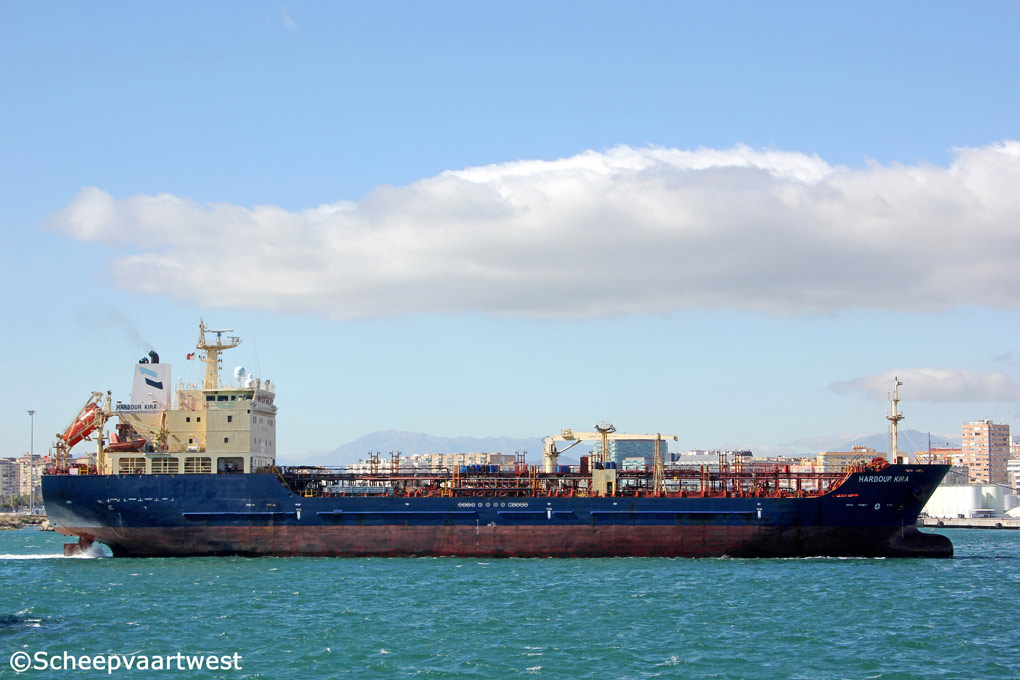

| Westerschelde 14/06/15 | Malaga, Spain 21/02/15 | Malaga, Spain 23/02/15 | Malaga, Spain 23/02/15 | |||
|
Name |
HARBOUR KIRA |
|
Previous names |
01/2007 - 02/2012 Clipper Kira |
|
Type |
Oil Tanker / Chemical tanker |
|
IMO-number |
9337286 |
|
Call sign |
C6VX4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
7.687 t registered Suez: 8.469,71 t |
|
DWT |
Summer: 11.298,8 t Winter: 10.935,0 t |
|
NT |
3.266 t registered Suez: 6.507 t Panama: 6.613,63 t |
|
Displacement |
Summer: 15.020,7 t Winter: 14.657,7 t |
|
Length |
116,50 m overall 109,36 m between perpendiculars |
|
Breadth |
20,03 m extreme |
|
Draught |
Summer: 8,41 m Winter: 8,23 m |
|
Keel to mast end |
35,92 m |
|
Air draft |
Summer deadweight: 27,51 m Normal ballast: 30,22 m Lightship: 33,56 m |
|
Freeboard |
Summer: 3.311 mm Winter: 3.490 mm |
|
Depth |
11,71 m moulded |
|
Speed |
Ballast: Max 14,0 knots - Economical 12,5 knots Laden: Max 13,5 knots - Economical 12,5 knots |
|
Built |
2007 |
|
Keel laid |
28/08/2006 |
|
Launch date |
07/11/2006 |
|
Date of completion |
19/01/2007 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. Pusan South Korea |
|
Yard number |
B-5008 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 11 Oil tight: 9 |
|
Main engine |
1x STX/MAN-B&W 6S35MC-MK7 - 6 cylinder 350 x 1.400 mm combustion engine 4.457 kW / 6.060 hp at 173,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Sil La Metal Co., Ltd. |
|
Boilers |
1x Auxiliary boiler 1x Exhaust gas boiler Manufacturer: Kang Rim Ind. Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 562,6 kW Manufacturer: HHI, Electro Electric System |
|
Bow thruster |
1x 449 kW |
|
Number of cargo tanks |
10 + 2 slop tanks |
|
Cargo tank capacity 98% |
12.244,68 m³ |
|
Segregation with double valve capacity 98% |
Seg#1: 1.459,71 m³ (1p+1s) Seg#2: 1.493,90 m³ (2p) Seg#3: 1.487,90 m³ (2s) Seg#4: 742,30 m³ (3p) Seg#5: 740,90 m³ (3s) Seg#6: 1.597,70 m³ (4p) Seg#7: 1.595,80 m³ (4s) Seg#8: 2.461,12 m³ (5p+5s) Seg#9: 665,30 m³ (Slopp+Slops) |
|
Number of pumps |
10x Centrifugal cargo pumps each 300 m³/h 2x Centrifugal cargo pumps each 100 m³/h 2x Centrifugal ballast pumps each 250 m³/h |
|
Number of tanks |
Ballast: 13 Lubricating oil: 10 Fuel oil: 8 Fresh water: 5 Diesel oil: 4 Sludge: 3 Chain: 2 Waste water: 2 |
|
Tanks capacity |
Diesel Oil: 97,9 m³ Freshwater: 404,5 m³ Fuel Oil: 851,3 m³ Lube Oil: 74,72 m³ Tank Ballast: 4.324,8 m³ |
|
Manifolds |
Distance bridge front to centre of manifold: 29,00 m Bow to centre manifold: 57,00 m Stern to centre manifold: 58,29 m Distance between cargo manifold centres: 800 mm Distance ships rail to manifold: 3.175 mm Distance manifold to ships side: 3.500 mm Top of rail to centre of manifold: 810 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 750 mm |
|
Lifting equipment |
1x Hose Handling Crane - SWL 5,0 t 2x Provision Crane - SWL 0,9 t Manufacture: Dongnam Marin Crane Co., Ltd. |
|
Crew size |
20 |
|
Manager |
Nordic Tankers Trading A/S Copenhagen Denmark |
|
Owner |
Kira Shipping C0., Ltd. c/o Clipper Grou (Management) Ltd. Dockendale House, West Bay Street Nassau Bahamas |
|
Registered owner |
Kira Shipping C0., Ltd. |
|
Renamed |
2016 Caribe Maria Liberia, Monrovia - Call sign: D5KK2 Owner: Jasoniol BVBA, Gent - Belgium Manager: Caribe Tankers Ltd. ,Houston TX - USA Operator: Columbia Shipmanagement Ltd., Limassol - Cyprus |
|
Latest data adjustment |
22 January 2024 |
