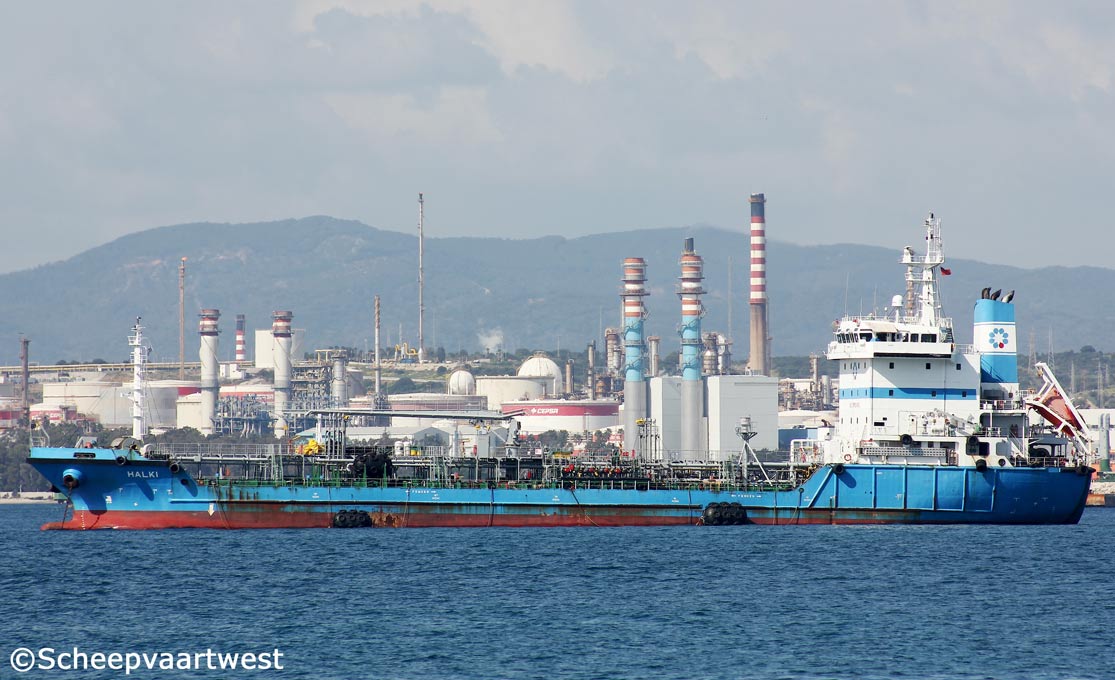

Algeciras, Spain 12 February 2015 |
|
Name |
HALKI |
|
Type |
Port bunkering - oil tanker |
|
IMO-number |
9417957 |
|
Call sign |
ZDMP5 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
Liberia, Monrovia - Call sign: A8WF7 |
|
GT |
4.580 t |
|
DWT |
6.600 t |
|
NT |
1.967 t |
|
Length |
102,50 m overall 95,20 m registered |
|
Breadth |
17,80 m registered |
|
Draught |
6,60 m |
|
Depth |
8,80 m moulder |
|
Speed |
14,0 knots |
|
Built |
2011 |
|
Keel laid |
15.04.2009 |
|
Launch date |
14.01.2010 |
|
Date of completion |
28.07.2011 |
|
Builder |
Qingdao Hyundai Shipbuilding Co., Ltd. |
|
Yard number |
QHS-227 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
1 |
|
Main engine |
1x Himsen 9 H 25/33 P - 4 stroke 9 cylinder 250 x 330 mm diesel engine 2.610 kW / 3.550 hp at 900 rpm Year of manufacture: 2009 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 227 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 9,5 m² 1x Steam boiler, exhaust gas heated - 11,0 bar Heating surface: 40,14 m² Year of manufacture: 2009 Manufacturer: Alfa Laval Aalborg B.V. |
|
Electric installations |
3x Plants each 450 V - 500 kVA 1x Plant 450 V - 125 kVA |
|
Generators |
3x Main diesel generatorsets each 500 kVA |
|
Emergency generator |
1x Diesel generatorset 125 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 1.000 litres - 11,0 bar 1x Receiver 100 litres - 11,0 bar |
|
Bow thruster |
1x Bow thruster 320 kW, forward |
|
Number of cargo tanks |
12 |
|
Cargo tanks capacity |
7.019 m³ |
|
Anchor equipment |
3x Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Manager |
Aegean Bunkering Services Inc. |
|
Registered owner |
Halki Navigation S.A. |
|
Latest data adjustment |
31 March 2015 |
