Westerschelde 20 April 2020 |
 |
 |
 |
 |
 |
||||

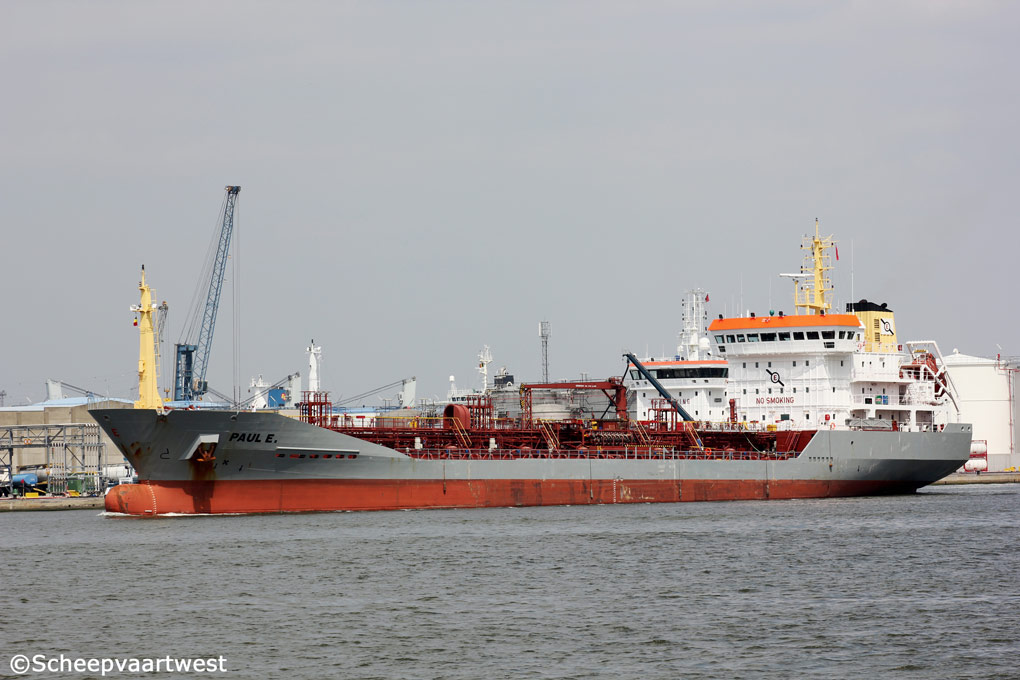

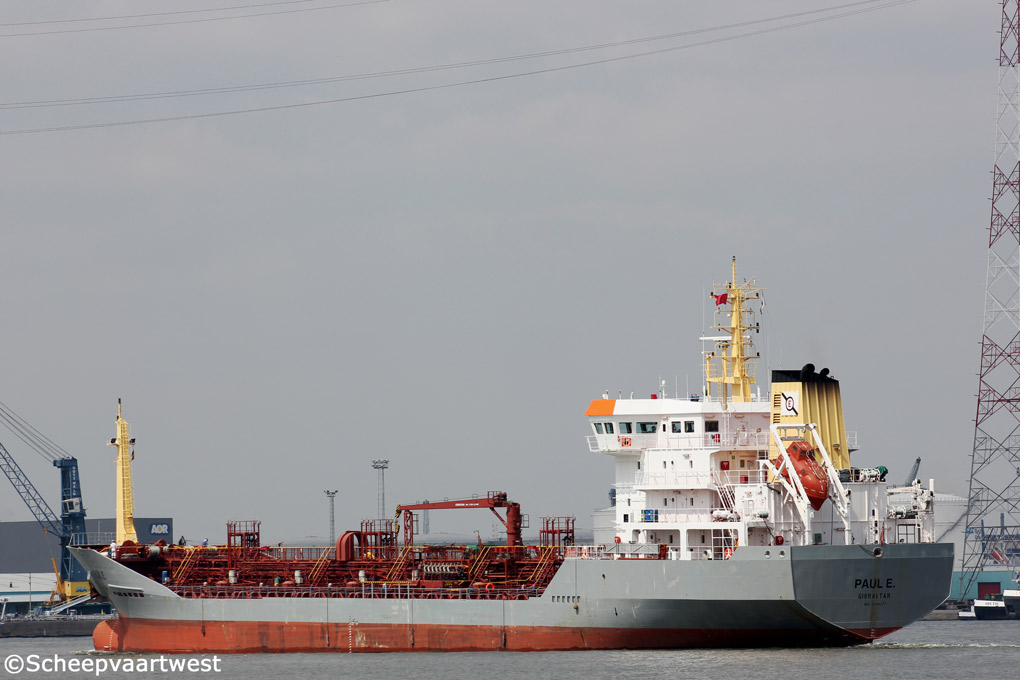

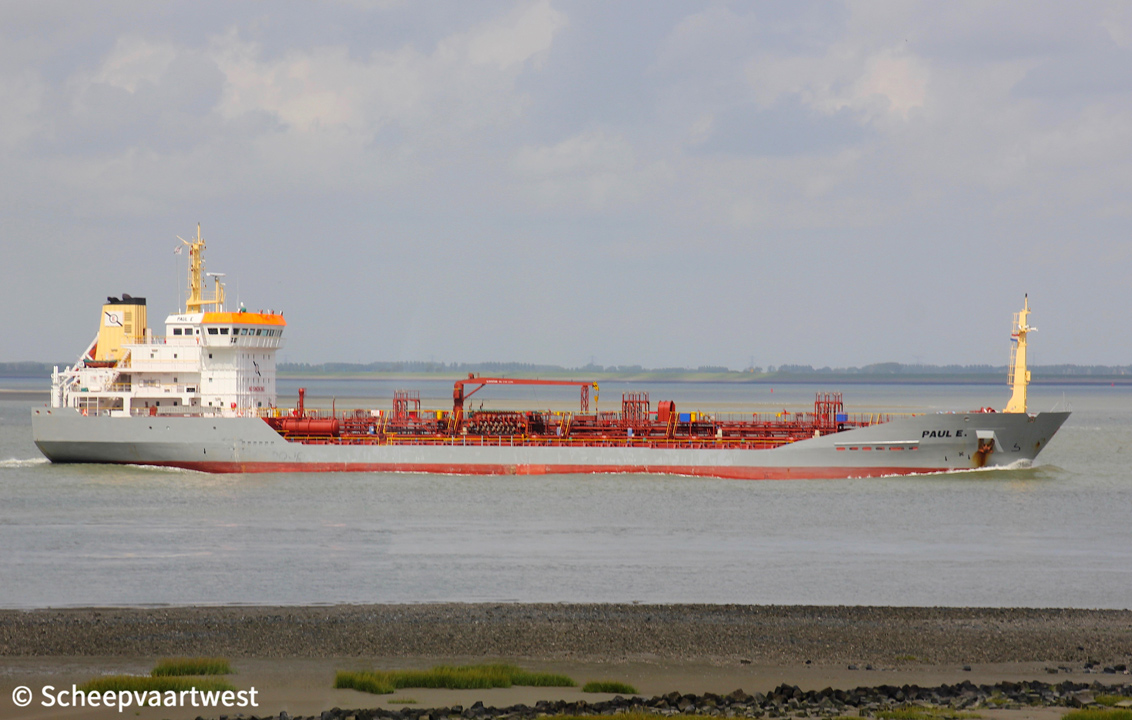

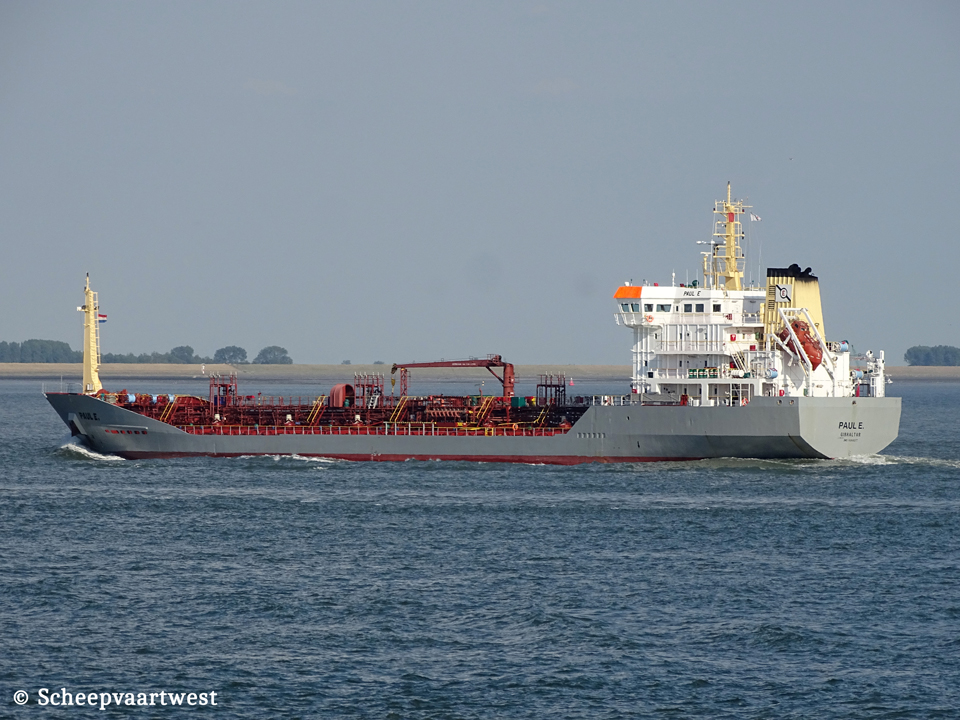

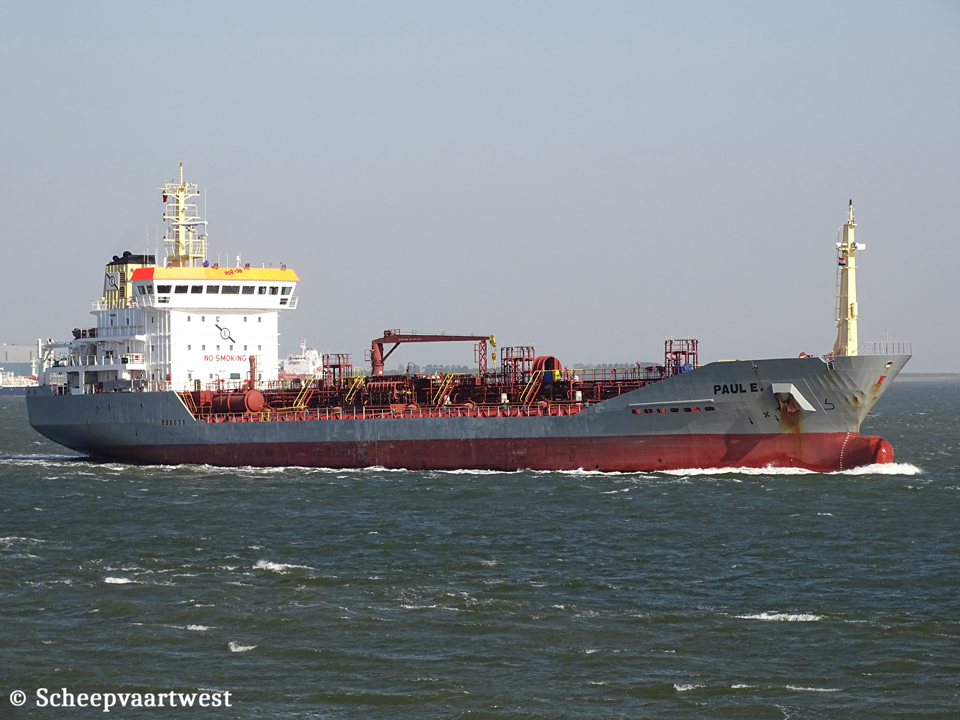

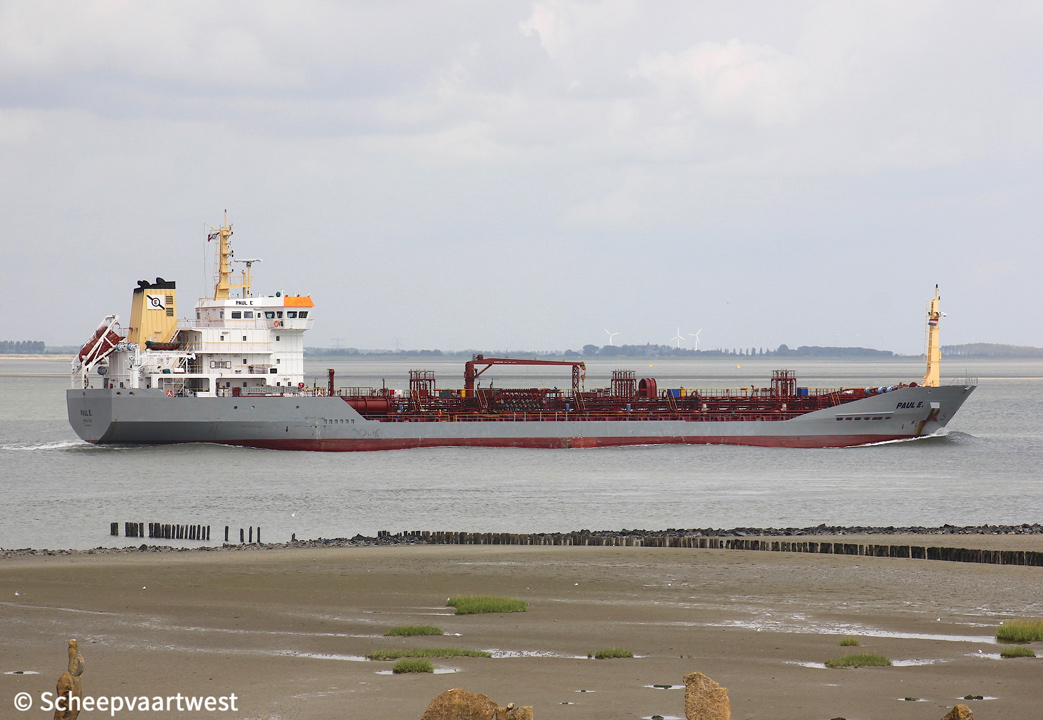

| Antwerpen 30/05/14 | Antwerpen 30/05/14 | Terneuzen 16/08/19 | Terneuzen 16/08/19 | Westerschelde 29/07/19 | ||||
|
Name |
PAUL E. |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9268277 |
|
Call sign |
ZDGV9 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
4.677 t |
|
DWT |
Summer: 6.974 t |
|
NT |
2.238 t |
|
Length |
119,60 m overall 112,20 m registered |
|
Breadth |
16,90 m registered |
|
Draught |
6,72 m |
|
Forecastle |
8,00 m |
|
Poop |
21,60 m |
|
Depth |
8,40 m moulded |
|
Speed |
14,0 knots |
|
Built |
2005 |
|
Keel laid |
05/07/2004 |
|
Launch date |
19/02/2005 |
|
Date of completion |
10/06/2005 |
|
Builder |
Sedef Gemi Insaati A.S. Tersaneler Yolu No:14 Tuzla 81700 Istanbul Turkey |
|
Yard number |
128 |
|
Hull material |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Hull type |
Shipbuilding steel (standard) |
|
Watertight bulkheads |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW at 600 rpm Year of manufacture: 2004 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 151 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0bar Heating surface: 67,4 m² 1x Thermal oil heater, oil fired - 10,0 bat Heating surface: 56,1 m² Year of manufacture: 2005 Manufacturer: Aalborg Boiler Production Gasvaerksvej 40 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
3x Plants each 400 V - 525 kVA 1x Plant 400 V - 1.260 kVA 1x Plant 400 V - 124 kVA |
|
Shaft generator |
1x 1.260 kVA |
|
Generators |
3x MAN 2840 LE 301 main diesel generatorsets each 525 kVA |
|
Emergency generator |
1x Diesel generatorset 124 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Bow thruster, forward |
|
Number of cargo tanks |
16 |
|
Cargo tanks capacity |
8.048 m³ |
|
Ballast capacity |
2.765,26 m³ |
|
Anchor equipment |
3x Anchors weight each 3.060 kg Chain length: 495,00 m Diameter: 50 mm |
|
Manager |
Carl F. Peters (GmbH & Co.) KG Kurze Mühren 13 20095 Hamburg Federal Republic of Germany |
|
Operator |
Eberhardt Shipping Company GmbH & Co KG Bargteheide Federal Republic of Germany |
|
Registered owner |
Tankreederei TMS "PAUL E." GmbH & Co. KG Kurze Mühren 13 20099 Hamburg Federal Republic of Germany |
|
Latest data adjustment |
24 March 2021 |
