Westerschelde 17 July 2014 |
|
Name |

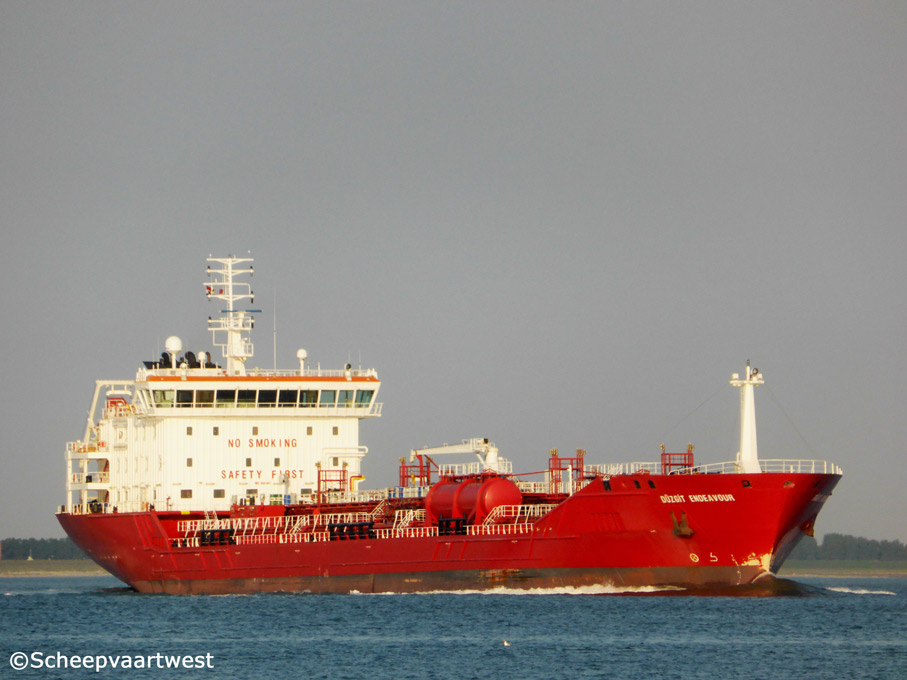

DÜZGIT ENDEAVOUR |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9581007 |
|
Call sign |
TCTW2 |
|
Flag |
Turkey |
|
Port of registry |
Istanbul |
|
GT |
10.276 t |
|
DWT |
Summer: 15.995 t |
|
NT |
5.238 t |
|
Light weight |
5.041 t |
|
Length |
156,10 m overall 147,18 m between perpendiculars |
|
Breadth |
21,70 m moulded |
|
Draught |
Summer: 8,62 m |
|
Keel to mast end |
37,51 m |
|
Air draft |
Summer: 28,25 m |
|
Freeboard |
2.500 mm |
|
Speed |
Service: 13,5 knots Economic: 13,0 knots |
|
Built |
2013 |
|
Date of completion |
24.09.2013 |
|
Builder |
Duzgit Yalova Shipbuilding Industry |
|
Yard number |
05 |
|
Hull material |
Steel |
|
Watertight compartments |
13 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 9L32-40 - 4 stroke 9 cylinder 320 x 400 mm diesel engine - 4.500 kW / 6.114 hp at 750 rpm Builder: STX Corporation |
|
Propellers |
1x Screw propeller controllable pitch - aft at 124 rpm |
|
Boilers |
2x CHO HTI gesab 104,00 m² - 7,0 bar |
|
Shaft generator |
1x 1.650 kVA - 1.400 kW |
|
Generators |
4x Main diesel generatorsets each 687 kVA - 550 kW - 842 hp at 1.800 rpm |
|
Emergency generator |
1x Diesel generatorset 250 kVA - 200 kW - 272 hp at 1.800 rpm |
|
Bow thruster |
1x 500 kW electric driven |
|
Number of cargo tanks |
15 |
|
Number of slop tanks |
2 |
|
Cargo capacity 98% |
17.717 m³ excluding slop 17.975 m³ including slop |
|
Cargo pumps |
Framo hydraulic drive deepwell pumps in all cargo tanks: 14x 300 m³/h each 1x 220 m³/h each 2x 70 m³/h each 1x 70 m³/h Portable pump |
|
Cargo rating |
Total discharging rate: 1800 m³/h Total loading rate: 1800 m³/h |
|
Ballast pumps |
2x Hydraulic driven centrifugal pumps each 550 m³/h |
|
Manifolds |
Distance bow to centre manifold: 73,05 m Distance stern to centre manifold: 81,95 m Inboard from ships side: 4,60 m Height above deck: 2,04 m Height above waterline (loaded): 4,91 m Height above waterline (in ballast): 7,18 m |
|
Fuel capacity |
754,3 m³ |
|
Lifting equipment |
1x Deck crane - SWL 5,0 t Outreach: 16,00 m |
|
Manager |
DSM Gemi |
|
Owner |
Duzgit Shipbuilding Industry |
|
Registered owner |
Duzgit Gemi INSAA SAN. AS |
|
Latest data adjustment |
18 February 2015 |
