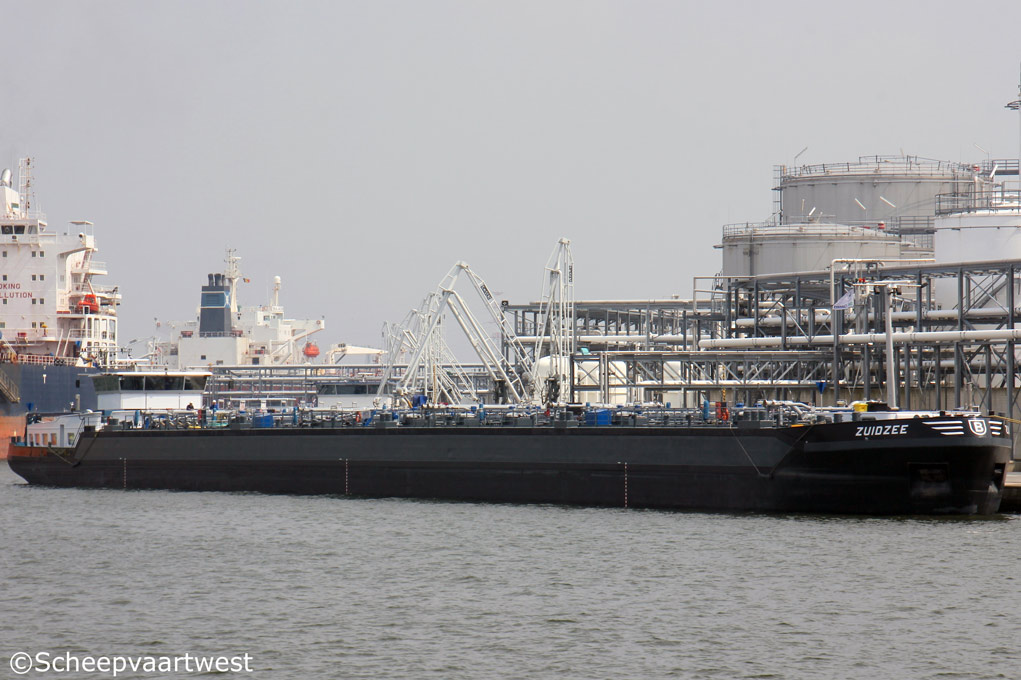

Zuidzee 02

Antwerpen 26 May 2016

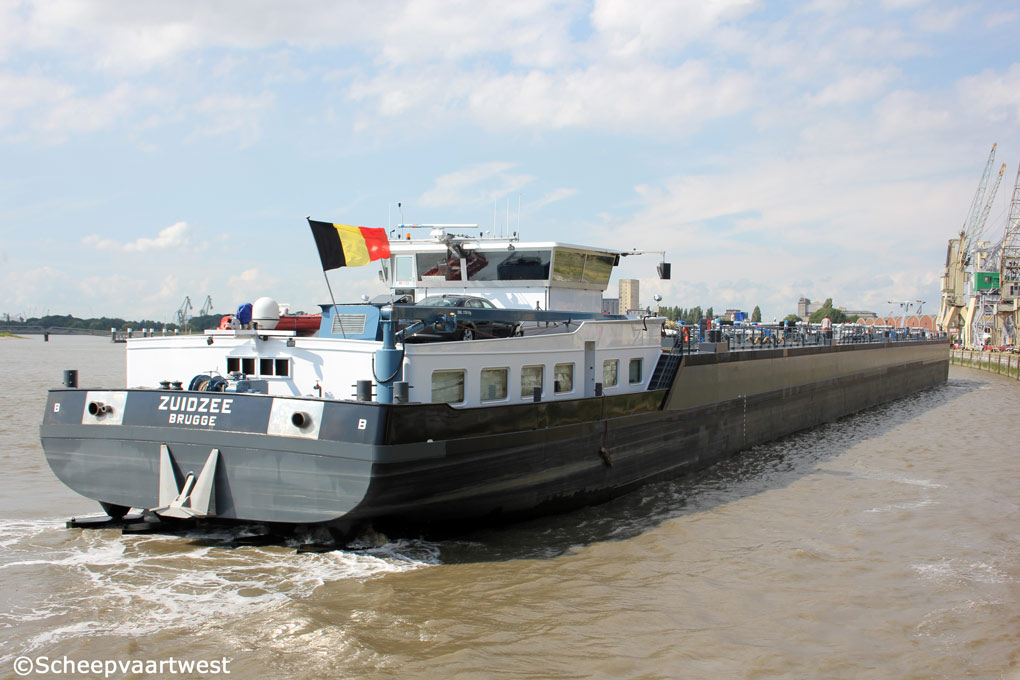

Zuidzee 01
Antwerpen 04/07/14


Name

ZUIDZEE

Type

Inland tanker

ENI-number

06004070

Call sign

OT2458

Flag

Belgium

Port of registry

Brugge

Tonnage

4.135 t

Length

135,00 m

Breadth

11,45 m

Draught

3,88 m

Depth

5,70 m

Built

2004

Builder casco

Santierul Naval Orsova SA
Orsova
Romania

Builder completion

Smits Machinefabriek en Scheepsreparatie B.V.
Krimpen a/d Lek
The Netherlands

Main engine

2x Caterpillar 3508 (B) DI-TA electronic each 745 kW / 1.014 hp at 1.600 rpm

Gearbox

2x ZF Marine ZF W5200, reduction 4,962:1

Propellers

2x Propellers diameter 1.700 mm with 2x Optima nozzle diameter 1.712 mm

Generators

1x Caterpillar 3412 DITA diesel engine coupled with Stamford HCM 534F generator

1x John Deere 6068 TF 258 diesel engine coupled with Stamford UCM 274E generator

1x John Deere 4045 TF 258 diesel engine coupled with Stamford 274C generator

Bow thruster

1x Caterpillar 3412E C - 644 hp at 1.800 rpm - Veth-Jet type 4-K-1300 with electric motor 450 kW

Number of tanks

14x wingtanks

Cargo tank capacity

100%: 5.064 m³

97%: 4.912 m³

95%: 4.811 m³

Pumps

14x Marflex Deepwell cargo pumps

1x Ballast pump 600 m³/h

Pump capacity

1.400 m³/h

Anchor equipment

1x Car crane - SWL 1.750 kg

Owner

Pascal en Yves Bauwens
Brugge
Belgium

Latest data adjustment

05 January 2015
