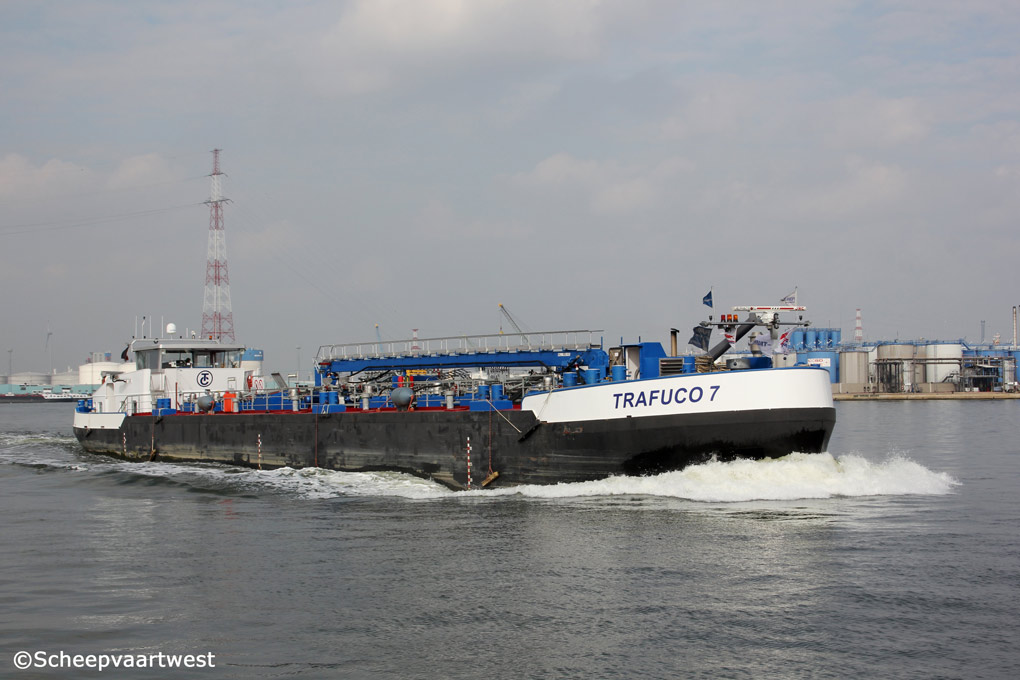

Trafuco 7 02

Antwerpen 03 October 2014

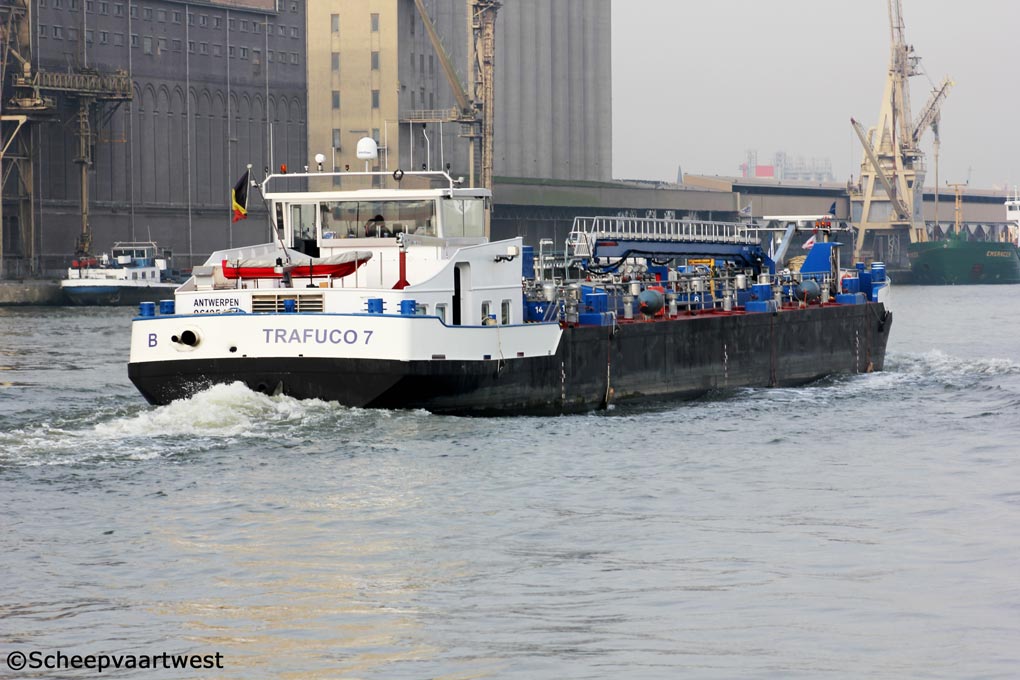

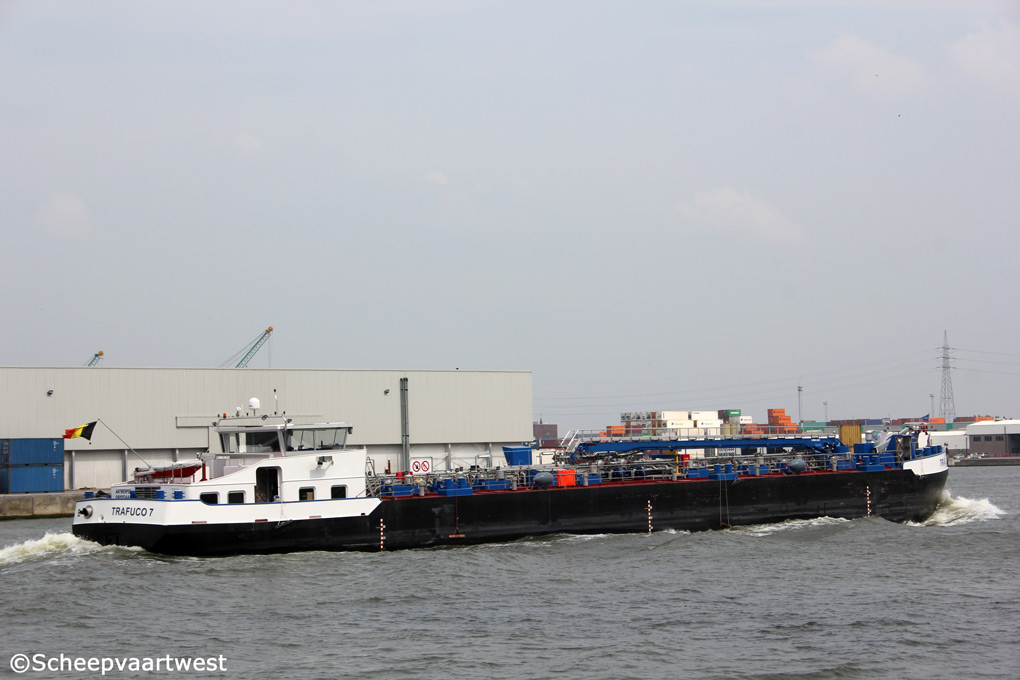

Trafuco 7 01   Trafuco 7 03
Antwerpen 03/10/14 Antwerpen 25/04/14


Name

TRAFUCO 7

Type

Lub oil inland tanker

ENI-number

06105444

Call sign

OT5238

Flag

Belgium

Port of registry

Antwerpen

GT

604 t

DWT

866 t

Length

60,00 m overall

58,45 m between perpendiculars

Breadth

8,18 m

Draught

3,00 m

Depth

4,20 m

Built

2014

Date of completion

19.02.2014

Builder casco

Shipyard Kladovo
Kladovo
Servië

Builder completion

De Groot marine service B.V.
Dordrecht
The Netherlands

Yard number

2013/009

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Cummins GSK 19 - 4 stroke 6 cylinder 159 x 159 mm diesel engine 560 kW / 761 hp at 1.800 rpm

Built: 25.02.2011

Builder: Cummins Belgium NV/SA

Propellers

1x Screw propeller solid- aft at 1.800 rpm

Boilers

1x CHO Heatmaster 23,00 m² - 10,0 bar

Generators

1x Cummins 4BT 3.9G4 diesel engine 79 hp coupled with Marathon 362 CSL 1604 generator 78 kVA - 62 kW

Bow thruster

1x John Deere - Ballegooy generatorset

Number of tanks

16

Total capacity of tanks

880,8 m³

Pumps

2x Kampers cargo pumps each 100 m³/h

1x Kampers 2C126/55LHI for lub oil products

1x Kampers 2C126/55LHE

Fuel capacity

27,33 m³

Manager

Trafuco nv
Molenberglei 6
2627 Schelle
Belgium

Owner

Trafuco 7 N.V.

Registered owner

Beltra-B N.V.

Sister ships

Trafuco 6

Latest data adjustment

01 January 2014
