Vlissingen 25 February 2012 |
 |
| Westerschelde 11/06/20 |
|
Name |

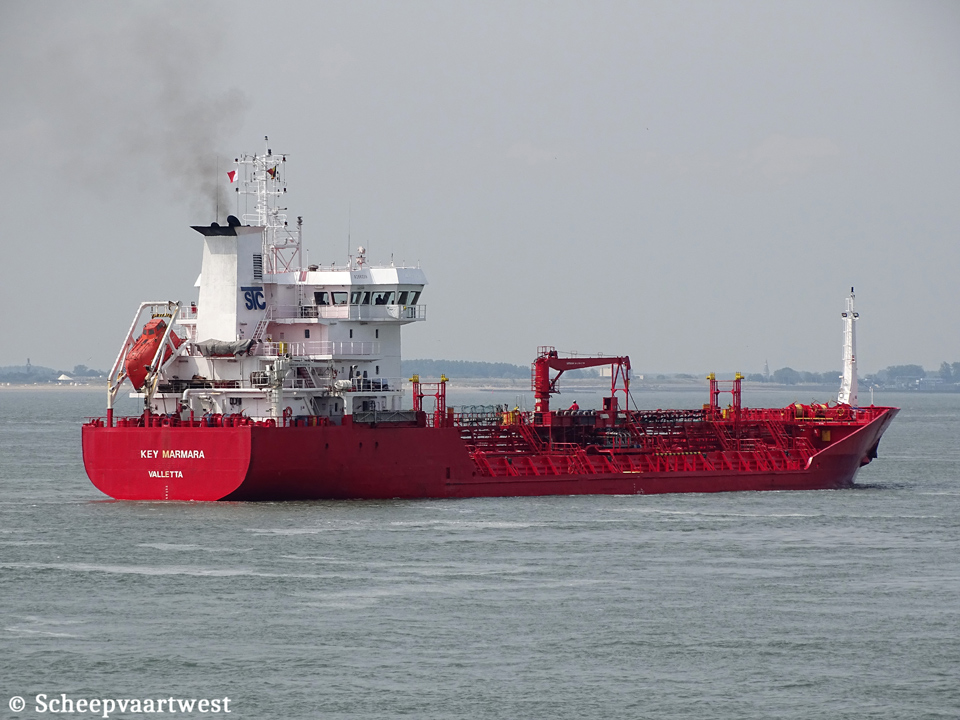

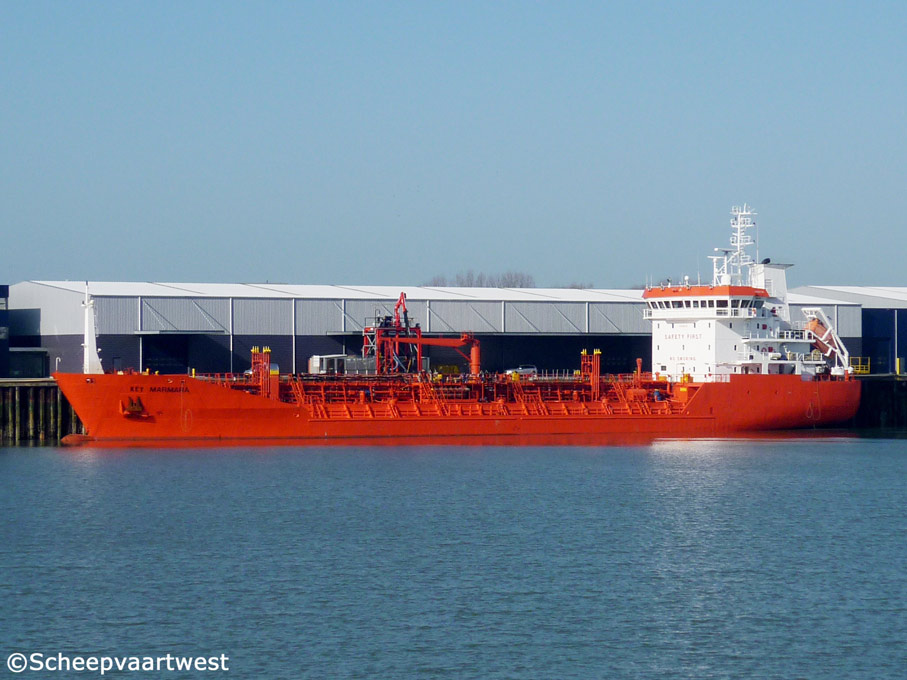

KEY MARMARA |
|
Previous names |
2003 - 10/2005 Burce S 10/2005 - 01/2012 Trans Marmara |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9268239 |
|
Call sign |
9HA2567 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
2003 - 2010 Norway - Call sign: LAFS6 |
|
GT |
3.853 t |
|
DWT |
Summer: 5.824,70 t |
|
NT |
1.776 t |
|
Length |
105,50 m overall 98,41 m between perpendiculars |
|
Breadth |
16,83 m extreme |
|
Draught |
6,20 m |
|
Freeboard |
1.210 mm |
|
Depth |
7,40 m |
|
Speed |
Max.: 13,5 knots Service: 11,0 knots |
|
Built |
2003 |
|
Keel laid |
01/03/2002 |
|
Launch date |
03/05/2003 |
|
Date of completion |
16/07/2003 |
|
Builder |
Sahin Celik Sanayi A.S. shipyard (Sahin Celik Tersanesi San. Ve Tic. A.S.) Istanbul Turkey |
|
Yard number |
026 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Number of decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.400 kW / 3.261 hp at 750 rpm Build: 2002 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 159 rpm |
|
Boilers |
1x Thermal oil heater, exhaust heated - CHS Garioni 21.00 m² / 10,0 bar 2x Thermal oil heater, oil fired - CHO Garioni 47.30 m² / 10,0 bazr 1x Thermal oil heater, steam heated (Steam generator) - CHR Garioni 70.50 m² /10,0 bar |
|
Generators |
2x MAN D2842 LE main diesel generatorsets each 625 kVA - 500 kW - 723 hp Builder: MAN Truck & Bus AG - GE Motoren-Nürnberg - Germany |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 231 hp |
|
Bow thruster |
1x 300 kW |
|
Cargo tank capacity 98% |
6.118,4 m³ excluding slop tanks |
|
Slop tanks capacity 98% |
161,1 m³ |
|
Pumps |
11x Deepwell cargo pumps each 150 m³/h |
|
Manifolds |
Distance from centre of manifolds to stern: 57,00 m Distance from centre of manifolds to bow: 48,00 m |
|
Tank capacities |
Ballast: 2.342,72 m³ Fuel: 272 m³ |
|
Crew size |
19 |
|
Crew |
14 |
|
Manager |
Fjord Shipping AS Managent Company InterCom Terminalen Måløy Norway |
|
Previous managers |
2003 - 2011 Seatrans AS |
|
Operator |
Fjord Shipping AS |
|
Registered owner |
Freyja AS Care of Fjord Shipping AS InterCom Terminalen Måløy Norway |
|
Previous shipping companies |
2003 - 2005 Seatrans AS 2005 - 2005 Trans Sea-Norway 2005 - 2006 Euro Trans Skips AS 2006 - 2009 Western Chemical KS 2009 - 2010 Euro Trans Skips AS 2010 - 2011 Western Chemical KS |
|
Latest data adjustment |
01 January 2021 |
