Westerschelde 11 October 2014 |
 |
| Antwerpen 07/10/14 |
|
Name |

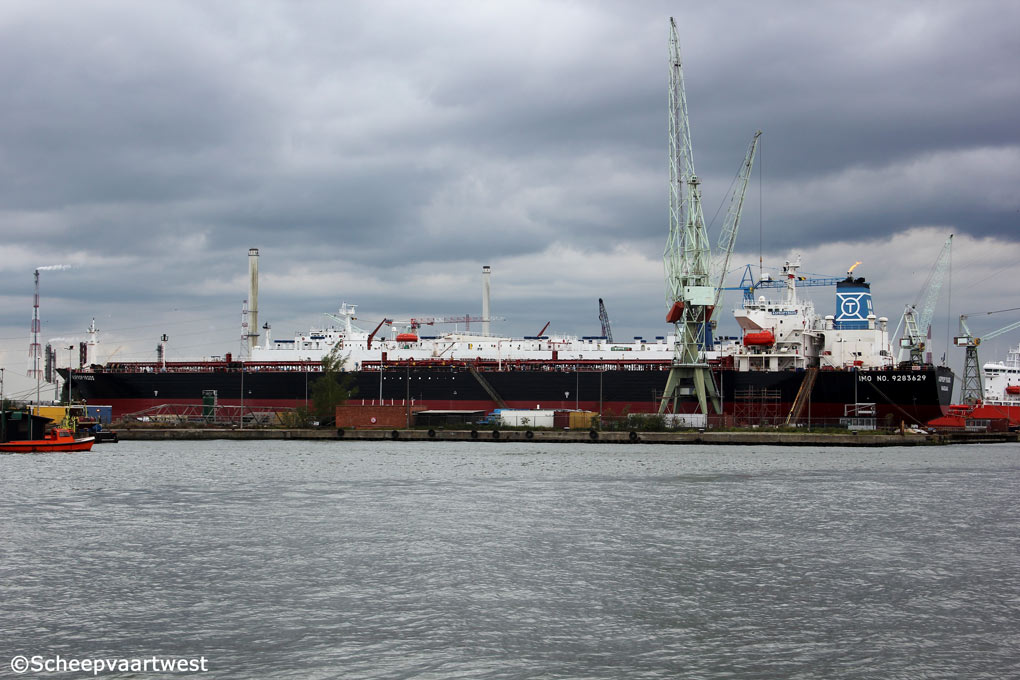

ASPROPYRGOS |
|
Previous names |
2004 - 01.2009 Aspropyrgos 01.2009 - 10.2014 Stena Callas |
|
Type |
Tanker for oil |
|
IMO-number |
9283629 |
|
Call sign |
C6TM9 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
40.690 t registered |
|
DWT |
Summer: 72.825 t |
|
NT |
21.232 t registered Suez: 37.480,80 t Panama: 33.360,00 t |
|
Length |
228,60 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,01 m |
|
Moulded L x B x D |
218,60 x 32,26 x 20,20 m |
|
Registered L x B x D |
221,03 x 32,26 x 20,20 m |
|
Keel to top of mast |
45,52 m |
|
Bridge to bow |
189,40 m |
|
Bridge to stern |
39,60 m |
|
Freeboard |
Summer: 6.214 mm |
|
Depth |
20,20 m moulded |
|
Speed |
Loaded: 15,0 knots ballast 15,5 knots |
|
Built |
2004 |
|
Keel laid |
13.11.2003 |
|
Launch date |
18.03.2004 |
|
Date of completion |
31.08.2004 |
|
Builder |
Hudong Zhonghua Shipbuilding Group Co. Ltd. |
|
Yard number |
H1300A |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHM MAN B&W 6S60MC - 2 stroke single acting 6 cylinder 600 x 2.292 mm diesel engine 11.500 kW at 105,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 552 mm |
|
Propellers |
1x Solid pitch -Single right hand Diameter: 6.810 mm |
|
Boilers |
2x Auxiliary vertical boilers - 18,0 bar Evaporation: 23,00 t/h 1x Auxiliary vertical boilers - 9,0 bar Evaporation: 2,70 t/h Manufacturer: Aalborg Industries Limited |
|
Generators |
3x Main diesel generatorsets each 788 kW at 900 rpm |
|
Emergency generator |
1x Diesel generatorset 257 kW at 1.800 rpm |
|
Number of tanks 100% |
1 P: 5.200,00 m³ 1 S: 5.225,00 m³ 2 P: 6.951,50 m³ 2 S: 6.984,80 m³ 3 P: 7.037,50 m³ 3 S: 7.063,20 m³ 4 P: 7.030,20 m³ 4 S: 7.063,20 m³ 5 P: 7.037,50 m³ 5 S: 7.063,20 m³ 6 P/S 6.792,60 m³ SL P: 1.372,40 m³ SL S: 1.405,30 m³ |
|
Total tank capacity 100% |
Liquid: 83.019 m³ |
|
Pumping capacity |
3x Cargo oil pump (Shinko) KV400 each 2.000 m³ 1x Vacuum unit (Shinko) Aus400-3 1x Stripping pump (Shinko) KPH-2001- 200 m³ 1x Stripping eductor (Koerting) 631240B1 - 360 m³ 2x Ballast pumps (Shinko) CLV352 each 1.200 m³ 1x Ballast vacuum eductor (Koerting) - 110 m³ |
|
Load & discharge rates |
Max. loading per Tank:1.858 m³/h Max. loading Rate:7.500 m³/h Discharge Capacity:6.000 m³/h |
|
Manifolds |
Manifold to bow: 116,00 m Manifold Height fm deck: 2,02 m Bridge to mid. manifold: 74,60 m Stern to mid. manifold: 112,60 m |
|
Manifolds connections |
Cargo: 4x 16 inch Fuel Oil: 2x 8 inch Diesel Oil: 2x 6 inch |
|
Tank capacities |
Fuel oil: 2.907 m³ Fresh water: 428 m² Water ballast: 28.676 m³ |
|
Anchor equipment |
2x 10.500 KG each- 78 mm cable diameter |
|
Lifting equipment |
1x Hose handling crane - SWL 15,0 t 1x Gantry (stores) crane - SWL 3,0 t |
|
Manager |
Paradise Navigation 125-127 Kifissias Av |
|
Registered owner |
Aspropyrgos Maritime Ltd. |
|
Latest data adjustment |
07 December 2014 |
