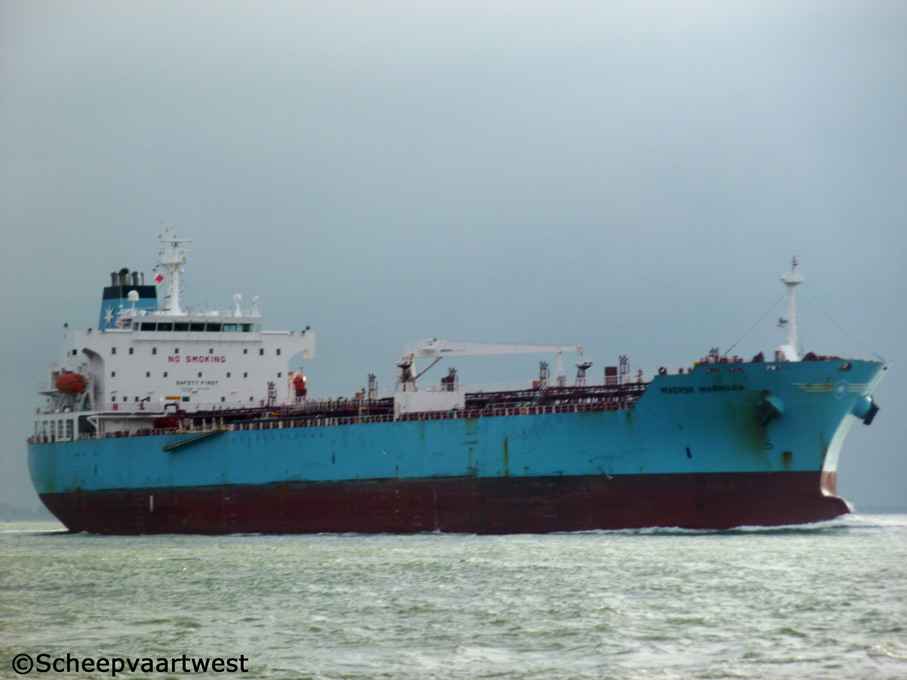

Maersk Marmara 01

Westerschelde 15 October 2013

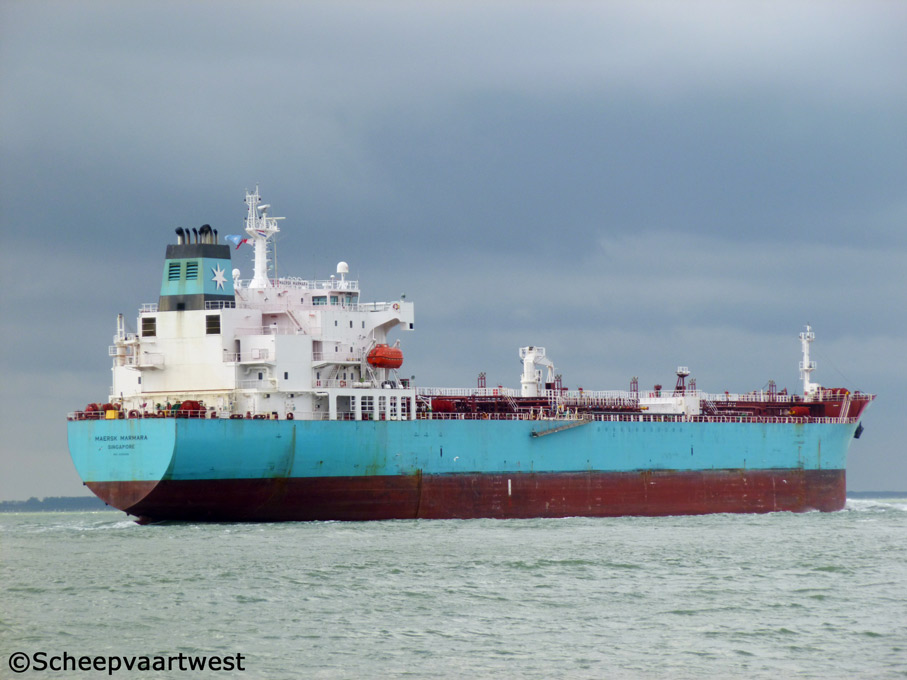

Maersk Marmara 02
Westerschelde 15/10/13


Name

MAERSK MARMARA

Previous names

2006 - 11.2011 Gan Sure - Bahamas, Nassau - Call sing: C6VL8

Type

Oil tanker / Chemical tanker

IMO-number

9315056

Call sign

9V9266

Flag

Republic of Singapore

Port of registry

Singapore City

GT

30.127 t registered

DWT

Summer: 51.182 t

NT

13.648 t registered

Suez: 26.369,02 t

Length

183,00 m overall

173,90 m between perpendiculars

Breadth

32,23 m moulded

Draught

13,14 m

Freeboard

5.963 mm

Depth

19,10 m moulded

Speed

14,7 knots

Built

2006

Keel laid

27.06.2006

Launch date

16.09.2006

Date of completion

17.11.2006

Builder

STX Shipbuilding Busan Co., Ltd.
Pusan
South Korea

Yard number

1188

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Water tight: 5

Gas tight: 5

Oil tight: 7

Main engine

1x MAN-B&W/STX 6S50MC-C(MK7) - 2 stroke 6 cylinder 500 x 2.000 mm diesel engine - 9.480 kW / 12.900 hp at 127,0 rpm

Manufacturer: STX Engine Co., Ltd.

Propellers

1x Fixed pitch propeller

Boilers

1x Fired exhaust gas boiler

1x Fired boiler

Generators

3x Main diesel generatorsets each 910 kW

Number of cargo tanks

14

Cargo tank capacity

54.626 m³ / 53.533,48 t

Number of slop tanks

1

Number of tanks

Fuel oil: 16

Ballast: 10

Lubricating oil: 9

Fresh water: 3

Chain: 2

Waste water: 2

Sea water: 1

Sludge: 1

Tank capacities

Freshwater: 401,6 m³

Fuel oil: 1.586,2 m³ / 1.516,84 t

Lube oil: 116,5 m³ / 104,85 t

Tank Ballast: 24.157 m³ / 24.760,92 t

Lifting equipment

1x Bosun store davit

1x Cargo hose handling crane

1x Engine room crane

2x Oil hose davit port - SWL 0,5 t

1x Provisions crane - SWM 3,0 t

Manager

Maersk Tankers Singapore Pte Ltd.
3 Harbourfront Place

#12-01 Harbourfront Tower 2

Singapore
Republic of Singapore

Operator

Maersk Tankers A/S

Registered owner

Maersk Tankers Singapore Pte Ltd.

Latest data adjustment

27 October 2014
