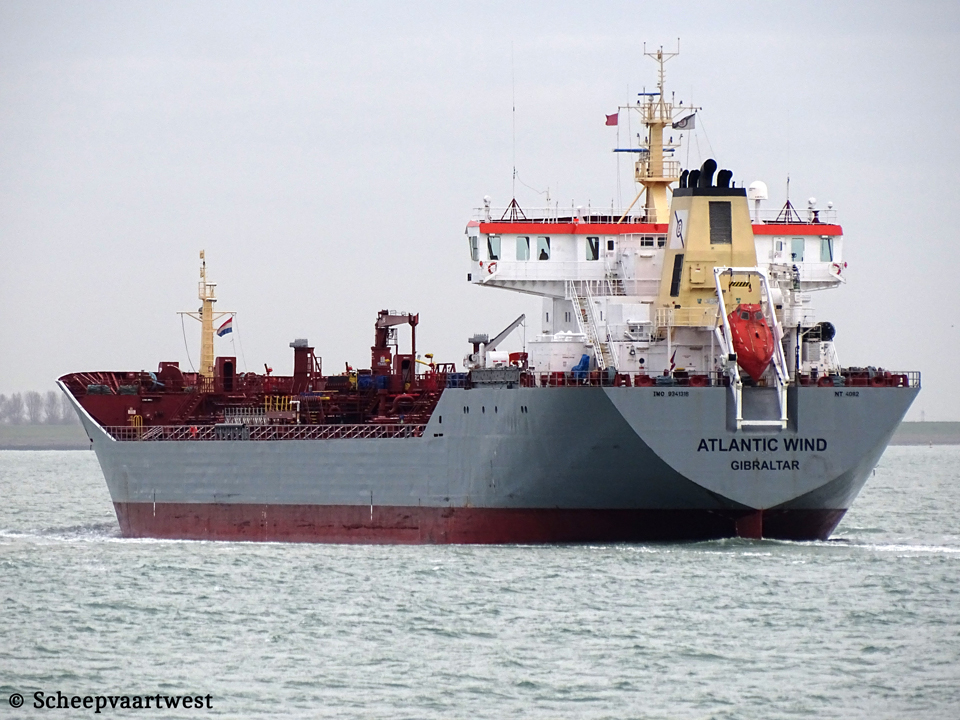

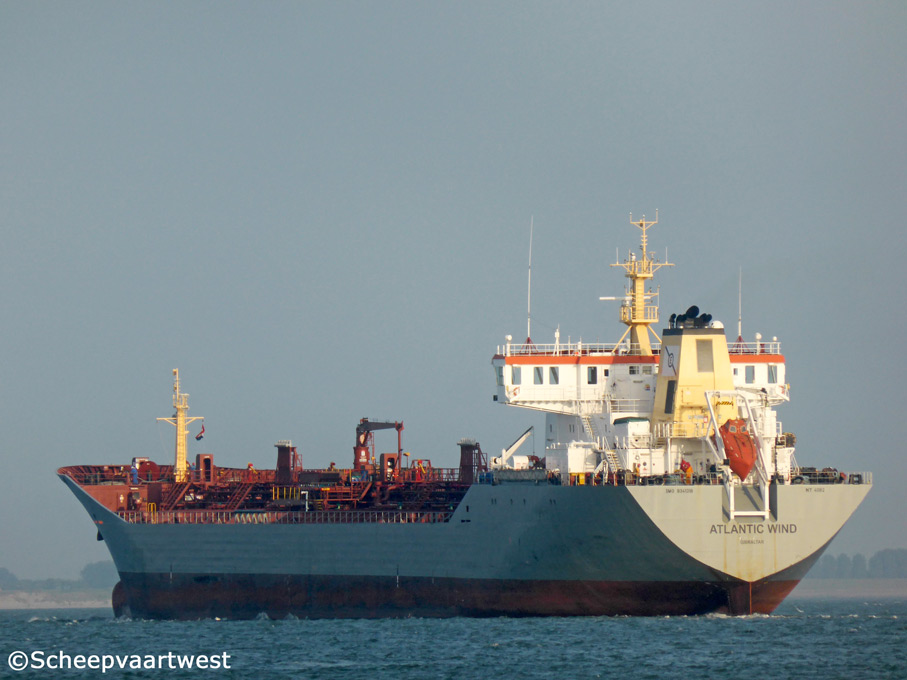

Westerschelde 27 April 2015 |
 |
 |
 |
 |
 |
 |
|||||

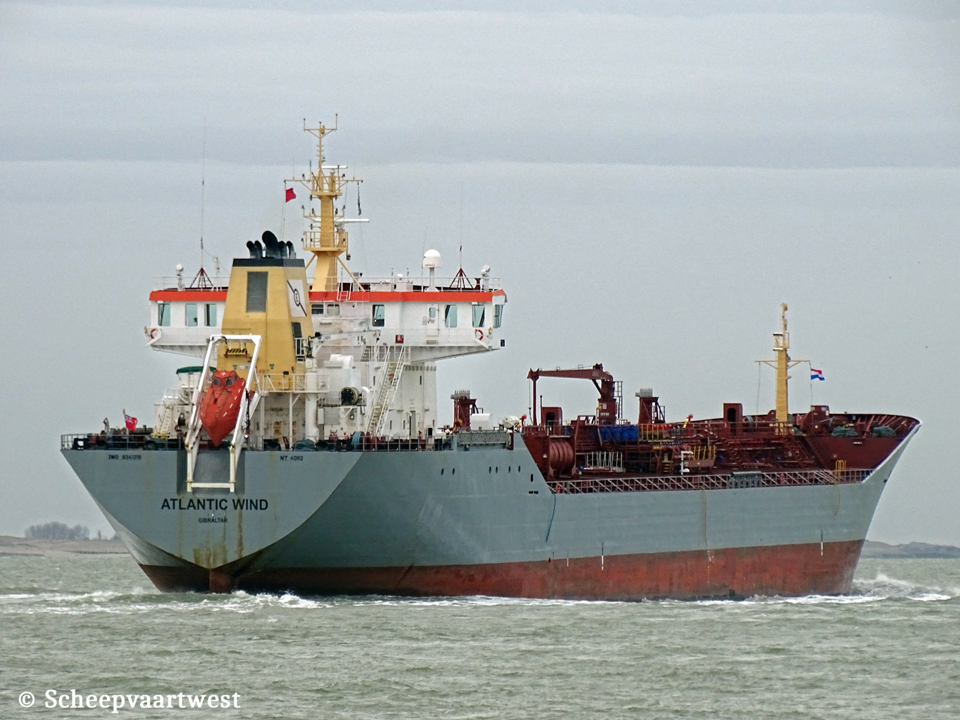

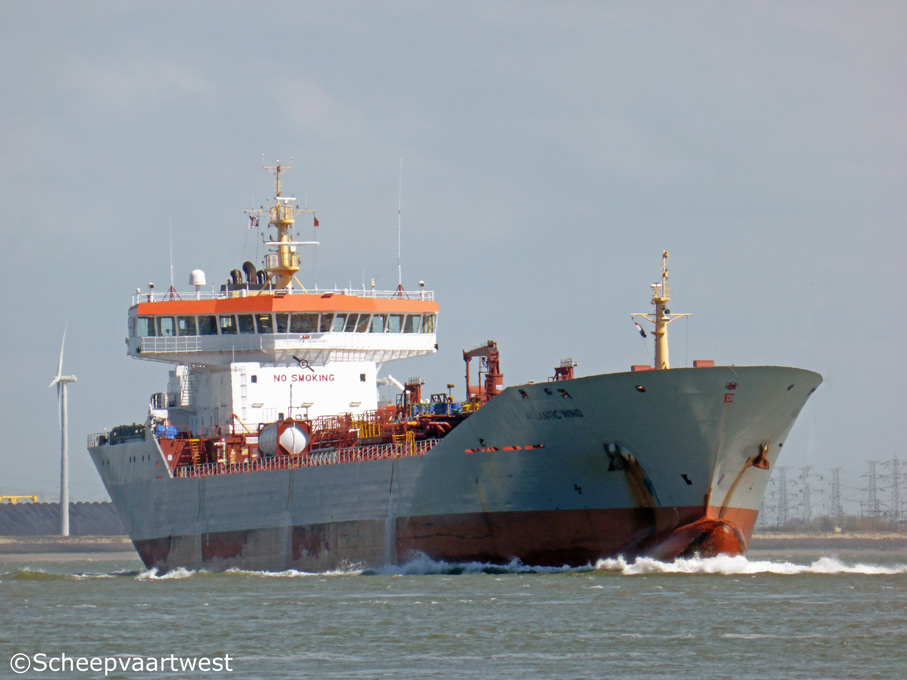

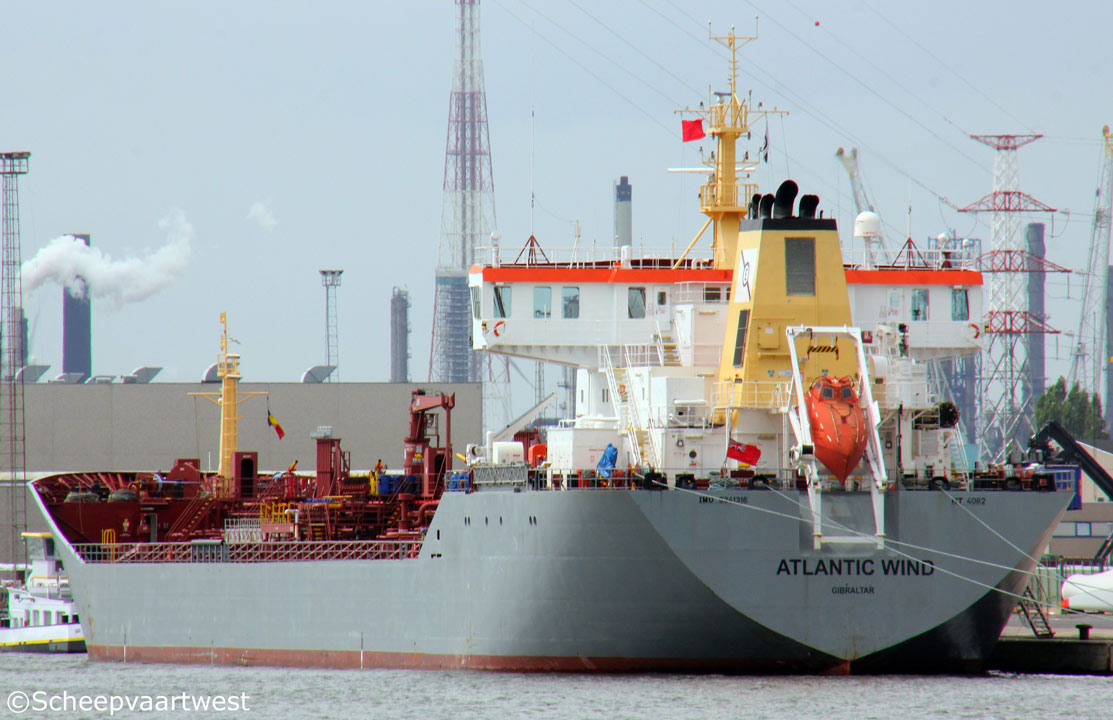

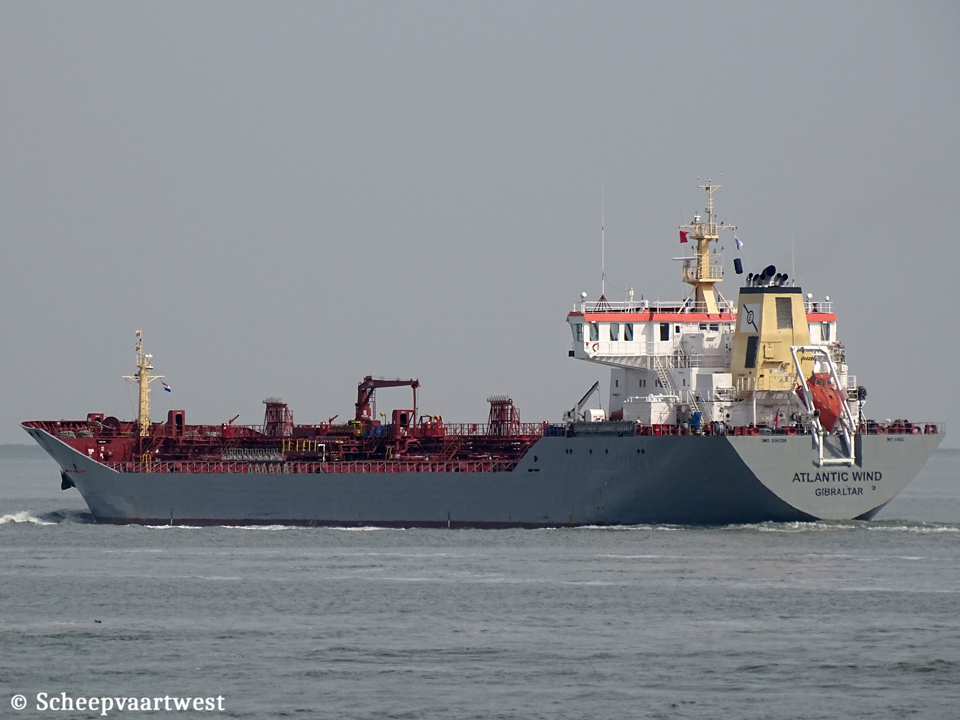

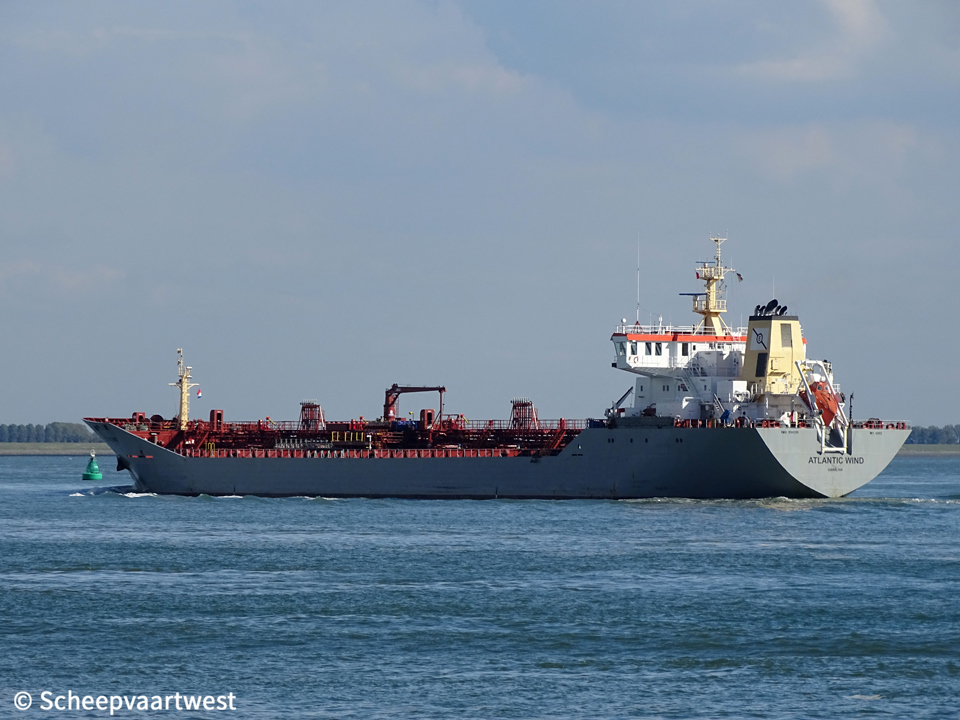

| Westerschelde 13/09/14 | Antwerpen 27/07/17 | Westerschelde 25/09/18 | Westerschelde 08/05/20 | Westerschelde 01/02/20 | Westerschelde 07/12/19 | |||||
 |
 |
|||||||||

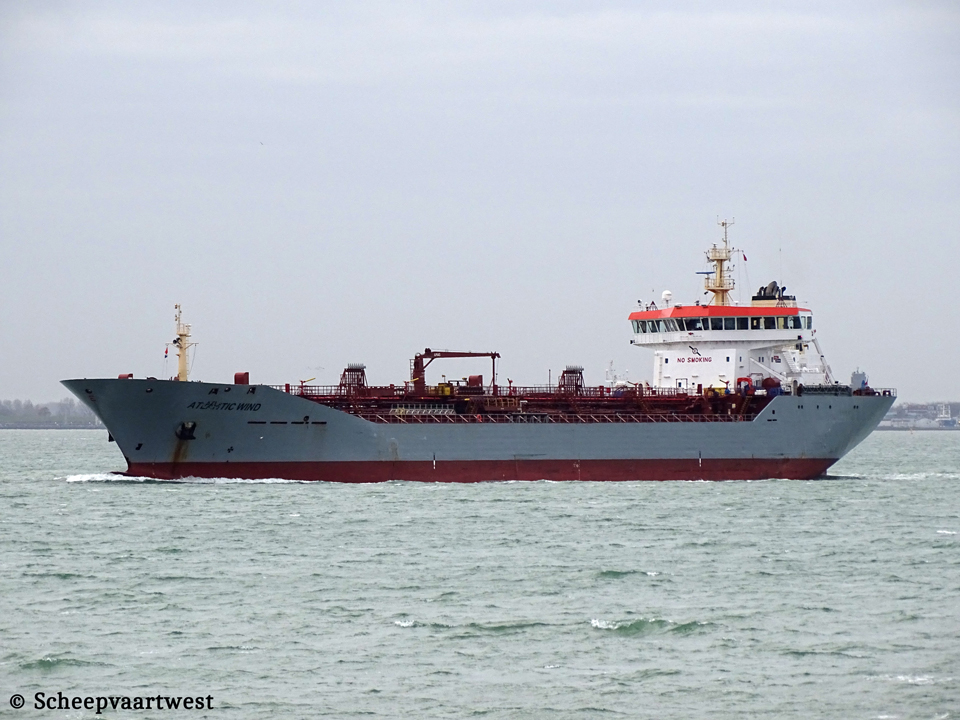

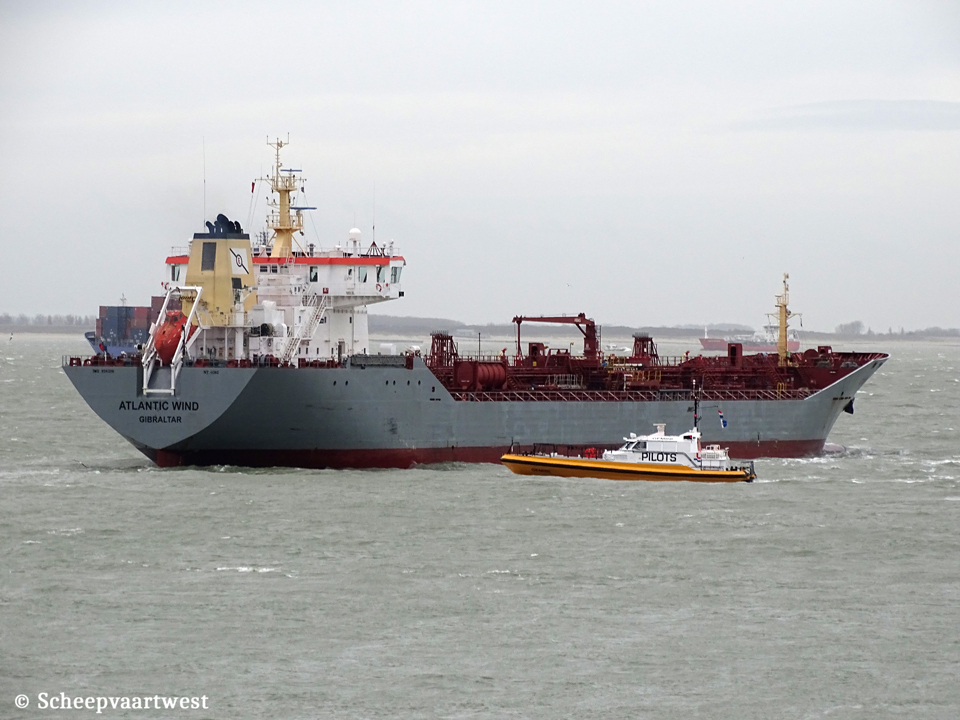

| Westerschelde 07/12/19 | Westerschelde 03/01/16 | |||||||||
|
Name |
ATLANTIC WIND |
|
Previous names |
2007 - 10/2010 Marida Boreas 10/2010 - 05/2013 Ternen |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9341316 |
|
Call sign |
ZDNM4 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
Norway - Call sign: LAEX7 2011 - 2012 Republic of Panama, Panama City - Call sign: 3FSK6 |
|
GT |
10.549 t |
|
DWT |
Summer: 15.019 t |
|
NT |
4.082 t |
|
Length |
149,60 m overall 139,25 m between perpendiculars 141,07 m registered |
|
Breadth |
22,00 m extreme |
|
Draught |
8,50 m |
|
Keel to mast end |
36,80 m |
|
Depth |
12,95 m moulded |
|
Speed |
15,0 knots |
|
Built |
2007 |
|
Keel laid |
26/08/2005 |
|
Launch date |
20/07/2006 |
|
Date of completion |
18/05/2007 |
|
Builder hull |
STX Ro Offshore Braila S.A. Strada Celulozei 1a Braila Romania Yard number: 1090 |
|
Builder completion |
Aker Yards AS Brevik Brevik Norway Yard number: 50 |
|
Hull material |
Steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L40/45- 4 stroke 8 cylinder 400 x 540 mm combustion engine 5.760 kW / 7.830 hp at 550 rpm Year of manufacture: 2005 Manufacturer: MAN B&W Diesel GmbH Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 106,0 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 42,7 m² 2x Thermal oil heater, oil fired - 10,0 bar Heating surface: 40,7 m² Year of manufacture: 2005 Manufacturer: Garioni Naval S.p.A. Viale dei Caduti, 3 25030 Castelmella Italy |
|
Electric installations |
3x Plants each 450 V - 950 kVA 1x Plant 450 V - 1.875 kVA |
|
Shaft generator |
1x 1.875 kVA |
|
Generators |
3x Wärtsilä W6L20 main diesel generatorsets each 950 kVA |
|
Compressed air receivers |
2x Receivers each 710 litres - 33,0 bar 1x Receiver 5 litres - 30,0 bar 1x Receiver 10.000 litres - 13,0 bar 2x Receivers each 350 litres - 11,0 bar |
|
Bow thruster |
1x Bow thruster 750 kW, forward |
|
Number of tanks |
16 |
|
Cargo tank capacity |
17.904 m³ |
|
Number of pumps |
14x Cargo pumps each 350 m³/h |
|
Tank capacities |
Ballast: 9.018,34 m³ |
|
Anchor equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m Diameter: 54 mm |
|
ISM & commercial manager |
Carl F. Peters (GmbH & Co.) KG Kurze Mühren 13 20095 Hamburg Federal Republic of Germany |
|
Registered owner |
Reederei TMS "ATLANTIC WIND" GmbH & Co. KG Carl F. Peters (GmbH & Co.) KG Kurze Mühren 13 20095 Hamburg Federal Republic of Germany |
|
Latest data adjustment |
11 August 2022 |
